Category: Carton Sealers Belt Drive: 2 Top/2 Bot Belt Drive

AT4E-L Stainless

Up to 8 cartons/min.

Fully Automatic Fully Automatic
Uniform Cartons Uniform Cartons
4-Edge Seal 4-Edge Seal
110 Volts 60 Hz POWER
REQUIREMENTS
80 PSI
10 SCFM
AIR
REQUIREMENTS
1,550 LBS SHIPPING
WEIGHT
Description / Specifications/ Accessories/

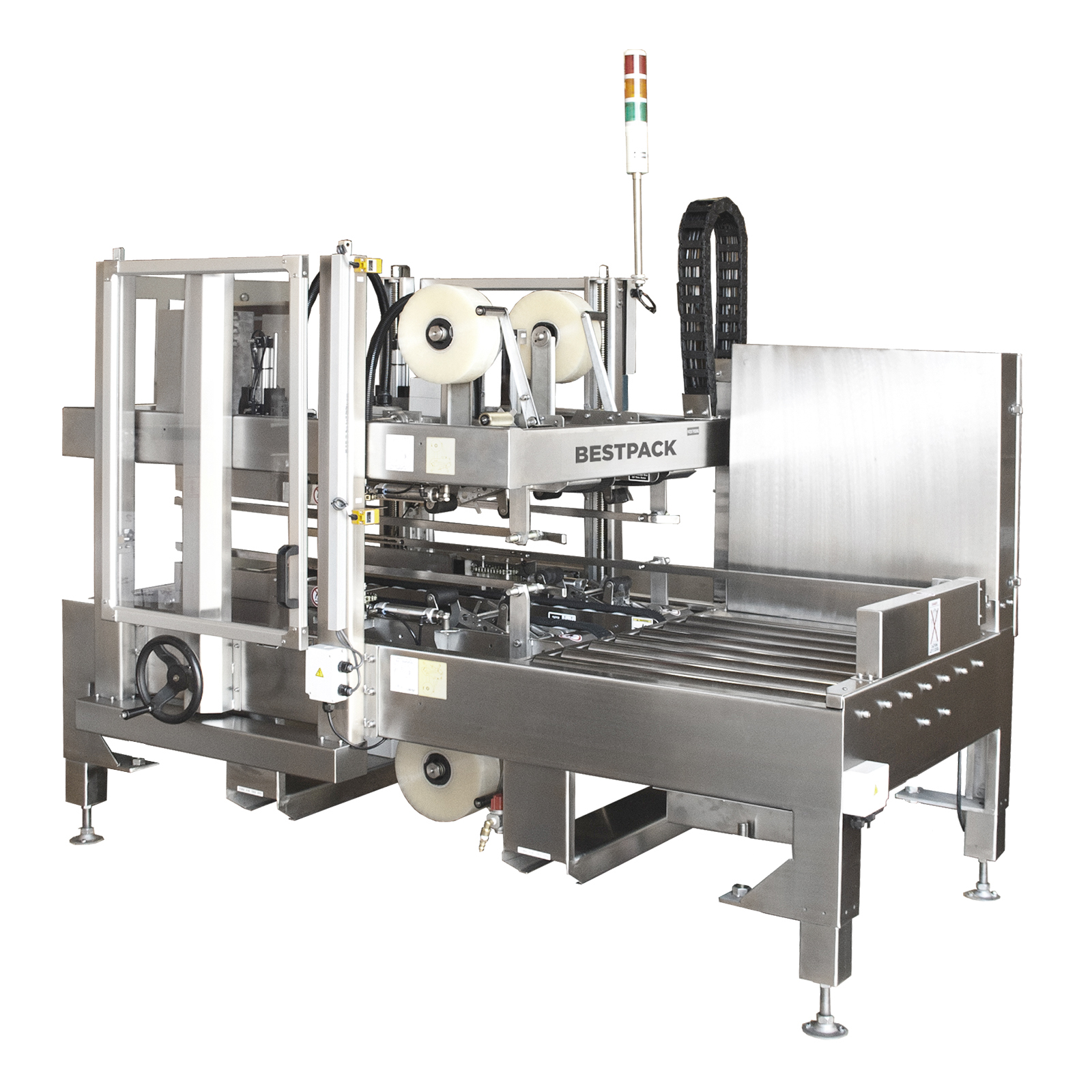

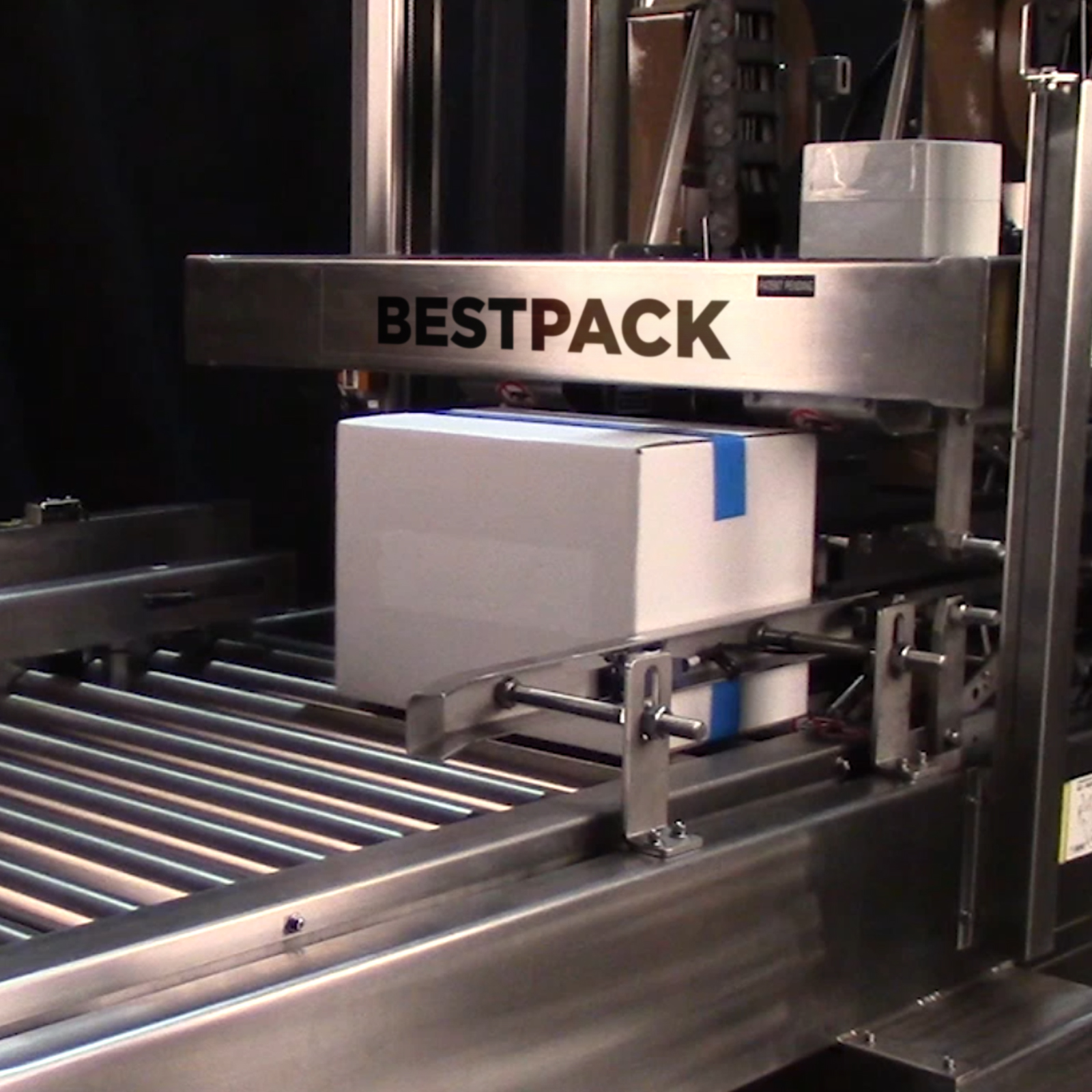

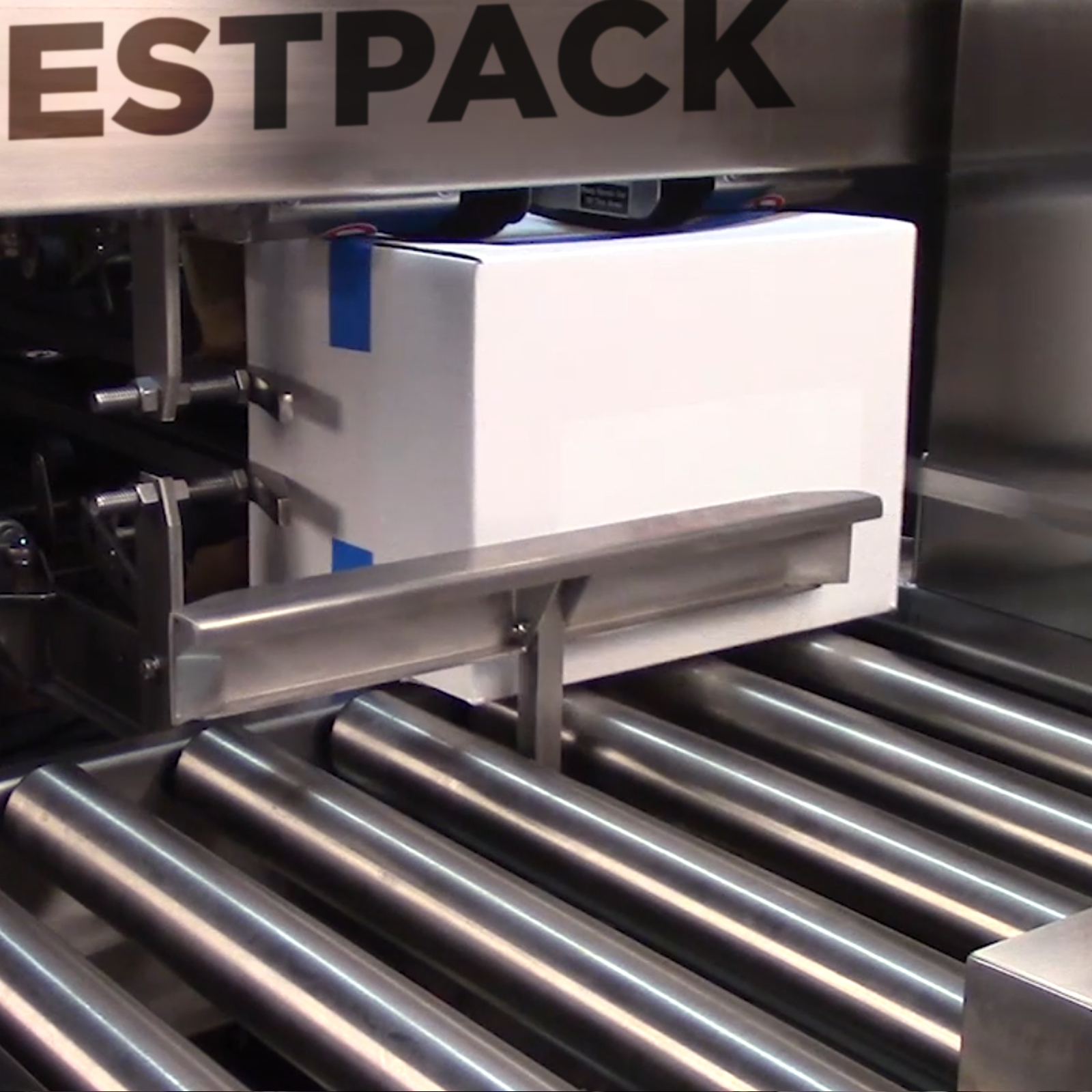

The BestPack AT4E Stainless Steel Series is an operator free, four outer edge carton sealer with corner seals, using pressure sensitive tape. These carton sealers are designed to eliminate costly hand taping of the four outer edges where pilfer proofing and protection of your product from outside environment is necessary. The AT4E Stainless Steel model is designed for uniform edge sealing applications where there is a wet environment. The units are designed with an automatic front side feed 90 degree box turn.

All BestPack stainless steel sealers are made with food grade 304 stainless steel and include 304 High Speed stainless steel tape heads. Units are available for either splash resistant or wash-down applications.This unit is also available in standard finish. Standard 3″ Tape Head.

  • Speed Up to 8 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 80 PSI, 10 SCFM
  • Shipping Weight 1,550 lbs
  • Machine Dimensions (78.9") x (48.5") x (63.0")
  • Carton Range (10.3" - 23.5") x (9.8" - 23.5") x (9.8" - 23.5")
  • Conveyor Height adjustment Determined at the time of order
  • Specifications based on Line Specifications based on AT4EL22-3S

Specifications based on AT4EL22-3S

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • stainless locking casters accessory
    Stainless Locking Casters

    The heavy duty stainless locking casters allow you to move a carton sealer around.

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
