Category: Indexers

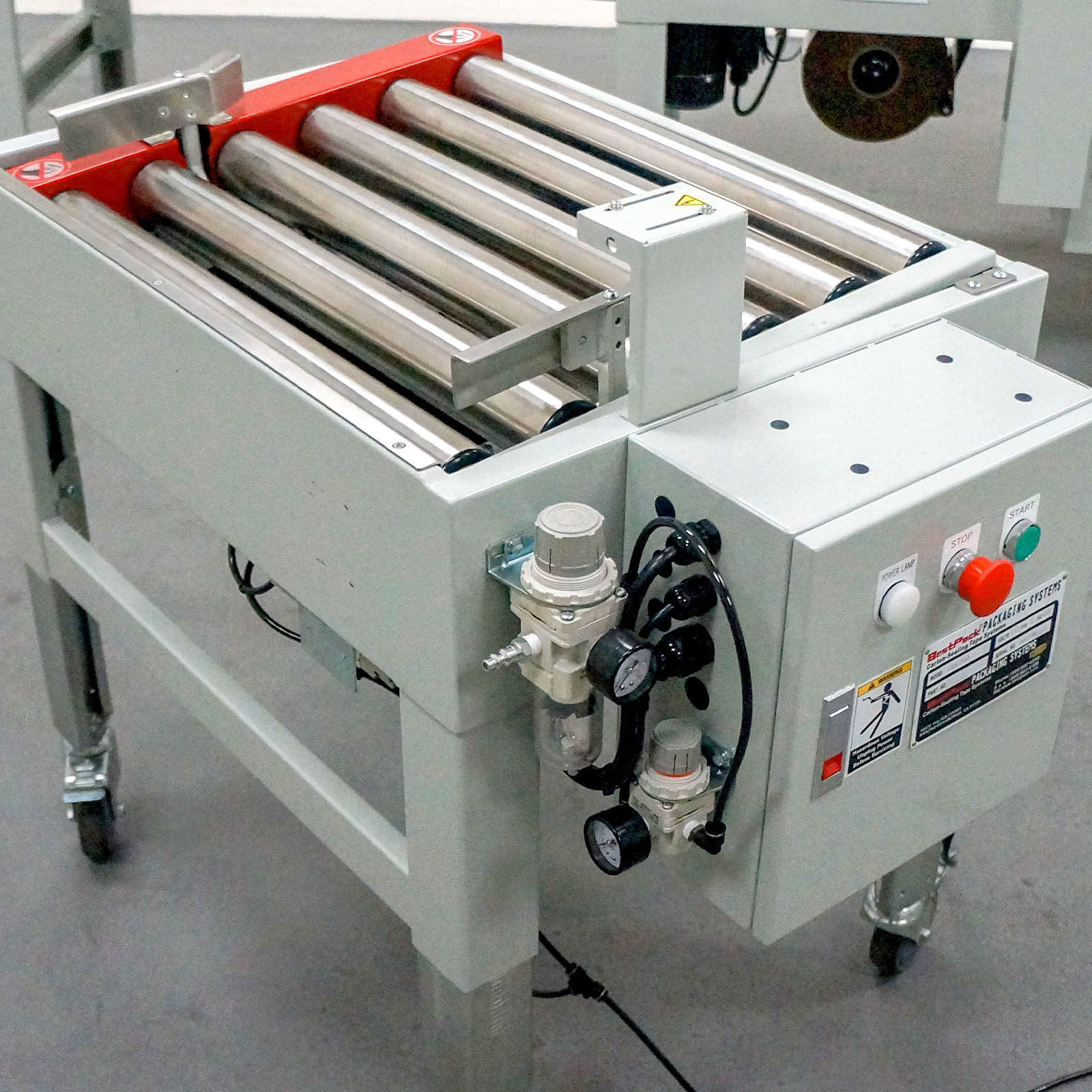

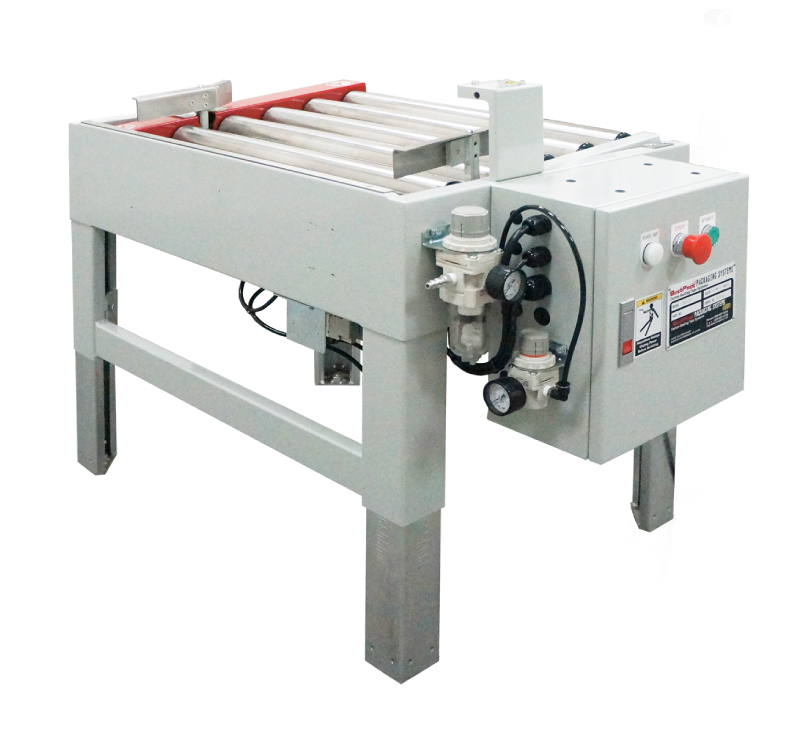

CRX

Up to 10 Cartons/min.

Fully Automatic Fully Automatic
Random Cartons Random Cartons
Indexing Indexing
110 VOLTS
60 HZ
POWER
REQUIREMENTS
90 PSI
5 SCFM
AIR
REQUIREMENTS
260 LBS SHIPPING
WEIGHT
Description / Specifications/ Features/ Accessories/

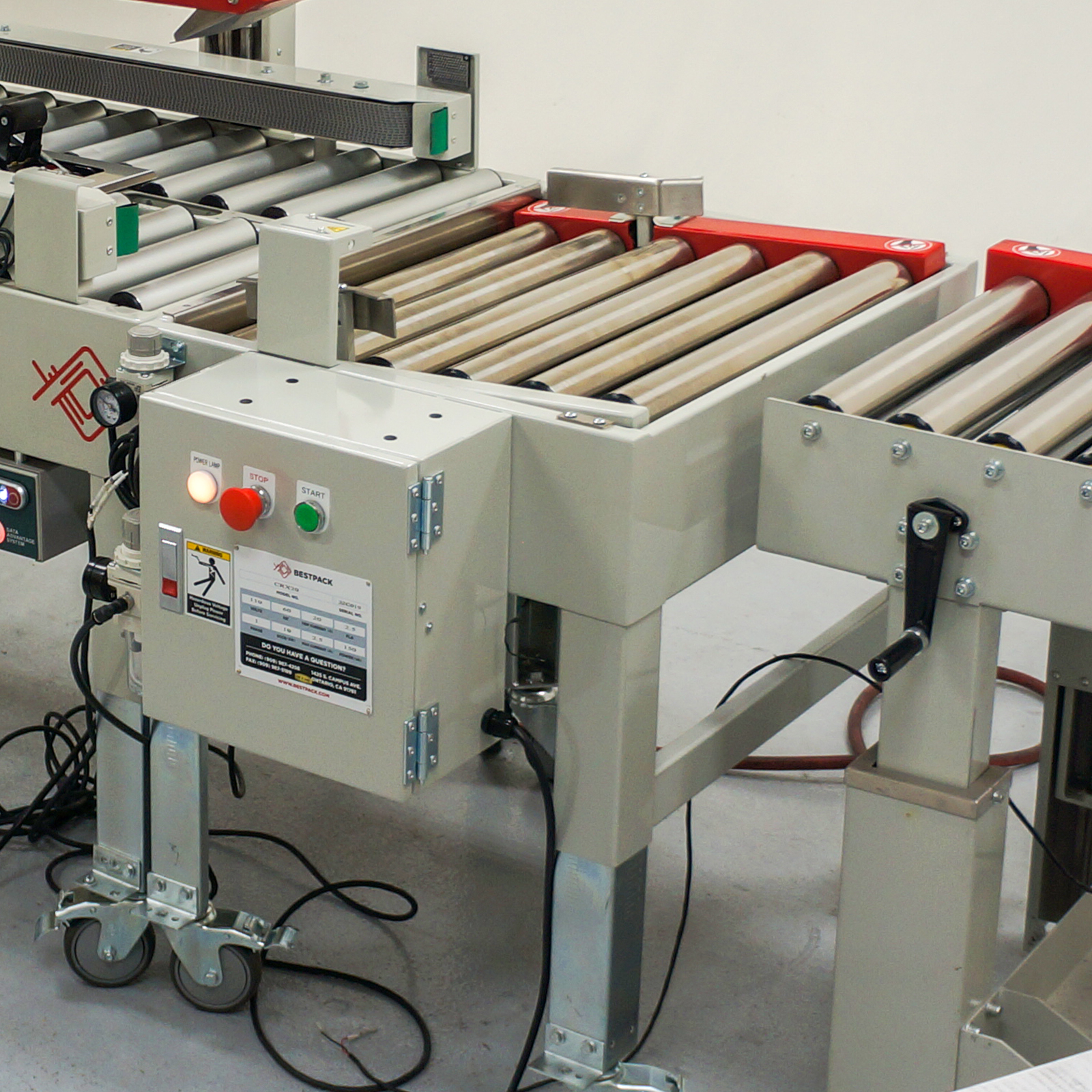

The CRX is a center and timing unit that is intended to function in front of modified RS or RQ Top and Bottom Semi-Automatic Random Carton Sealers. Combining the CRX and the modified RS or RQ Sealer, these two units will then function as a fully automatic random carton sealing system. The CRX automatically centers and times a carton into the modified Semi-Automatic Random Sealer thereby allowing the sealer to function as a Fully Automatic Carton Sealer. This application requires the top flaps to have been already closed and tabbed closed by either a label or a small piece of tape before being completely sealed top and bottom by the random sealer. The two units cost much less than a standard fully automatic random sealer and has a smaller footprint where space may be an issue.

All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 10 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 90 PSI, 5 SCFM
  • Shipping Weight 260 lbs
  • Machine Dimensions (39.5") x (22.5") x (25.0")
  • Carton Range (9.0" - 30.0") x (6.3" - 20.0") x (4.0" - 21.0")
  • Trip Current (A) 20
  • FLA 2.5
  • Conveyor Height adjustment (20.5" - 30.0")
  • Phase 1
  • SCCR (KA) 10
  • Max Current (A) 2.5
  • Power (W) 275
  • Specifications based on Line Specifications based on CRX20H

Specifications based on CRX20H

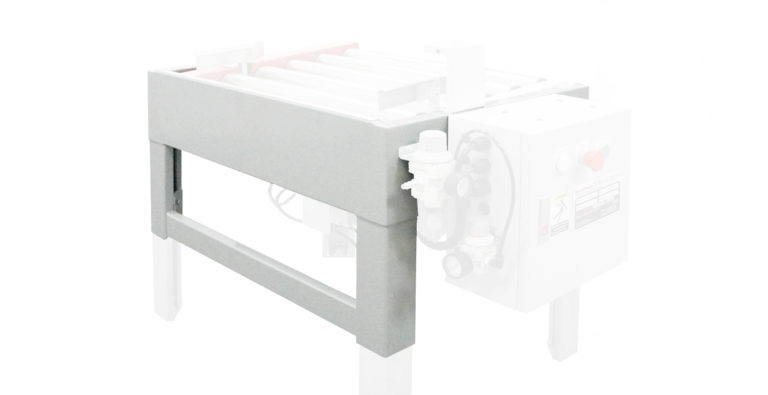

  • Heavy Duty 2mm Welded Steel Frame
    Heavy Duty 2mm Welded Steel Frame

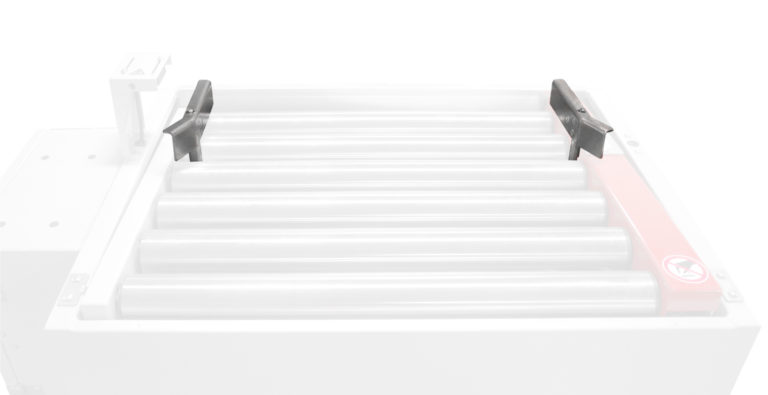

  • Random Self-centering Arms
    Random Self-centering Arms

    Centers the Carton Before the Carton is Fed into the Sealer Station

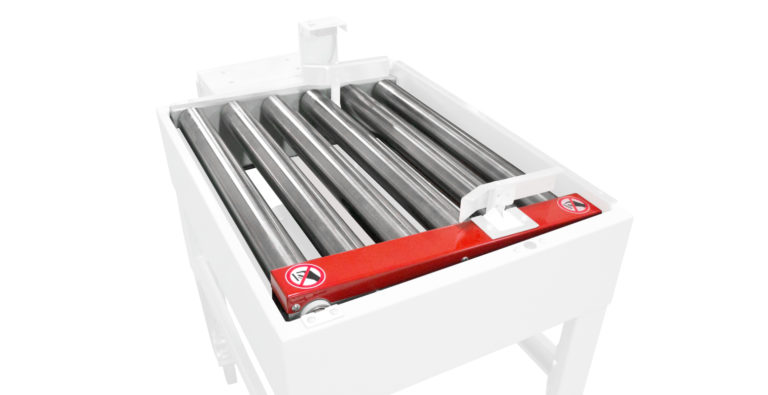

  • Powered Rollers with a Drop and Stop Feature
    Powered Rollers with a Drop and Stop Feature

    For Positive Carton Timing Into the Modified RS or RQ Sealer

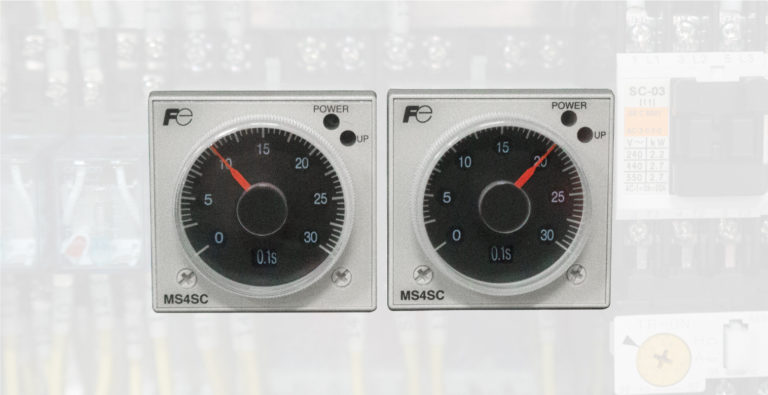

  • Adjustable Timer
    Adjustable Timer

    Tied to the Powered Rollers for Random Carton Space Separation Allowing the Carton to Feed Completely Through the Sealer Before Allowing the Next Random Sized Carton in to the Sealer

  • Oil-less High Quality SMC Pneumatic Air Cylinder
    Oil-less High Quality SMC Pneumatic Air Cylinder

    for Long Lasting Dependable Service

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • on/off box accessory

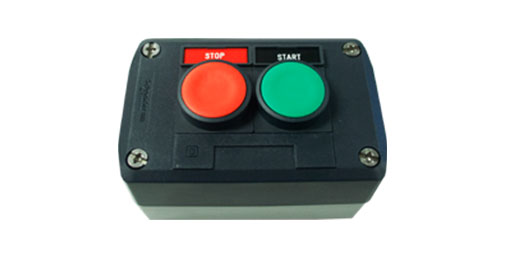

    On/Off Control Box

    With the additional ON/OFF control box you can stop and start the carton sealer, no matter what side the operator is on.

  • safety gates accessory

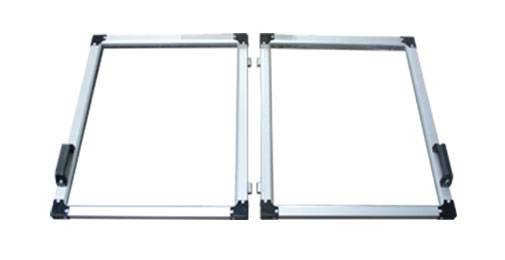

    Custom Interlock Gates (Special Order)

    Aluminum frame interlock safety gates can be added to the carton sealer for an extra layer of protection. These interlock safety gates protect the operator from all of the moving parts of the carton sealer.
