Category: Carton Sealers Belt Drive: Bottom Belt Drive

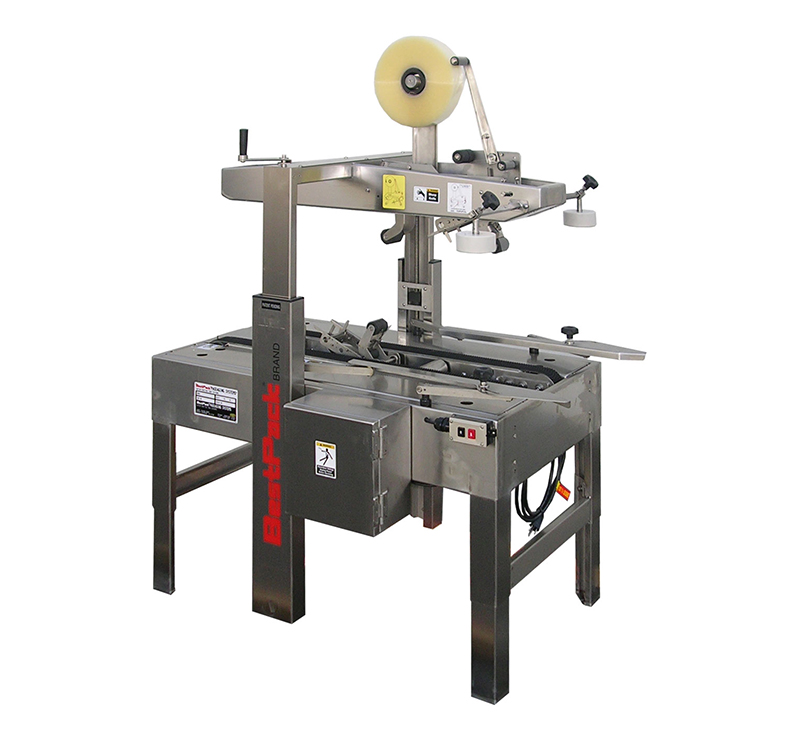

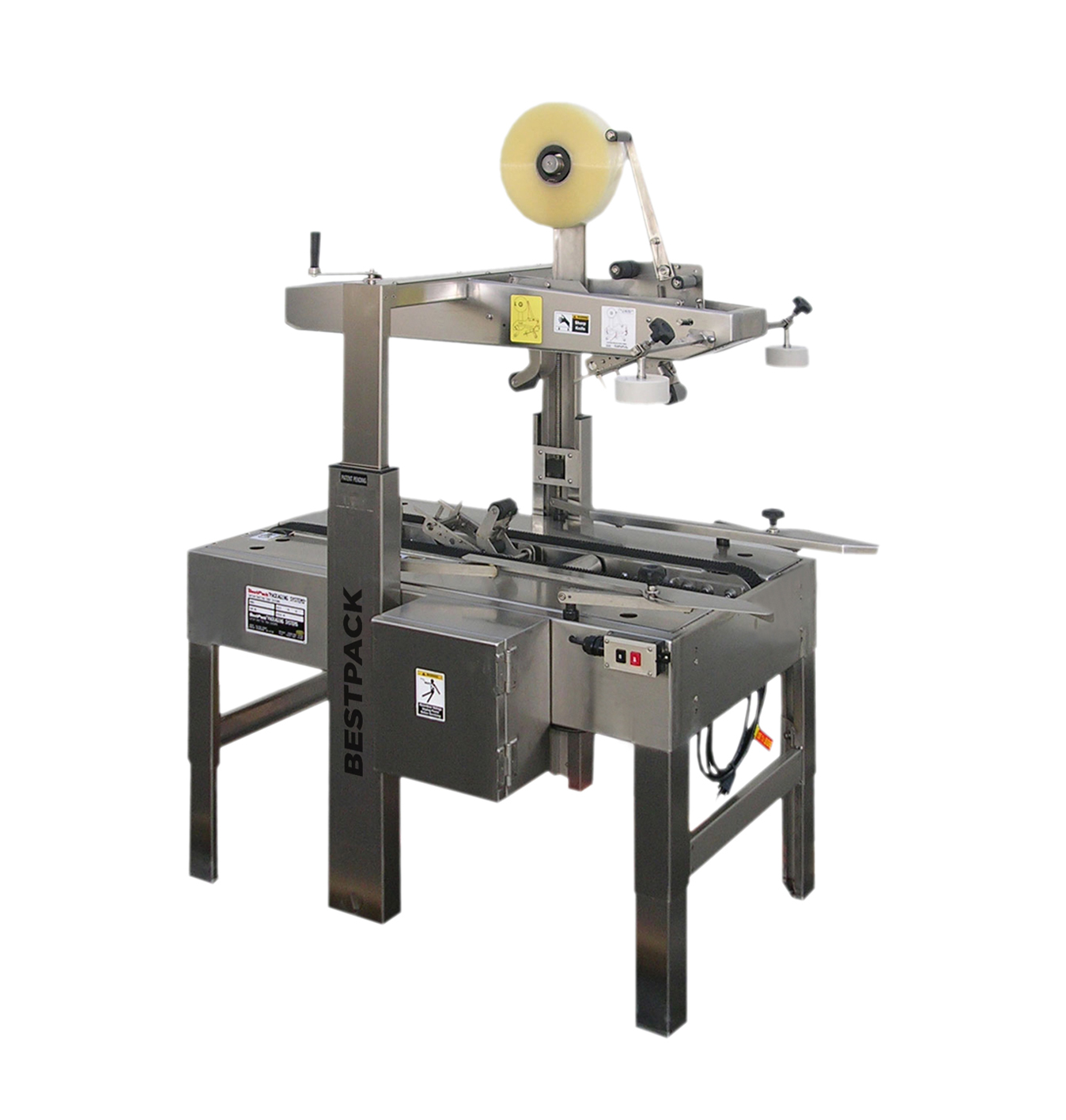

MBD-S

Up to 20 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
320 lbs SHIPPING
WEIGHT
Description / Specifications/ Accessories/

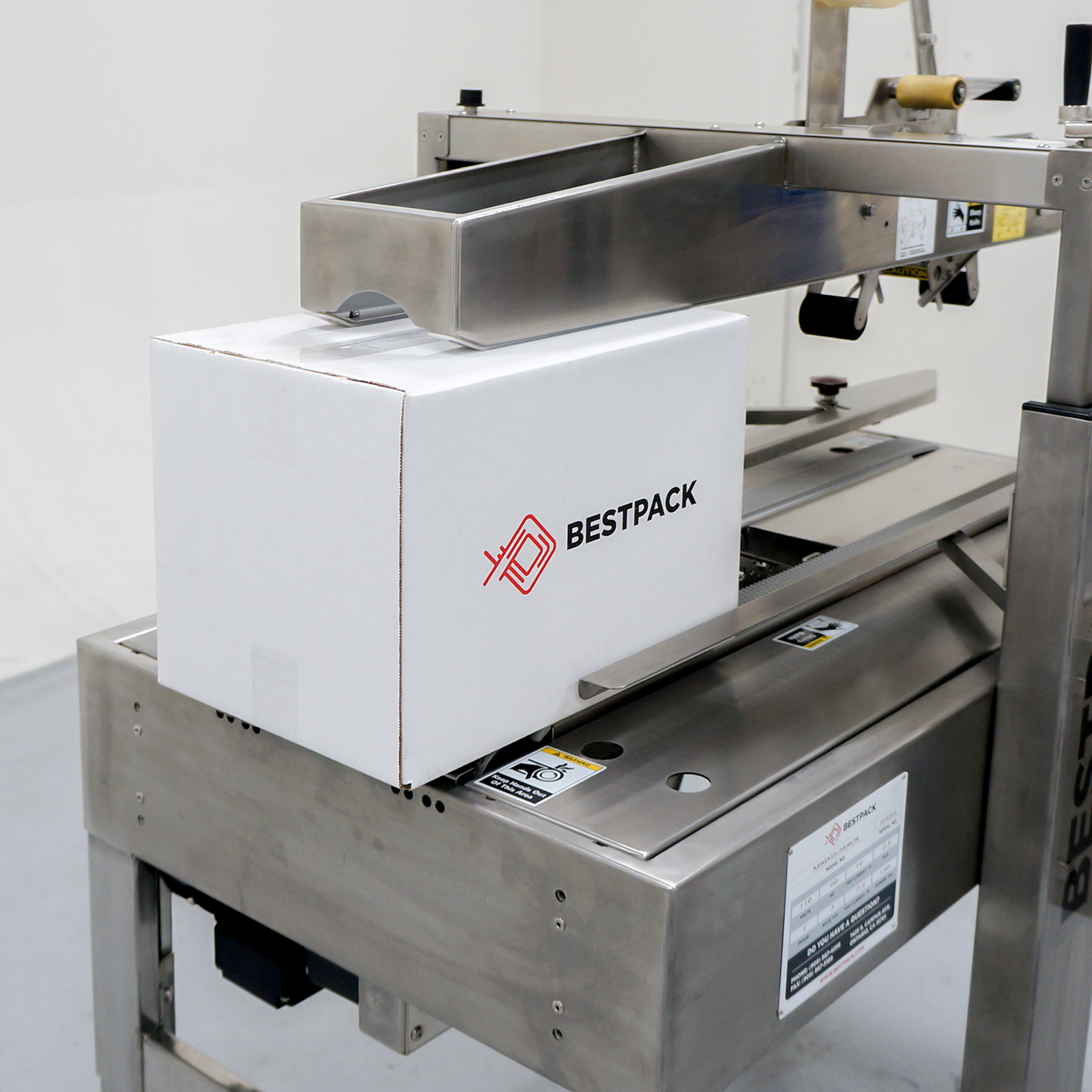

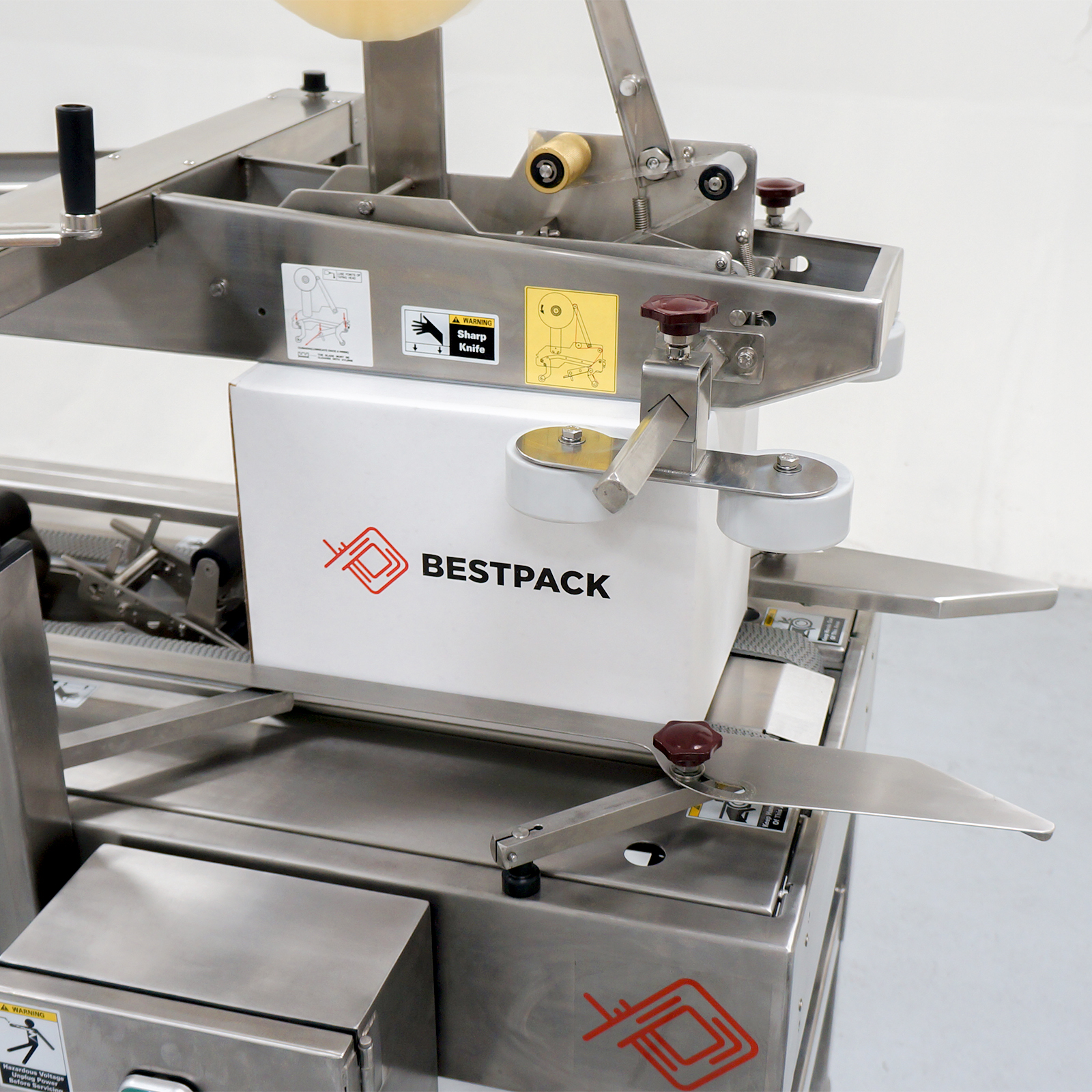

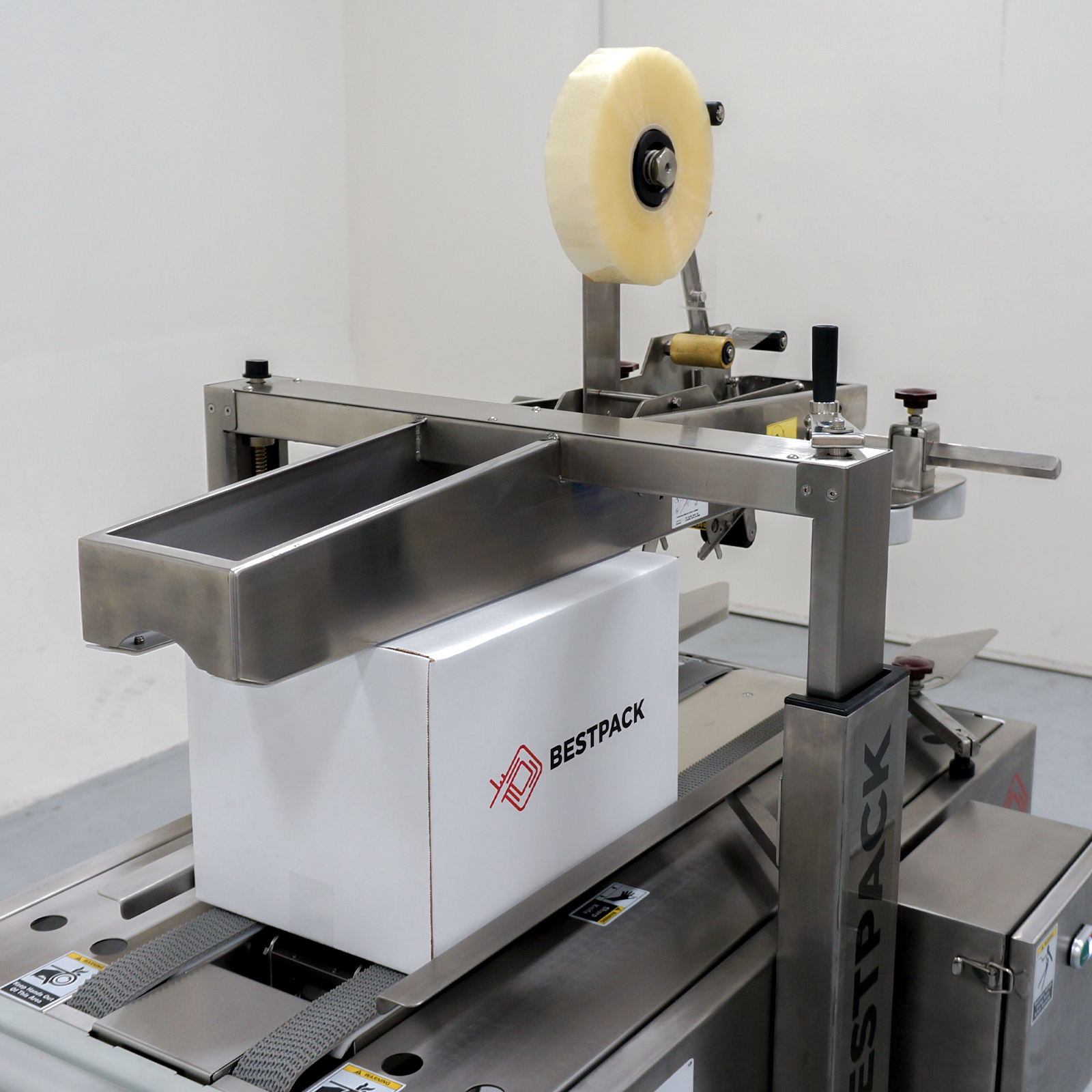

The BestPack™ MBD 304 Stainless Steel Series are operator-fed, adjustable, carton-sealing machines designed to cater to the needs of light to heavy duty, uniform carton closure applications where there are wet environments. Units are available for either splash resistant or wash-down applications.
The two bottom belts are driven by one bottom drive electric 110V UL approved motor.
The food grade 304 stainless steel allows for approved food grade applications. The tape head also comes standard in food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 20 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements N/A
  • Shipping Weight 320 lbs
  • Machine Dimensions (42.0") x (28.8") x (70.3")
  • Carton Range (6.0" - U) x (6.5" - 20.0") x (3.0" - 20.25")
  • Conveyor Height adjustment (23.5" - 30")
  • Specifications based on Line Specifications based on MBD22-2S

Specifications based on MBD22-2S

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • safety gates accessory
    Interlock Safety Gates

    Aluminum frame interlock safety gates can be added to the carton sealer for an extra layer of protection. These interlock safety gates protect the operator from all of the moving parts of the carton sealer.

  • stainless locking casters accessory

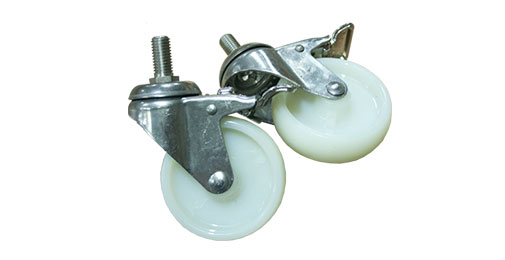

    Stainless Locking Casters

    The heavy duty stainless locking casters allow you to move a carton sealer around.

  • stainless long conveyor accessory

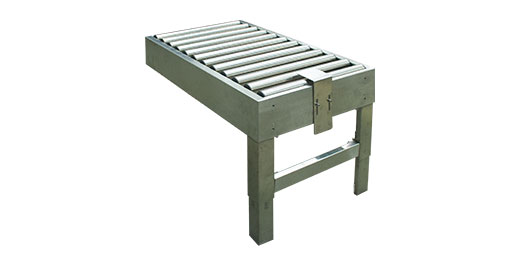

    Stainless Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. stainless long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • ac-s tape head picture

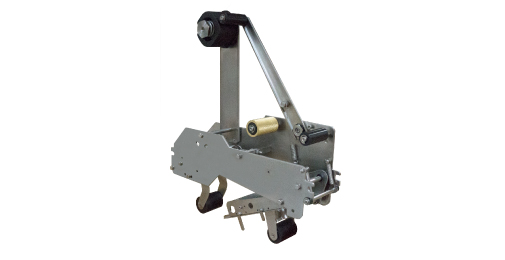

    Stainless Steel Tape Head

    Standard AC Tape Head in Food Grade 304 Stainless Steel.

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • stainless short conveyor accessory

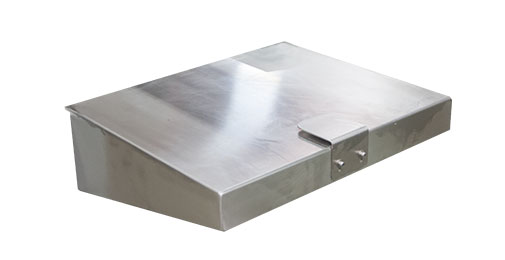

    Stainless Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ stainless short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit. The stainless steel construction can be washed down.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • Stainless Steel Short Conveyor Roller

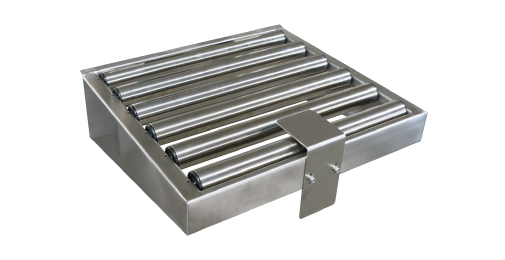

    Stainless Short Infeed/Exit Roller Conveyor w/ L-Bracket

    This 50 cm. stainless short roller conveyor is a great work platform and allows for staging of cartons on the infeed and the exit. The stainless steel construction can be washed down.
