Category: Carton Sealers Belt Drive: Side Belt Drive

MS Bottom Only

Up to 40 cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Bottom Seal Only Bottom Seal Only
110 VOLTS 60 HZ POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
263-310 lbs SHIPPING
WEIGHT
Description / Specifications/ Features/ Accessories/

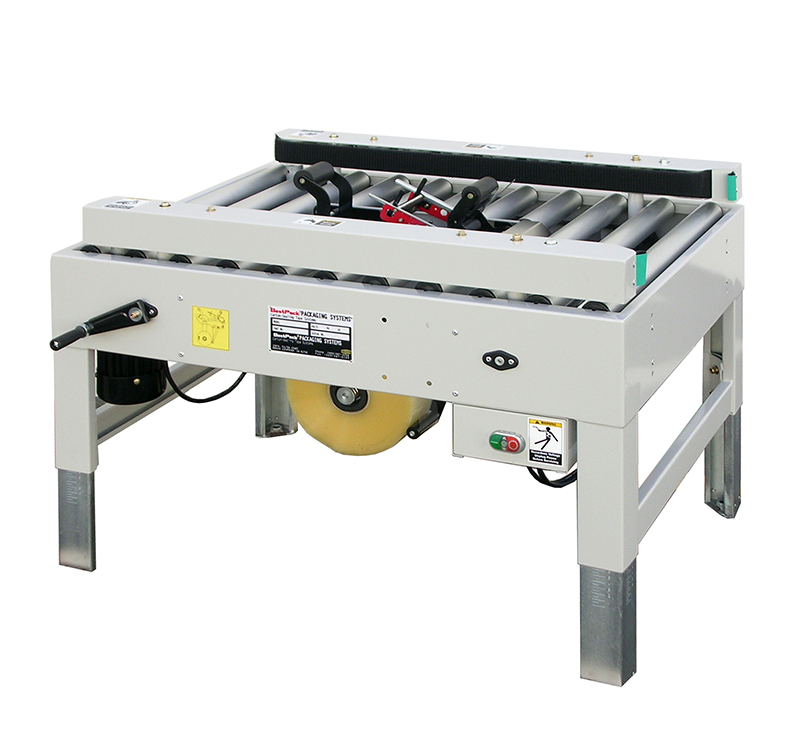

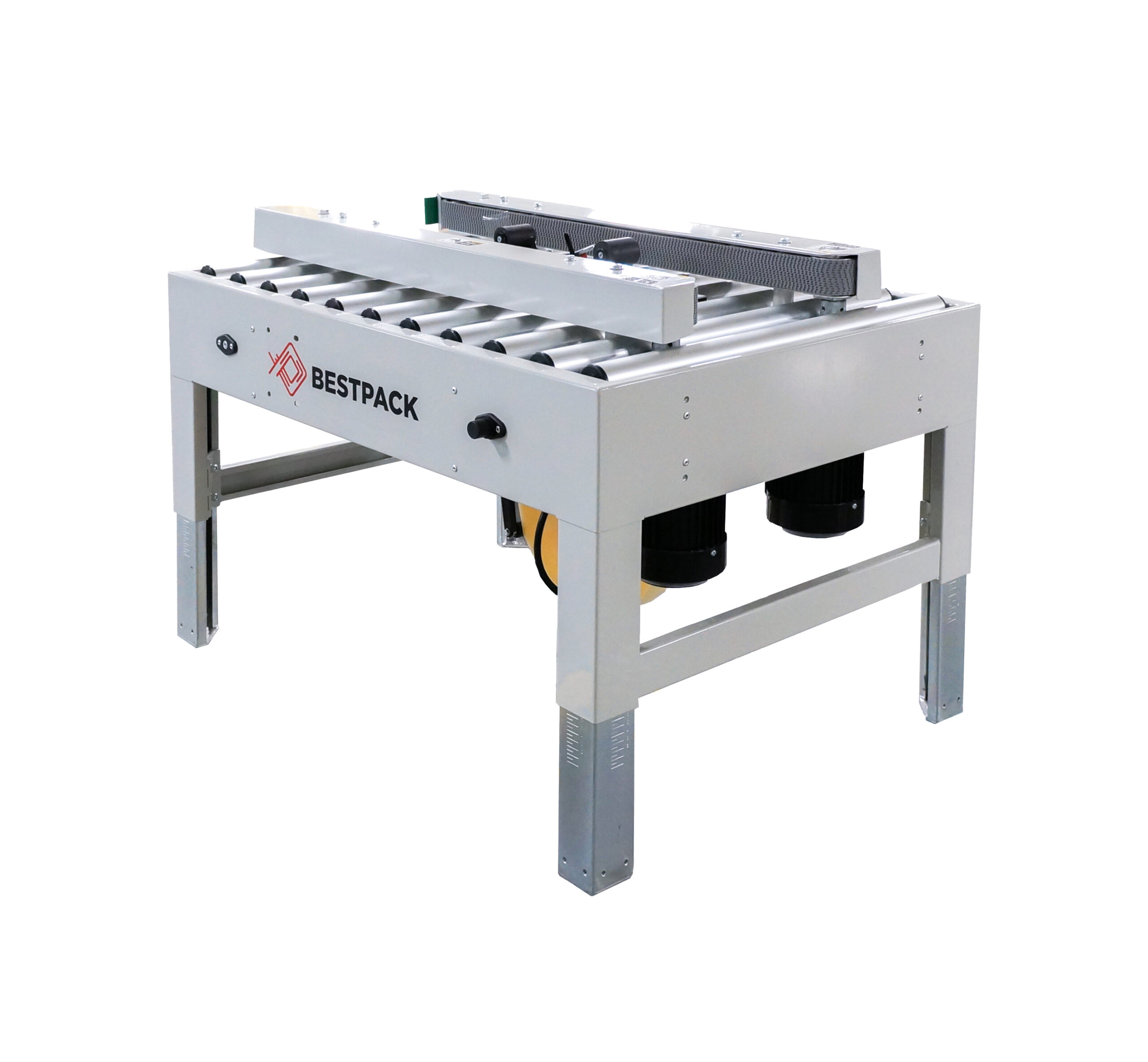

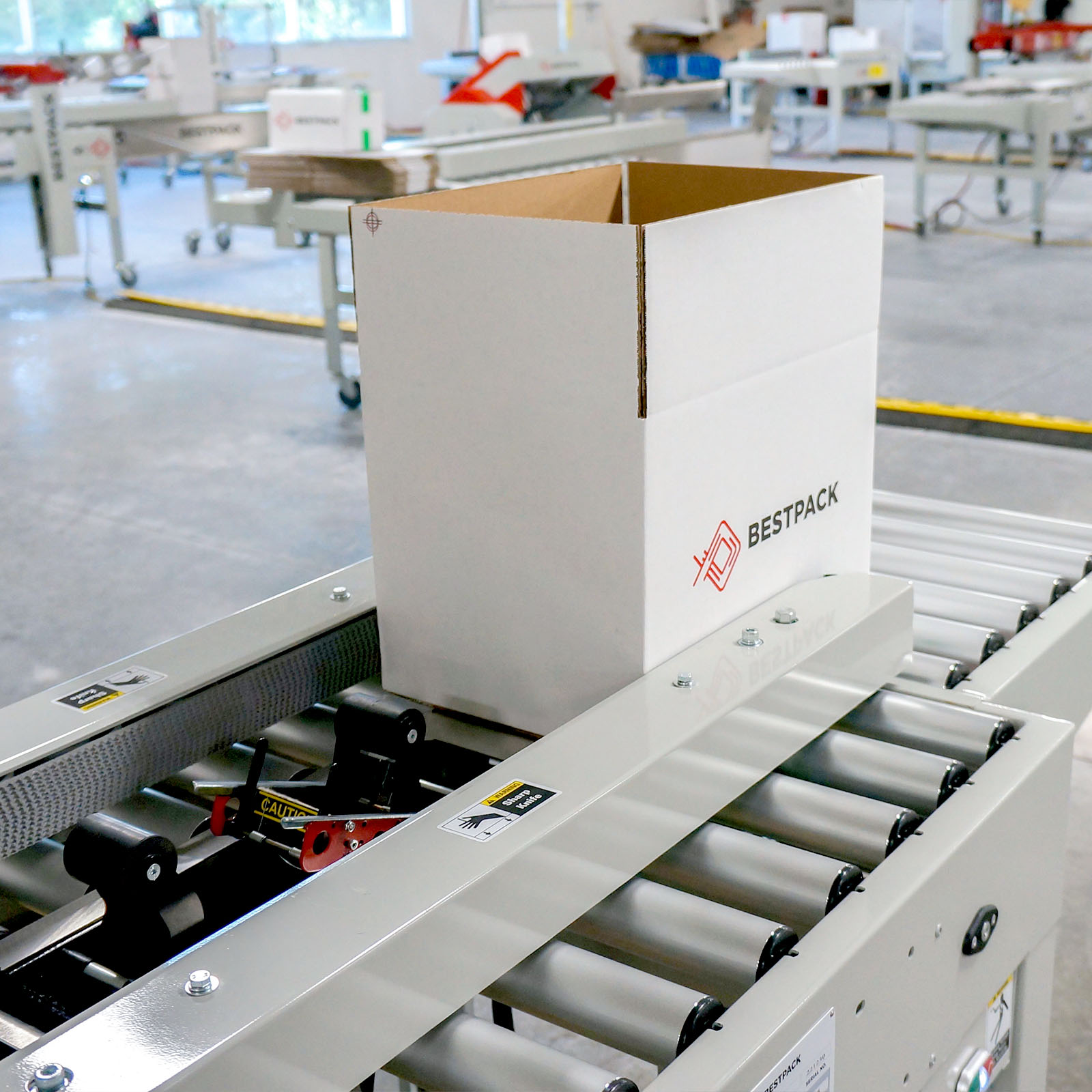

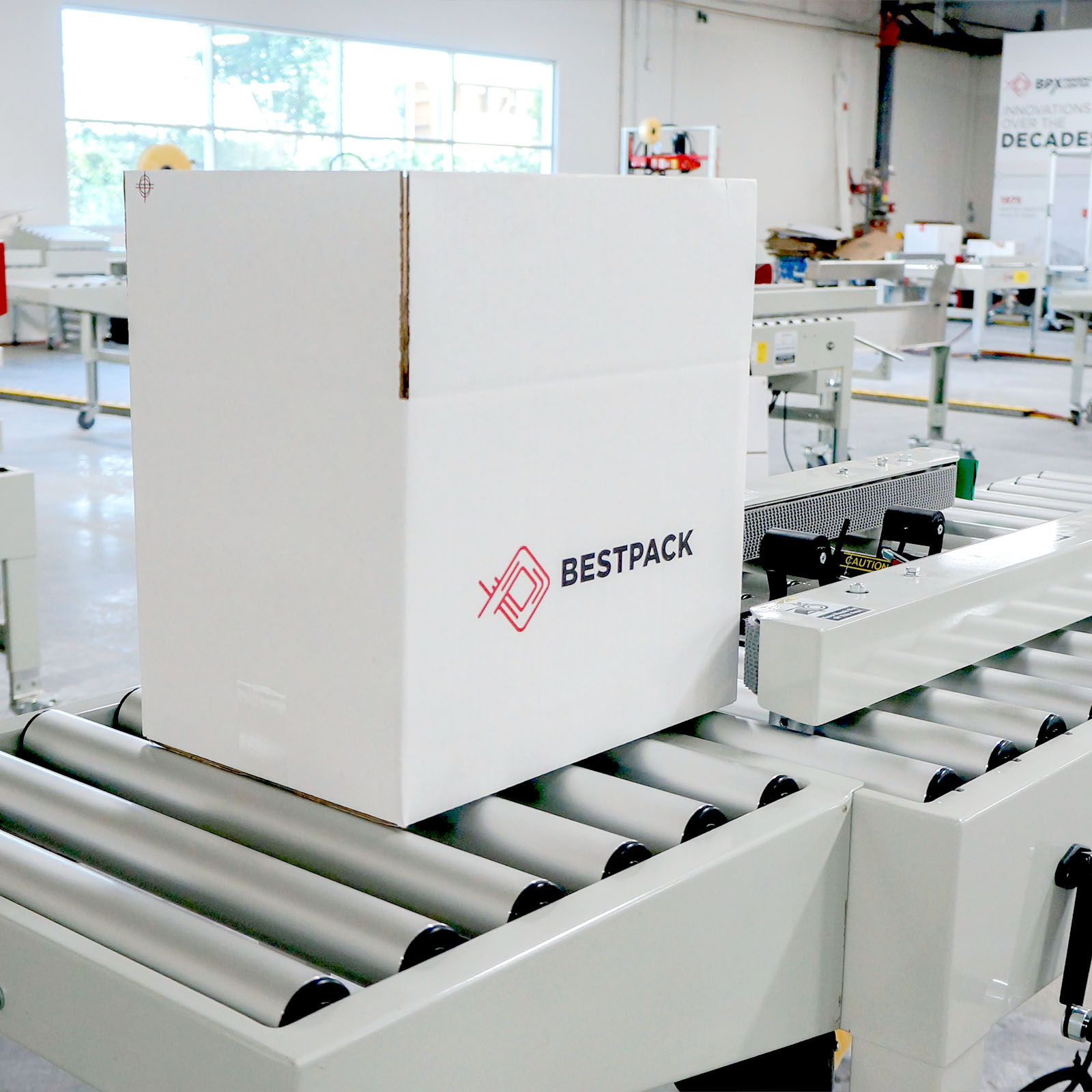

The BestPack MS20 Series Bottom Sealer Tape Carton Sealer is our most popular. The unit is an operator-fed adjustable carton sealing machine designed to cater to the needs of light-to-heavy duty uniform bottom carton closure applications.

Our MS20 line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 40 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements N/A
  • Shipping Weight 263-310 lbs
  • Machine Dimensions (39.5") x (28.3") x (29.4")
  • Carton Range (6.0" - U) x (4.25" - 20.0")
  • Conveyor Height adjustment (20.5" - 30.0")
  • Specifications based on Line Specifications based on MS20-2

Specifications based on MS20-2

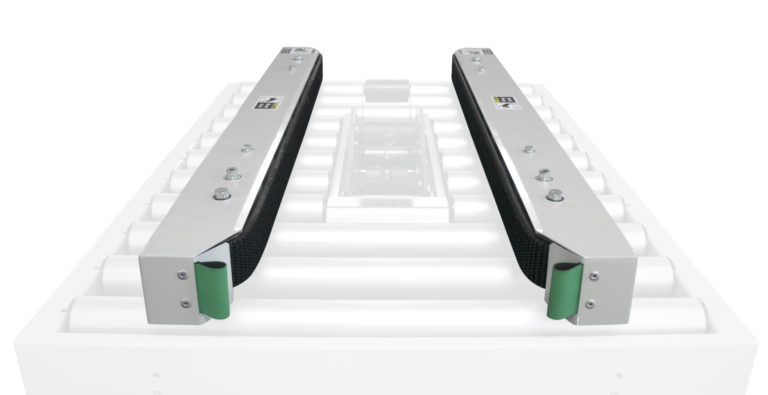

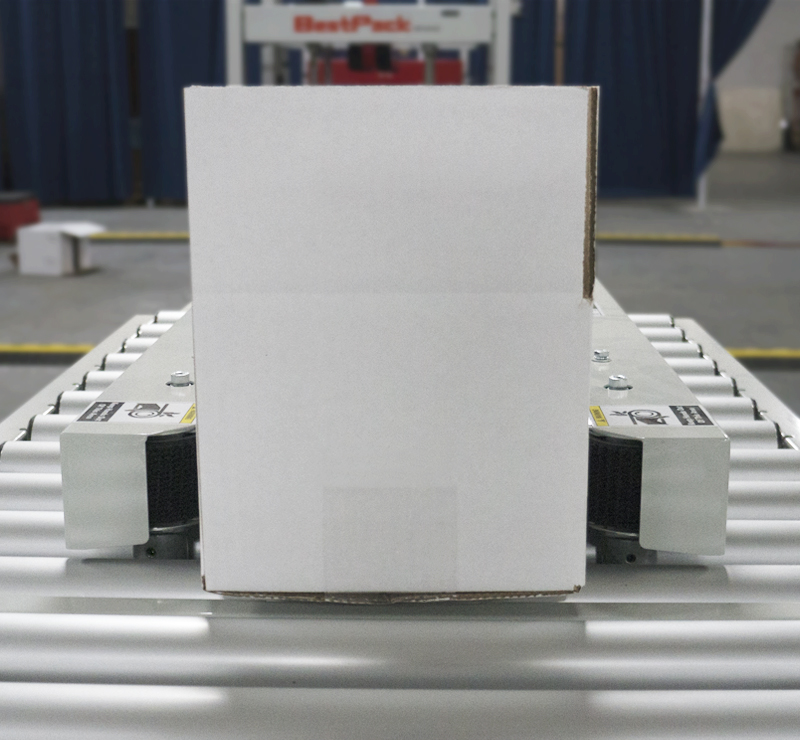

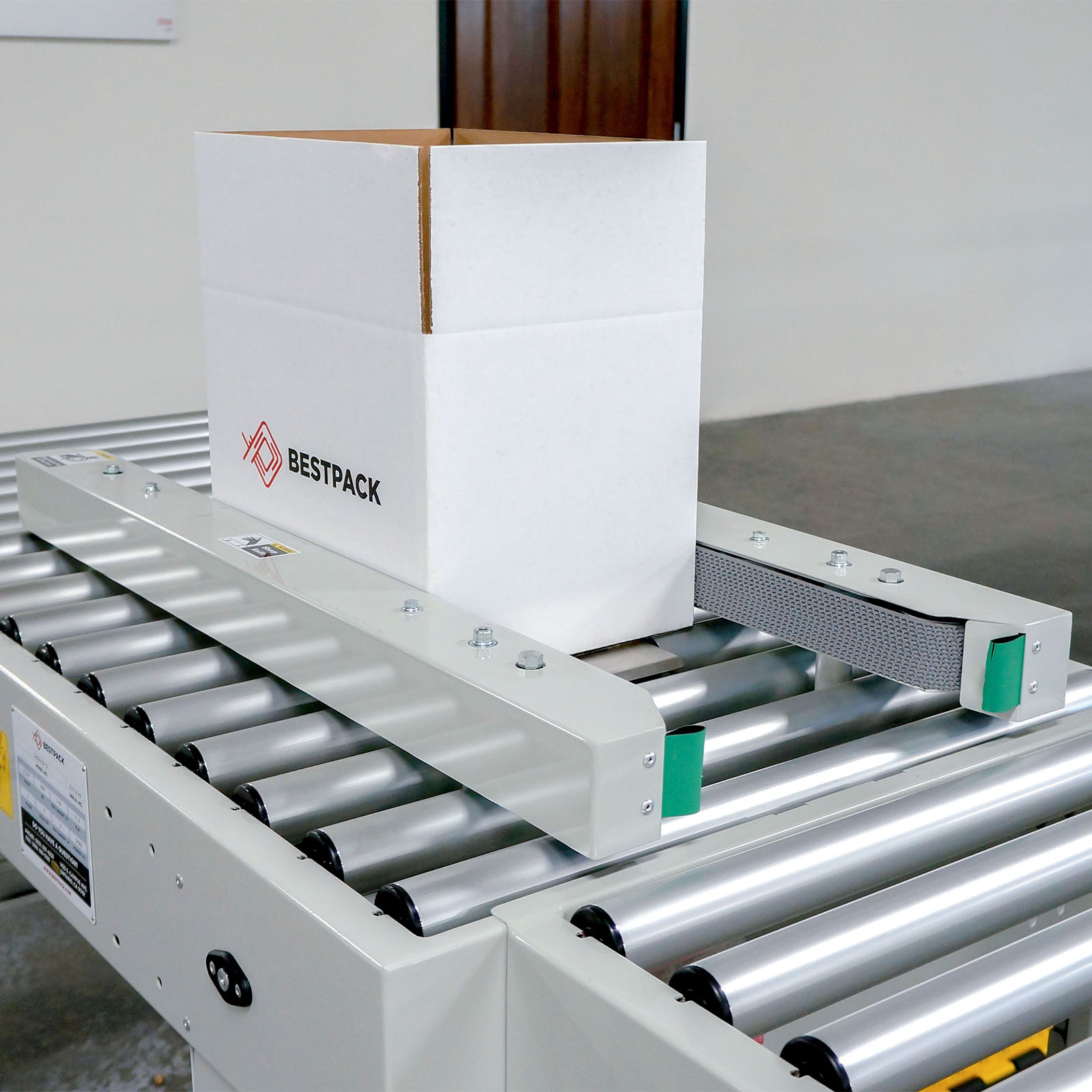

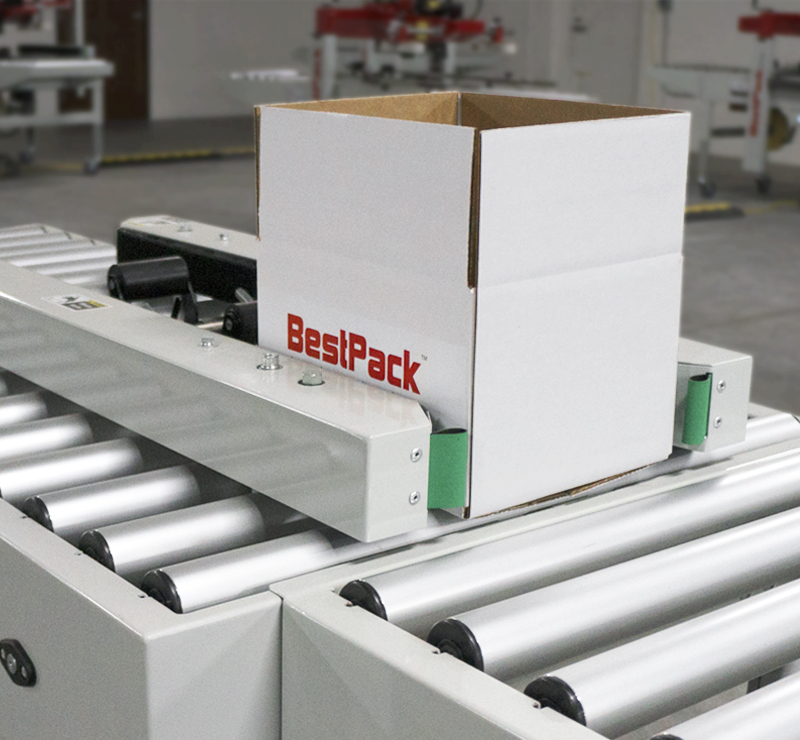

  • Side Belt Drive
    Side Belt Drive

  • Adjustable Bed Height
    Adjustable Bed Height

    From 20.5" to 30.0"

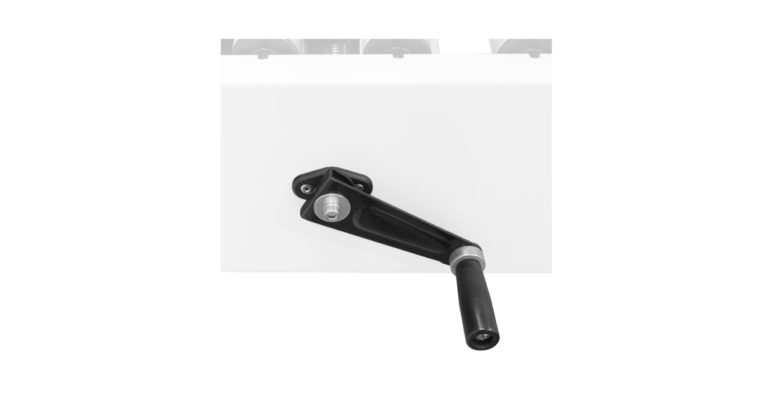

  • Width Adjustment Knob
    Width Adjustment Knob

    Can be Mounted Either Side of Carton Sealer

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

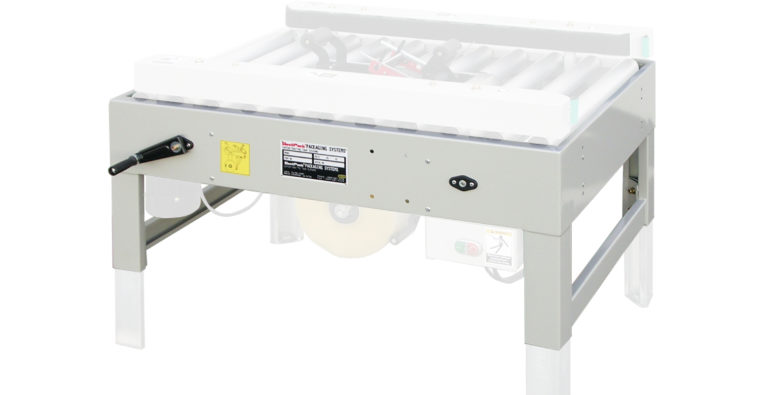

  • Heavy Duty Frame
    Heavy Duty Frame

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted Either Side of Carton Sealer

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • safety gates accessory
    Interlock Safety Gates

    Aluminum frame interlock safety gates can be added to the carton sealer for an extra layer of protection. These interlock safety gates protect the operator from all of the moving parts of the carton sealer.

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
