Category: Carton Sealers Belt Drive: Side Belt Drive

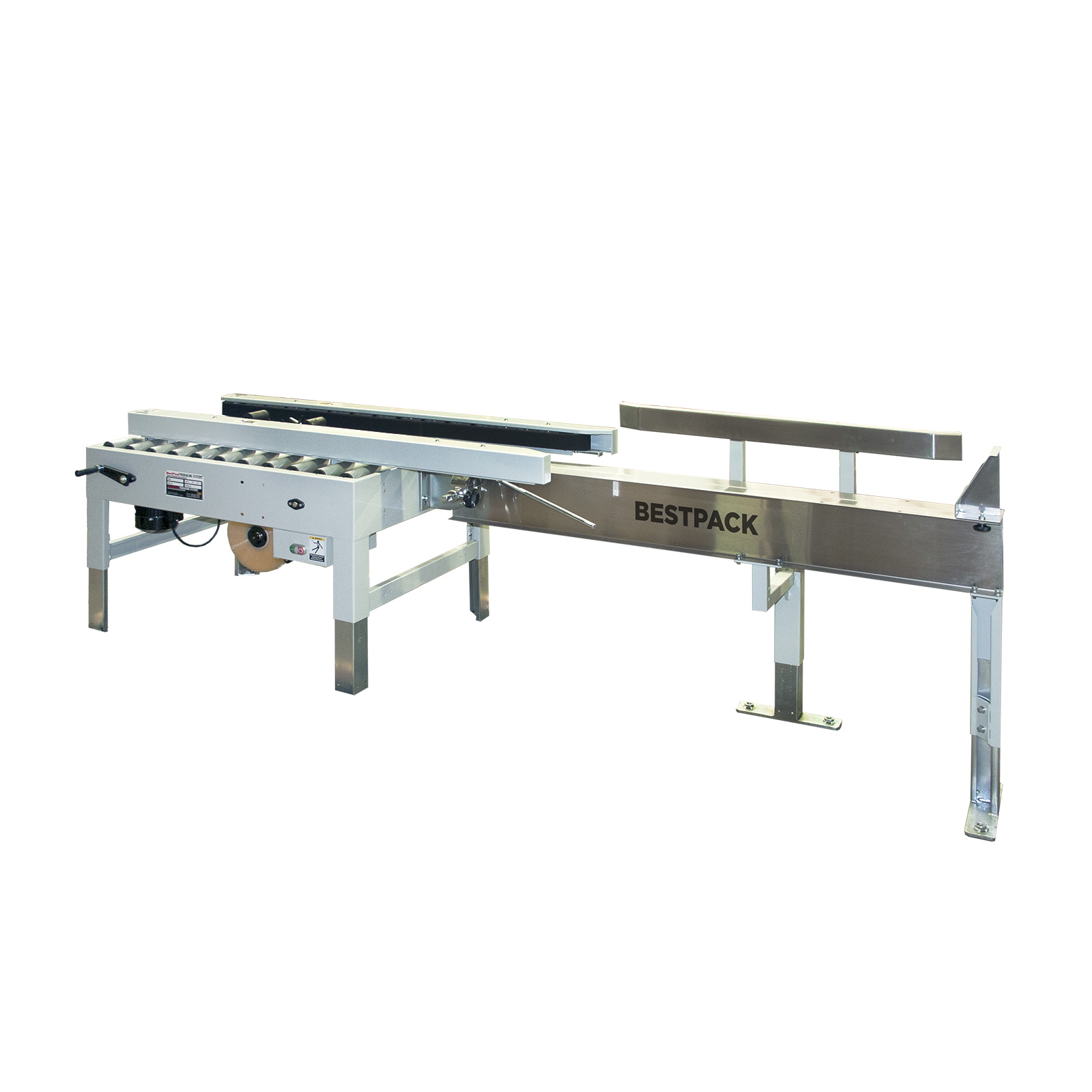

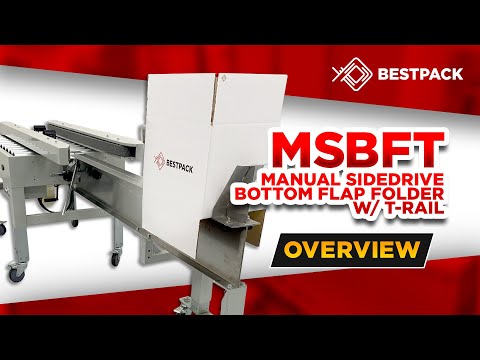

MSBFT

Up to 15 cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Bottom Seal Only Bottom Seal Only
110 VOLTS 60 HZ POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
350 LBS SHIPPING
WEIGHT
Description / Specifications/ Features/ Accessories/

The BestPack MSBFT Series is a uniform operator-fed, bottom carton sealer designed to reduce operator time and fatigue when folding & sealing the bottom flaps of a carton. Another advantage of using the MSBFT compared to hand taping, the quality of the seal and the appearance of the carton is greatly improved. This unit many times is used when carton-forming volume has become too large to manually form and tape the cartons completely by hand, but the volume is too small to justify a fully automatic carton erector/sealer.

Our MSBFT line incorporates our exclusive pop-out pressure-sensitive “High Speed” tape head with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

ERECTOR PROCESS

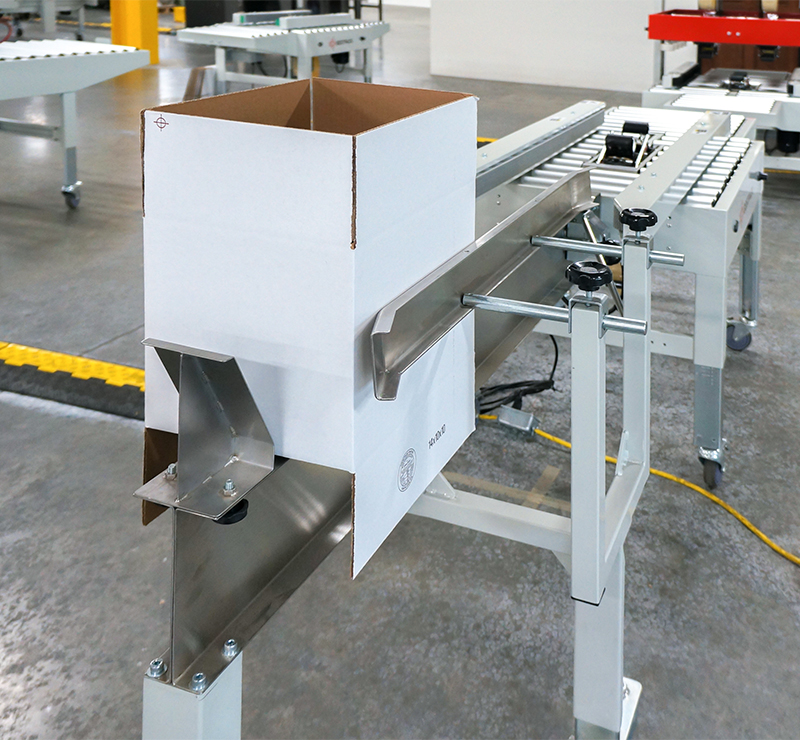

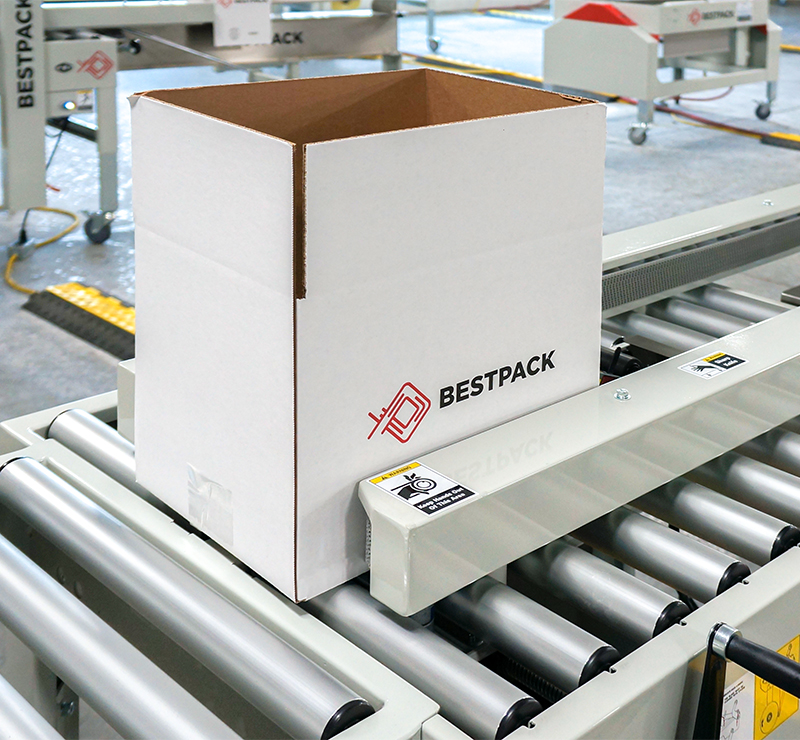

The carton erector has two stations. The first station folds the bottom flaps of the carton and the second station seals the bottom flaps and feeds the carton automatically on to a conveyor.

  • Speed Up to 15 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements N/A
  • Shipping Weight 350 lbs.
  • Machine Dimensions (99.6") x (28.4") x (29.4")
  • Carton Range (7.8" - 23.6") x (7.8" - 19.6") x (4.0"+)
  • Conveyor Height adjustment (23.5" - 30.0")
  • Specifications based on Line Specifications based on MSBFT20-2

Specifications based on MSBFT20-2

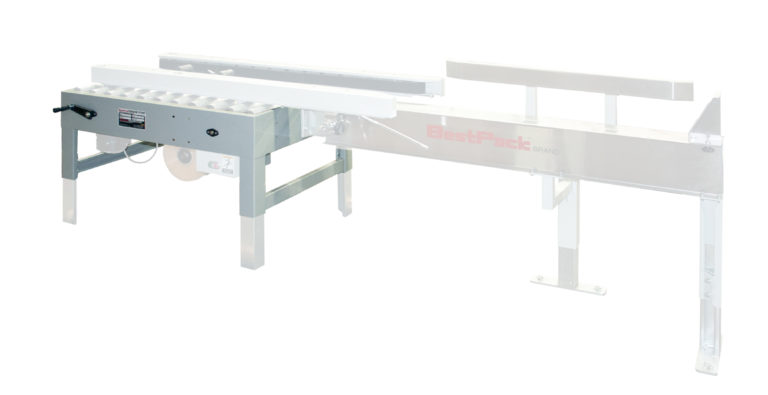

  • Heavy Duty Frame
    Heavy Duty Frame

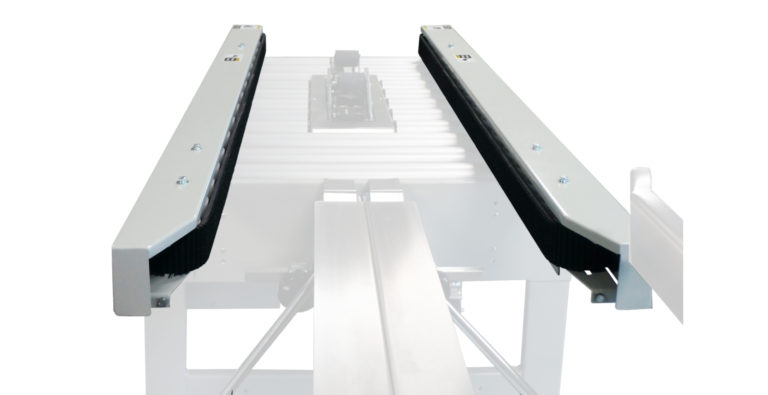

  • Extended Belt Drive for Positive Carton Feed
    Extended Belt Drive for Positive Carton Feed

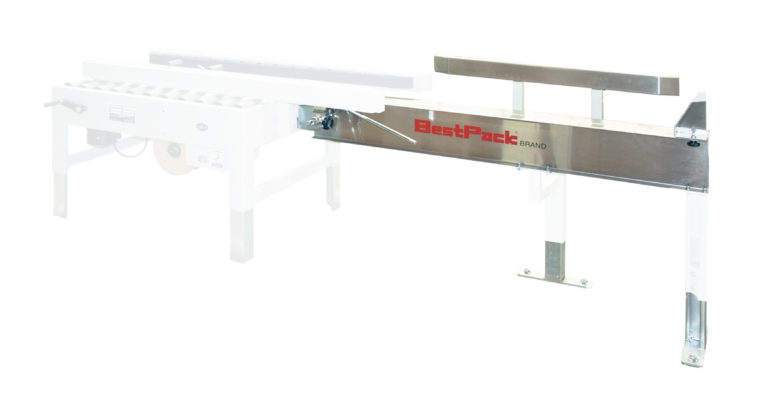

  • Stainless Steel

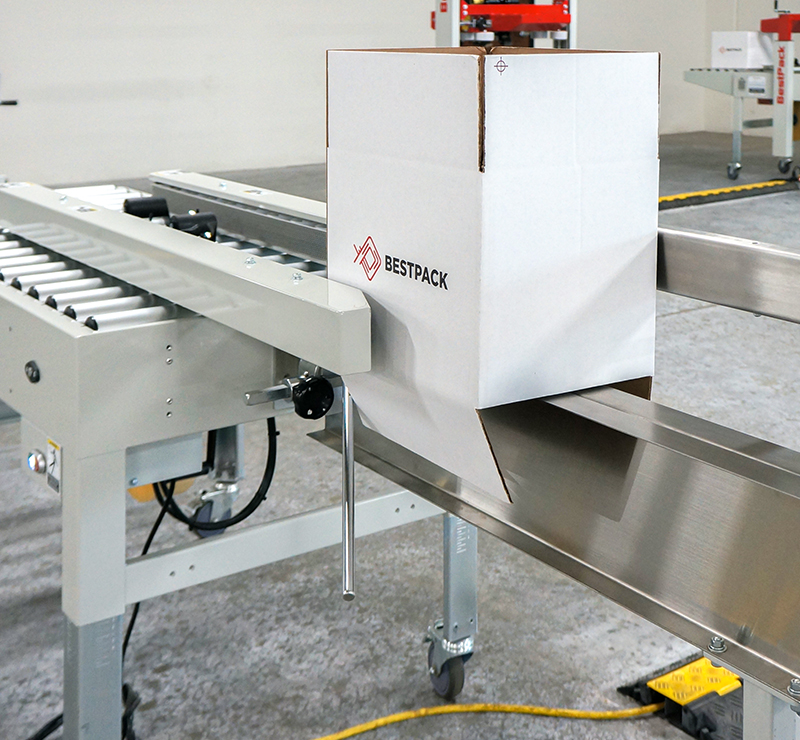

    Stainless Steel "T" rail

    Used for Durability and Minimal Carton Friction as the Carton is Formed

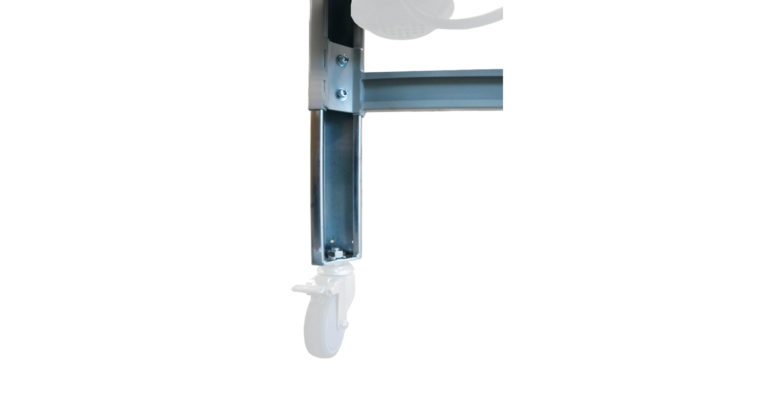

  • Adjustable Bed Height from 23.5
    Adjustable Bed Height from 23.5" to 30.0"

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

  • Tape Roll Lengths: 1,000 yd., 1,500 yd., 2,000 yd.
    Tape Roll Lengths: 1,000 yd., 1,500 yd., 2,000 yd.

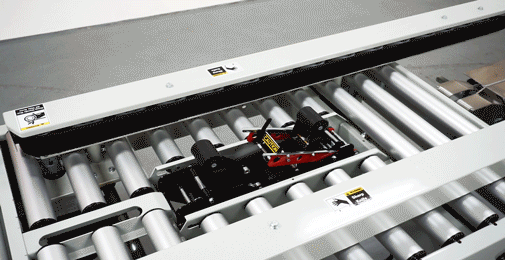

  • Exclusive Pop - out Pressure Sensitive
    Exclusive Pop - out Pressure Sensitive "High Speed" Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
