Category: Carton Sealers Belt Drive: Top & Bot Belt Drive

MTD

Up to 40 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 VOLTS 60 HZ POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
345-375 LBS SHIPPING
WEIGHTS
Description / Specifications/ Features/ Accessories/

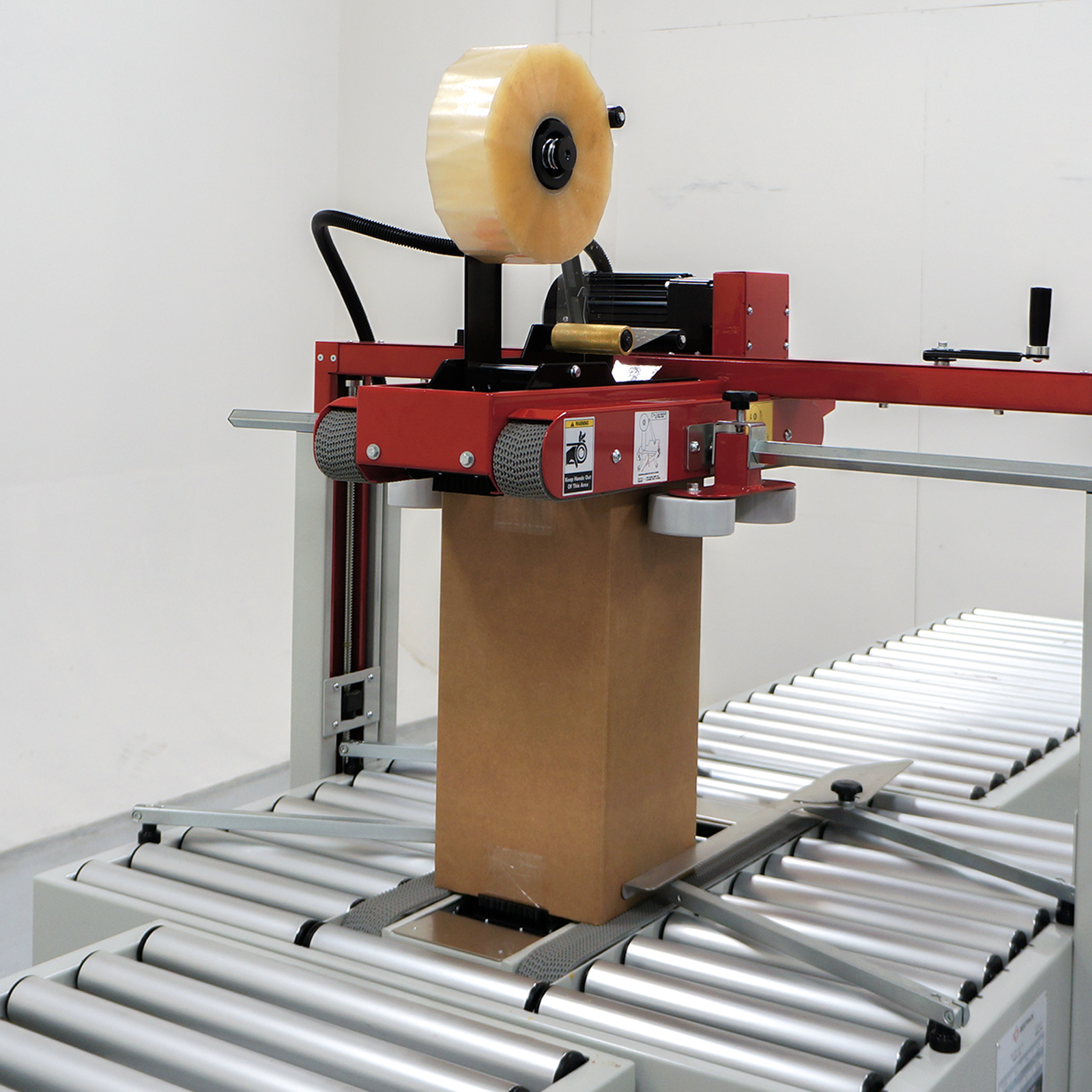

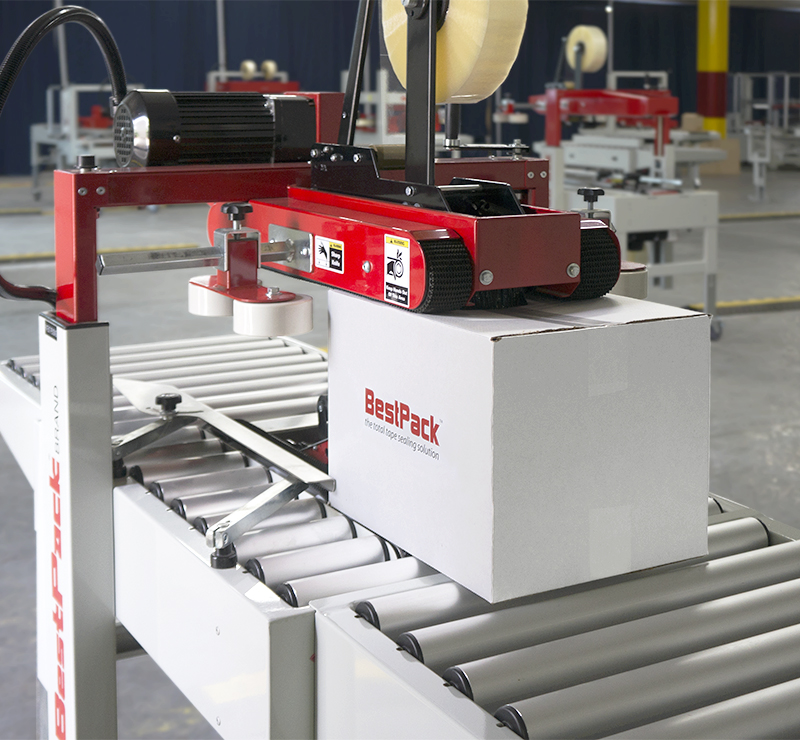

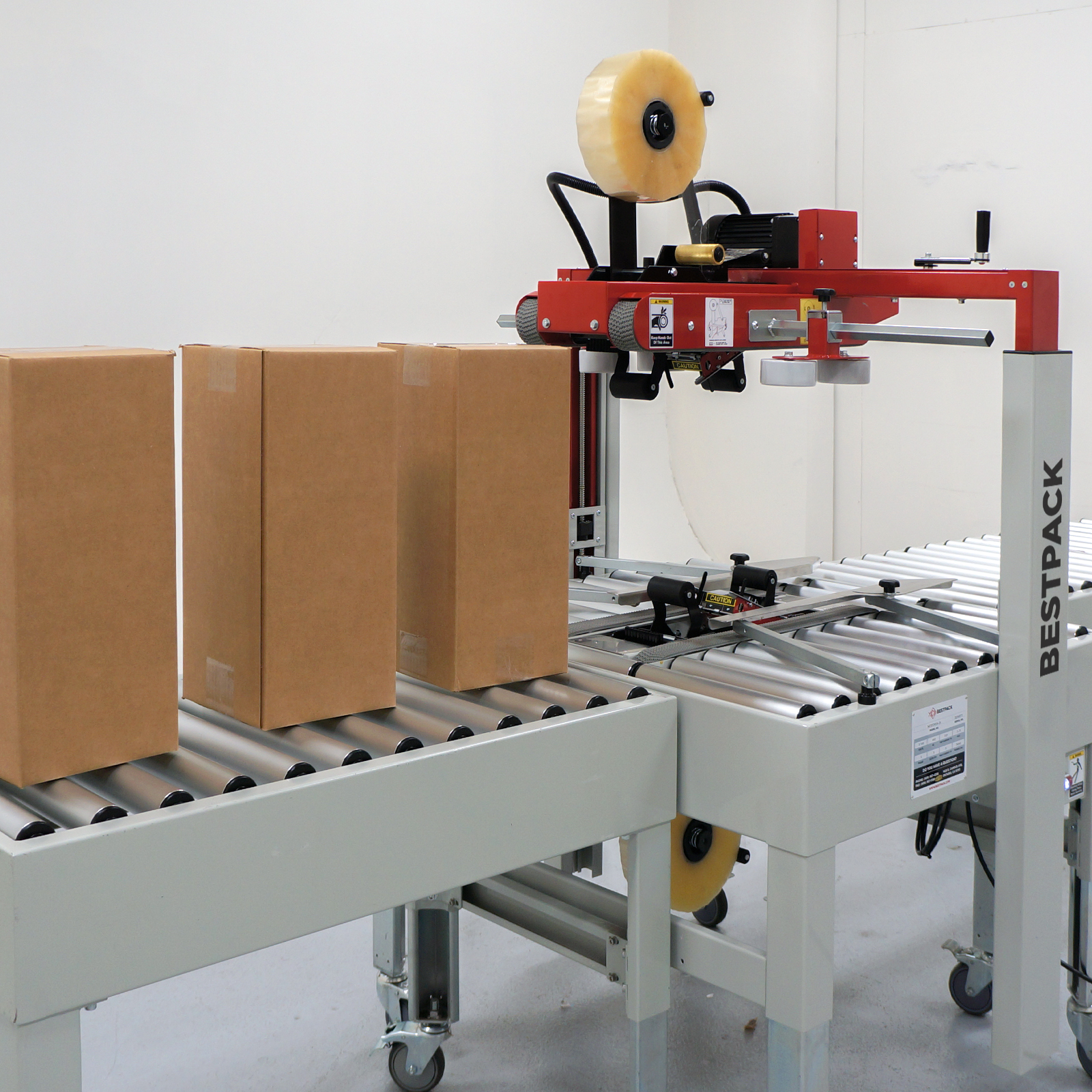

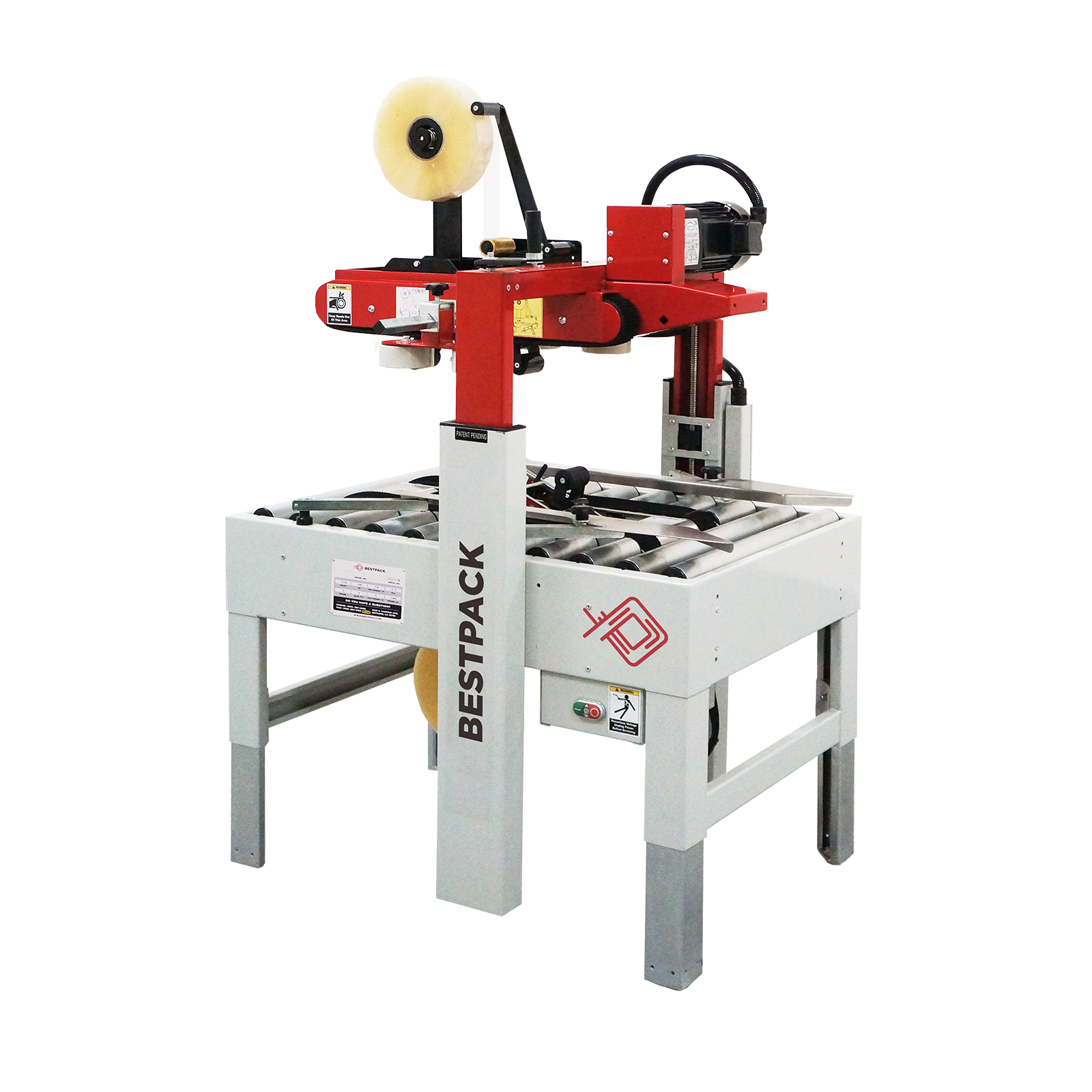

The BestPack™ MTD Series is a Semi-Automatic Adjustable Tape Carton Sealer, engineered for the economical and effective operator-fed closure of difficult to seal cartons. The MTD Series has a four belt drive, to accommodate tall unstable cartons, and comes standard with a manual self-centering mechanism that permits the operator to quickly center the carton and the tape. Dual telescopic masts allow for an extra 4″ carton height extension on the upper assembly.
Our MTD line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 40 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements N/A
  • Shipping Weight 345-375 lbs
  • Machine Dimensions (35.3") x (28.8") x (69.7")
  • Carton Range (6.0" - U) x (6.5" - 19.3") x (4.0" - 20.0")
  • Conveyor Height adjustment (23.5" - 30.0")
  • Specifications based on Line Specifications based on MTD22-2

Specifications based on MTD22-2

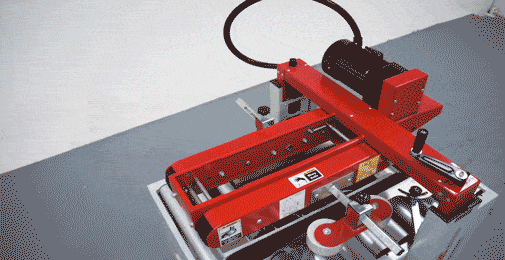

  • Exclusive Pop-out Pressure Sensitive
    Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

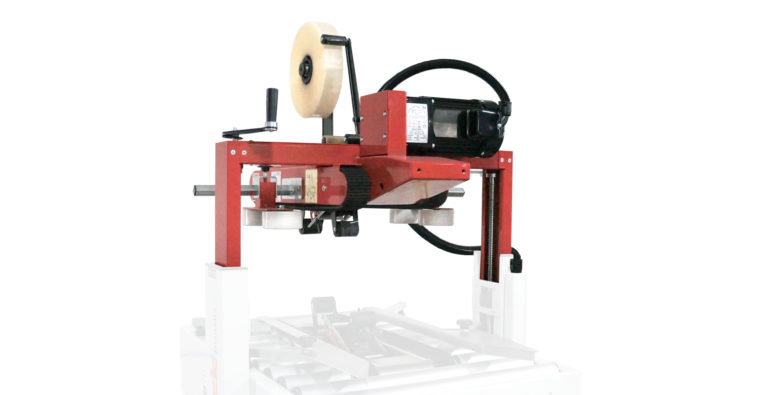

  • Telescopic Dual Mast Design
    Telescopic Dual Mast Design

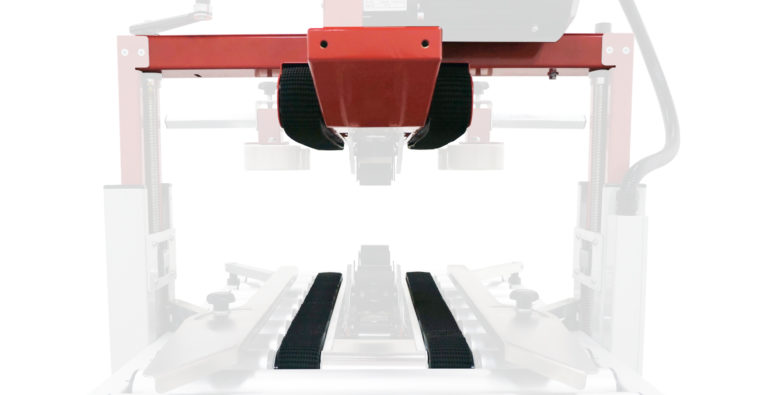

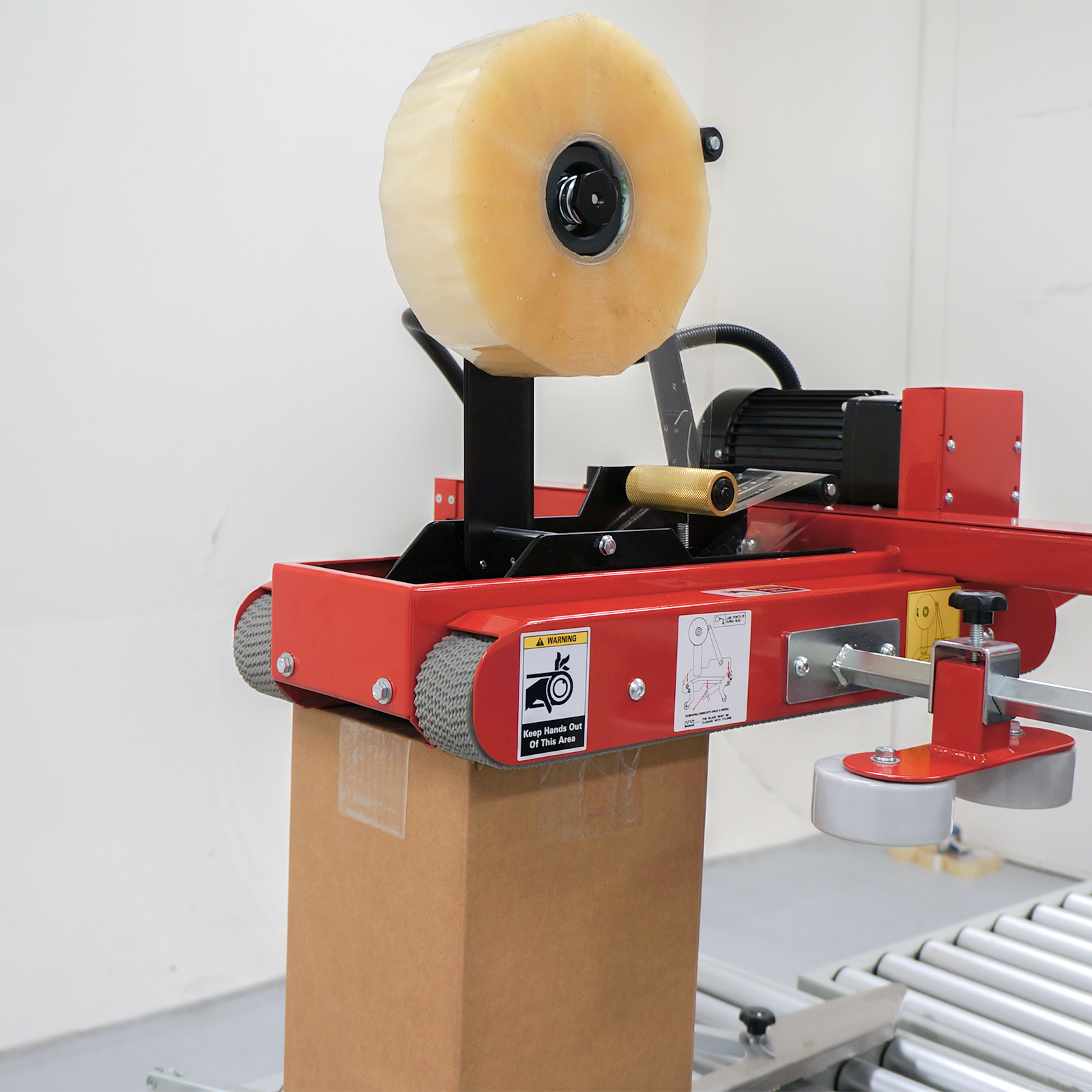

  • 4 Belt Drive
    4 Belt Drive

    2 Top and 2 Bottom Belts

  • Adjustable Bed Height
    Adjustable Bed Height

    MTD22 - 23.5" - 30" MTD33 - 25.8" - 30"

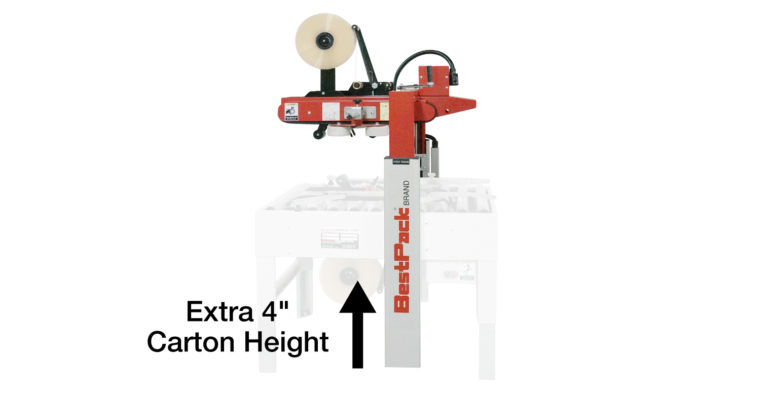

  • Extra 4
    Extra 4" Carton Height Adjustment

    Available on Upper Assembly

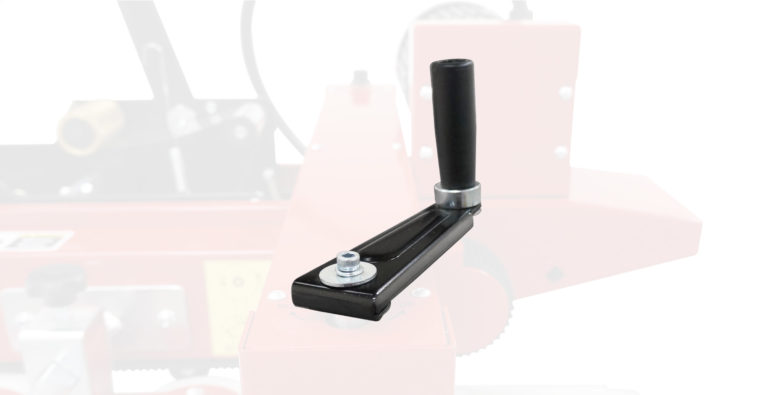

  • Height Adjustment
    Height Adjustment

    Can be on Either Side of Machine

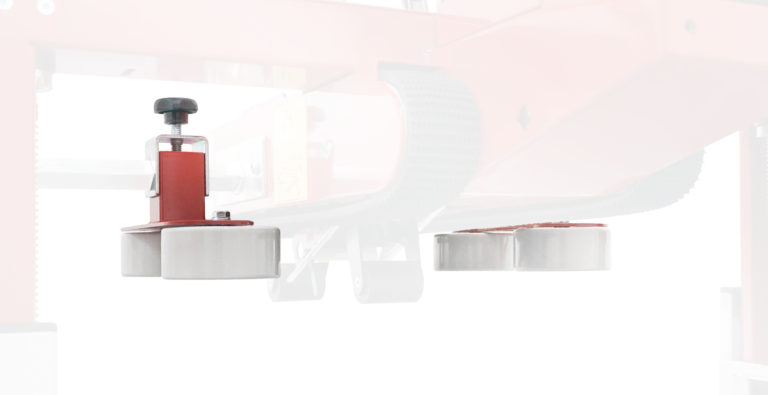

  • Upper Side Compression Unit
    Upper Side Compression Unit

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

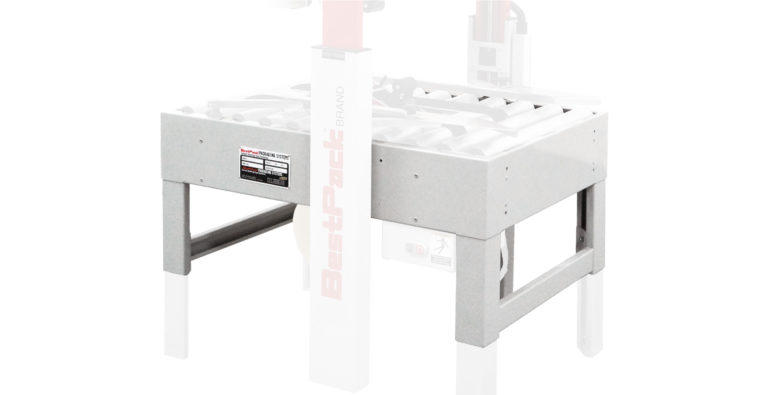

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

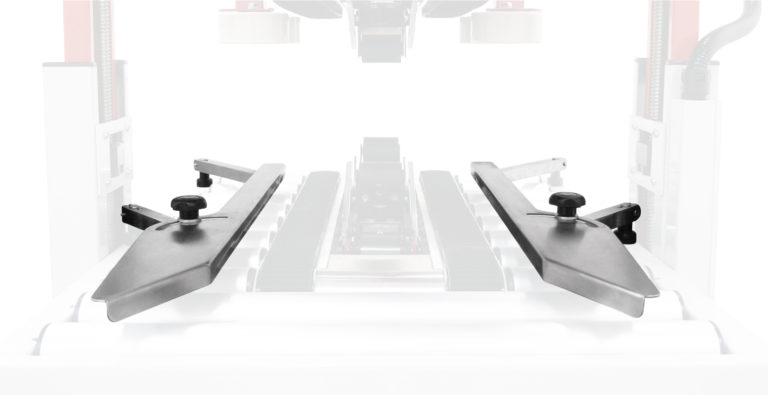

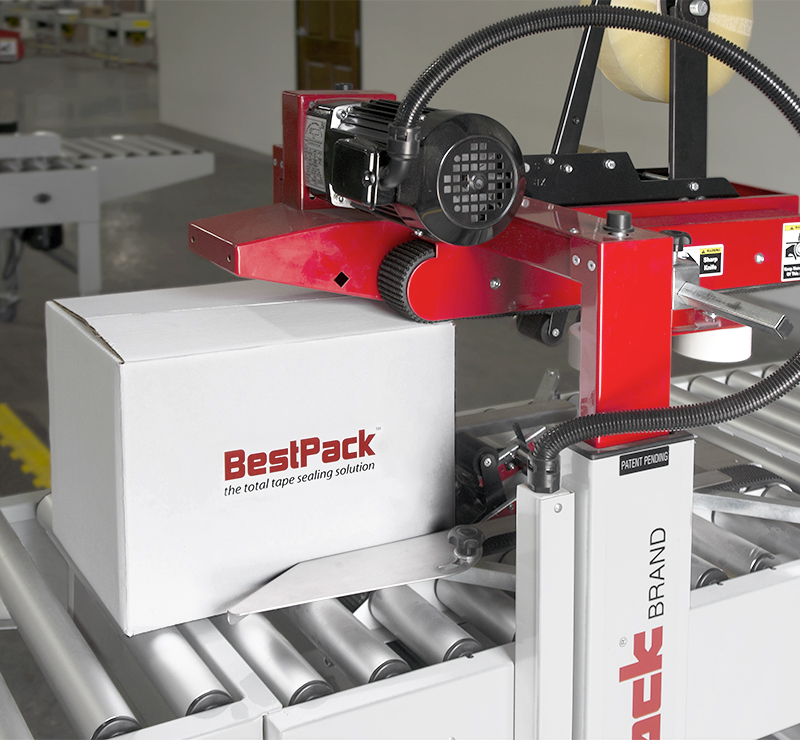

  • Guide Rail Centering Mechanism
    Guide Rail Centering Mechanism

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

    Capable only on 3" Model

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • short conveyor accessory
    Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
