Category: Indexers


Up to 57 Cartons/min.

Fully Automatic Fully Automatic
Uniform Cartons Uniform Cartons
Indexing Indexing
60 HZ
50 PSI
Description / Specifications/ Features/ Accessories/

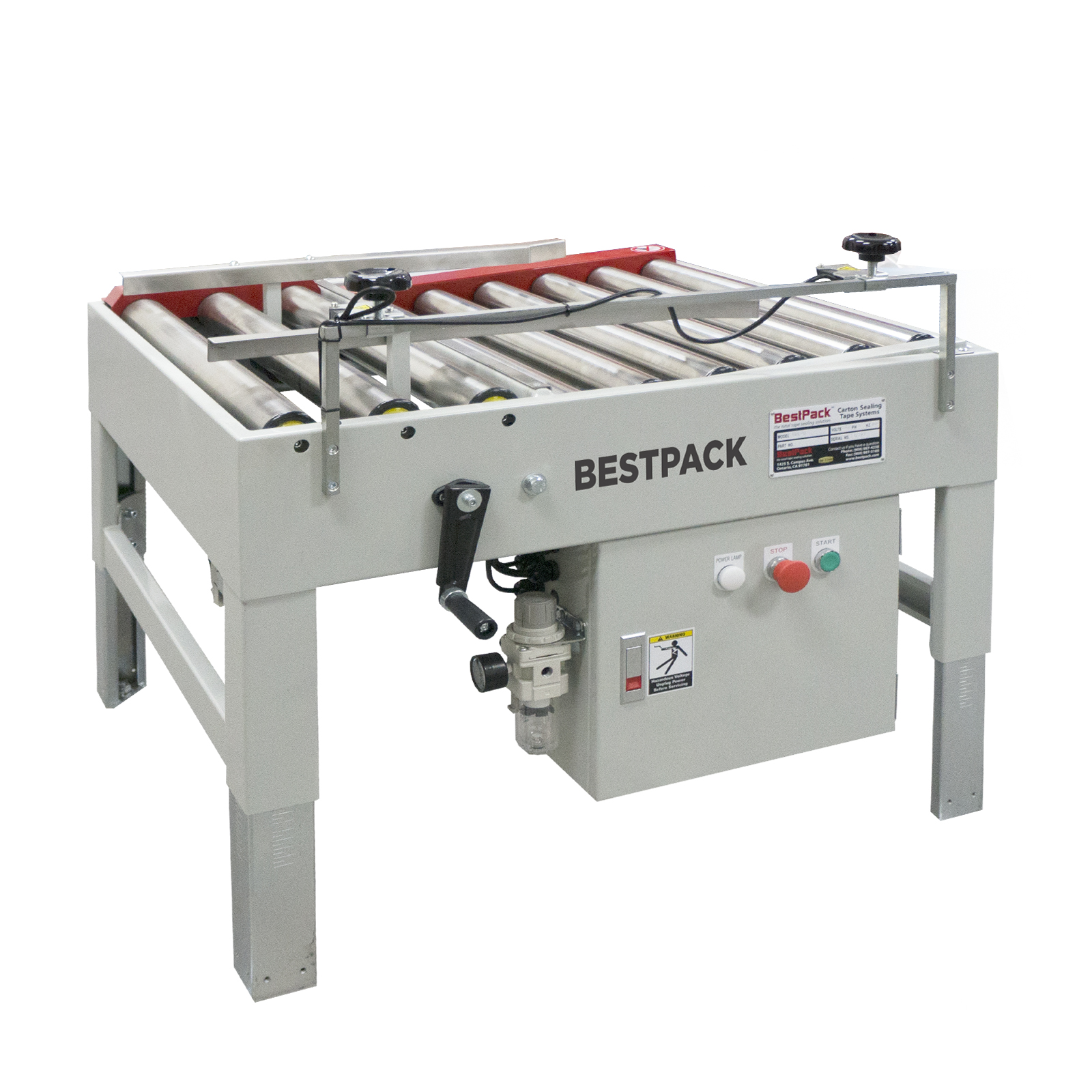

The BestPack ARX Indexer is the perfect unit to place in front of the BestPack AS or AQ type Fully Automatic Unifrom Carton Sealers. The ARX Indexer separates and times the cartons in the sealer to insure proper top flap folding and sealing of the cartons with no carton jamming. The indexer also has a timer that is adjustable to control the spacing between the cartons by controlling how long a duration the drop and stop is. This timing ability is useful in timing the speed of cartons being fed down line to such equipment as label printers and or carton palletizers. This unit is the strongest and most positive indexing system in the market.

All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 57 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 50 PSI, 2 SCFM
  • Shipping Weight 260 lbs
  • Machine Dimensions (34.2") x (22.5") x (35.0")
  • Carton Range (8.0" - 27.5") x (6.0" - 14.6") x (4.5" - 20.0")
  • Trip Current (A) 20
  • FLA 2.5
  • Conveyor Height adjustment (22.5" - 30.0")
  • Phase 1
  • SCCR (KA) 7.5
  • Max Current (A) 5
  • Power (W) 275
  • Specifications based on Line Specifications based on ARX10H

Specifications based on ARX10H

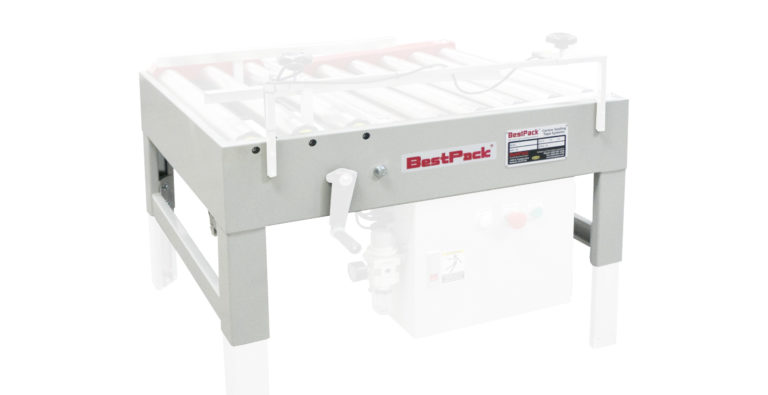

  • Heavy Duty Frame
    Heavy Duty Frame

    2mm Welded Steel Frame

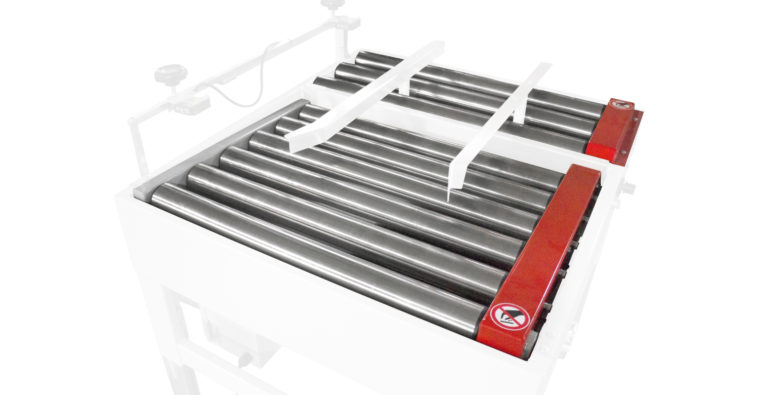

  • Two Motor Drive Roller Conveyors
    Two Motor Drive Roller Conveyors

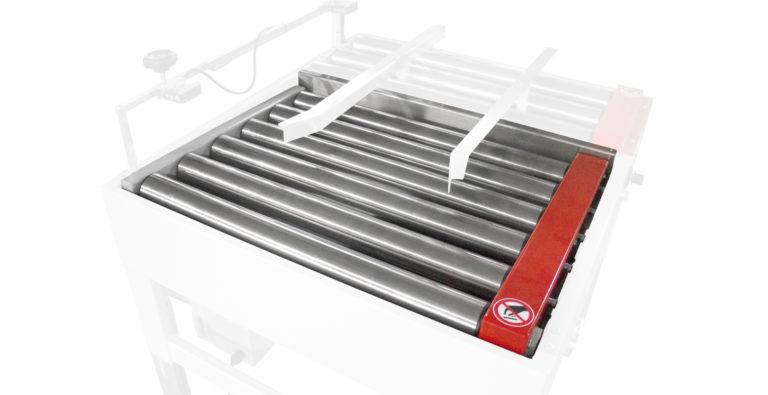

  • Two Section Powered Rollers
    Two Section Powered Rollers

    Front Section with Drop and Stop Feature for Positive Carton Separation

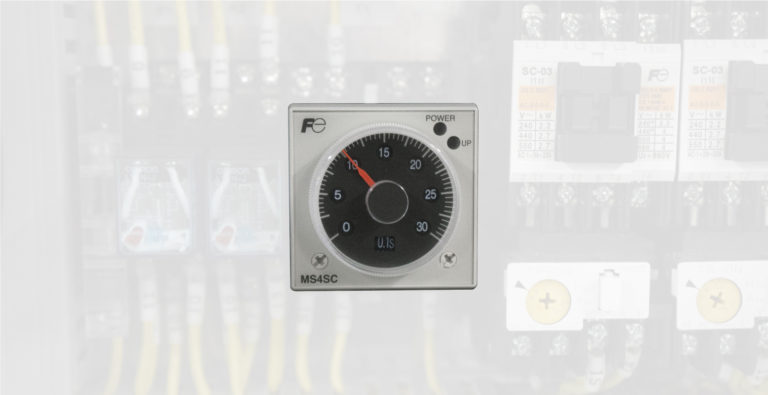

  • Adjustable Timer
    Adjustable Timer

    For Carton Space Separation

  • Oil-Less High Quality SMC Pneumatic Air Cylinder
    Oil-Less High Quality SMC Pneumatic Air Cylinder

    For Long Lasting Dependable Service

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • on/off box accessory
    On/Off Control Box

    With the additional ON/OFF control box you can stop and start the carton sealer, no matter what side the operator is on.

  • safety gates accessory
    Custom Interlock Gates (Special Order)

    Aluminum frame interlock safety gates can be added to the carton sealer for an extra layer of protection. These interlock safety gates protect the operator from all of the moving parts of the carton sealer.
