Category: ESHB Carton & Case Erector Belt Drive: 2 Top/2 Bot Belt Drive

ESHB

Up to 10 Cartons/min.

Fully Automatic Fully Automatic
Uniform Cartons Uniform Cartons
Bottom Seal Bottom Seal
110V 60 Hz
1-Phase
POWER
REQUIREMENTS
100 PSI, 10+ SCFM AIR
REQUIREMENTS
2,425 LBS SHIPPING
WEIGHT
Description / Specifications/ Accessories/

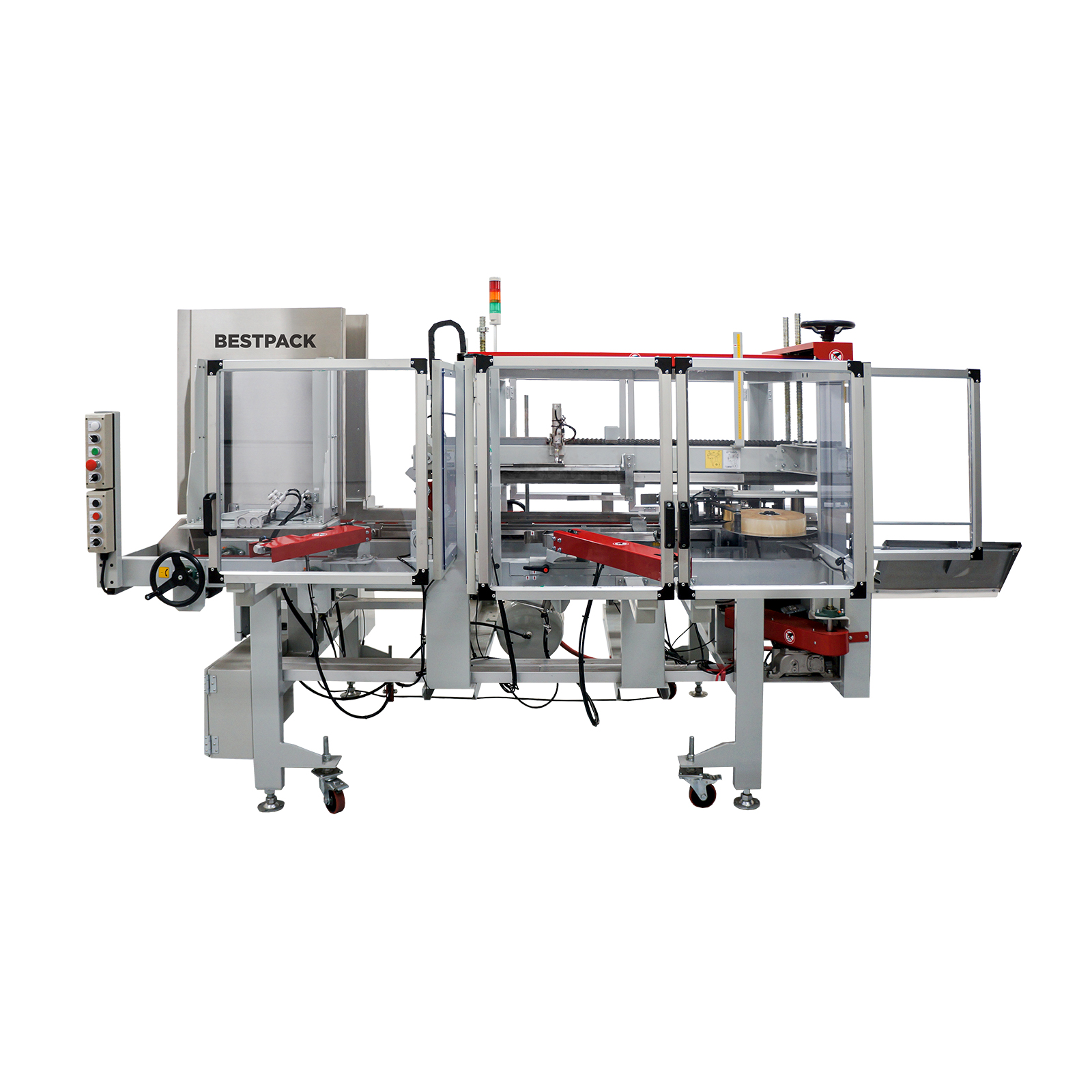

The model ESHB is an innovative high performance carton erector/sealer. This erector is built for heavy usage with quick and simple carton size changeover. The adjustments for the hopper width, carton width, and carton height are fine-tuned with easy-to-adjust screw drives. If you are looking for a simple yet heavy-duty built carton erector, this is a must-see system.

  • Speed Up to 10 Cartons/min.
  • Power Requirements 1110 Volts 60 Hz - Single Phase
  • Air Requirements 100 PSI, 10+ SCFM
  • Shipping Weight 2,425 lbs.
  • Machine Dimensions (126.0") x (75.0") x (79.0")
  • Carton Range (6.0" - 25.5") x (6.0" - 14.0") x (6.5" - 20.0")
  • Conveyor Height adjustment (22.5" - 30.0")
  • Specifications based on Line Specifications based on ESHB11-2

Specifications based on ESHB11-2

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
