Category: ESHT Carton & Case Erector Belt Drive: Top & Bot Belt Drive

ESHT

Up to 10 Cartons/min.

Fully Automatic Fully Automatic
Uniform Cartons Uniform Cartons
Bottom Seal Only Bottom Seal Only
110V 60 Hz
1-Phase
POWER
REQUIREMENTS
100 PSI, 10+ SCFM Air
requirements
3,450 LBS Shipping
Weight
Description / Specifications/ Features/ Accessories/

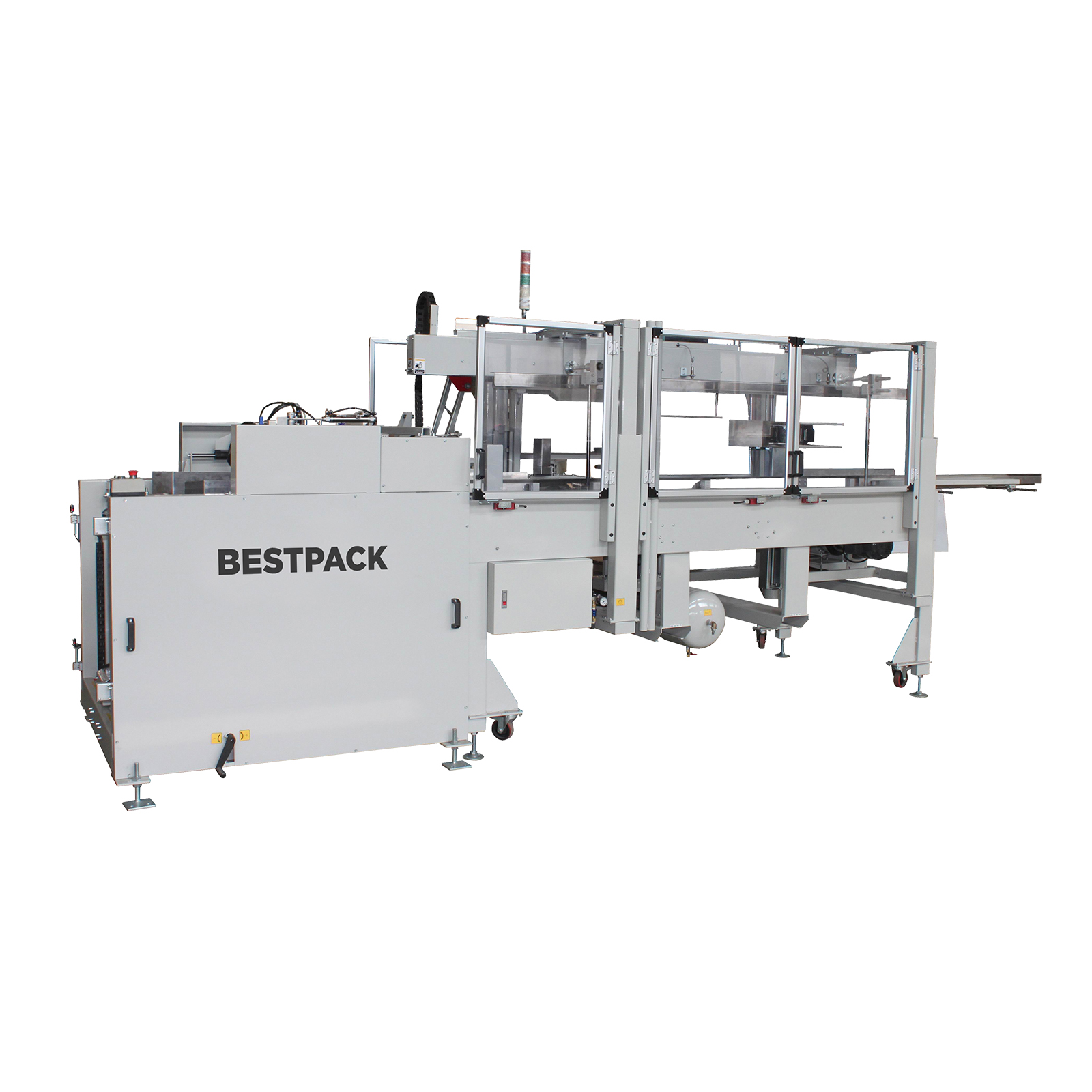

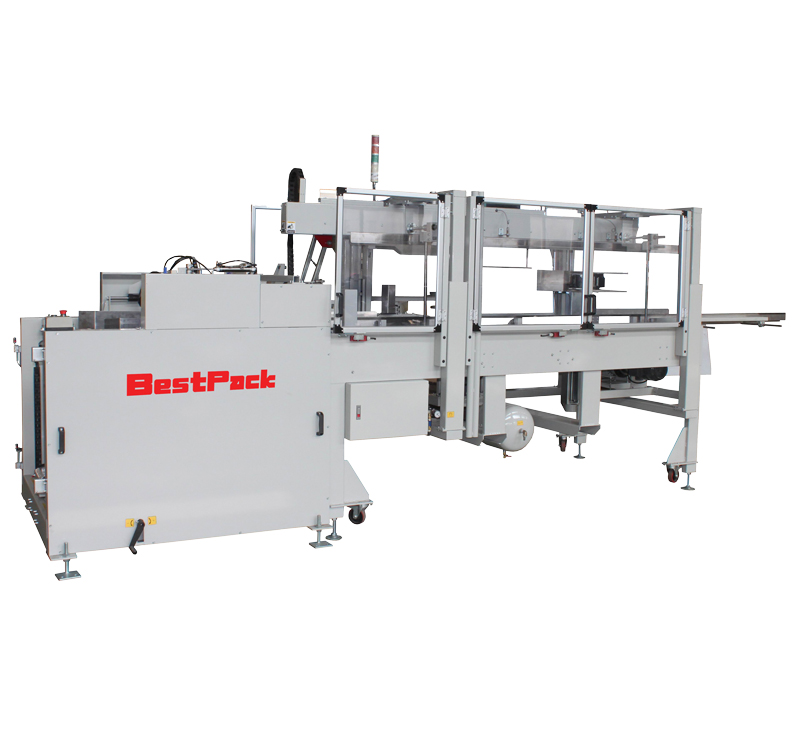

Our BestPack Packaging ESHT is an innovative high performance carton erector/sealer using a top carton pull system. This design allows for large cartons that can be difficult to erect and yet still handles a wide range of carton sizes. The ESHT erector is built for heavy usage with quick and simple carton size change over. If you are looking for a simple yet heavy built carton erector, this is a must-see unit. Optional automatic infeed conveyors are available for pre-stacked cartons yet to be erected.

Our ESHT erector line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 10 Cartons/min.
  • Power Requirements 110 Volts 60 Hz - Single Phase
  • Air Requirements 100 PSI, 10+ SCFM
  • Shipping Weight 3,450 lbs.
  • Machine Dimensions (198.1") x (86.2") x (83.1")
  • Carton Range (12.0" - 30.0") x (8.0" - 24.0") x (6.0" - 20.0")
  • Conveyor Height adjustment (25.5" - 31.5")
  • Specifications based on Line Specifications based on ESHT22-2

Specifications based on ESHT22-2

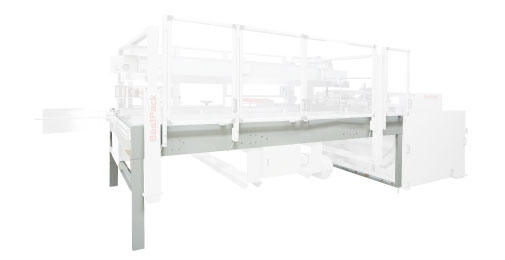

  • Heavy Duty 3mm Welded Frame
    Heavy Duty 3mm Welded Frame

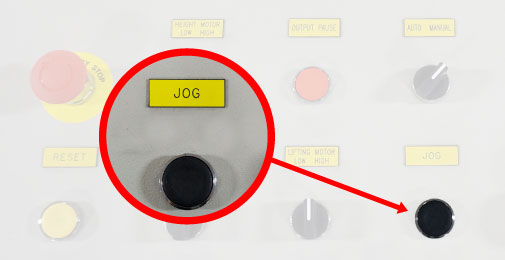

  • Manual Jog Button
    Manual Jog Button

    For Step-by-Step Activation of All Movements

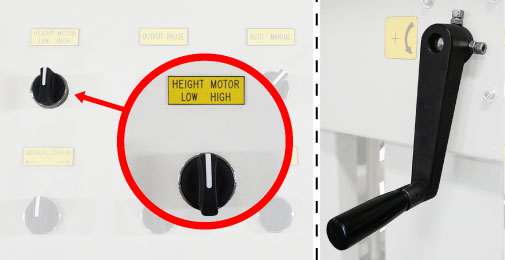

  • Manual Length, Width, and Height Adjustments.
    Manual Length, Width, and Height Adjustments.

    Quick Easy Adjustments.

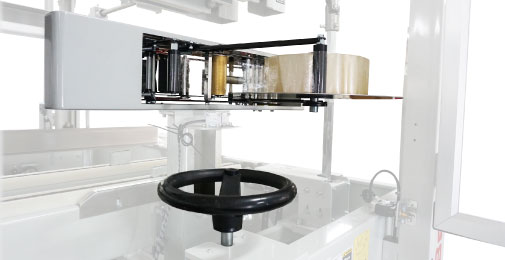

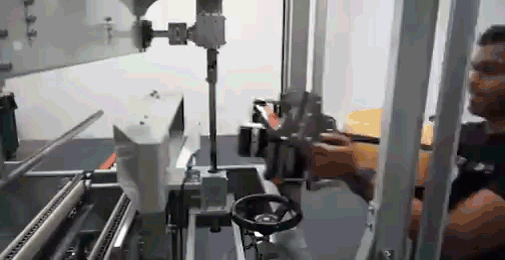

  • Tape Head Side Sealing Adjustment
    Tape Head Side Sealing Adjustment

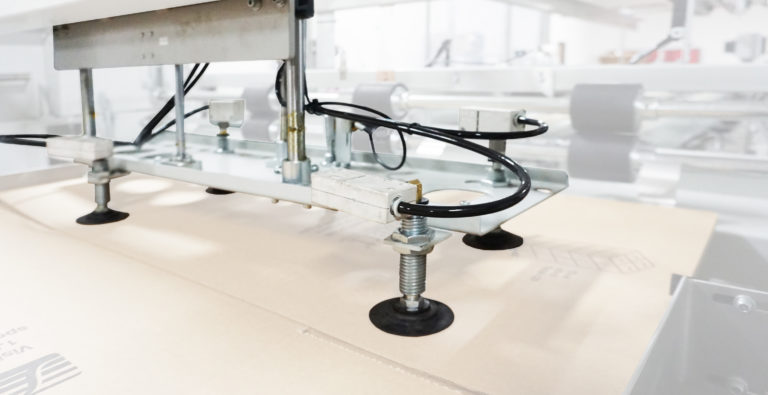

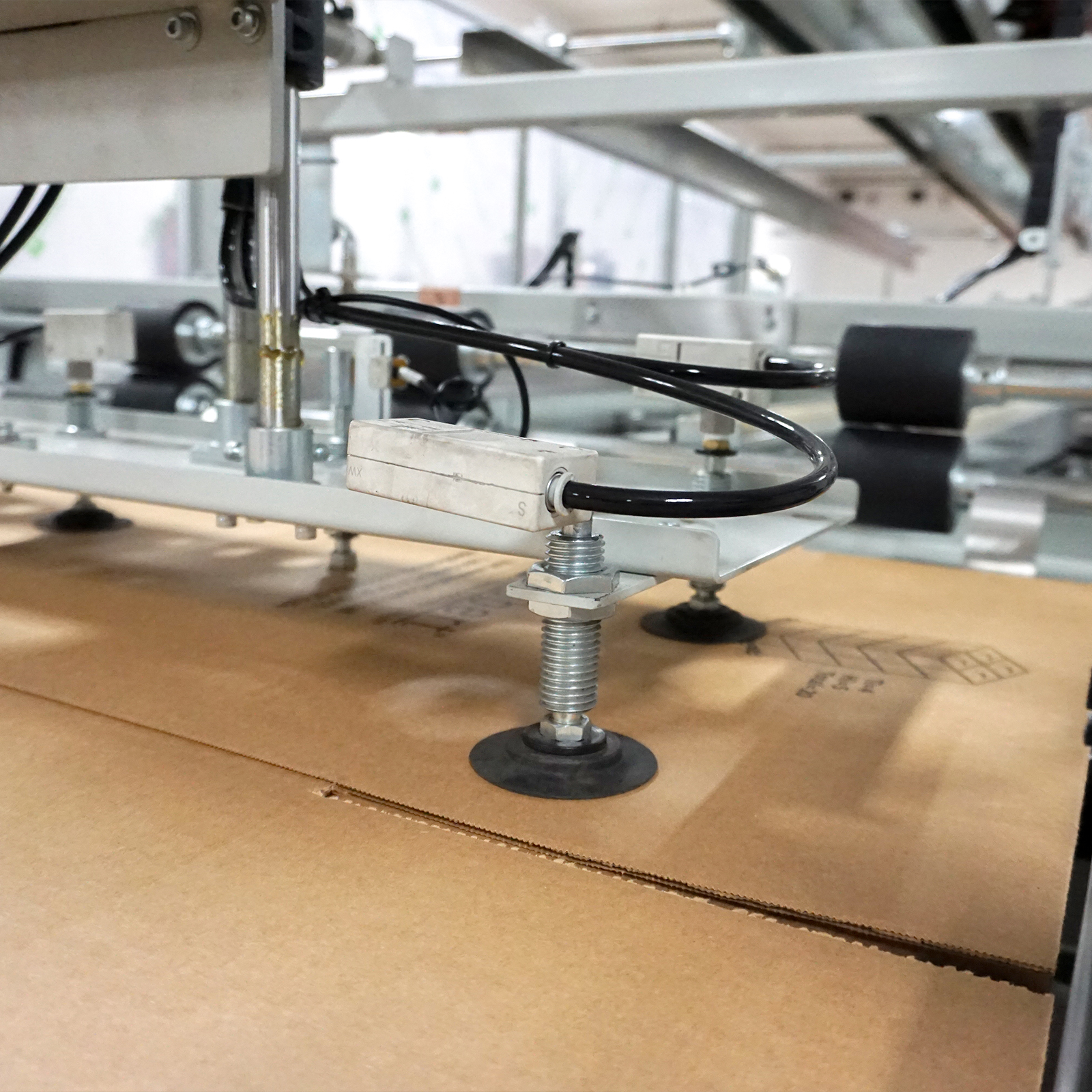

  • Venturi Suction Cup System
    Venturi Suction Cup System

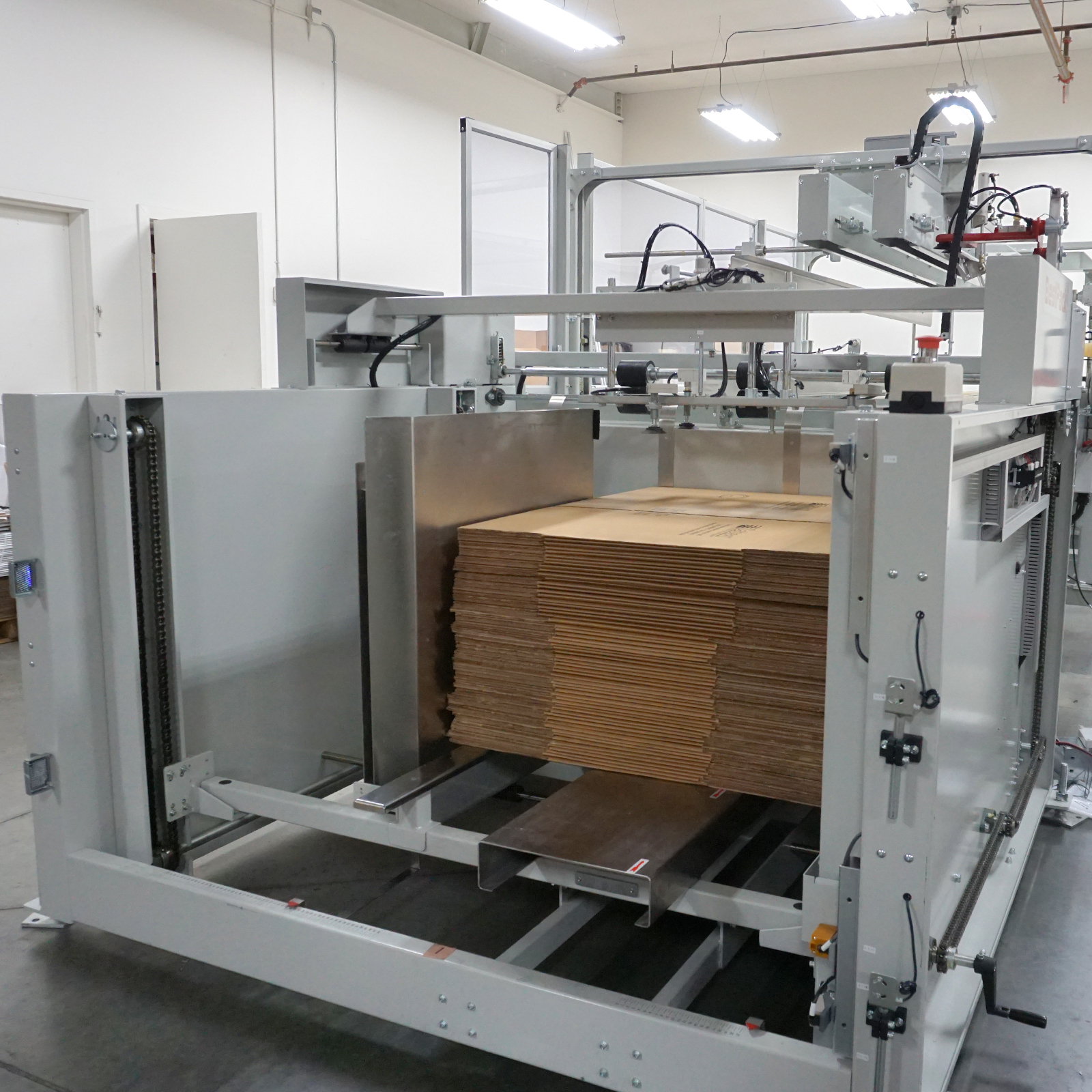

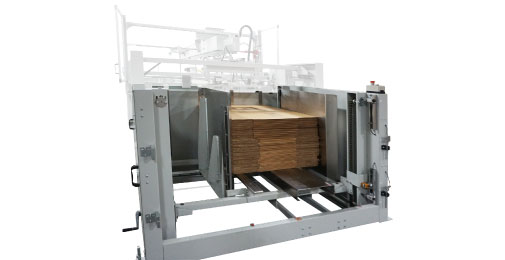

  • Hopper for Holding Cartons
    Hopper for Holding Cartons

    Holds 70 - 100 Cartons depending on the size.

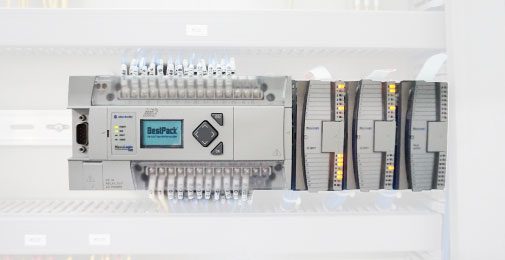

  • Allen-Bradley PLC Logic
    Allen-Bradley PLC Logic

    with Ethernet Capabilities

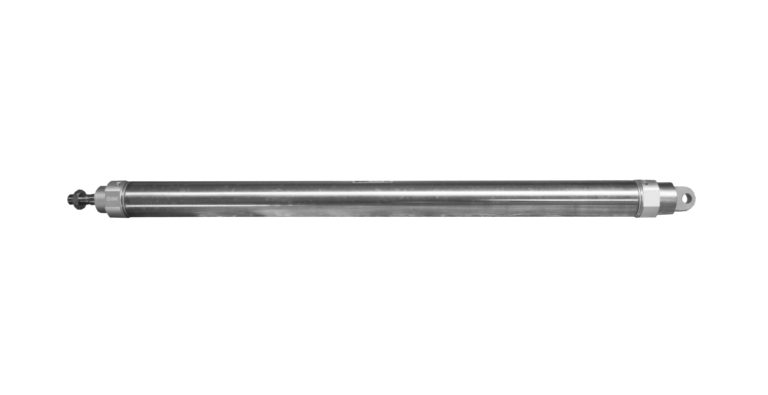

  • Heavy Duty Maintenance Free, Oil-less Air Cylinder
    Heavy Duty Maintenance Free, Oil-less Air Cylinder

    with Air Cushion

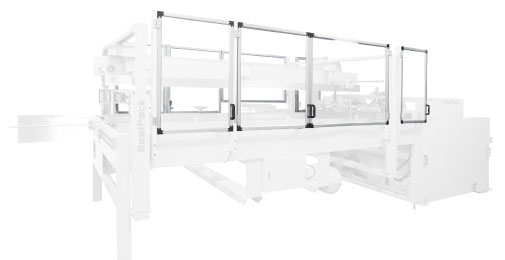

  • Interlock Safety Gates
    Interlock Safety Gates

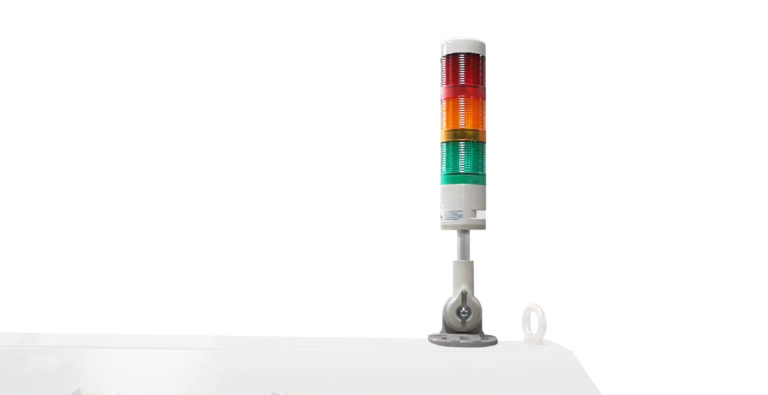

  • Malfunction Alarm
    Malfunction Alarm

    with Three-colored Lights

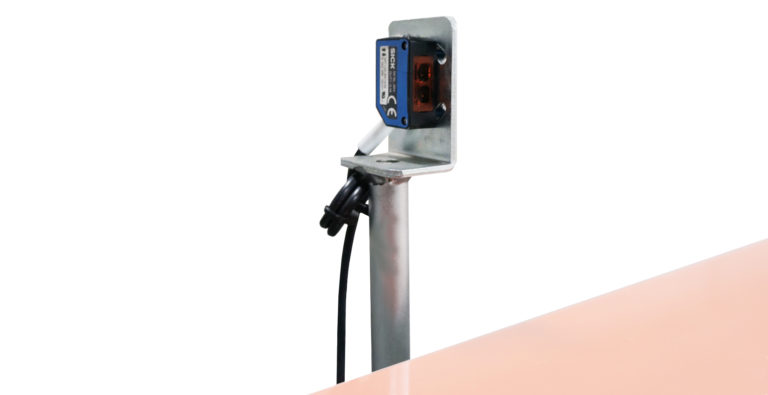

  • Carton on Demand Logic
    Carton on Demand Logic

    with Photo Eye

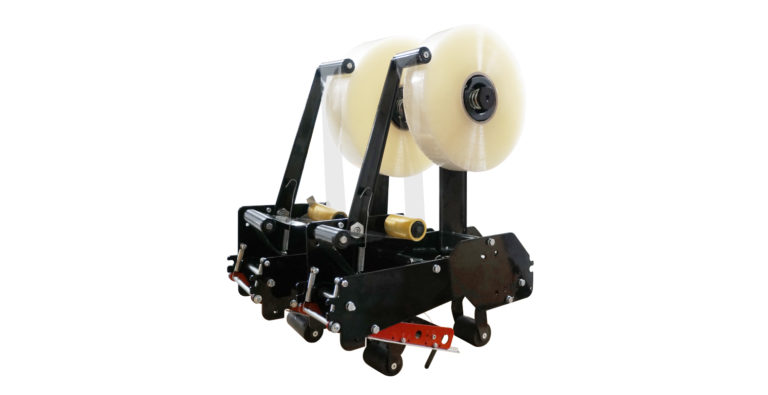

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

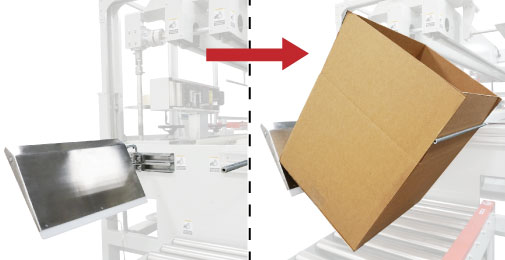

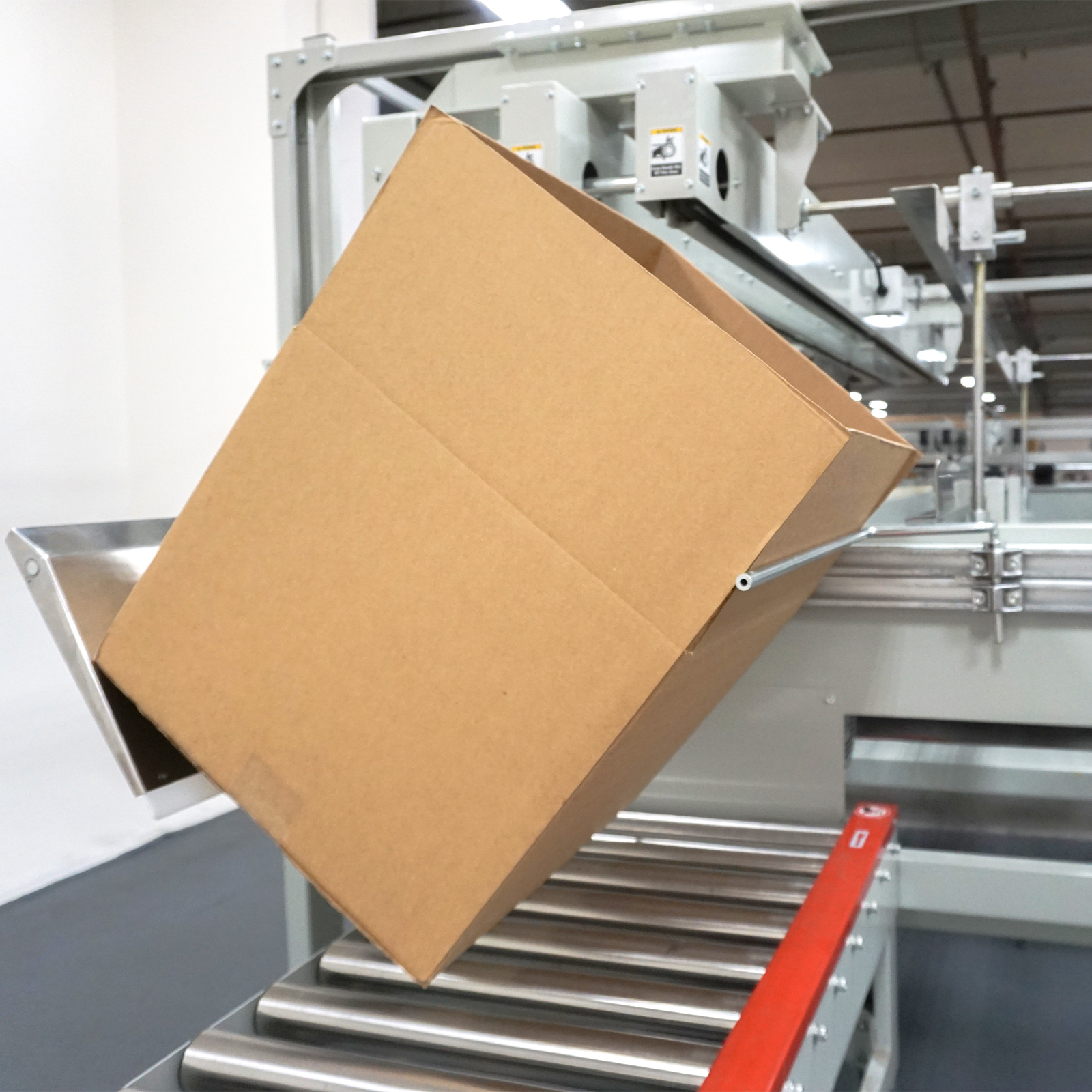

  • Carton is Righted as it leaves the Erector
    Carton is Righted as it leaves the Erector

  • Exclusive 2
    Exclusive 2" or 3" Pop-out Pressure Sensitive "High Speed" Tape Head

    with Patented Tab Adjustment and Noise Reduction Arm

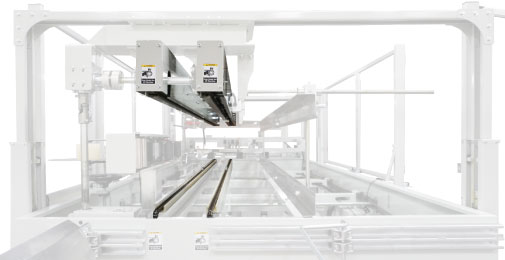

  • Top & Bottom Belt Drive
    Top & Bottom Belt Drive

    with High Speed Motors

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
