FDA/USDA Approved
Strong Seal
High Gloss

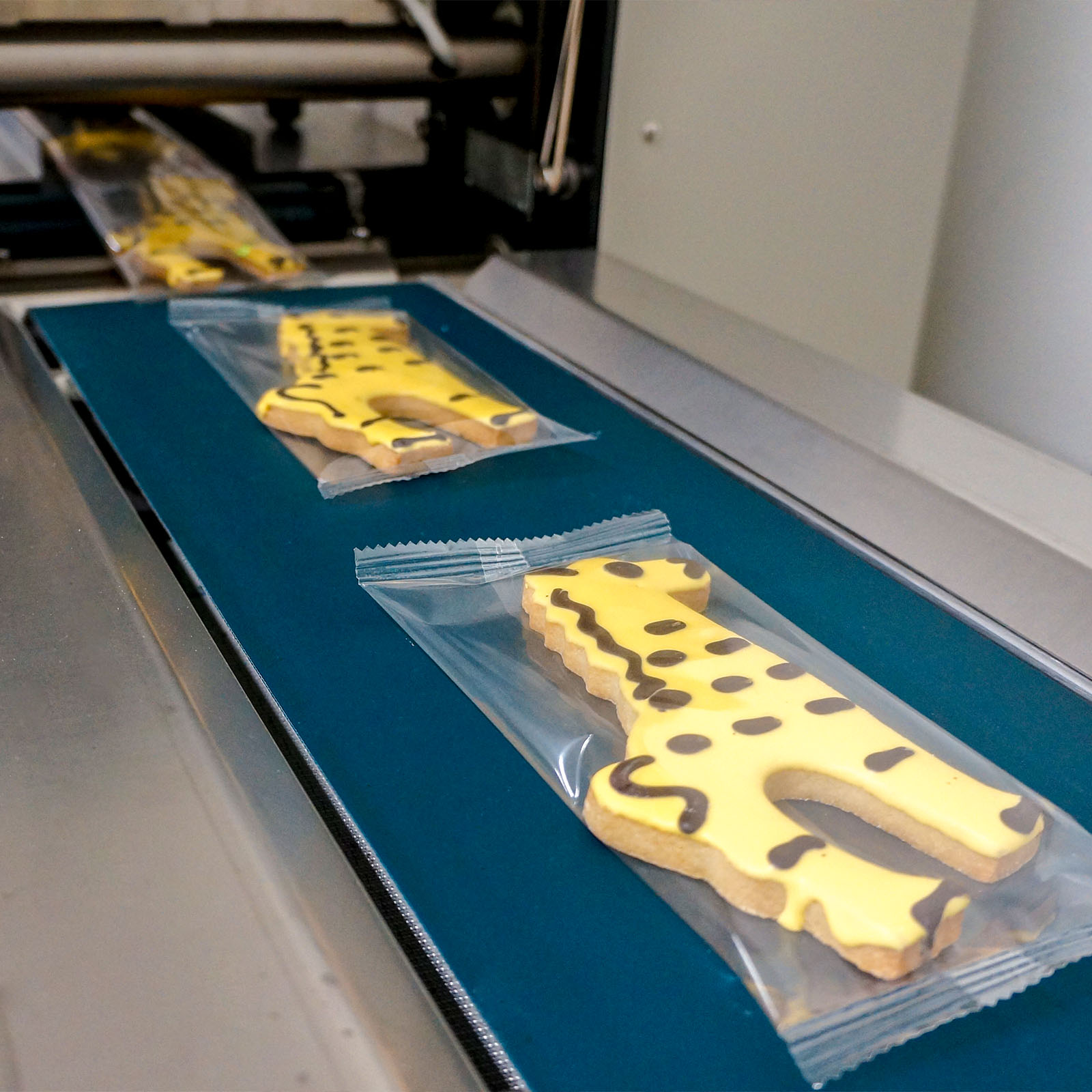

Our Biaxially Oriented Polypropylene (BOPP) film is engineered for high-speed packaging environments, offering exceptional clarity, strong seals, and smooth machinability. Whether you’re wrapping snacks, bakery items, or general merchandise, this film delivers consistent performance across a wide range of applications.
For Retail Appeal
| Typical Properties | Test Method | 80GA | 120GA | 140GA |
|---|---|---|---|---|
| Nominal thickness (micron µm) | Internal | 20µm | 30µm | 35µm |
| Haze (max) | ASTM D-1003 | ≤ 2.5% | ≤ 2.6% | ≤ 2.6% |
| Gloss (min) at 45° angle | ASTM D-2457 | ≥ 85% | ≥ 85% | ≥ 85% |
| Tensile strength (MD/TD) | ASTM D-882 | ≥ 1200 kg/cm² (MD) ≥ 2400 kg/cm² (TD) |
≥ 1200 kg/cm² (MD) ≥ 2400 kg/cm² (TD) |
≥ 1200 kg/cm² (MD) ≥ 2400 kg/cm² (TD) |
| Elongation (MD/TD) | ASTM D-882 | 180% (MD) 70% (TD) |
180% (MD) 70% (TD) |
180% (MD) 70% (TD) |
| Heat shrinkage (max) (MD/TD) | 120C / 5-10 min | ≤ 4.0% (MD) ≤ 2.0 (TD) |
≤ 4.0% (MD) ≤ 2.0 (TD) |
≤4.0% (MD) ≤2.0 (TD) |
| Heat seal range / SIT | Internal | 105°C (221°F) | 105°C (221°F) | 105°C (221°F) |
| Coefficient of friction (max) | ASTM D-1894 | ≤ 0.30 kinetic UT/UT | ≤ 0.30 kinetic UT/UT | ≤ 0.30 kinetic UT/UT |
| Treatment level (min) | ASTM D-2578 | ≥ 38 dyne/cm | ≥ 38 dyne/cm | ≥ 38 dyne/cm |
| Seal strength (min) @ 120°C | Internal | 400 gms/25mm | 400 gms/25mm | 400 gms/25mm |
| WVTR (max) @ 38°C, 90% RH | ASTM F-1249 | ≤ 5.0 g/m² 24h | ≤ 3.5 g/m² 24h | ≤ 3.0 g/m² 24h |
| OTR (max) @23°C, 0% RH | ASTM D-3985 | ≤ 1600 g/m² 24h | ≤ 1400 g/m² 24h | ≤ 1350 g/m² 24h |
| These values are typical properties, not guaranteed specifications. BPX Solutions reserves the right to modify specifications without notice. | ||||
