FDA Approved
USDA Approved
5 Layer

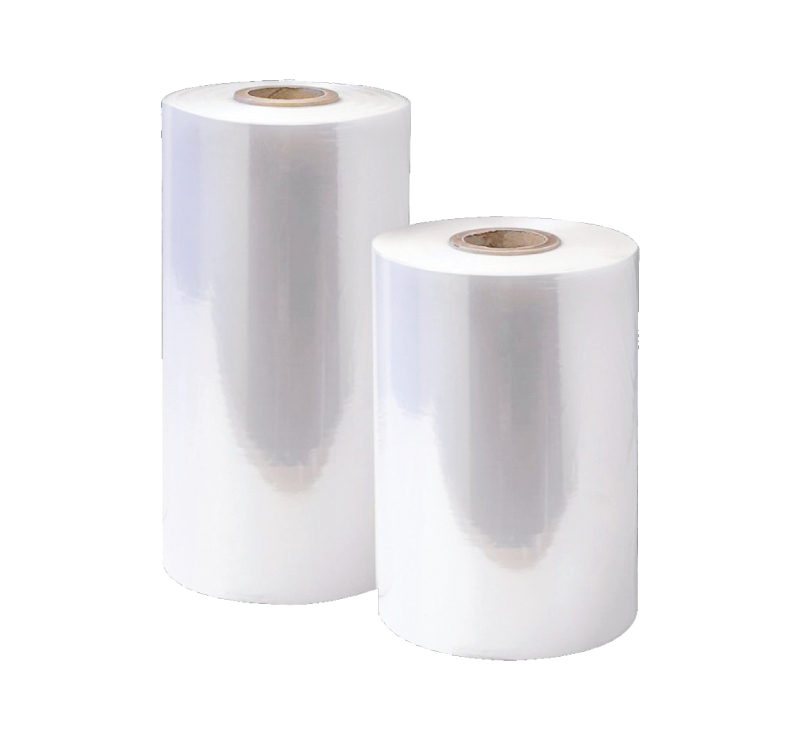

QS201 is a clear biaxially oriented multilayer polyolefin shrink film with the versatility to shrink wrap a wide variety of products. QS-201 is a cost effective alternative to crosslinked films. This film combines good gloss and sparkle with excellent shrink capabilities and can be run on most shrink wrapping equipment.
For Retail Packaging Needs
with Impulse Wire Systems
| Typical Properties | ASTM Test Method | 50G | 60G | 75G | 100G |
|---|---|---|---|---|---|
| Minimum use temperature (F) | -40° | -40° | -40° | -40° | |
| Haze (%) | D1003 | 1.8 | 1.9 | 2.1 | 2.4 |
| Gloss (%) | D2457 | 135 | 135 | 135 | 130 |
| Tensile strength (psi) | D882 | 17,000 | 17,000 | 17,000 | 17,000 |
| Elongation at break (%) | D882 | 105 | 110 | 110 | 110 |
| Stiffness modulus (psi) | D882 | 85,000 | 85,000 | 85,000 | 85,000 |
| Tear strength (gms/ply) | D1922 | 7 | 10 | 12 | 14 |
| Coefficient of friction (film to film:kinetic) | D1894 | 0.23 | 0.25 | 0.25 | 0.25 |
| WVTR (gms/100si/24hrs) | F1249 | 2.0 | 1.8 | 1.6 | 1.3 |
| Unrestrained shrink (%) @ 260°F | D2732 | 60 | 60 | 60 | 60 |
