  • pt tape head
pt tape head
Category: PT - Pneumatic Tape Head

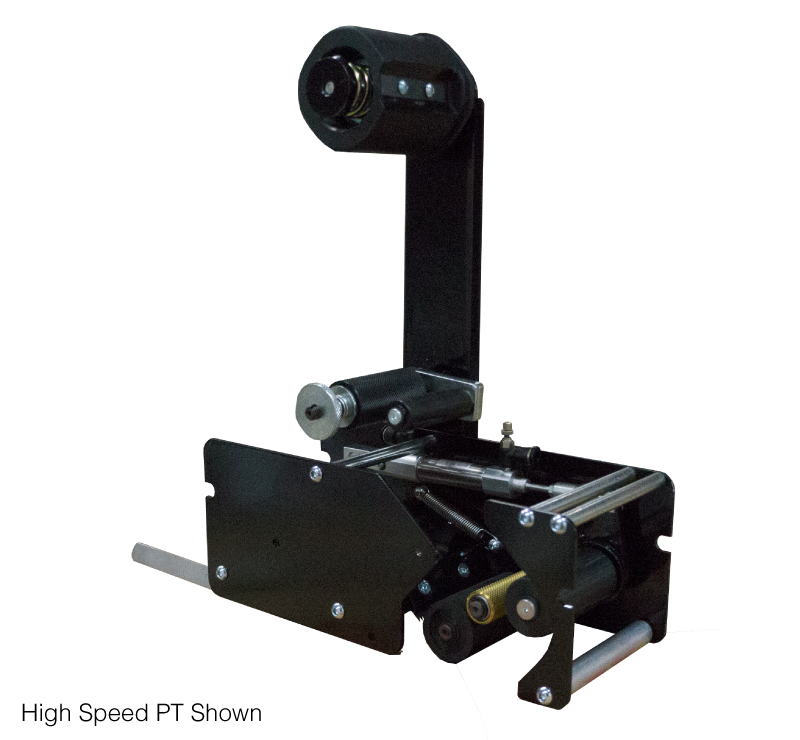

PT Tape Head

Pneumatic Tape Head

High Speed Design High Speed Design
Knurled Brass Roller Knurled Brass Roller
Made for Edge Sealers Made for Edge Sealers
2" & 3" Available
Sizes
Available High
Speed
N/A Stainless
Steel
Description/ FEATURES/ Spare Parts/

The High Speed PT Tape Head is our pneumatic activated tape head. This tape head can be used as either an edge sealing tape head where no corner seal is required or center sealing where a front and back panel tab leg is not needed. When used as an edge sealing tape head it is matched with our MT1E or MS1E type edge sealer. If used for center seal with no front or back tape tab leg it can be matched with most of our carton sealers with some pneumatic and electrical modifications to the sealer.

The High Speed PT Tape Head is available in 2″ when used for edge sealing and available in 2″ and 3″ when used for center sealing without front of back tab leg. This tape head is also available in food grade 304 stainless steel for 21 CFR 110 compliance.

  • Heavy Duty
    Heavy Duty

    Allows the Tape Head to be durable and long lasting.

  • High Speed Design
    High Speed Design

    Flexible for Standard and High Speed Applications.

  • Kiss Touch Tape Applicattion
    Kiss Touch Tape Applicattion

    Allows for Sealing Even Light Chipboard Cartons

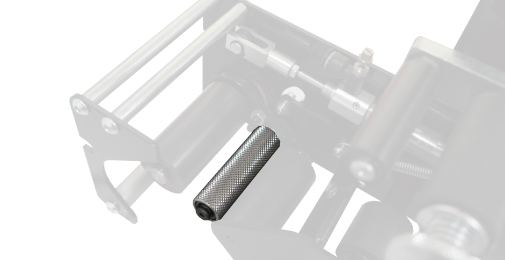

  • Brass Knurled Roller
    Brass Knurled Roller

    Handles Acrylic and Hot Melt Tape with Minimal Adhesive Build-Up.

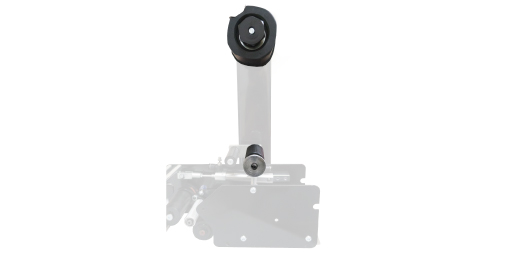

  • Two Tension Adjustment Knobs
    Two Tension Adjustment Knobs

    One with Heavy Duty Tension Spring & One Light Tension Spring. Allows the Tape Head to Handle Acrylic, Hot Melt and Natural Rubber Adhesives

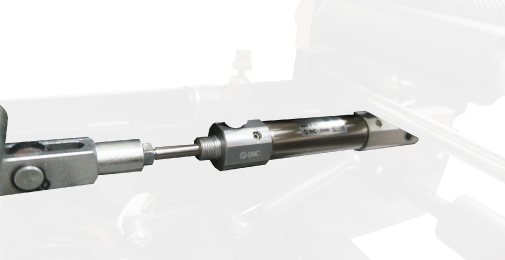

  • SMC Oil-Less Air Cylinder
    SMC Oil-Less Air Cylinder

    Pneumatic Air Cylinder with Air Cushion for long Cylinder Life and No Maintenance.

  • Multiple Tape Sizes
    Multiple Tape Sizes

    Designed to Handle 1,000, 1,500, and 2,000 yard Length Machine Grade Tape Rolls.

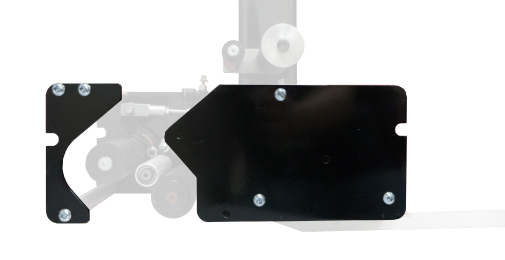

  • Side Plate Cut Away
    Side Plate Cut Away

    Easier Tape Threading.

  • Heavier Mil Thickness
    Heavier Mil Thickness

    Performs better with heavier mil thickness tapes when used for Edge Sealing Applications

  • tape mandrel spare part
    Tape Head Mandrel
  • blade spare part
    Replacement Cutter Blades
  • rubber roller spare part
    Rubber Roller
  • PT support spring spare part
    Support Spring – PT
  • PT brass roller spare part
    Brass Knurled Rollers – PT

Downloads:
