Category: Carton Sealers Belt Drive: Side Belt Drive

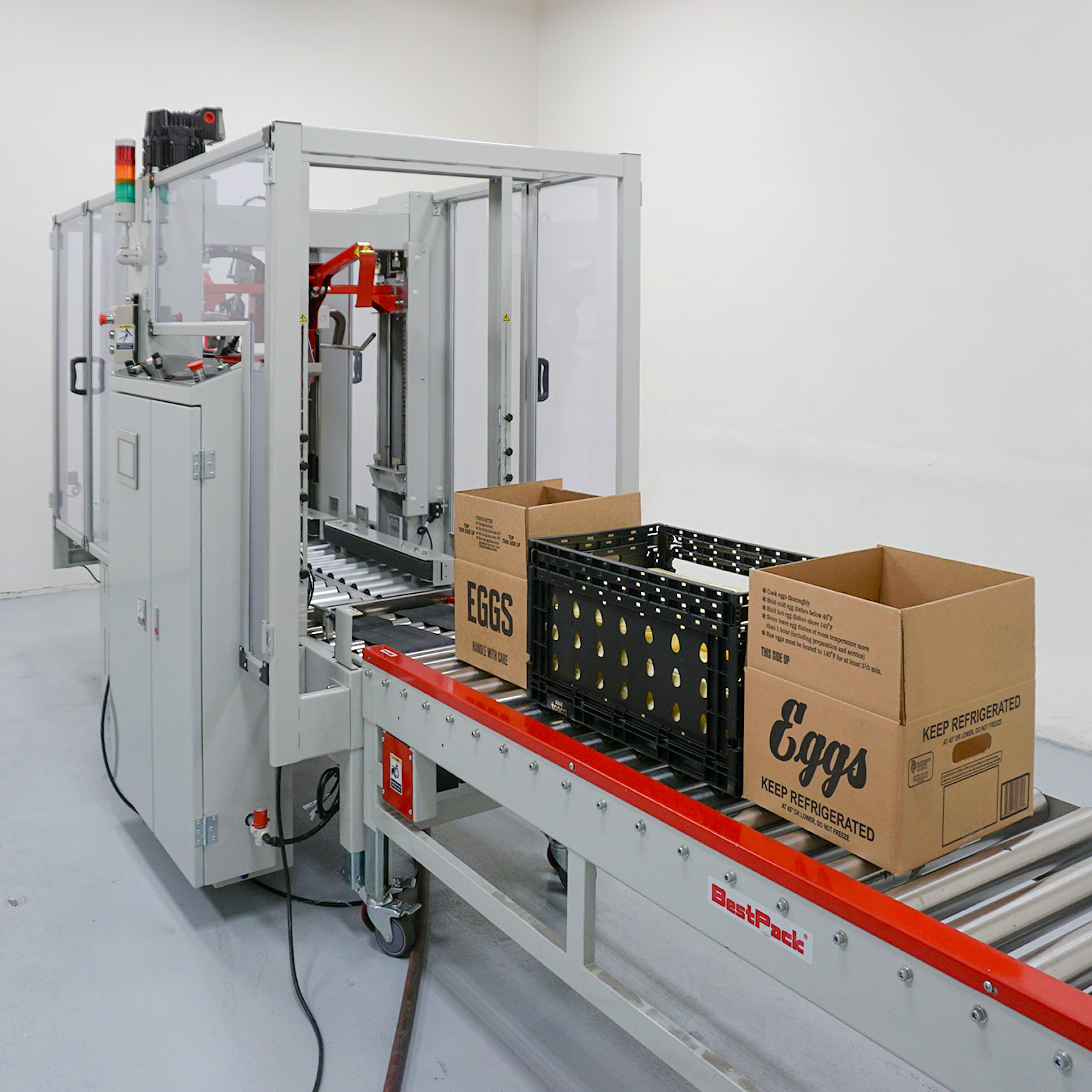

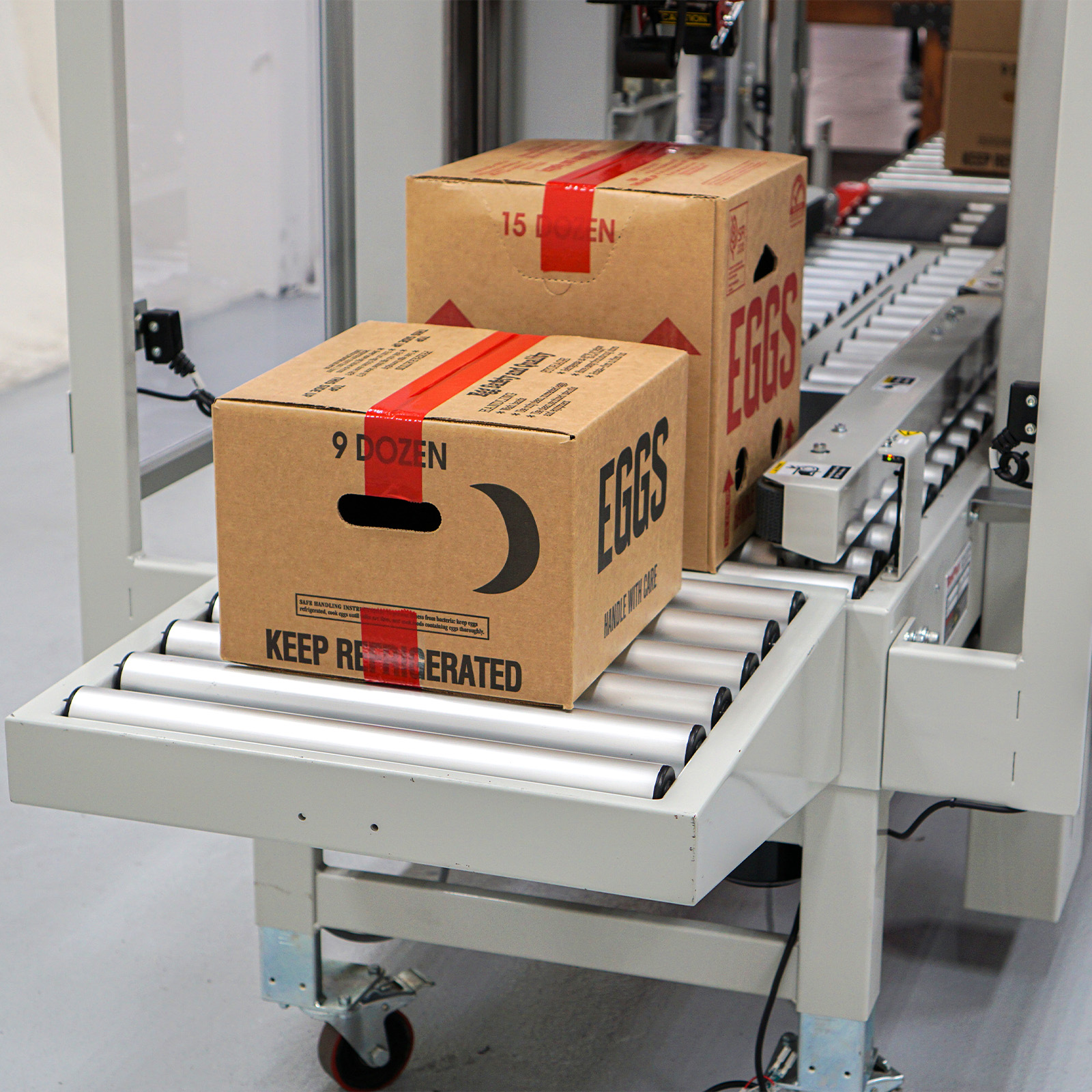

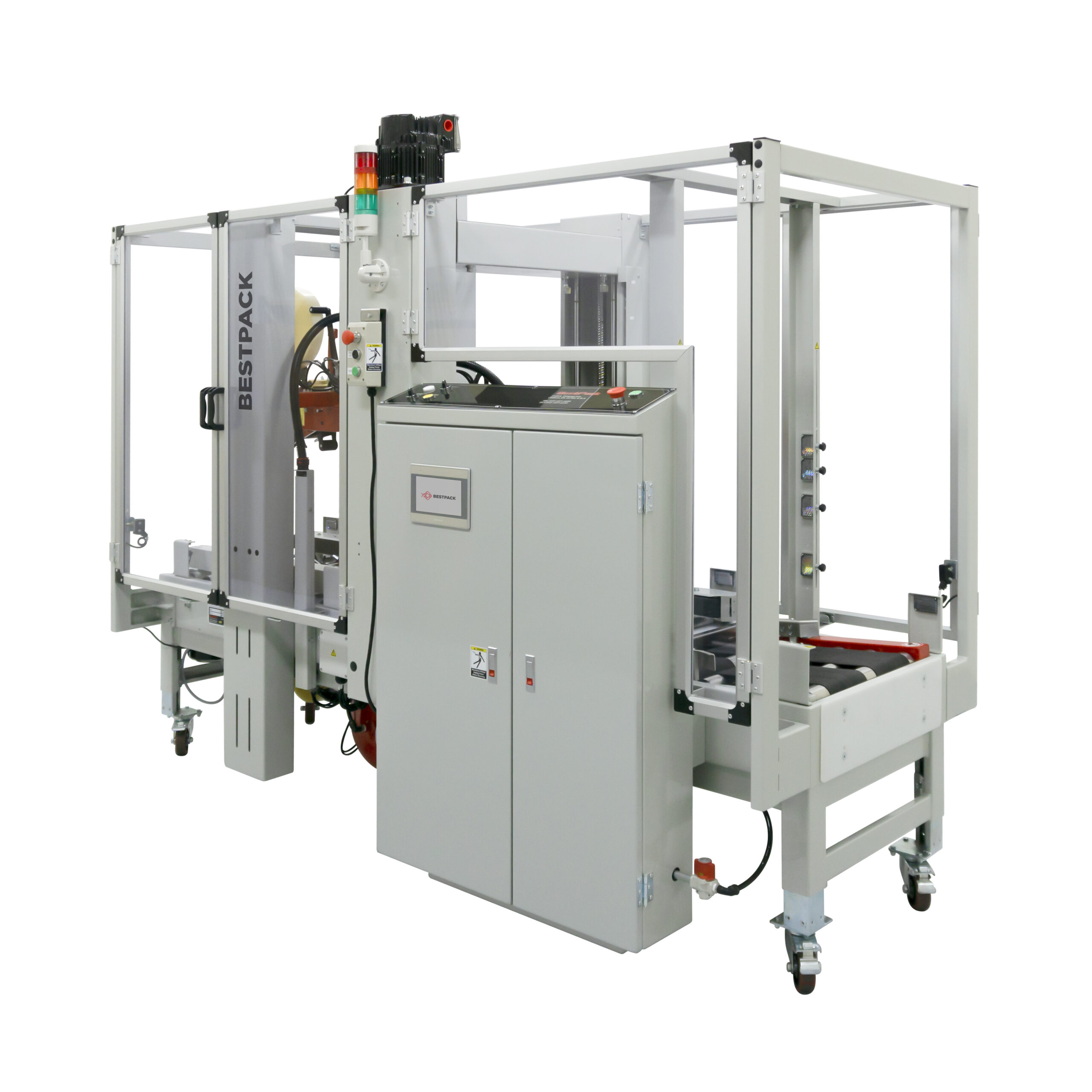

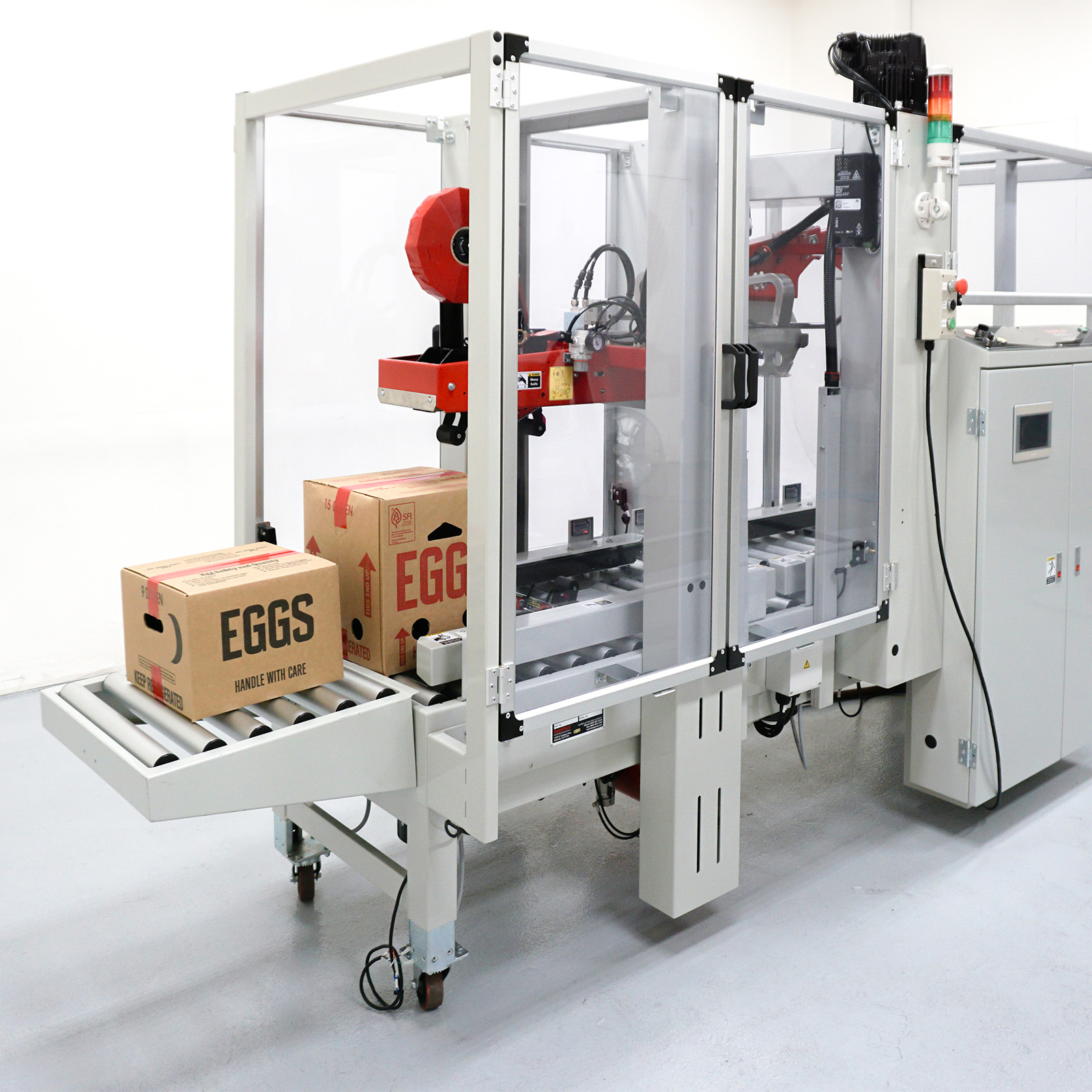

CSEGA

Up to 27 Cartons/min.

Fully Automatic Fully Automatic
Random Cartons Random Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts
60 Hz
Power
Requirements
100 PSI
12+ SCFM
Air
Requirements
1,320 LBS Shipping
Weight
Description / Specifications/ Features/ Accessories/

BestPack™ proudly presents the latest advancement for the egg industry, the CSEGA. Featuring a servo motor that enhances flexibility and achieves high speeds comparable to the fastest egg graders. The CSEGA is engineered with precision, enabling a crate pass-through at an impressive rate of 27 cartons per minute.

Capable of sealing: 5, 7.5, 9, 12, 15, 24 and 30 dozen, as well as for reusable plastic crates.

  • Speed Up to 27 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 100 PSI, 12+ SCFM
  • Shipping Weight 1,320 lbs
  • Machine Dimensions (99.2") x (47.9") x (82.2")
  • Carton Range (6.0" - 25.5") x (6.0" - 14.0") x (6.5" - 20.0")
  • Trip Current (A) 20
  • FLA 9
  • Conveyor Height adjustment (25.5" - 30.0")
  • Phase 1
  • SCCR (KA) 10
  • Max Current (A) 10
  • Power (W) 990
  • Specifications based on Line Specifications based on CSEGA11-2H

Specifications based on CSEGA11-2H

  • Independent 3-stage Operation:
    Independent 3-stage Operation:

    Indexing, Flap Folding, & Sealing

  • Allen Bradley PLC Controls
    Allen Bradley PLC Controls

    w/ Ethernet Capabilities

  • Indexer
    Indexer

    with Carton Centering Device

  • Plastic Crate Pass-Through
    Plastic Crate Pass-Through

  • High Speed Motors
    High Speed Motors

    for Belt Speed of 125 ft. per min.

  • Carton Height Sensors
    Carton Height Sensors

  • Tape Roll Lengths:
    Tape Roll Lengths:

    1,000 yd. & 1,500 yd.

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Adjustable Bed Height
    Adjustable Bed Height

    From 22.0" to 30.0"

  • Interlock Safety Gates
    Interlock Safety Gates

  • Low Tape/No Tape on Carton/No Cut Sensors & Alarm
    Low Tape/No Tape on Carton/No Cut Sensors & Alarm

  • Heavy Duty Casters
    Heavy Duty Casters

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
