Category: Carton Sealers Belt Drive: Side Belt Drive

AS

Up to 57 Cartons/min.

No Operator Required No Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz POWER
REQUIREMENTS
45-60 PSI
4-5 SCFM
AIR
REQUIREMENTS
500-585 LBS SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

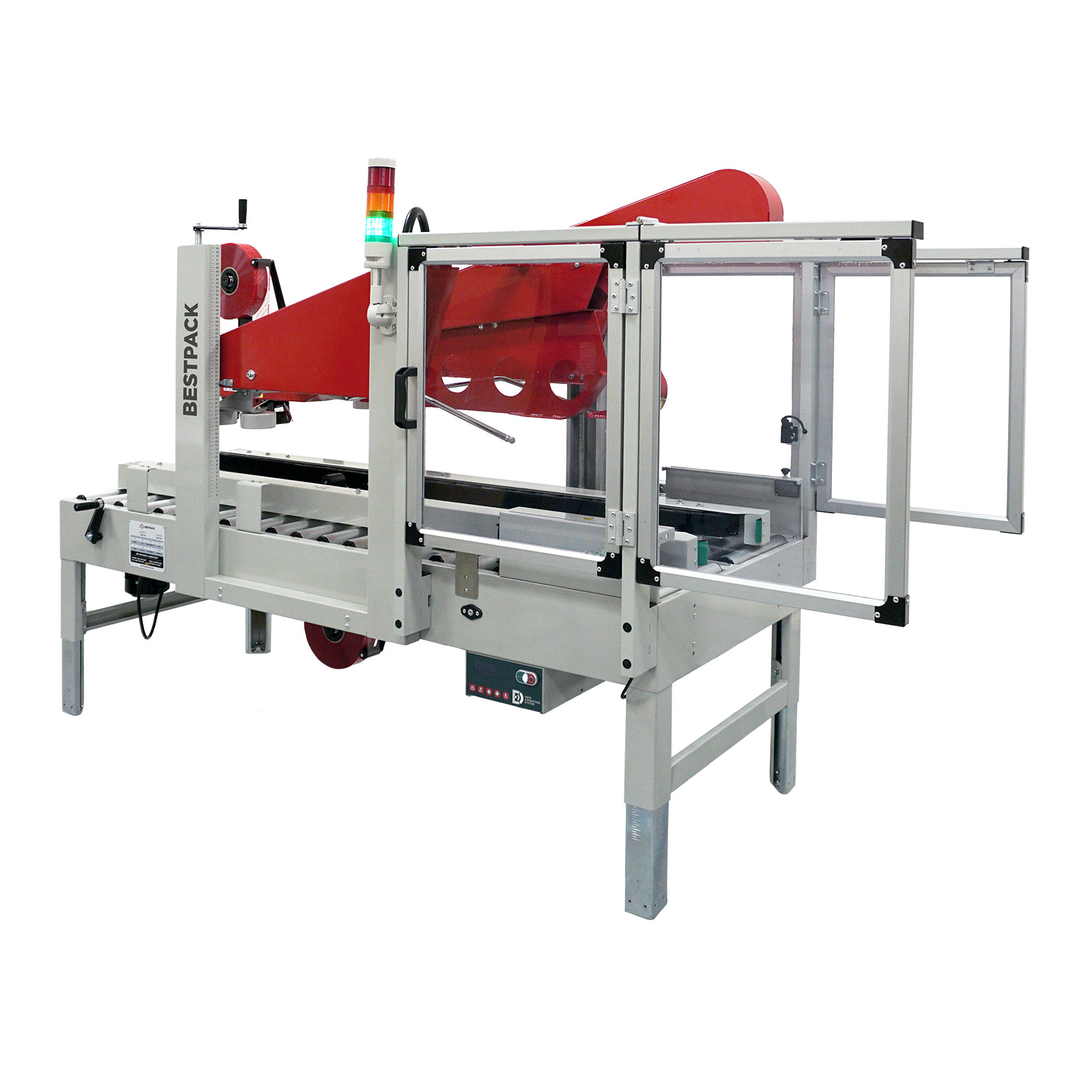

The BestPack AS Series is an operator-free carton sealer designed to meet the needs of uniform in-line carton closure applications. Designed with a solid four column support structure and using dual motor side belt technology, the AS closes all four top flaps and seals the top & bottom of the carton, using 45-60 PSI and 4-5 SCFM of air.

Our AS line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 57 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS 45-60 PSI, 4-5 SCFM
  • SHIPPING WEIGHT 500-585 lbs.
  • MACHINE DIMENSIONS (77.7") x (33.8") x (69.0")
  • CARTON RANGE (6.0" - 27.5") x (6.0" - 20.0") x (5.5" - 20.0")
  • CONVEYOR HEIGHT ADJUSTMENT (22.5" - 30.0")

Specifications based on AS22-2

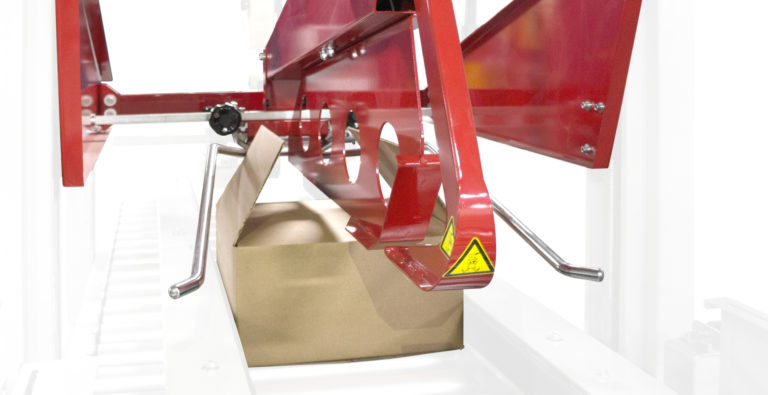

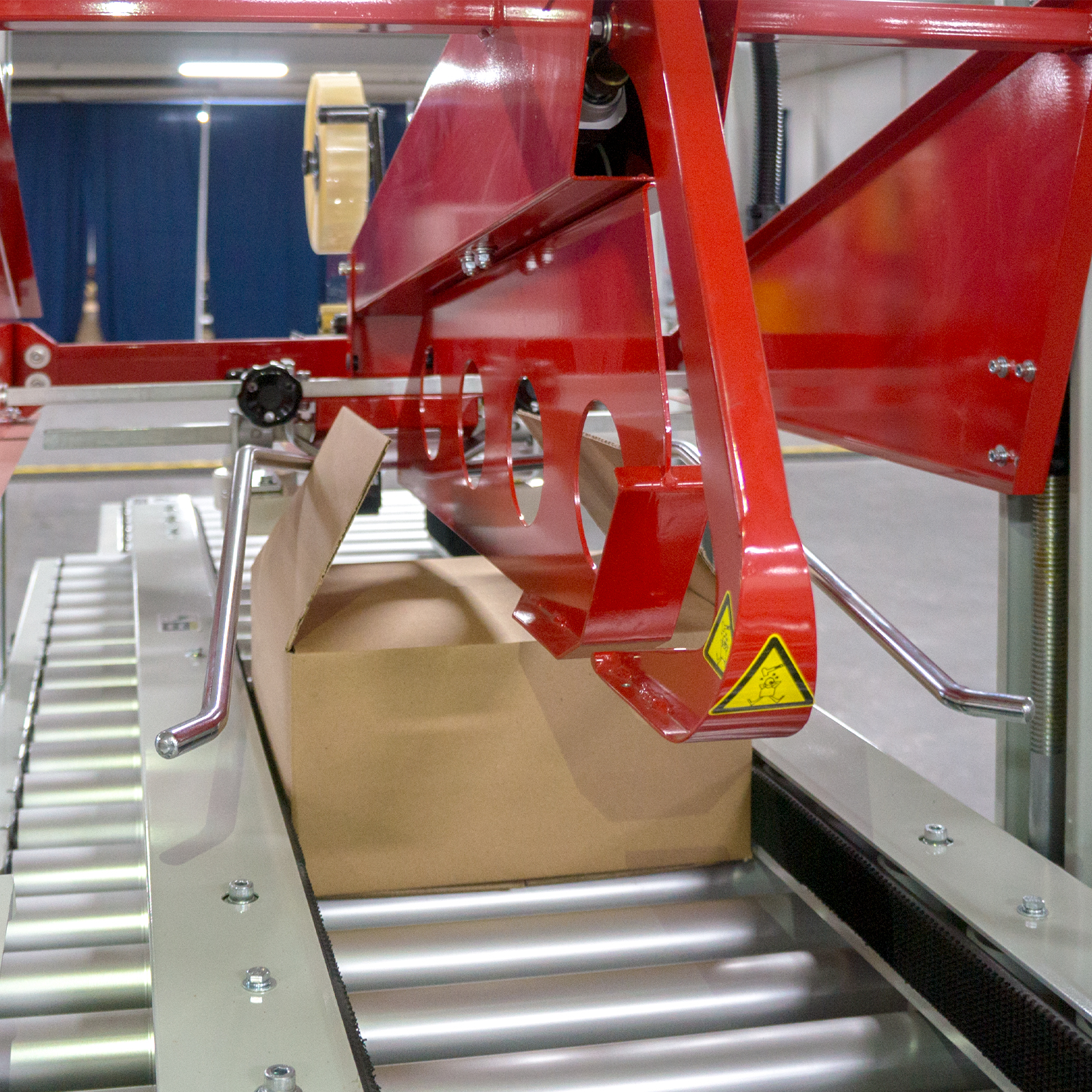

  • In-line Automatic Top Flap Folding Carton Closure
    In-line Automatic Top Flap Folding Carton Closure

  • Adjustable Bed Height
    Adjustable Bed Height

    From 22.5" to 30.0"

  • Width/Height Adjustment Knobs
    Width/Height Adjustment Knobs

    Can be Mounted on Either Side of the Sealer

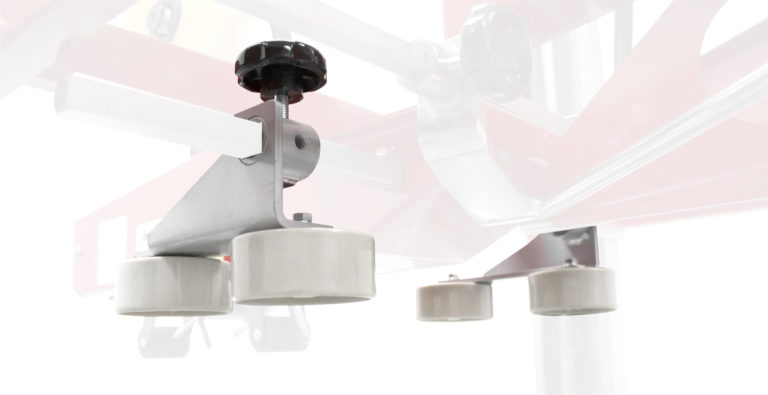

  • Upper Side Compression Unit
    Upper Side Compression Unit

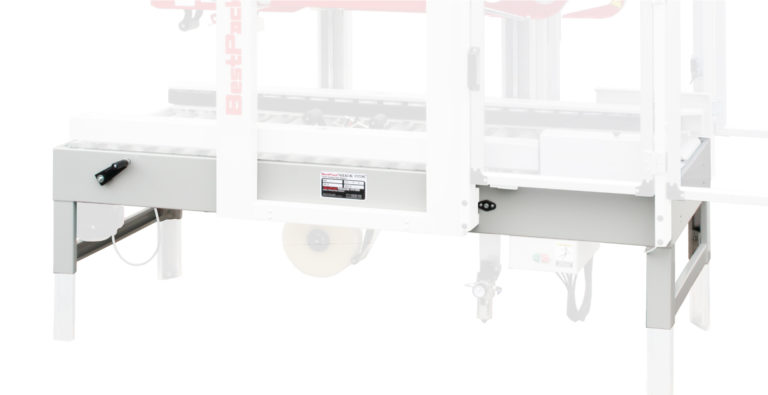

  • Heavy Duty Frame
    Heavy Duty Frame

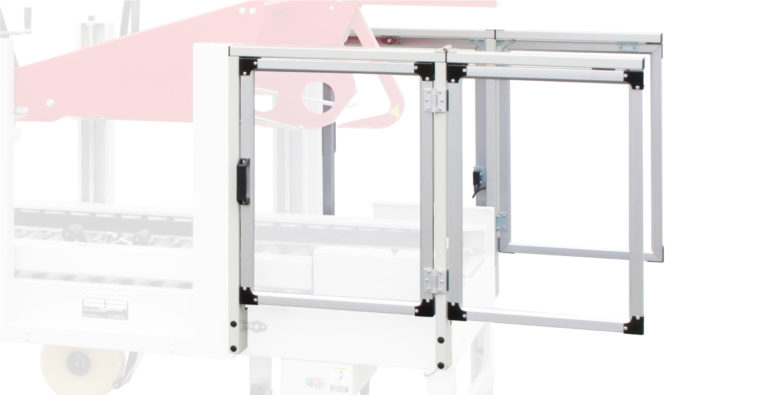

  • Interlock Safety Gates in the Kicker Station
    Interlock Safety Gates in the Kicker Station

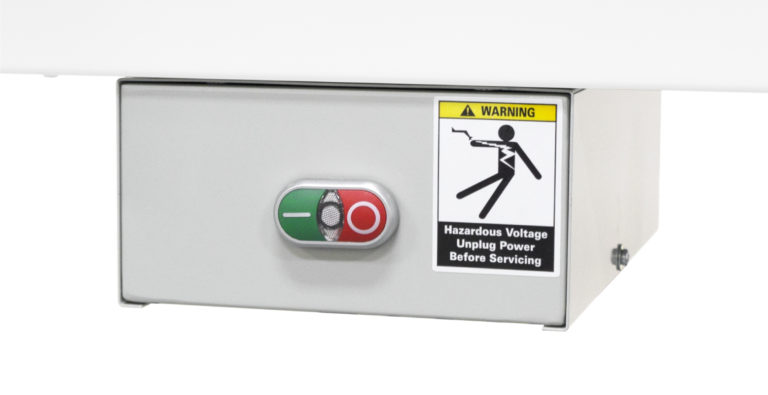

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of Carton Sealer

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

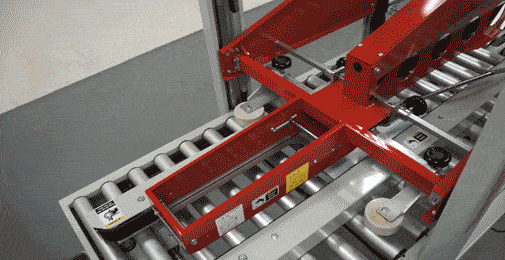

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

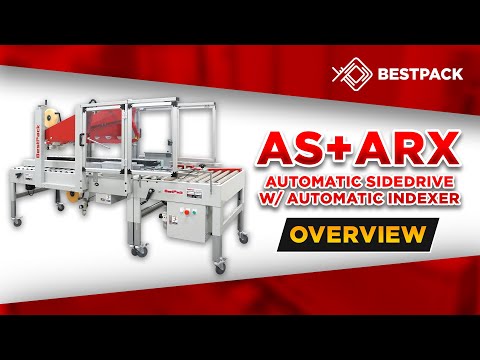

  • indexer picture
    Indexer

    The indexers function is to separate and time cartons into the carton sealer.
    ARX(uniform) or CRX (random)

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • Low Tape No Tape Sensor Feature
    Low Tape No Tape Sensor

    The Low Tape light allows operator to prepare a new roll of tape. The No Tape alarm will inform operator of error so that the carton may be resealed.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
