Category: Carton Sealers Belt Drive: 2 Top/2 Bot Belt Drive

AT4E

Up to 8 cartons/min.

No Operator Required No Operator Required
Uniform Cartons Uniform Cartons
4-Edge Seal 4-Edge Seal
110V 60 Hz
1-Phase
POWER
REQUIREMENTS
80 PSI
10 SCFM
AIR
REQUIREMENTS
1,470 LBS SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ ACCESSORIES/

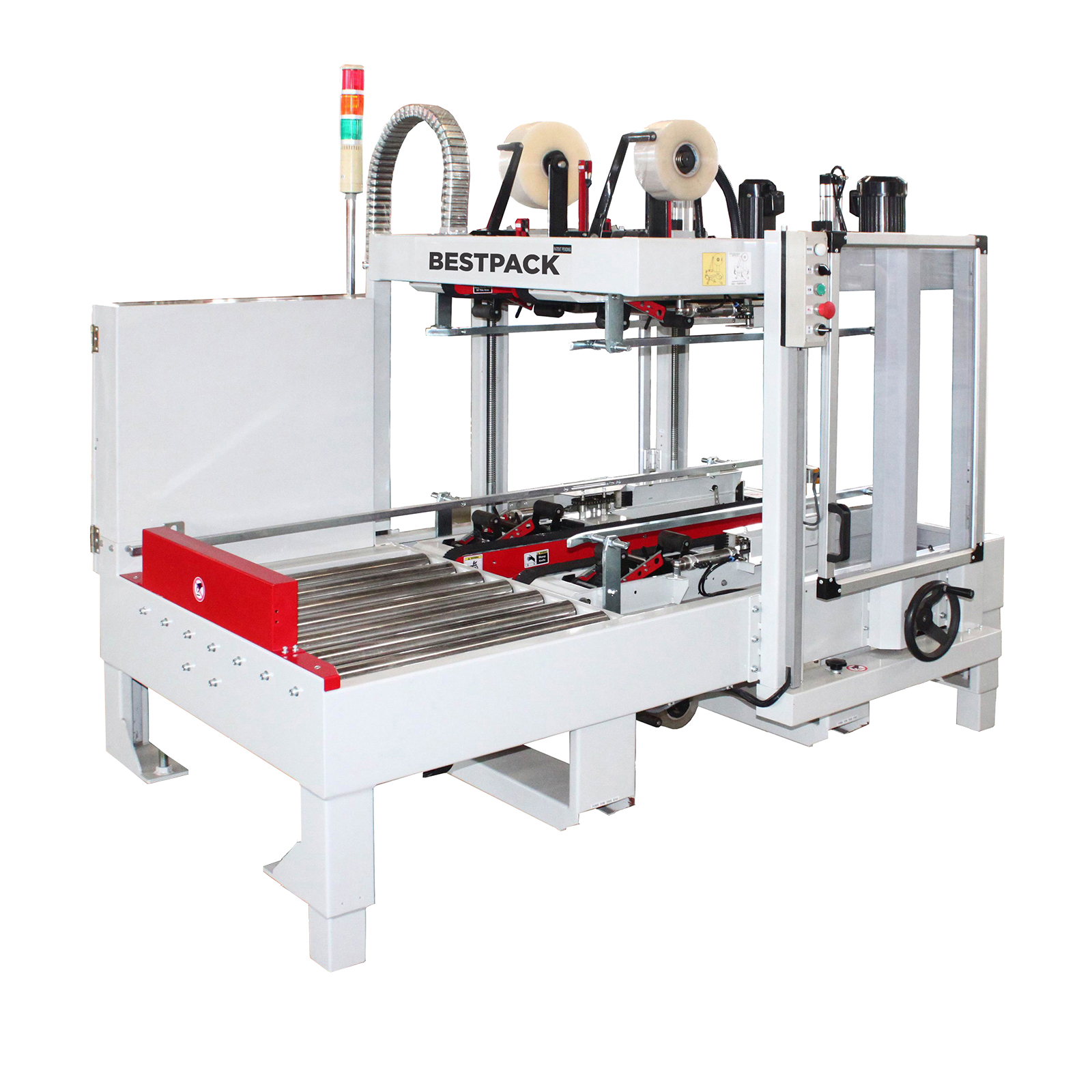

The BestPack™ AT4E Series is an adjustable operator-free, four outer edge carton sealer, using pressure sensitive tape. The AT4E is designed to eliminate costly hand taping of the four outer edges where pilfer proofing and protection of your product from outside environment is necessary. The unit includes a front side entry for a 90 degree directional carton turn before entering into the four edge sealing station. The AT4E edge sealers require 80 PSI and 10 SCFM of air, and standard 110V 60 Hz, single phase current. The AT4E line incorporates our exclusive 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 8 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz - Single Phase Current
  • AIR REQUIREMENTS 80 PSI, 10 SCFM
  • SHIPPING WEIGHT 1,470 lbs.
  • MACHINE DIMENSIONS (78.9") x (48.5") x (63.0")
  • CARTON RANGE (10.3" - 23.5") x (9.8" - 23.5") x (9.8" - 23.5")
  • CONVEYOR HEIGHT ADJUSTMENT Determined at the time of order

Specifications based on AT4E22-3

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
