Category: Carton Sealers Belt Drive: Side Belt Drive

CSEG

Up to 30 Cartons/min.

No Operator Required No Operator Required
Random Cartons Random Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts
60 Hz
Power
Requirements
85 PSI
12+ SCFM
Air
Requirements
1,320 LBS Shipping
Weight
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

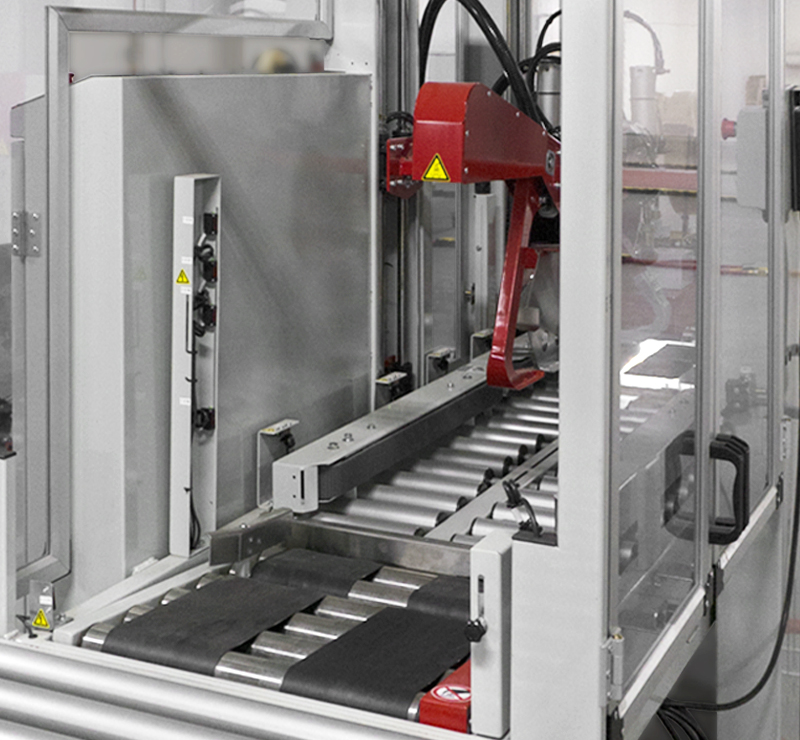

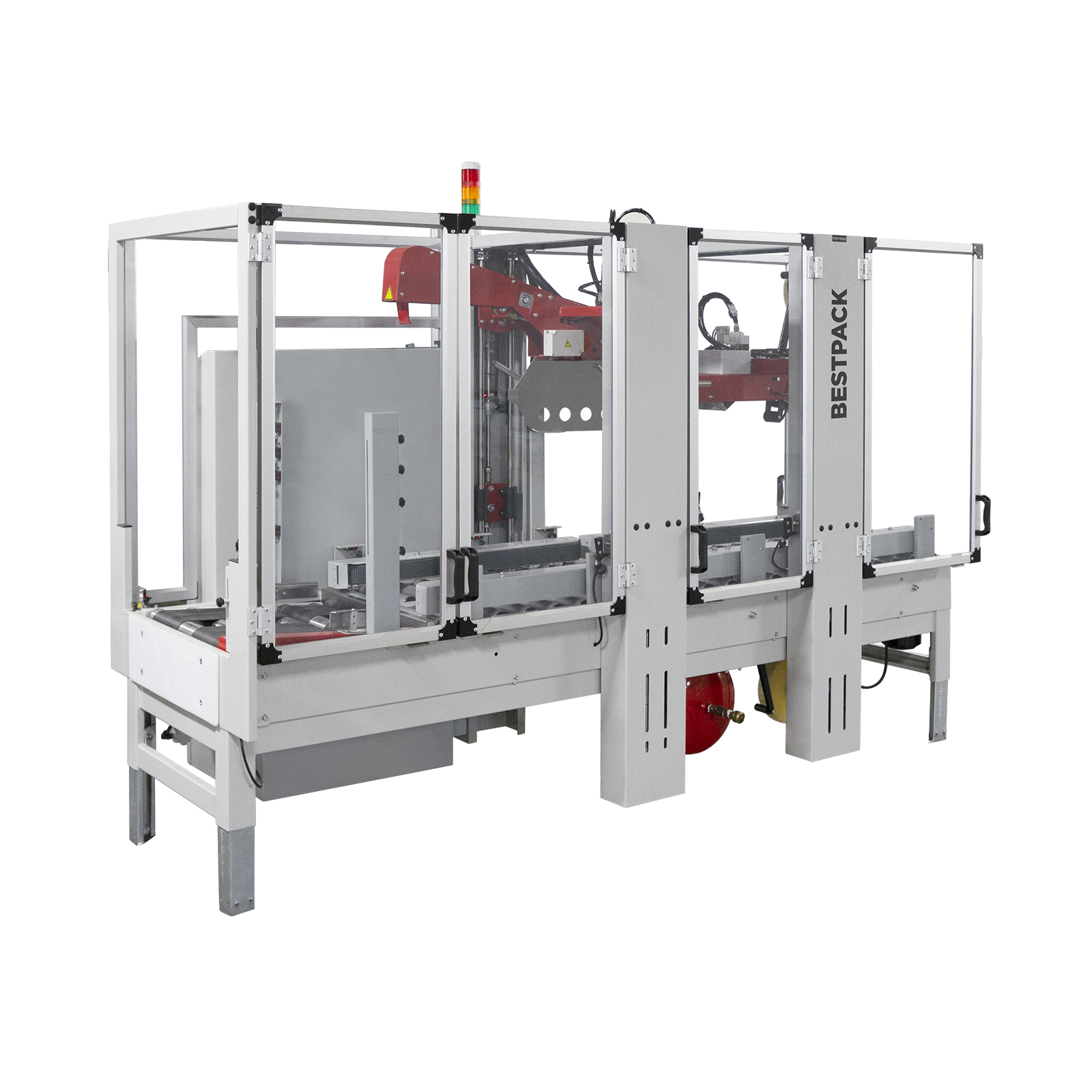

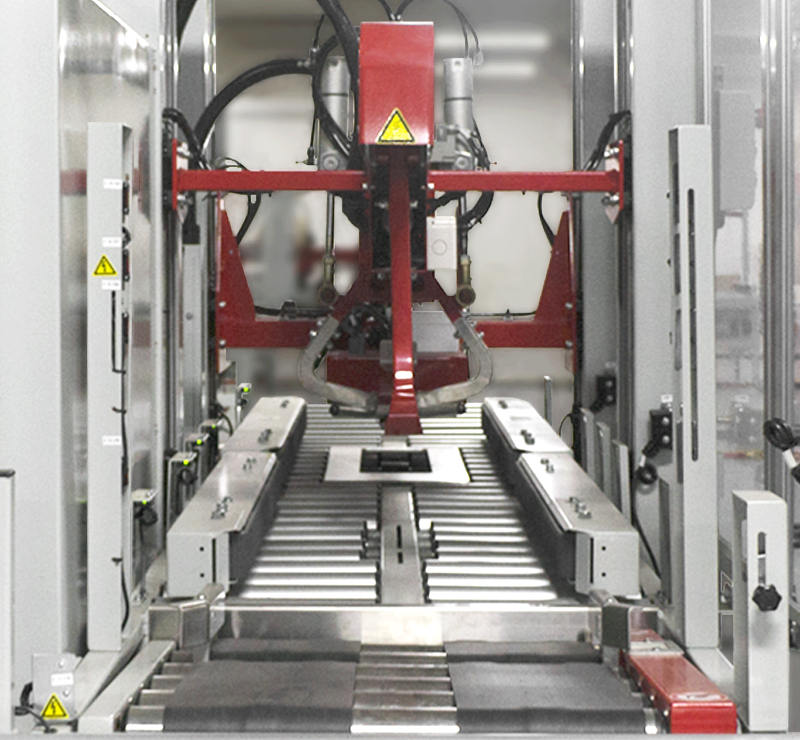

The BestPack CSEG Series is a Fully Automatic Random Carton Sealer. Designed for flexibility and high speed, our advanced engineering allows the CSEG to seal cartons and crate pass through at 20 – 30 cartons per minute. Our CSEG machine is purpose built for the egg industry’s standard carton sizes: 30, 24, 18, 15, 12, 9, and 5 dozen, as well as for reusable plastic crates.

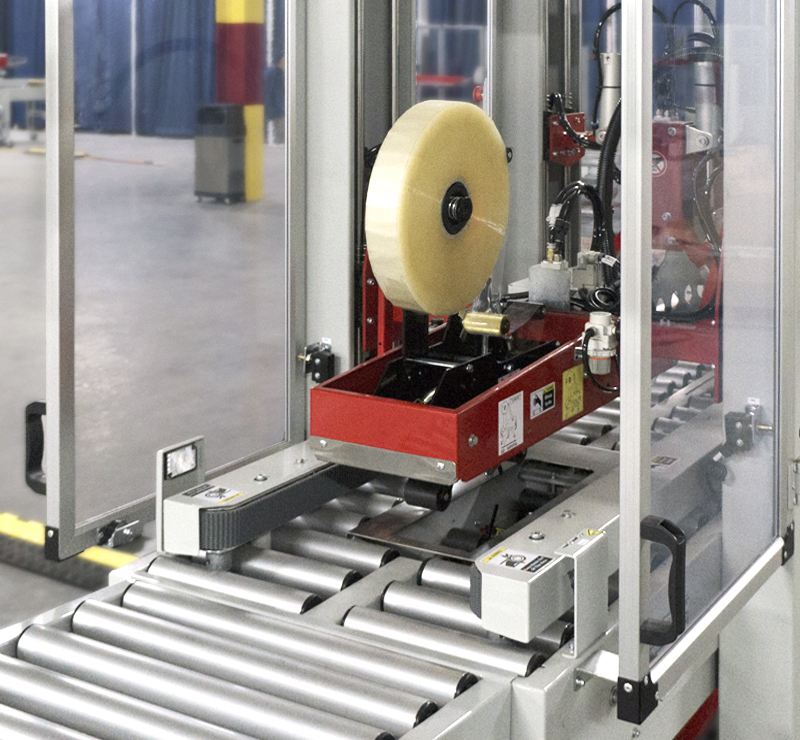

Our CSEG line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food-grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 30 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS 85 PSI, 12+ SCFM
  • SHIPPING WEIGHT 1,320 lbs
  • MACHINE DIMENSIONS (100.0") x (38.5") x (88.0")
  • CARTON RANGE (6.0" - 25.5") x (6.0" - 14.0") x (6.5" - 20.0")
  • CONVEYOR HEIGHT ADJUSTMENT (22.5" - 30.0")

Specifications based on CSEG11-2H

  • Independent 3-stage Operation:
    Independent 3-stage Operation:

    Indexing, Flap Folding, & Sealing

  • Allen Bradley PLC Controls
    Allen Bradley PLC Controls

    w/ Ethernet Capabilities

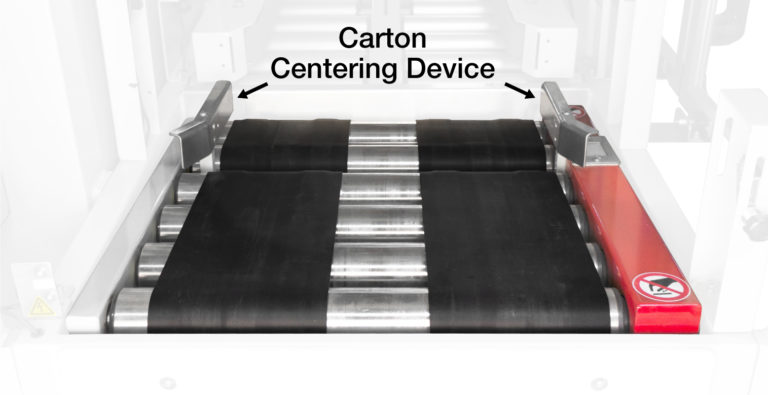

  • Indexer
    Indexer

    with Carton Centering Device

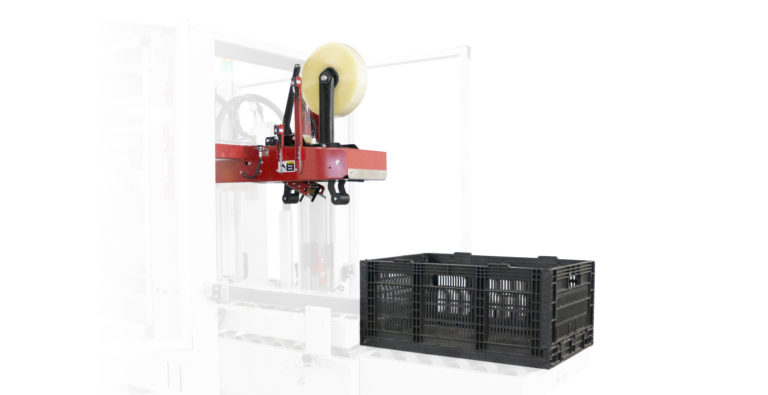

  • Plastic Crate Pass-Through
    Plastic Crate Pass-Through

  • High Speed Motors
    High Speed Motors

    for Belt Speed of 125 ft. per min.

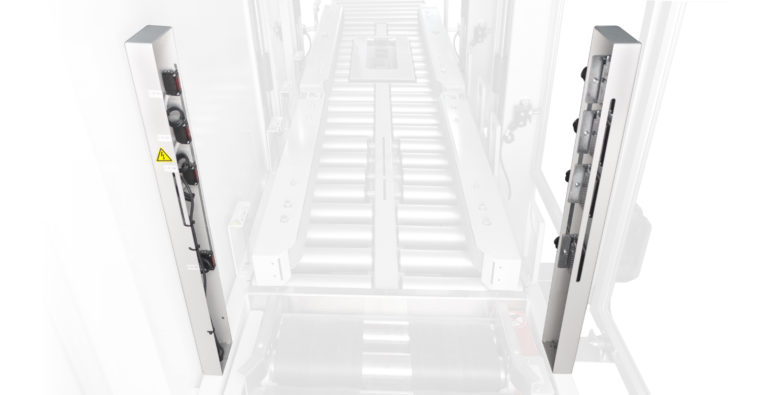

  • Carton Height Sensors
    Carton Height Sensors

  • Tape Roll Lengths:
    Tape Roll Lengths:

    1,000 yd. & 1,500 yd.

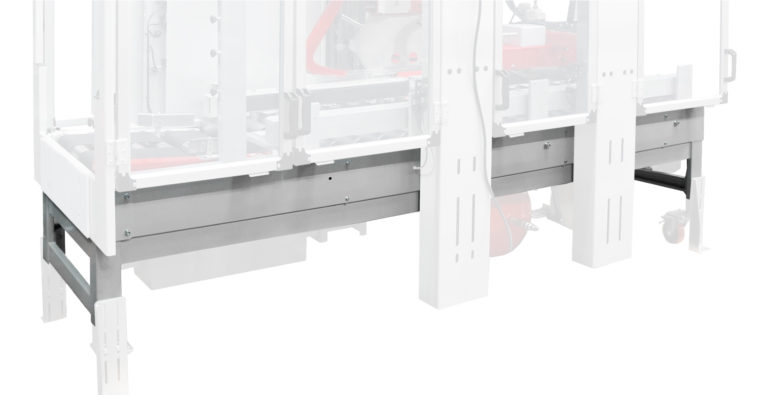

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

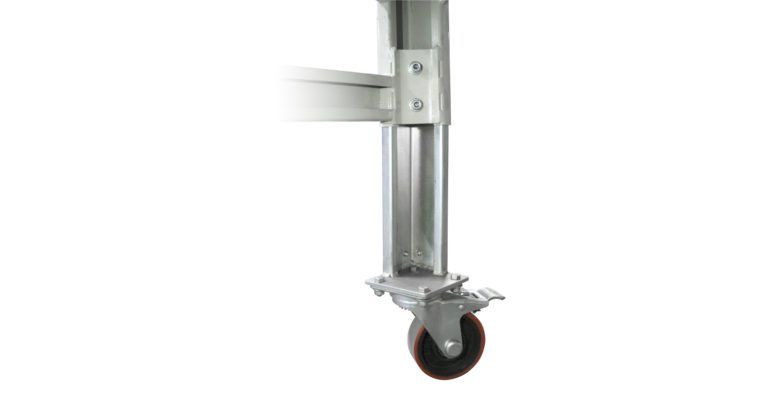

  • Adjustable Bed Height
    Adjustable Bed Height

    From 22.0" to 30.0"

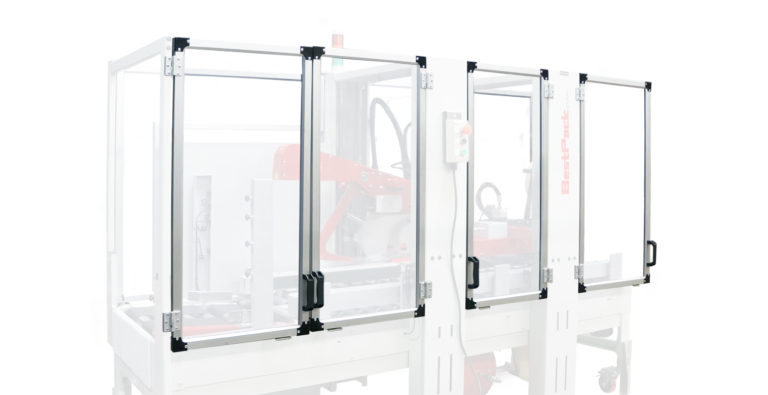

  • Interlock Safety Gates
    Interlock Safety Gates

  • Low Tape/No Tape on Carton/No Cut Sensors & Alarm
    Low Tape/No Tape on Carton/No Cut Sensors & Alarm

  • Heavy Duty Casters
    Heavy Duty Casters

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
