Category: Carton Sealers Belt Drive: Side Belt Drive

CSS

Up to 30 Cartons/min.

No Operator Required No Operator Required
Random Cartons Random Cartons
Top & Bottom Seal Top & Bottom Seal
208 Volts
3 Phase
Power Requirements
80 PSI
5 SCFM
Air Requirements
2,440 lbs Shipping
Weight
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

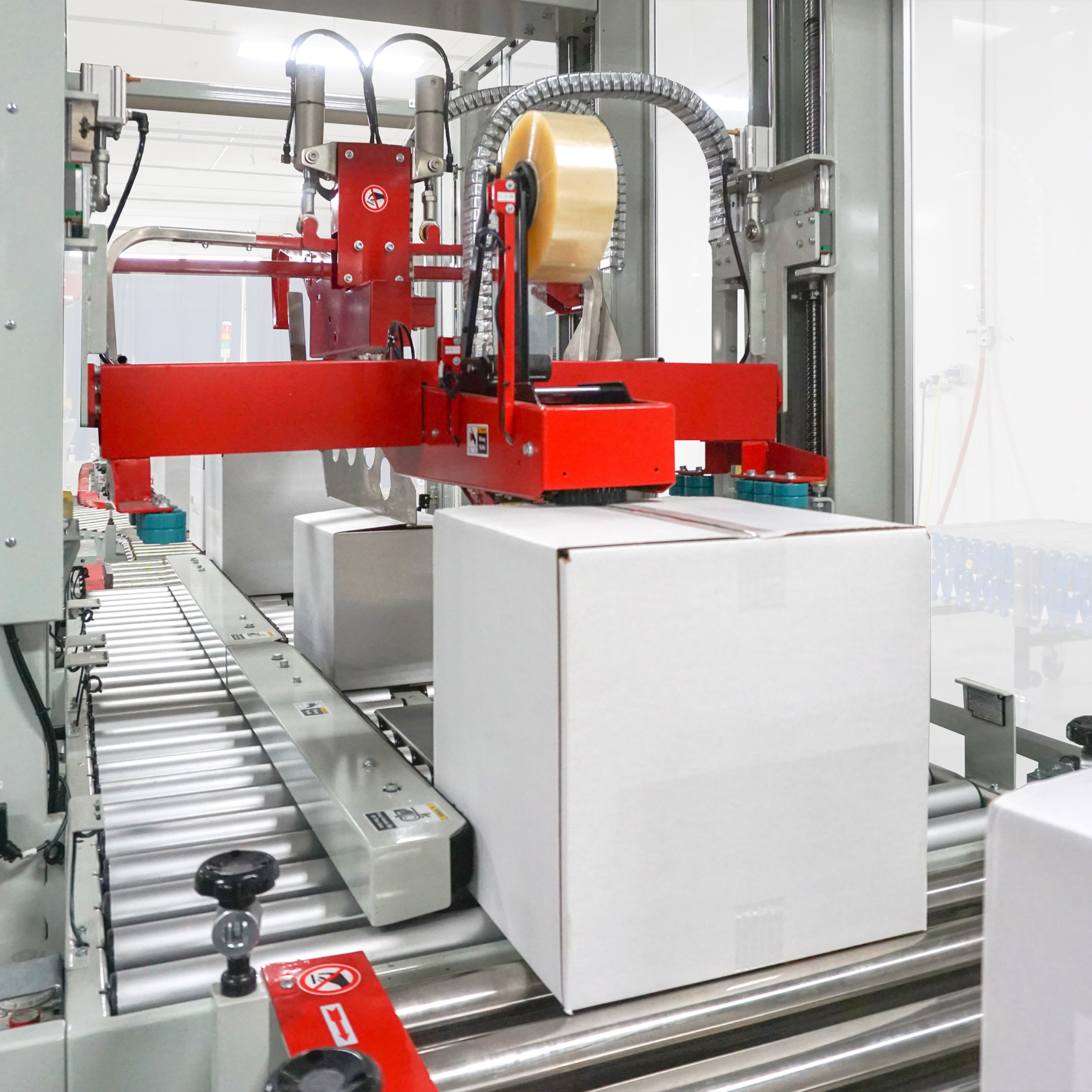

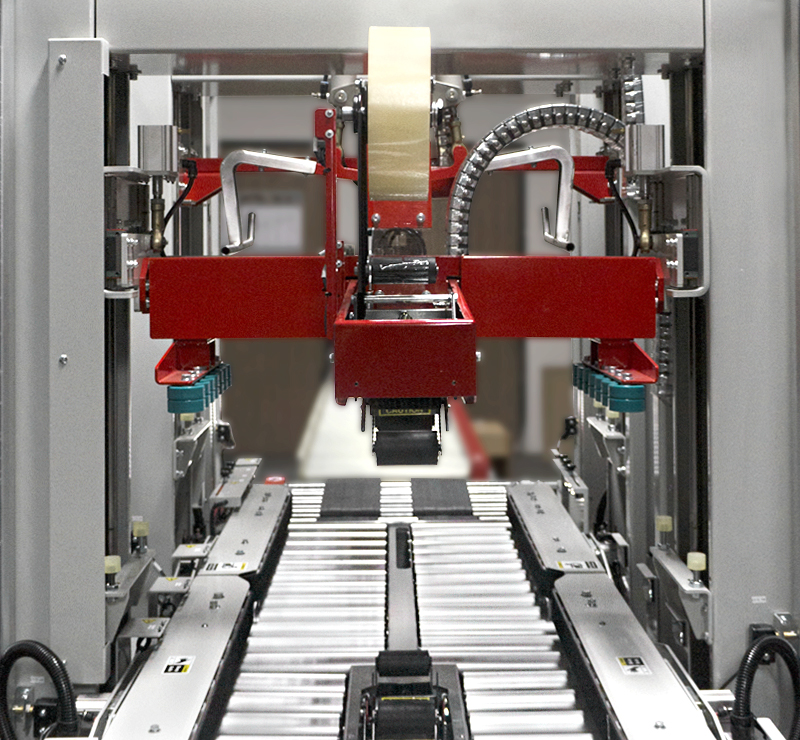

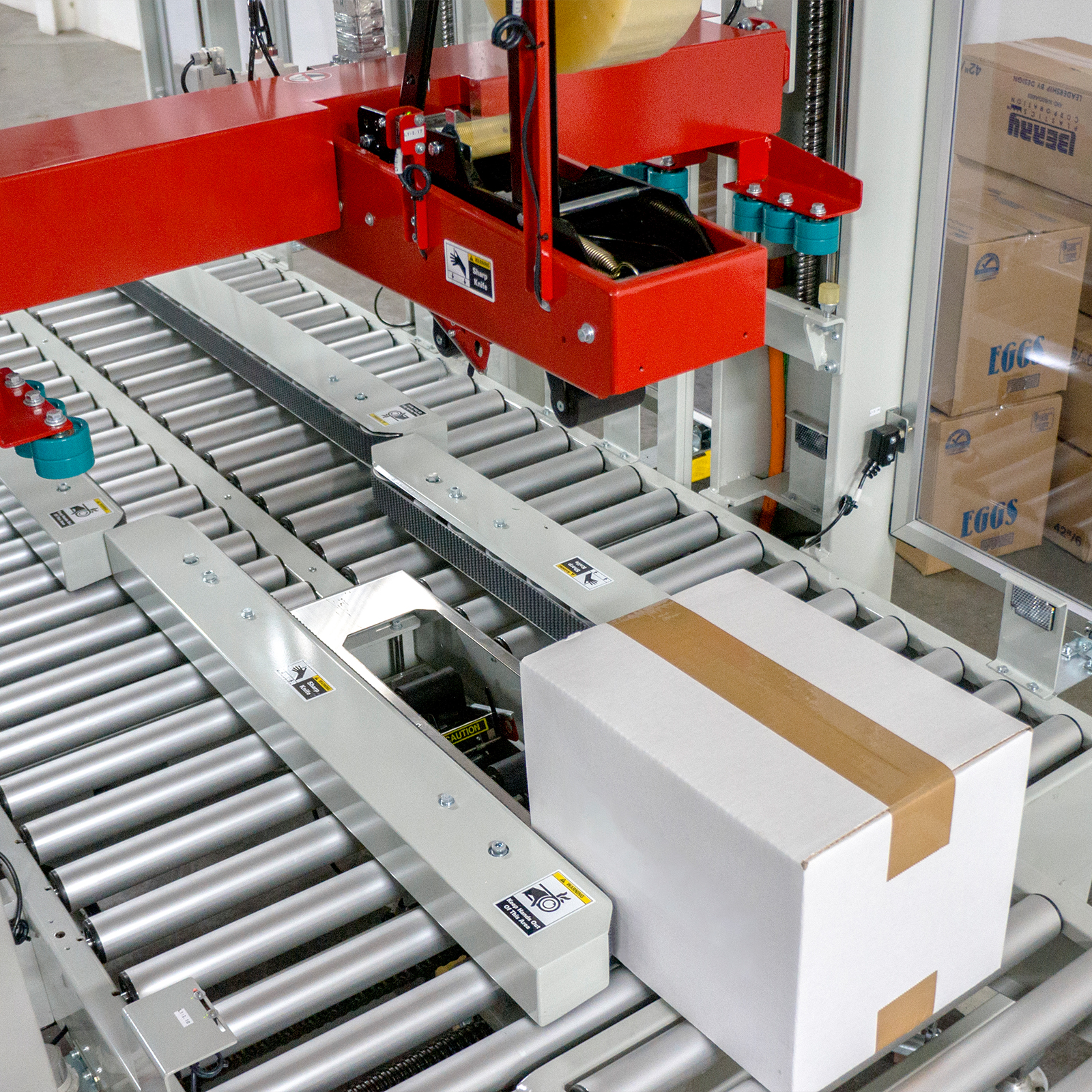

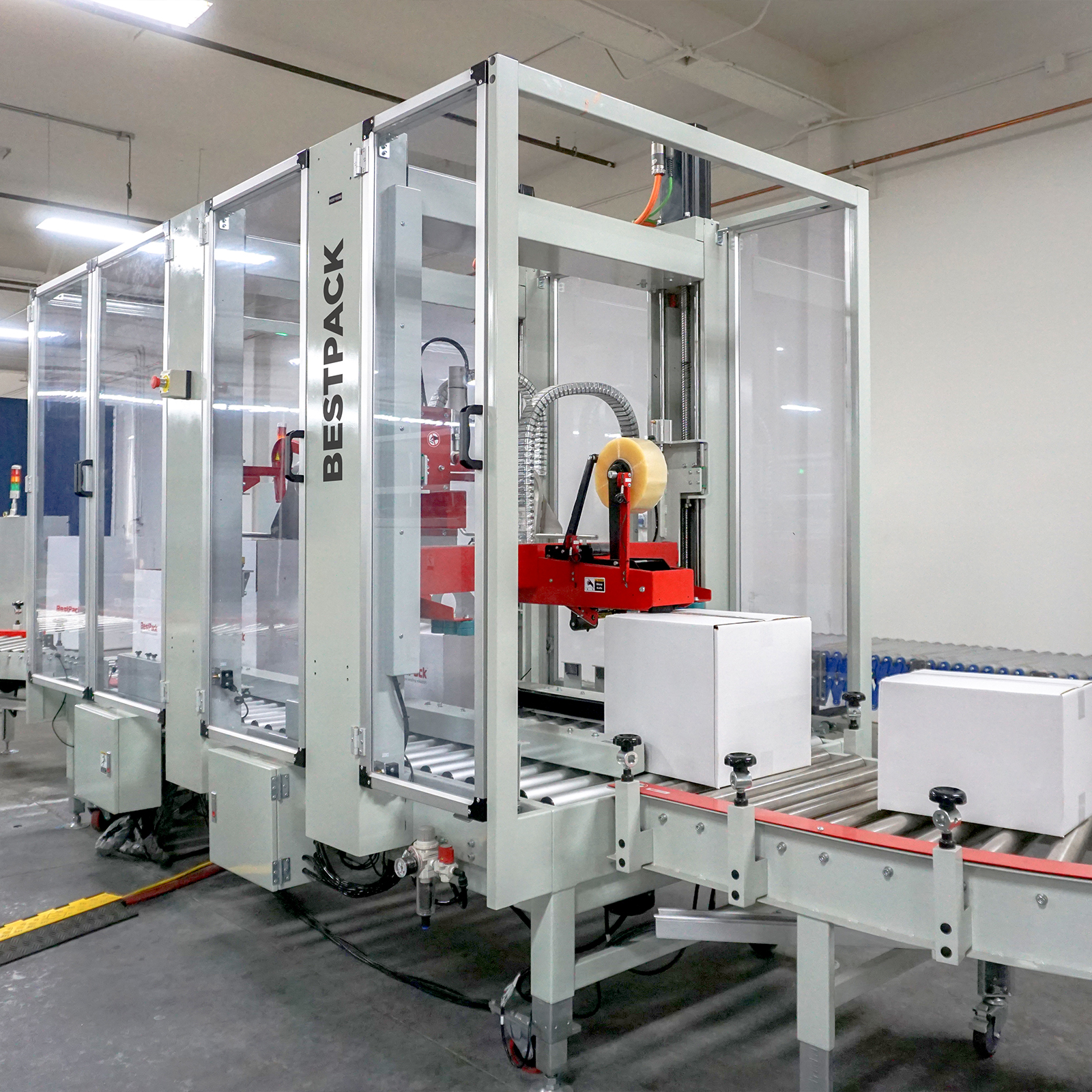

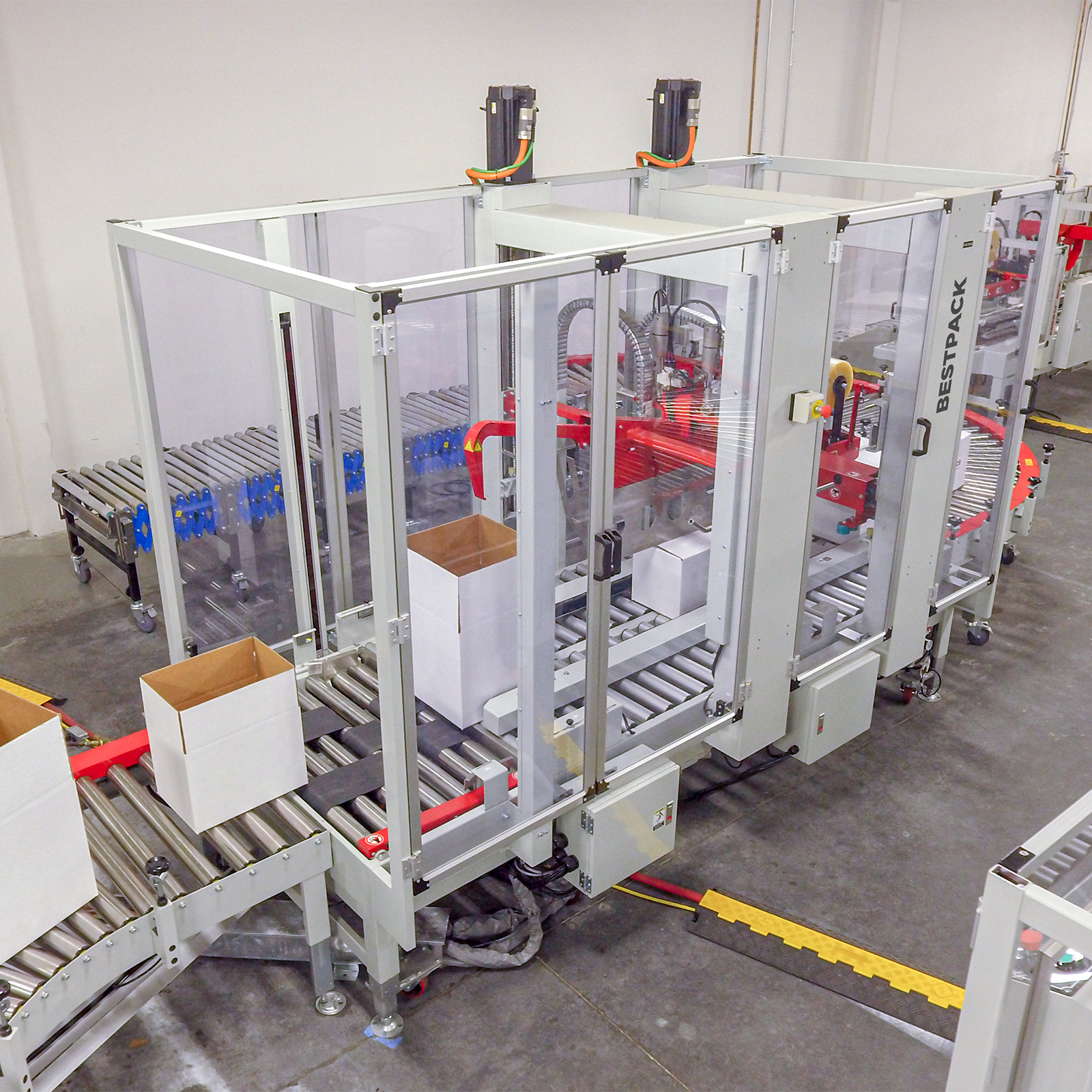

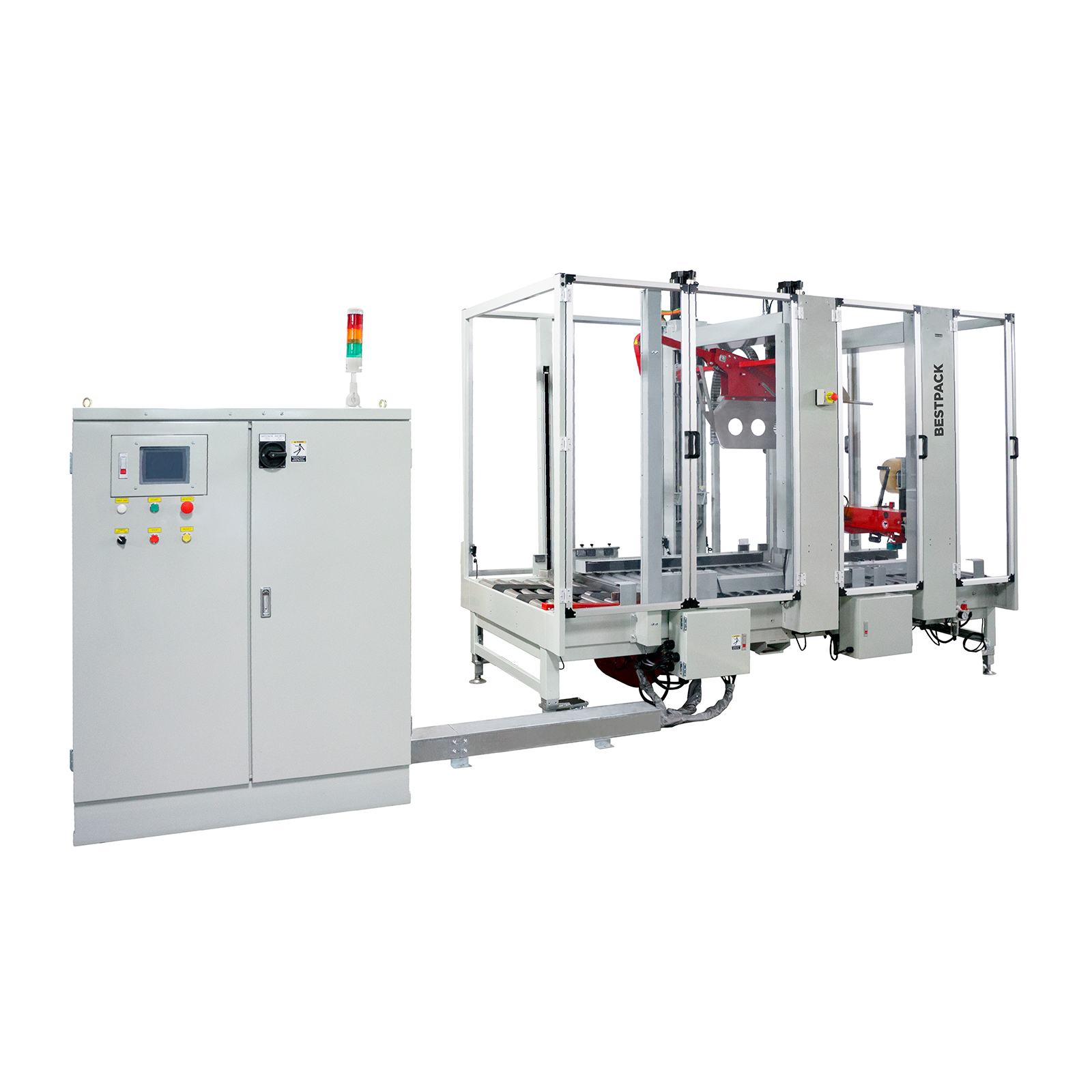

The BestPack™ CSS Series is a Fully Automatic Random Carton Sealer featuring our servo driven technology, which allows for fast height adjustment, quick width adjustment and smooth sealing operations.

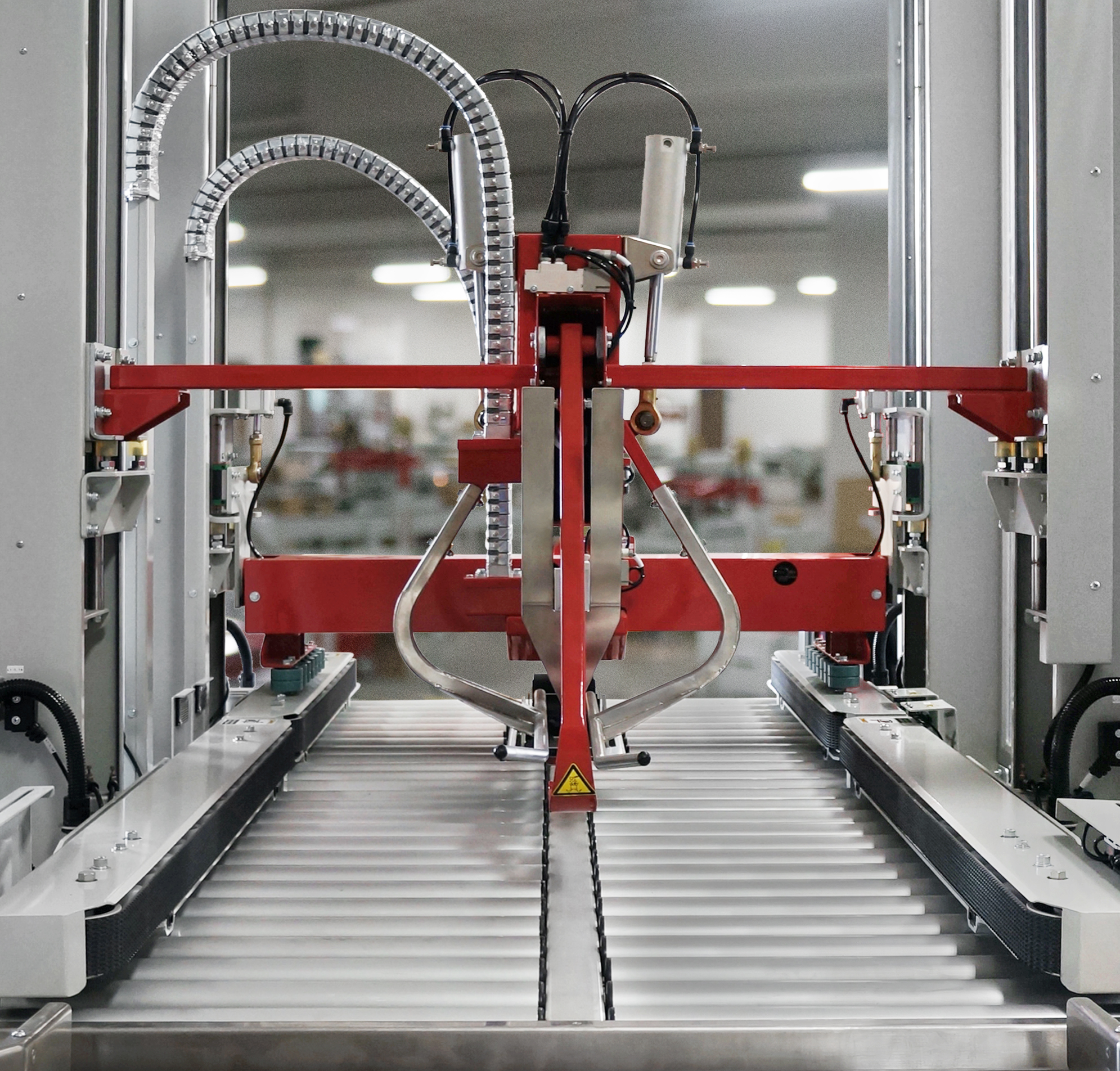

The CSS’ design utilizes three independent stations: centering station, flap folding station, and sealing station. The CSS is designed for speed and allows for precise positioning at each station. This machine is capable of a carton output up to 30 cartons per minute.

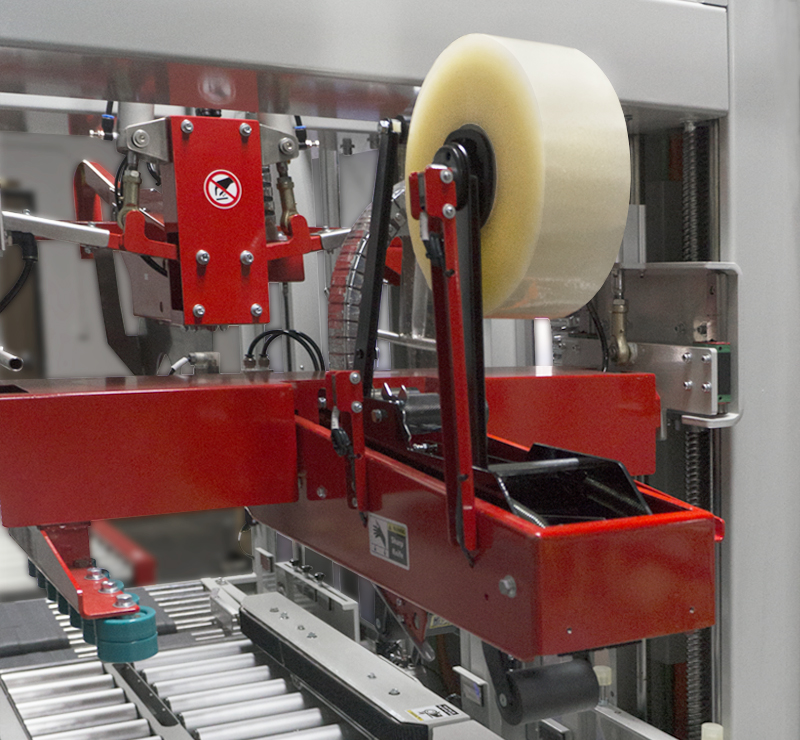

Our CSS line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish or food-grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 30 Cartons/min.
  • POWER REQUIREMENTS 480 Volts 3 Phase
  • AIR REQUIREMENTS 80 PSI, 5 SCFM
  • SHIPPING WEIGHT 2,440 lbs
  • MACHINE DIMENSIONS (95.9") x (48.5") x (90.3")
  • CARTON RANGE (10.0" - 25.5") x (7.0" - 20.0") x (4.0" - 20.0")
  • CONVEYOR HEIGHT ADJUSTMENT (24.5" - 30.0")

Specifications based on CSS22-2H

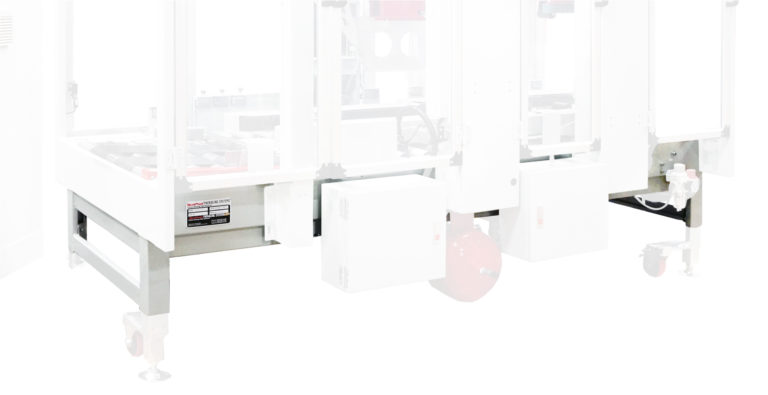

  • Heavy Duty Frame
    Heavy Duty Frame

    3mm Welded Frame

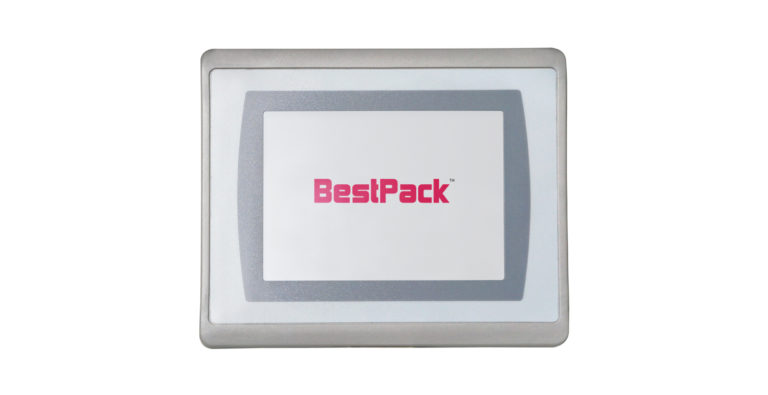

  • Allen-Bradley Human Machine Interface
    Allen-Bradley Human Machine Interface

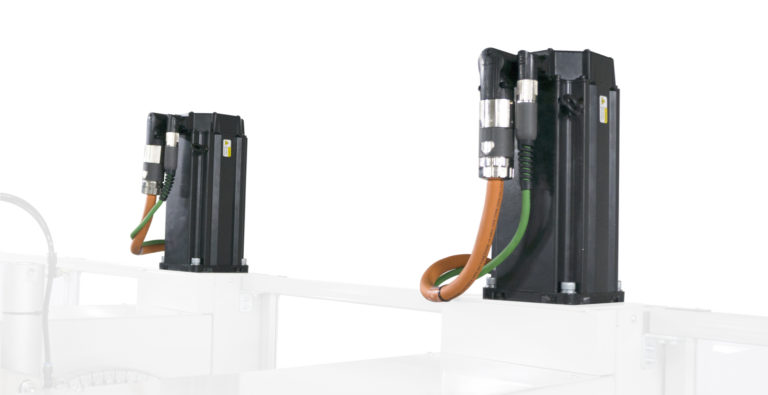

  • Allen-Bradley Servo
    Allen-Bradley Servo

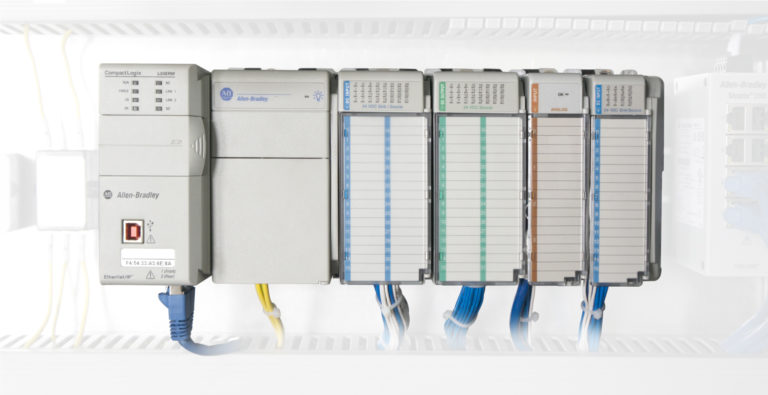

  • Allen-Bradley PLC
    Allen-Bradley PLC

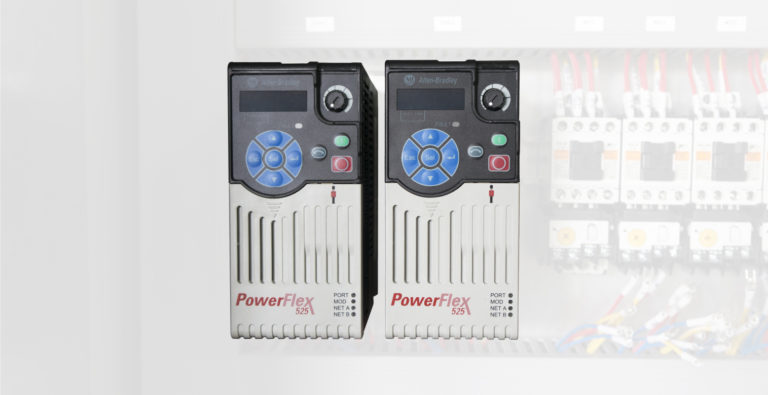

  • Allen-Bradley VFD
    Allen-Bradley VFD

    for Side Belt High Speed Drives

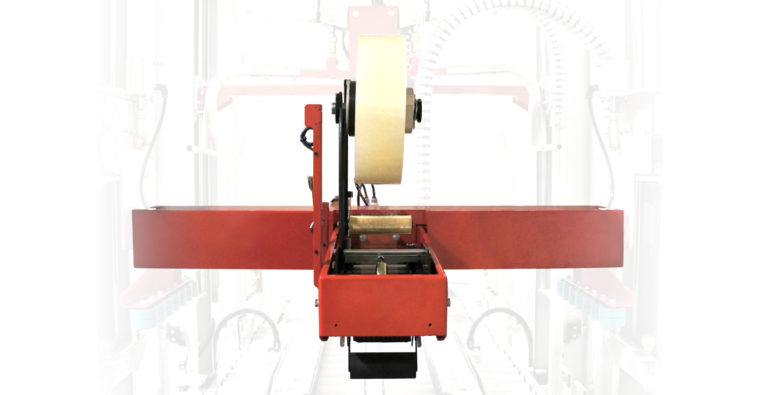

  • Floating Sealing Section
    Floating Sealing Section

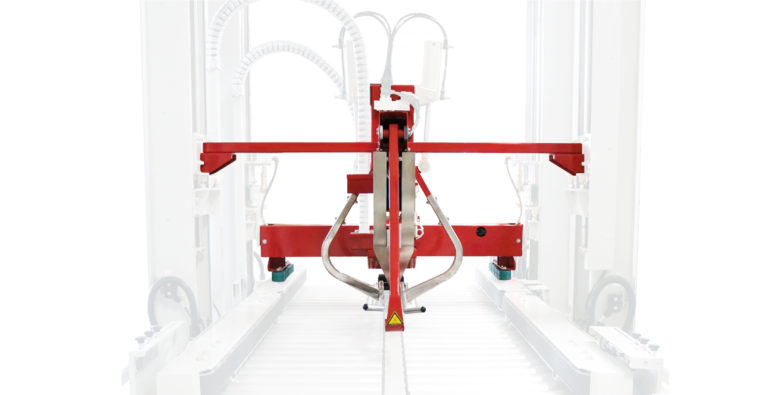

  • Independent 3-stage Operation:
    Independent 3-stage Operation:

    Centering, Flap Folding, & Sealing

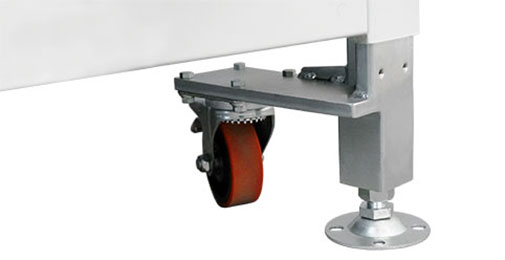

  • Adjustable Bed Height
    Adjustable Bed Height

    From 24.5" - 30.0"

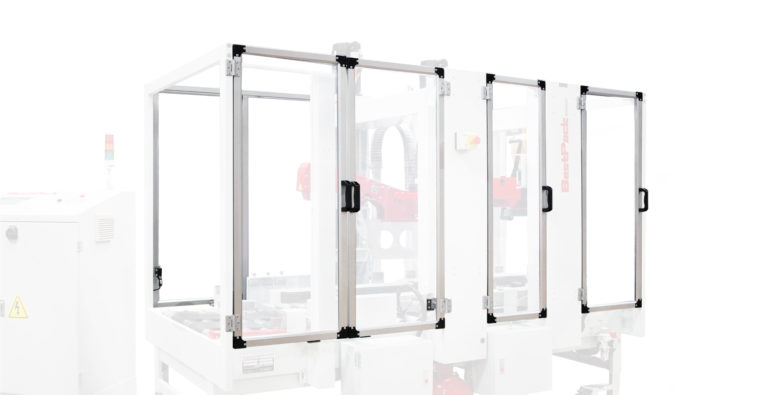

  • Interlock Safety Gates
    Interlock Safety Gates

  • Capable of Interchanging 2
    Capable of Interchanging 2" and 3" Tape Heads

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

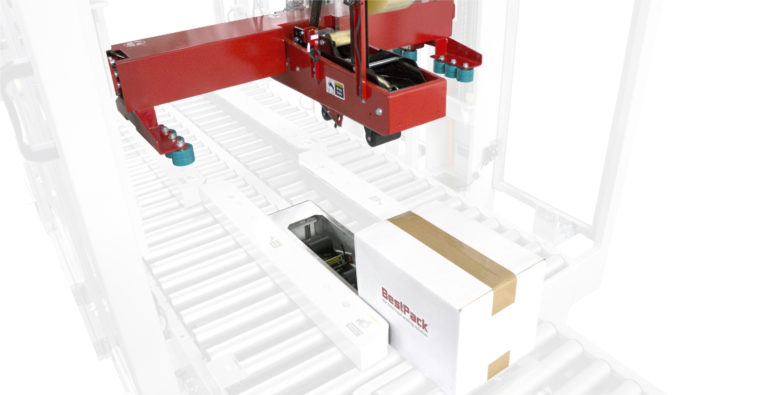

  • Carton Pass Through without Tape
    Carton Pass Through without Tape

  • Low Tape/No Tape on Carton/No Cut Sensors
    Low Tape/No Tape on Carton/No Cut Sensors

  • Alarm with Three Color Warning Light
    Alarm with Three Color Warning Light

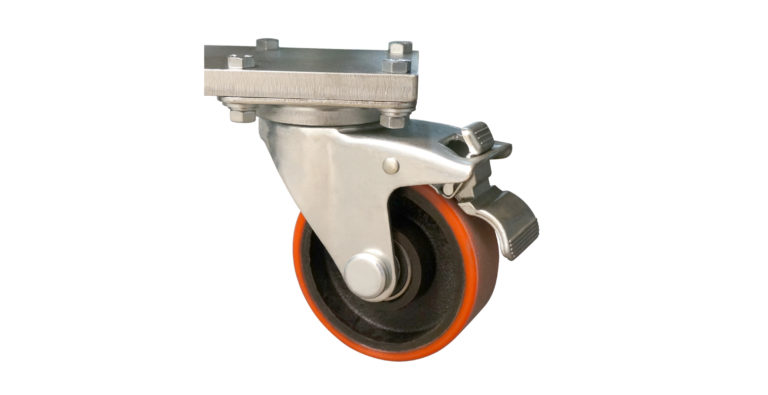

  • Heavy Duty Casters
    Heavy Duty Casters

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.
