Category: Carton Sealers Belt Drive: Bottom Belt Drive


Up to 30 cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
Description / Specifications/ Features/ Accessories/

The BestPack™ MBD Series is an operator-fed, adjustable carton sealer designed to efficiently fulfill light to heavy duty uniform top and bottom sealing carton closure application needs. The two bottom belts are powered by an 110V UL-approved electric motor. The MBD Series is also designed with four adjustable legs for quick and easy height modification to suit the needs of your production lines. Dual telescopic masts allow for an extra 4″ carton height extension on the upper assembly.

Our MBD line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 30 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements N/A
  • Shipping Weight 310 lbs
  • Machine Dimensions (42.0") x (28.8") x (70.3")
  • Carton Range (6.0" - U) x (6.5" - 20.0") x (3.0" - 20.25")
  • Trip Current (A) 10
  • FLA 2.5
  • Conveyor Height adjustment (23.5" - 30.0")
  • Phase 1
  • SCCR (KA) 5
  • Max Current (A) 2.5
  • Power (W) 275
  • Specifications based on Line Specifications based on MBD22-2

Specifications based on MBD22-2

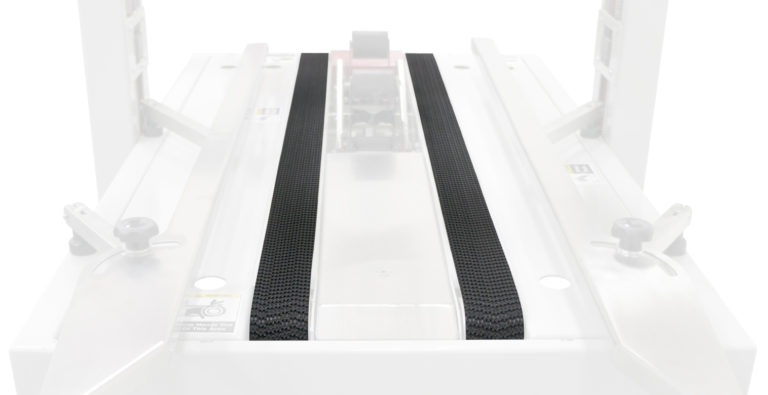

  • Two Bottom Belt Drive
    Two Bottom Belt Drive

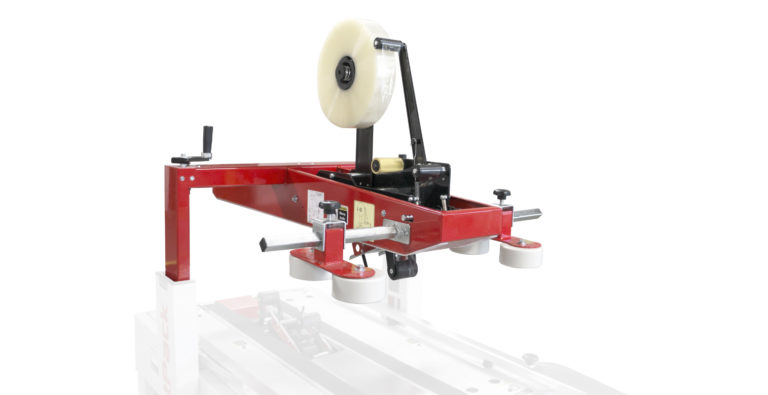

  • Telescopic Mast Design
    Telescopic Mast Design

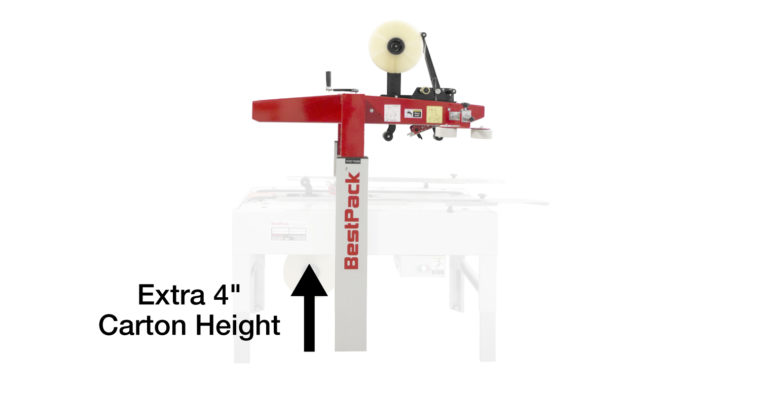

  • Extra 4
    Extra 4" Height Adjustment

    Available on Upper Assembly

  • Adjustable Bed Height
    Adjustable Bed Height

    MBD22-2 & MBD22-3: From 23.5" to 30.0"

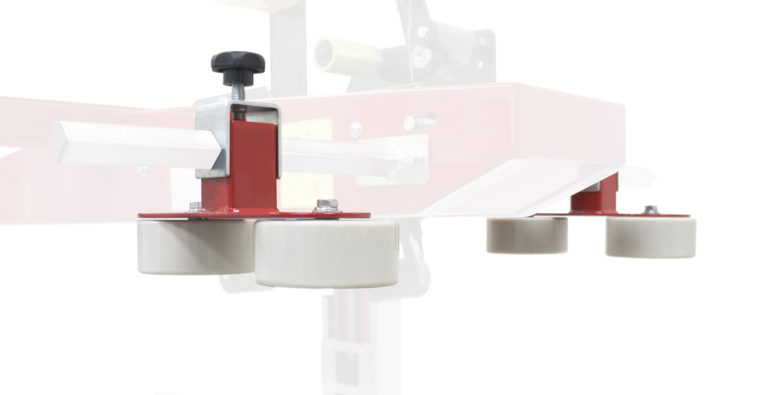

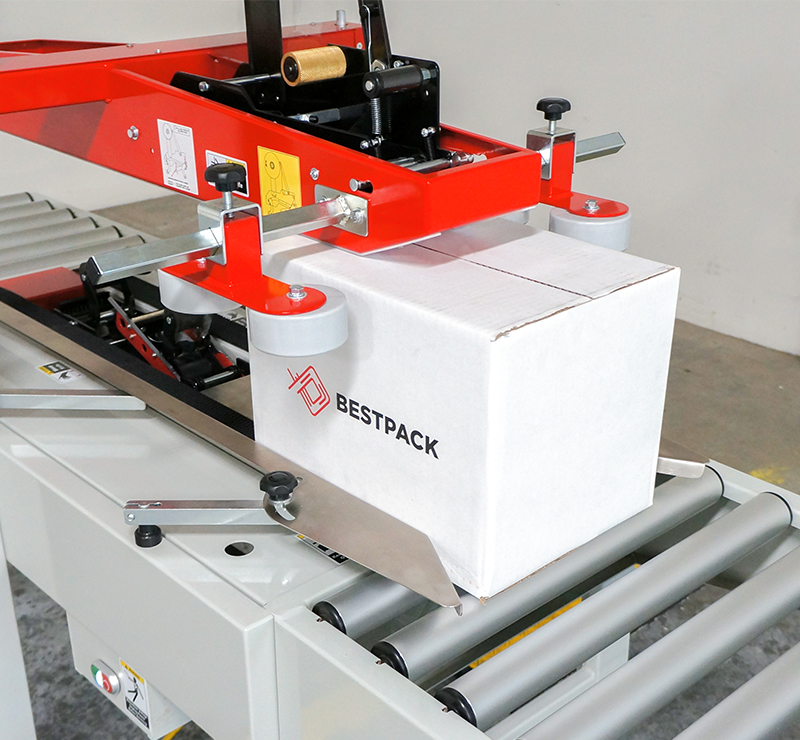

  • Upper Side Compression Unit
    Upper Side Compression Unit

  • Height Adjustment Knob
    Height Adjustment Knob

    Can be Mounted on Either Side of Carton Sealer

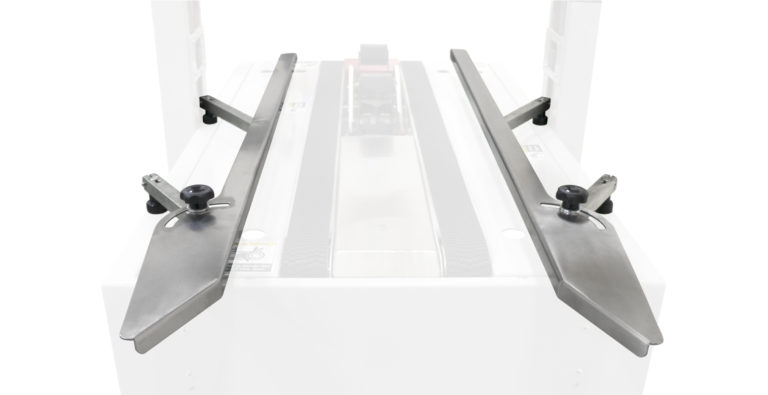

  • Guide Rail Centering Mechanism
    Guide Rail Centering Mechanism

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500yd., 2,000yd.

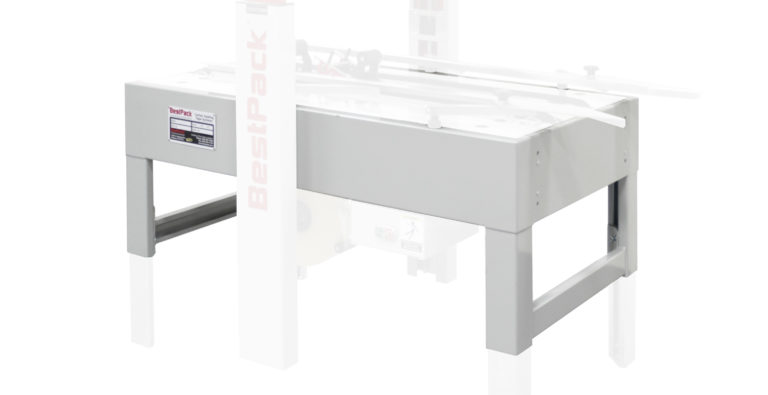

  • Heavy Duty Frame
    Heavy Duty Frame

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of the Carton Sealer

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • short conveyor accessory
    Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
