Category: Packing Stations

MBF

Up to 6 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Bottom Flap Folder Bottom Flap Folder
N/A POWER
REQUIREMENTS
80 PSI
4-6 SCFM
AIR
REQUIREMENTS
275 lbs. SHIPPING
WEIGHT
Description / Specifications/ Accessories/

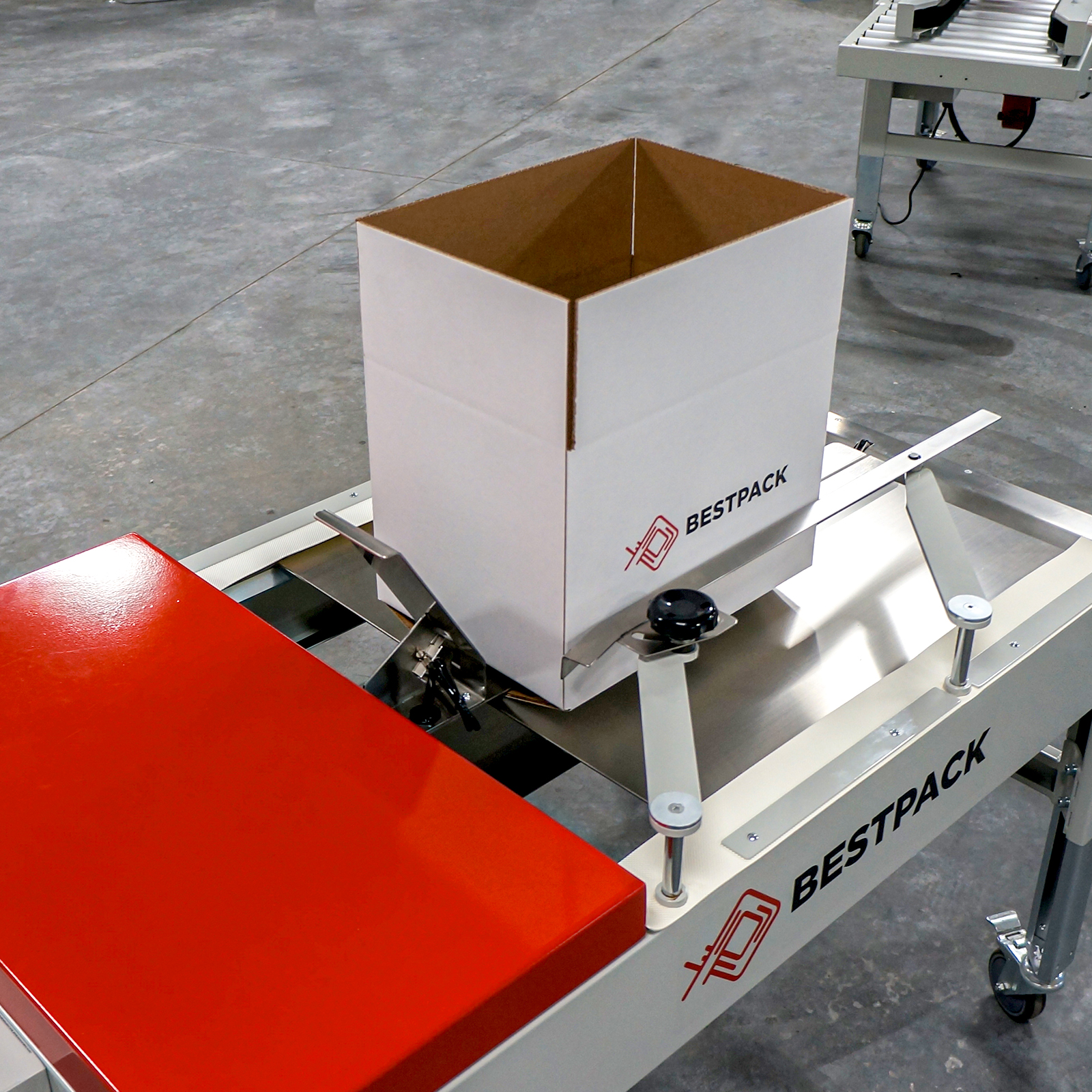

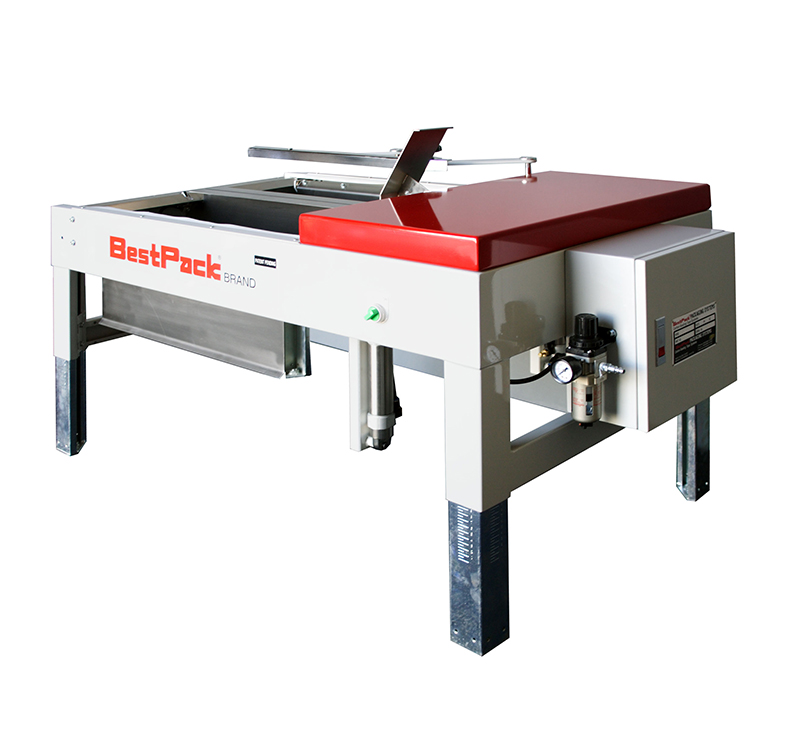

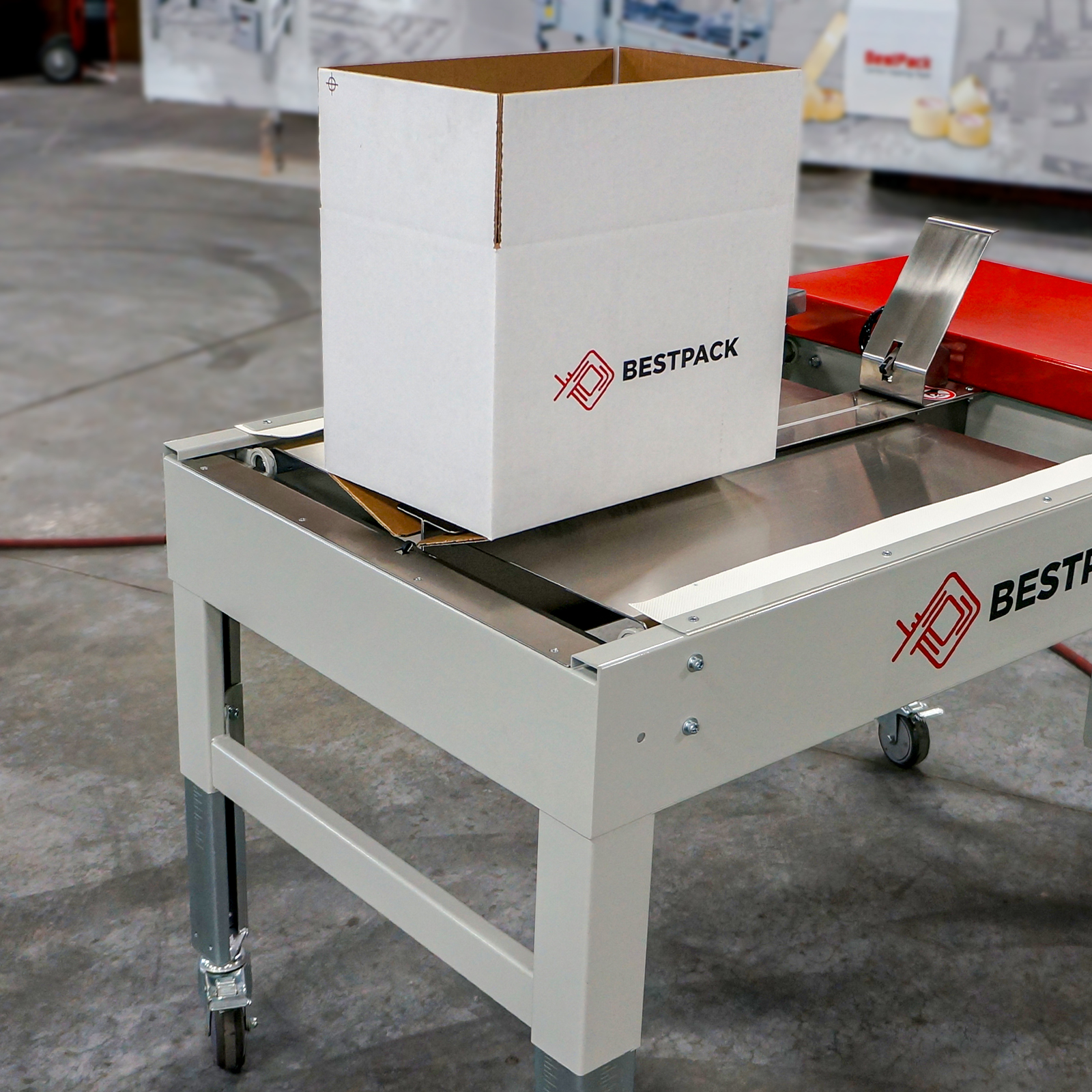

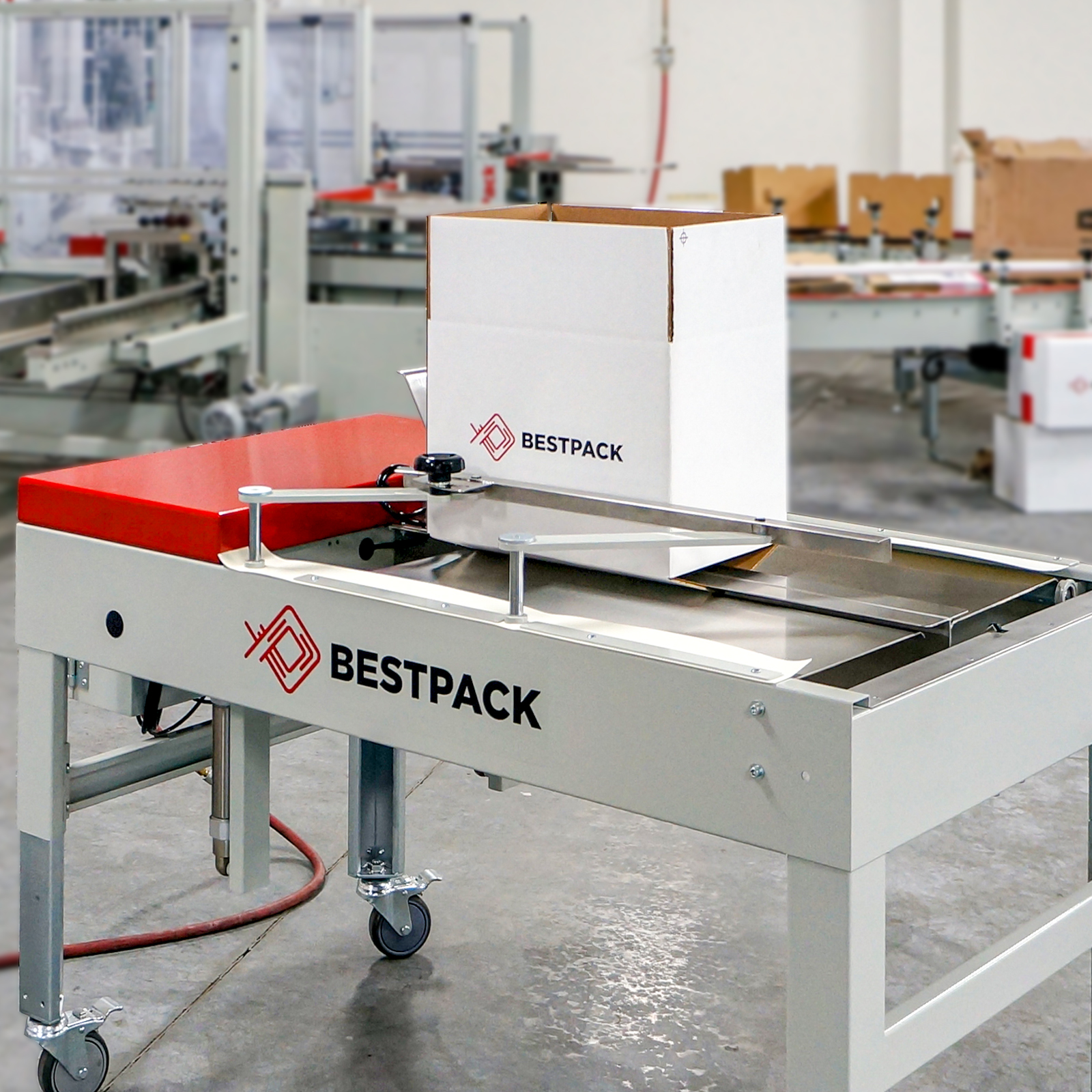

The BestPack™ MBF is a bottom flap folder and packing station that closes the bottom flaps and holds the carton in position while the operator fills the carton. The operator then pushes the carton to the next station. The MBF is a great addition to BestPack’s flagship carton sealers and provides a total packing line solution.

All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 6 Cartons/min.
  • Power Requirements N/A
  • Air Requirements 80 PSI, 4-6 SCFM
  • Shipping Weight 275 lbs.
  • Machine Dimensions (55.0") x (29.0") x (36.0")
  • Carton Range (7.5" - 24.0") x (7.5" - 20.0") x (U")
  • Conveyor Height adjustment (20.5" - 30.0")
  • Specifications based on Line Specifications based on MBF20

Specifications based on MBF20

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
