Category: Packing Stations

MPBF

Up to 6 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Bottom Flap Folder Bottom Flap Folder
N/A POWER
REQUIREMENTS
80 PSI 4-6 CFM AIR
REQUIREMENTS
300 lbs. SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

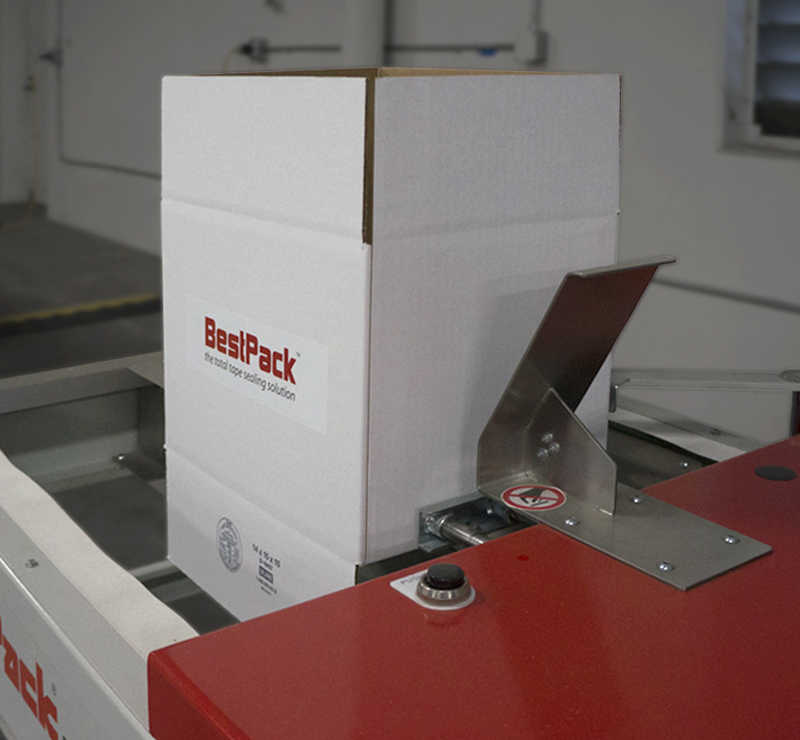

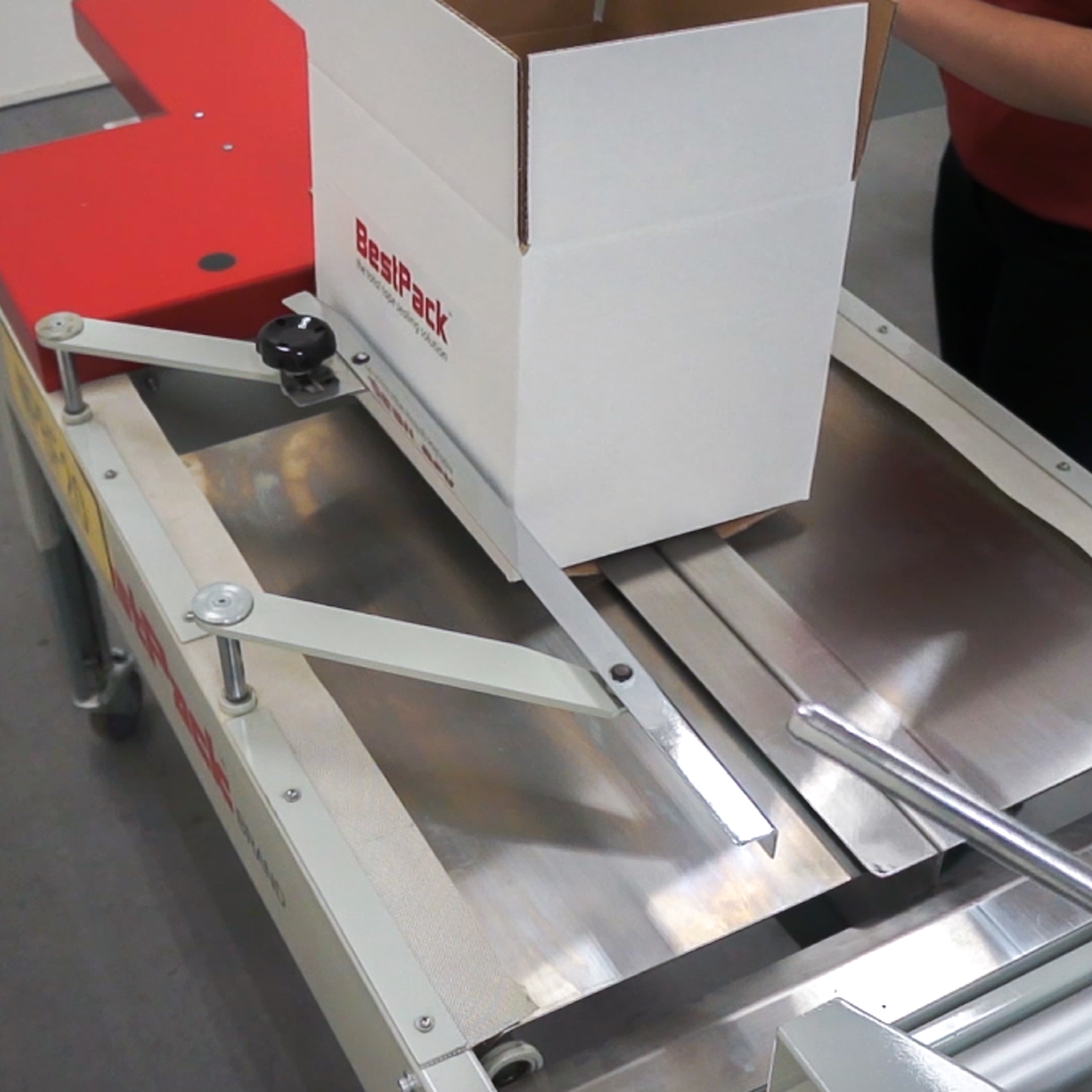

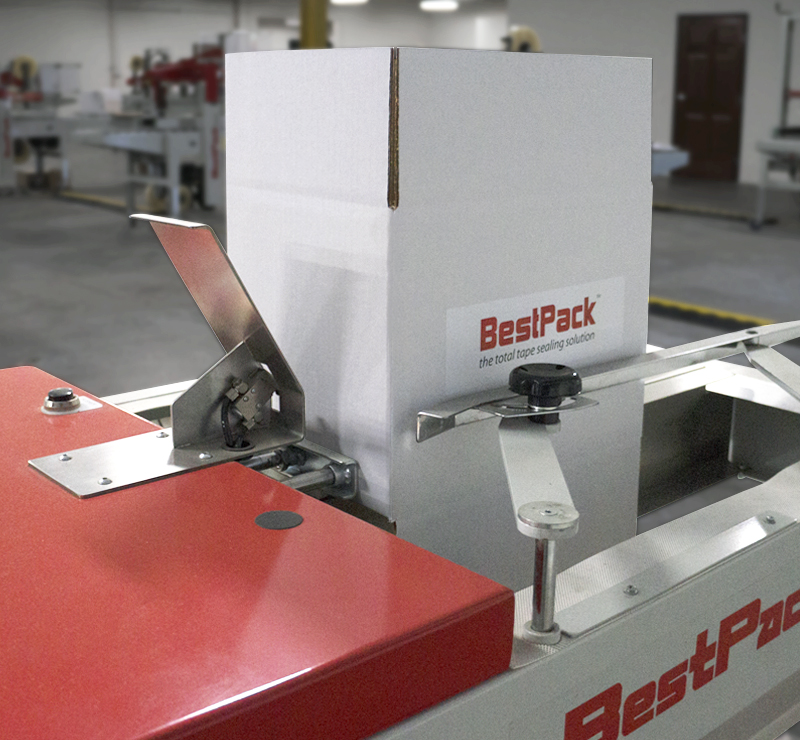

The BestPack™ MPBF is a bottom flap folder and packing station that closes the bottom flaps and holds the carton in position to allow the operator to pack the carton. After packing, the carton is sent to the next station at the push of a button that activates an air ram. The MPBF is a great addition to BestPack’s flagship carton sealers and provides a total packing line solution.

All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel in 21 CFR 110 compliance.

  • SPEED Up to 6 Cartons/min.
  • POWER REQUIREMENTS N/A
  • AIR REQUIREMENTS 80 PSI 4-6 CFM
  • SHIPPING WEIGHT 300 lbs.
  • MACHINE DIMENSIONS (66.0") x (29.0") x (36.0")
  • CARTON RANGE (7.5" - 24.0") x (7.5" - 20.0") x (U")
  • CONVEYOR HEIGHT ADJUSTMENT (20.5" - 30.0")

Specifications based on MPBF20

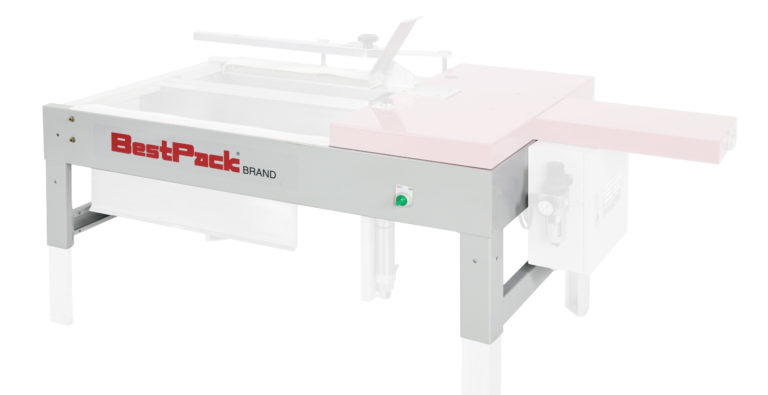

  • Heavy Duty Frame
    Heavy Duty Frame

    2mm CNC Cut and Welded Frame Including Upper Welded Legs

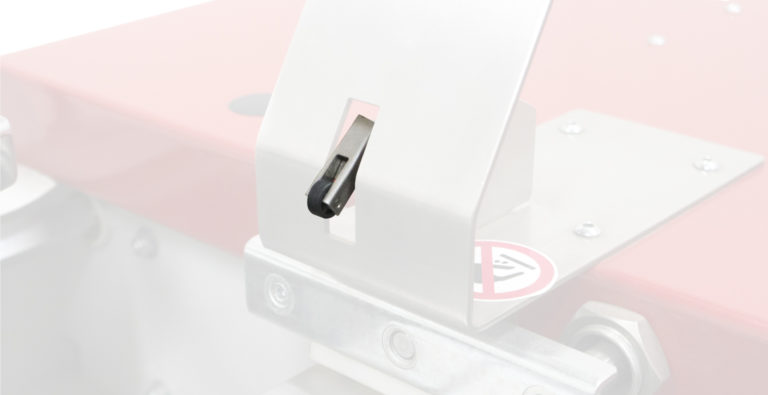

  • Air Micro Switch
    Air Micro Switch

    Activates Bottom Flap Folders

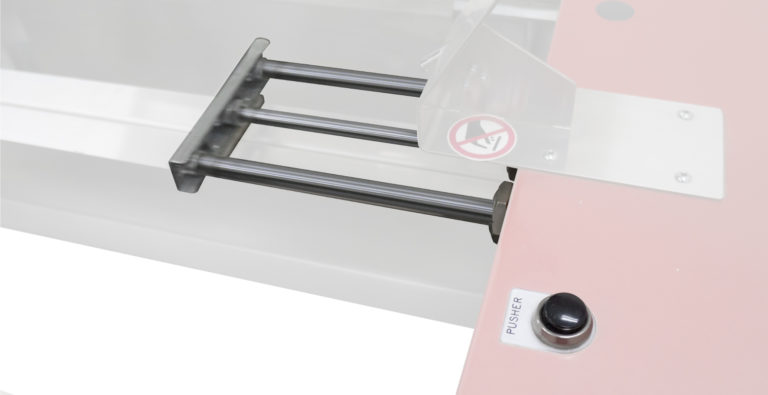

  • Push Button Pneumatic Air Ram
    Push Button Pneumatic Air Ram

    Activates Pneumatic Carton Ram

  • Adjustable Bed Height
    Adjustable Bed Height

    From 20.5" - 30.0"

  • Heavy Duty SMC Oil-Less Air Cylinder
    Heavy Duty SMC Oil-Less Air Cylinder

    with Cushioned Air-Cylinders

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

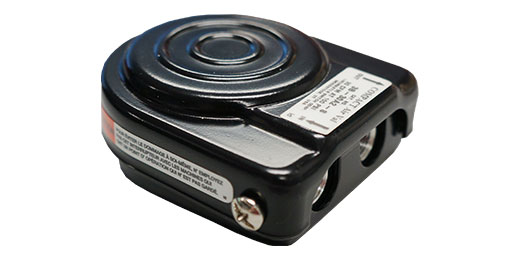

  • air activated foot pedal accessory
    Air Activated Foot Pedal

    This foot pedal allows the user to determine whether air will flow through the machine or not.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
