Category: Carton Sealers Belt Drive: Quad Belt Drive

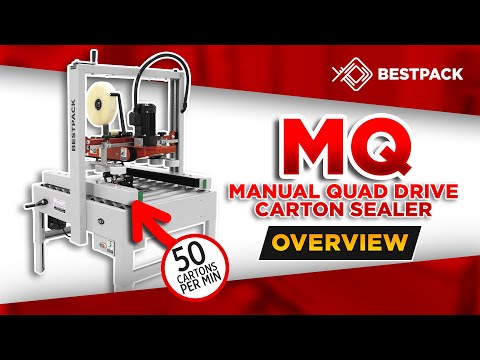

MQ

Up to 50 cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 VOLTS 60 HZ POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
385-600 LBS SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

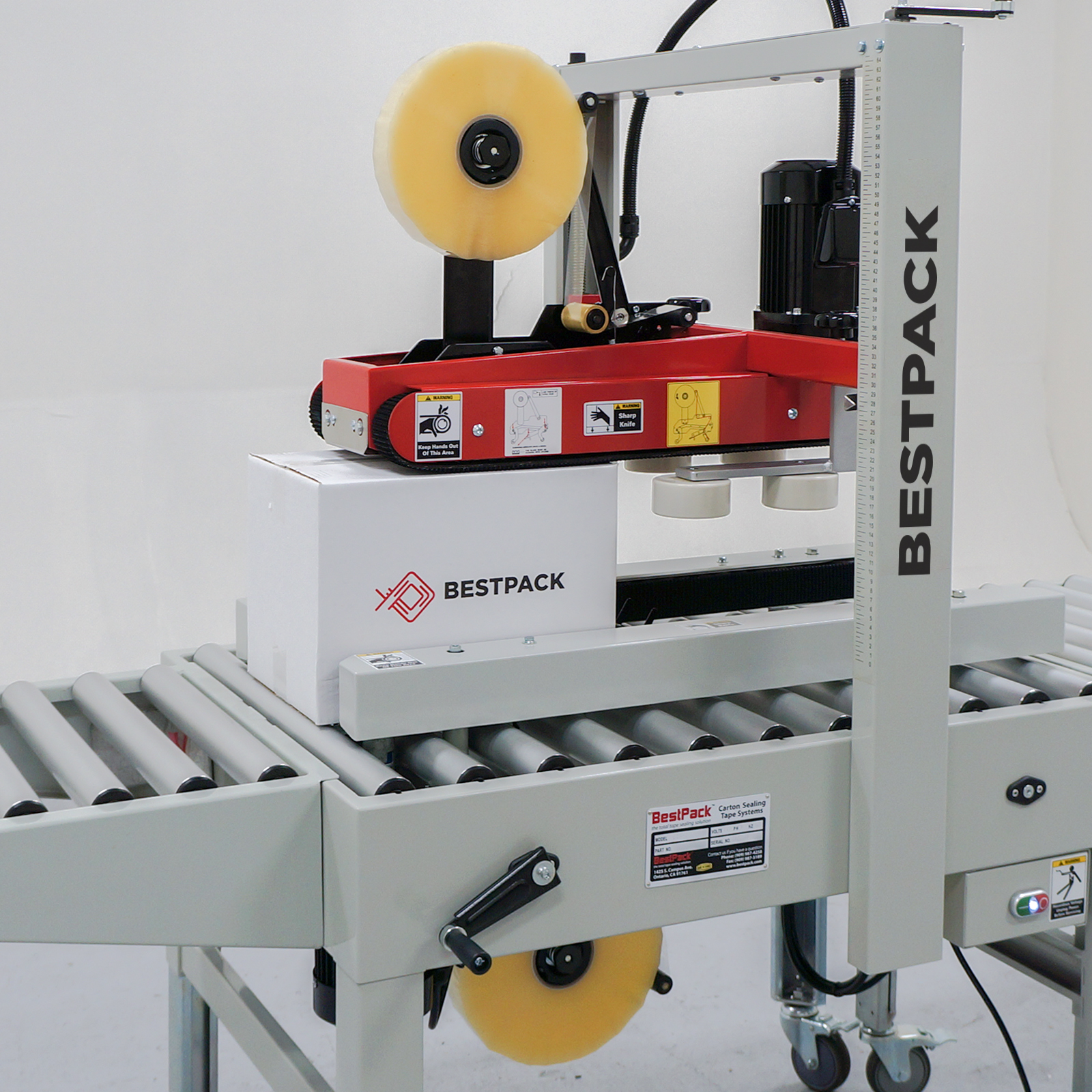

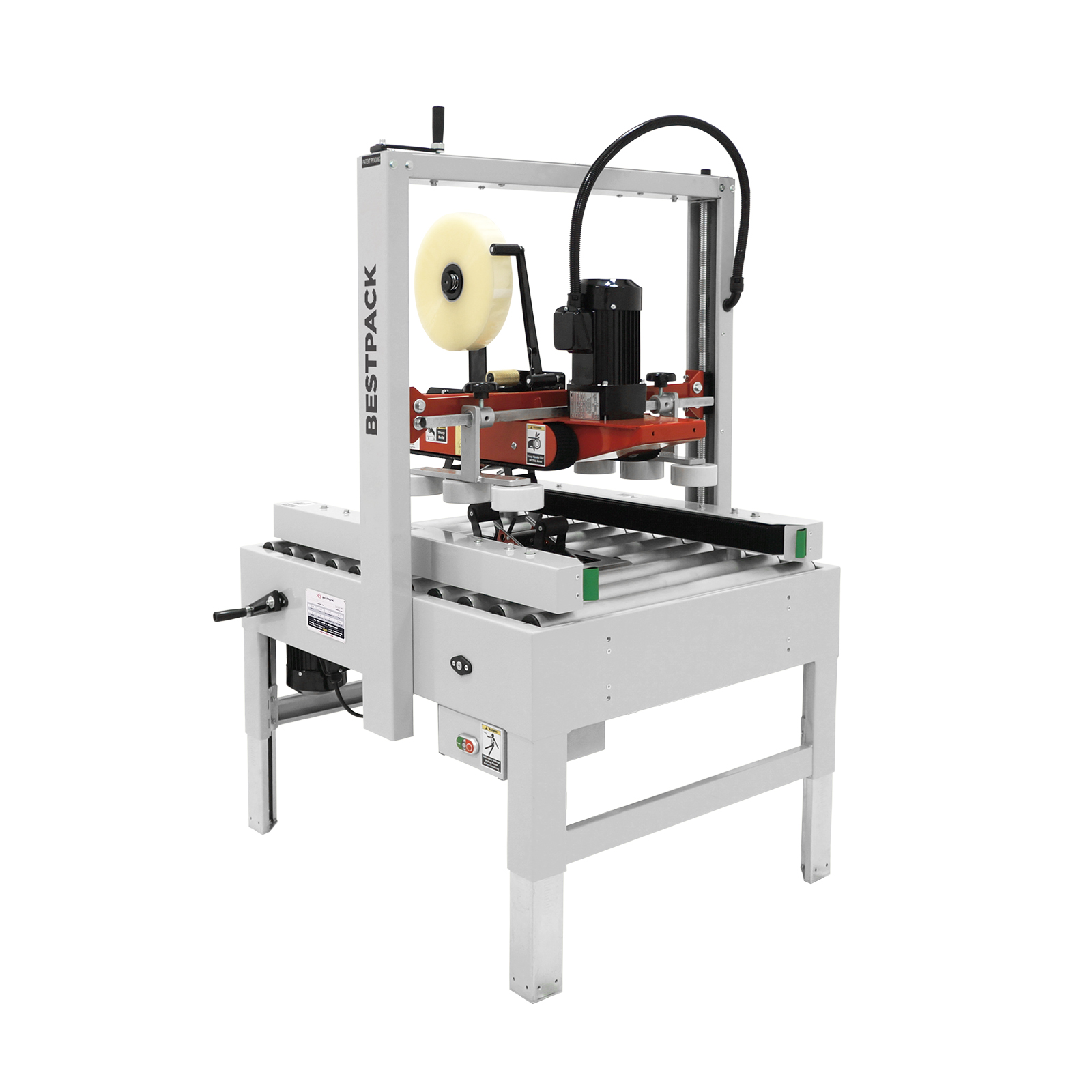

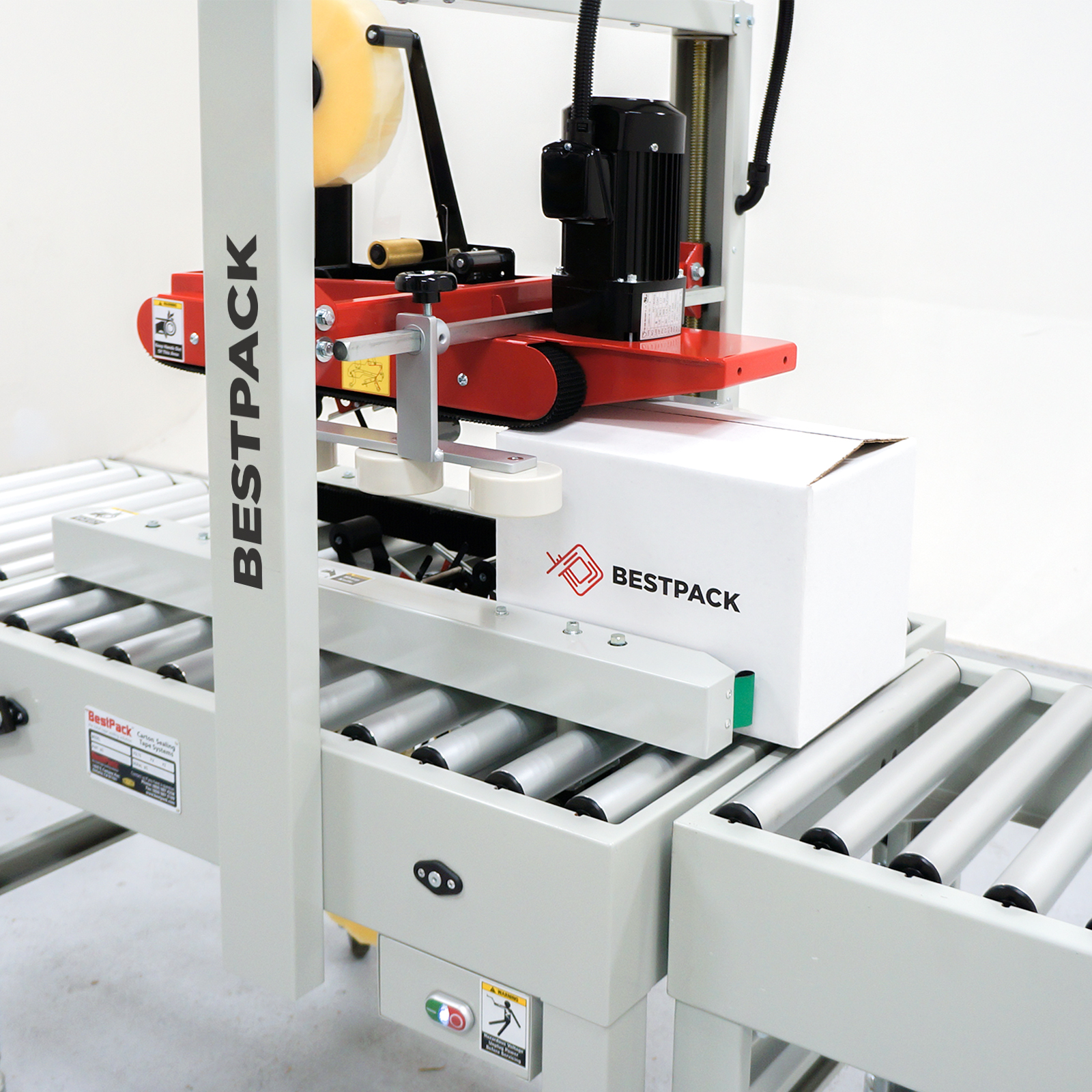

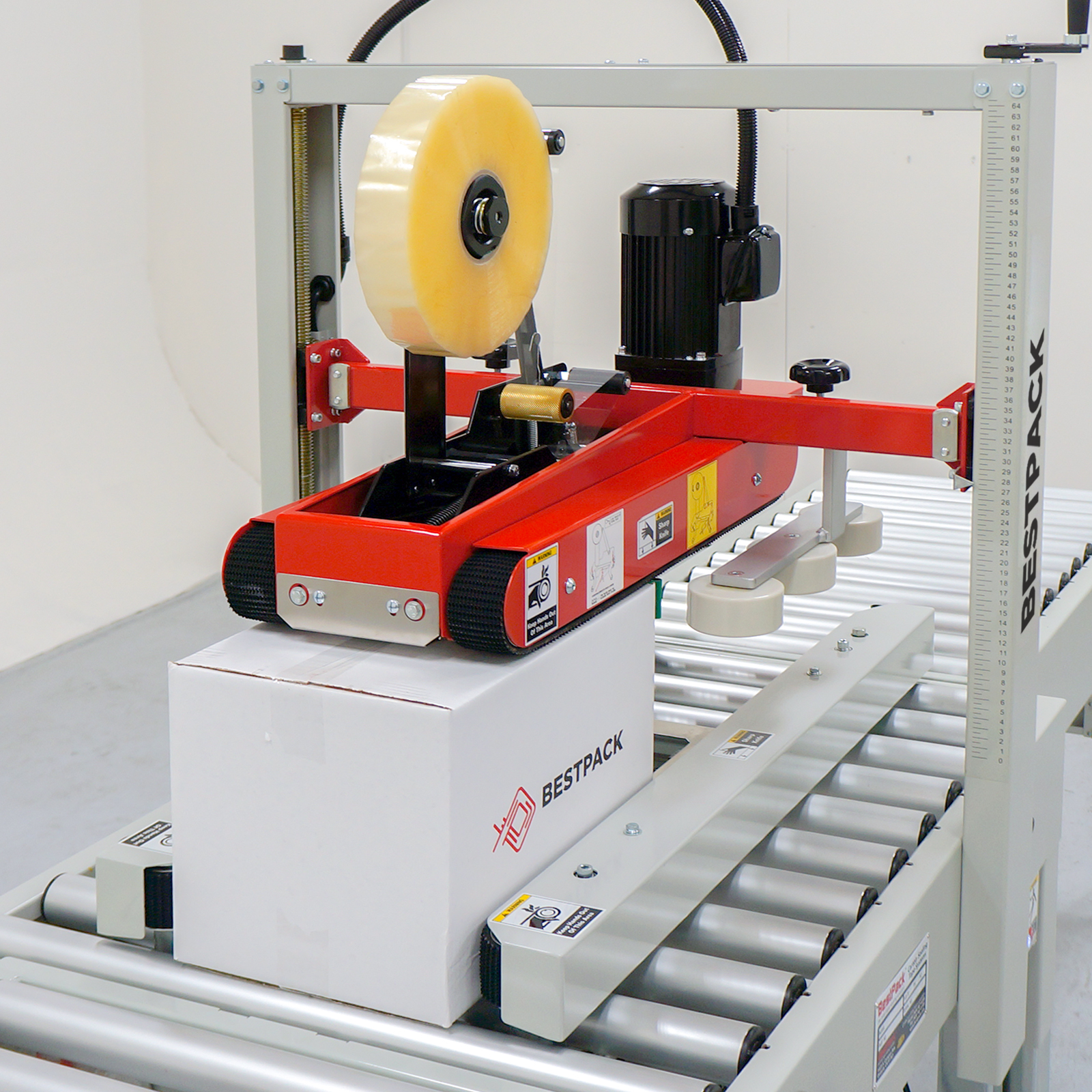

The BestPack™ MQ Series is designed to effectively fulfill heavy-duty and unstable sealing needs. Featuring a quad-belt drive, two on the side and two on the top, the MQ series will securely pull through unstable cartons and is powered by three 110V UL-approved electric motors. The mast allows for an extra 4″ carton height extension on the upper assembly.
Our MQ line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 50 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS N/A
  • SHIPPING WEIGHT 385-600 lbs
  • MACHINE DIMENSIONS (39.5") x (36.0") x (55.5")
  • CARTON RANGE (6.0" - U) x (7.5" - 21.0") x (4.5" - 20.5")
  • CONVEYOR HEIGHT ADJUSTMENT (20.5" - 30.0")

Specifications based on MQ22-2

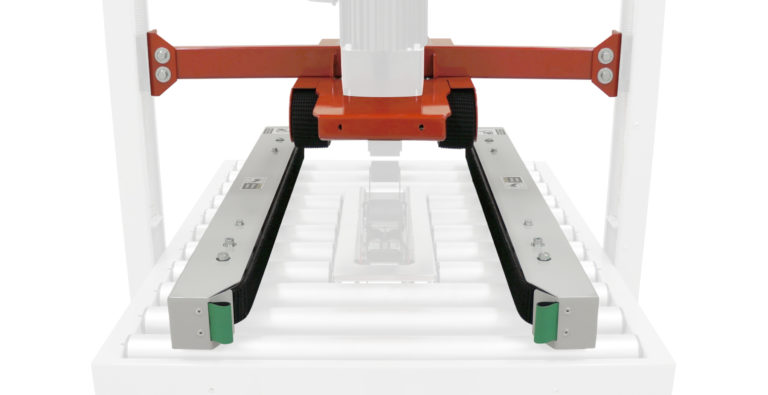

  • Four Belt Drive
    Four Belt Drive

    2 Top & 2 Side Belts

  • Adjustable Bed Height
    Adjustable Bed Height

    20.5" to 30"

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of Carton Sealer

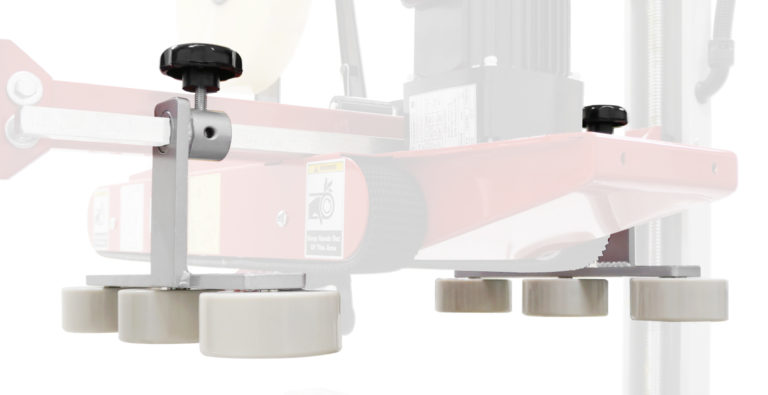

  • Upper Side Compression Unit
    Upper Side Compression Unit

  • Heavy Duty Frame
    Heavy Duty Frame

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd. and 1,500 yd.

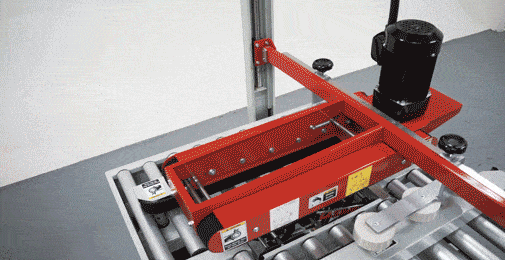

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • short conveyor accessory
    Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
