Category: Carton Sealers Belt Drive: Side Belt Drive

MSAG

Up to 35 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
2 Top & 1 Bottom Seal 2 Top & 1 Bottom Seal
110 Volts 60 Hz POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
575 lbs SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

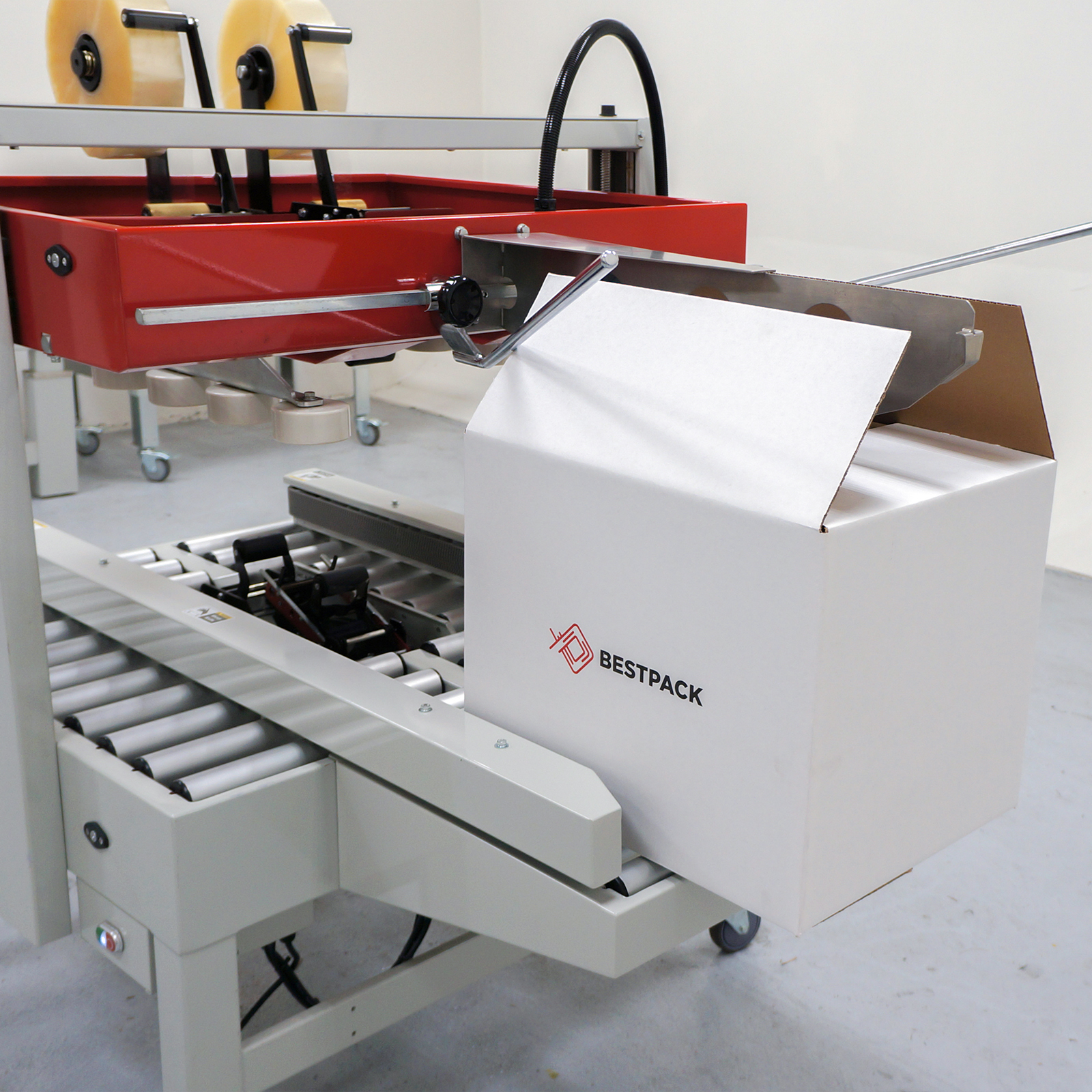

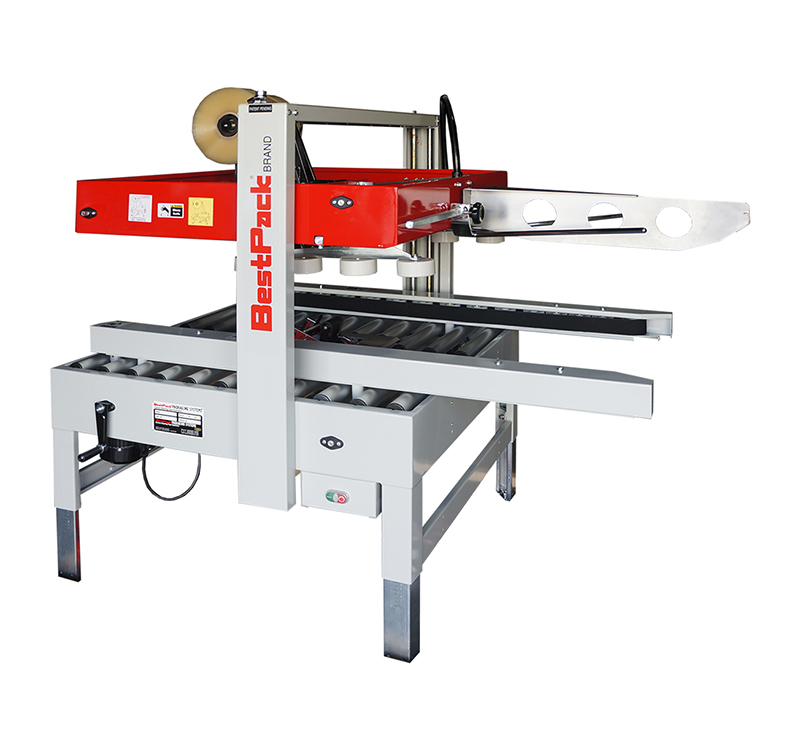

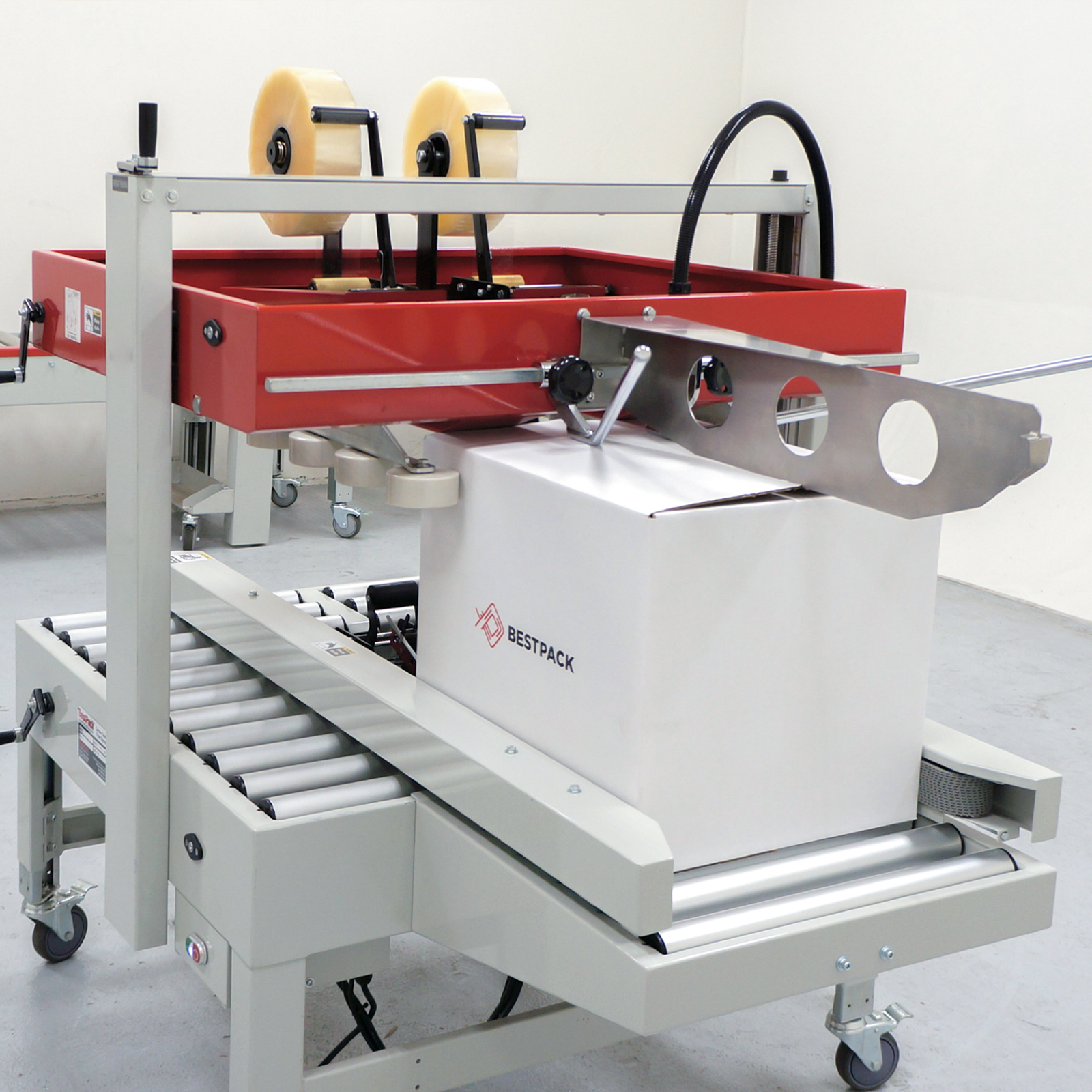

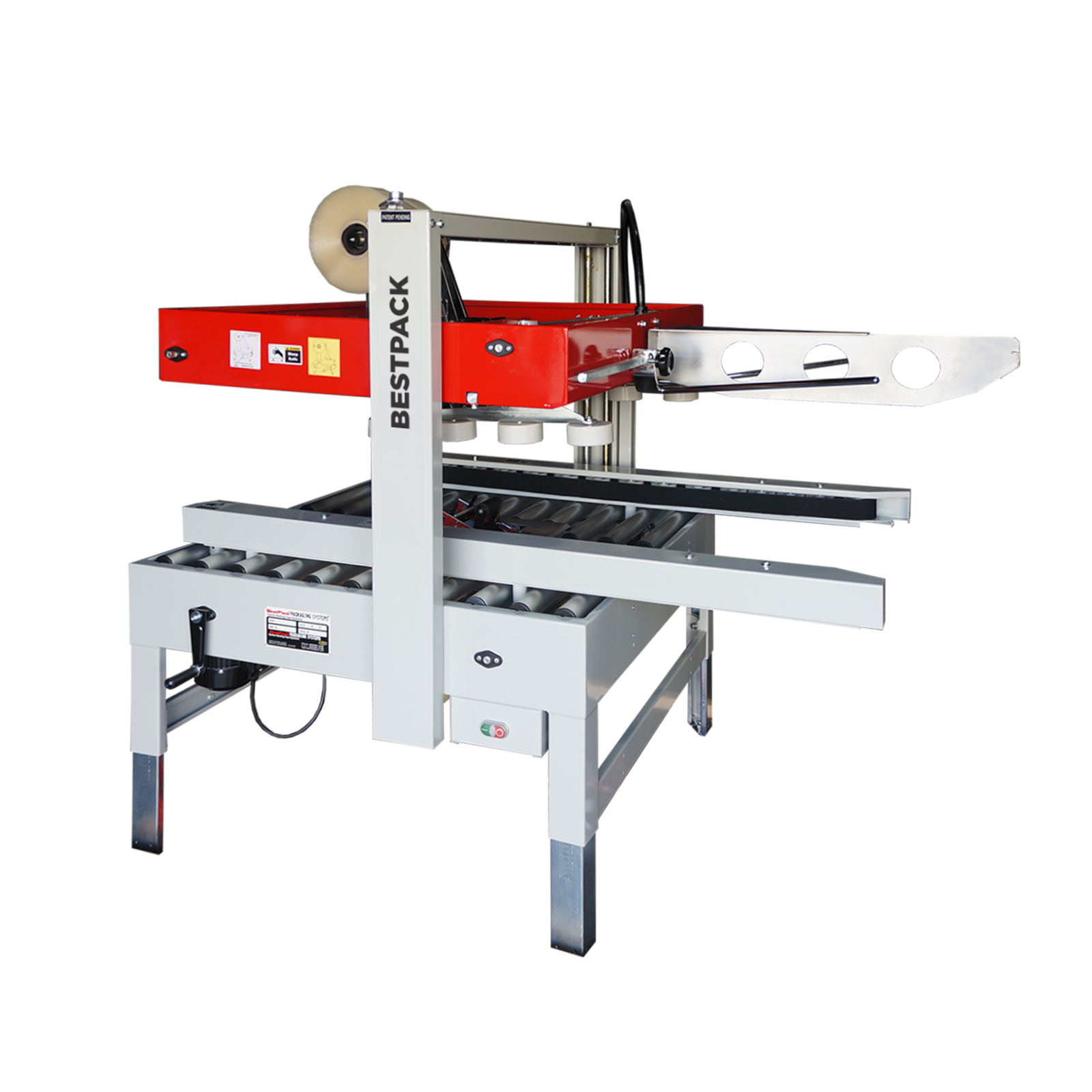

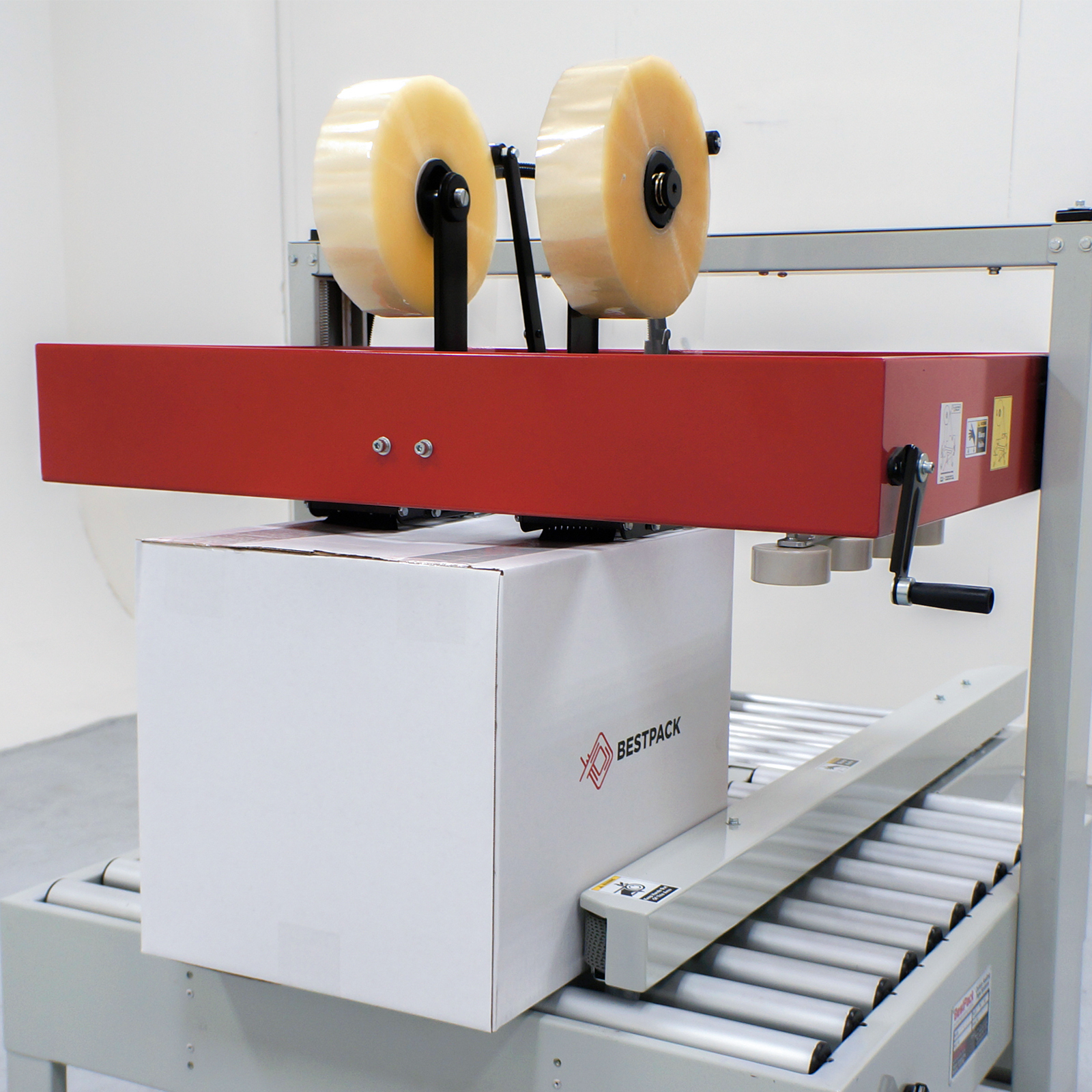

The BestPack MSAG is a Semi-Automatic Uniform Tape Carton Sealer. The MSAG is designed for unique applications where the sealer needs to place two strips of tape on the top of the carton, even out to the top edges of the carton. Yet still seal in the center of the carton on the bottom. The upper assembly and bottom assembly can accept center seal with 2″, 3″ and 6″ tape heads, or double sealing the top of the carton that can be accomplished with either 2″ tape heads or 3″ tape heads. A top 3-flap folder and front extended side belts are included.
Our MSAG incorporates our exclusive 2″, 3″, and 6″ High Speed pop-out pressure-sensitive tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 35 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS N/A
  • SHIPPING WEIGHT 575 lbs
  • MACHINE DIMENSIONS (58.5") x (43.3") x (65.0")
  • CARTON RANGE (6.0" - U) x (8.5" - 31.0") x (6.25" - 20.25")
  • CONVEYOR HEIGHT ADJUSTMENT (20.5" - 30.0")

Specifications based on MSAG-3HEB

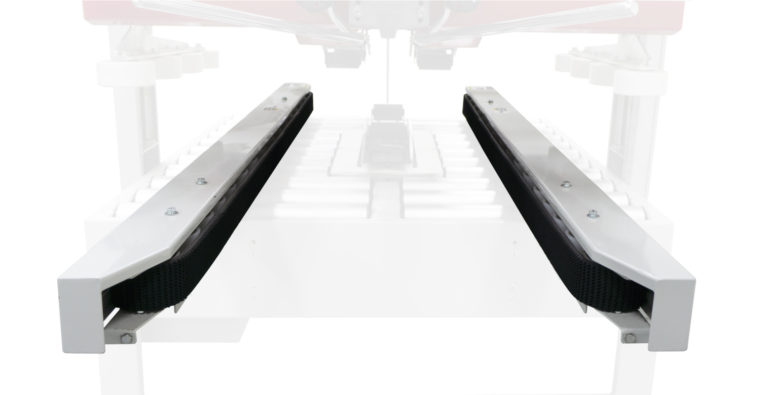

  • Extended Side Belt Drive
    Extended Side Belt Drive

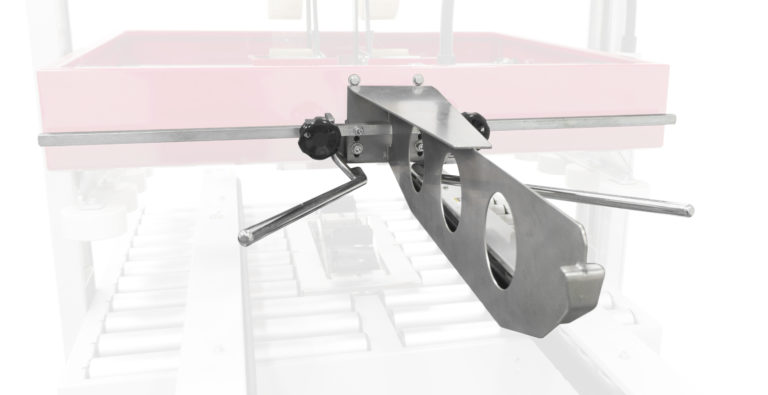

  • Top 3-Flap Folder
    Top 3-Flap Folder

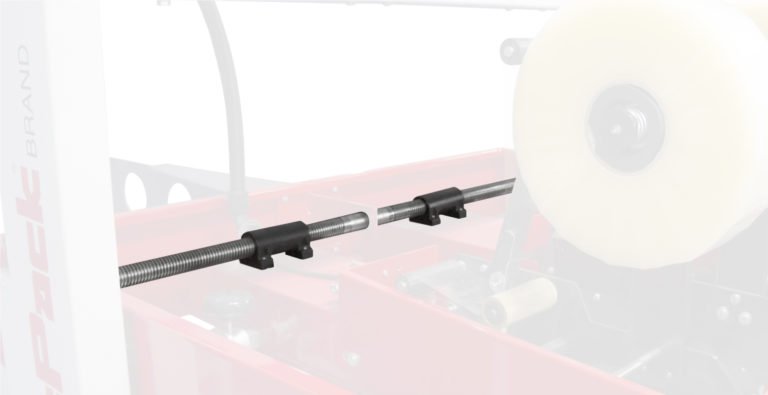

  • Adjustable Acme Screw Drive Upper Assembly
    Adjustable Acme Screw Drive Upper Assembly

    Allows for Top Center Seal, or splits apart for double taping on top even out to the outside edges of the carton

  • Accepts 2
    Accepts 2", 3", and 6" High Speed Tape Heads

    on Upper and Bottom Assembly

  • Tape Roll Lengths:
    Tape Roll Lengths:

    1,000 yd. and 1,500 yd. (1,000 yd. only for 6")

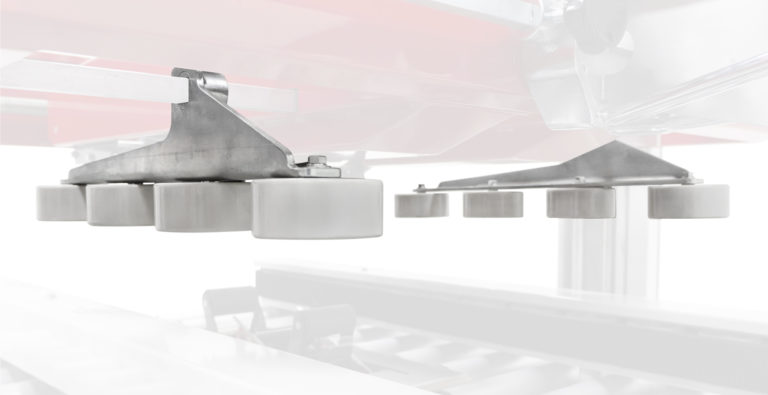

  • Upper Side Compression Unit
    Upper Side Compression Unit

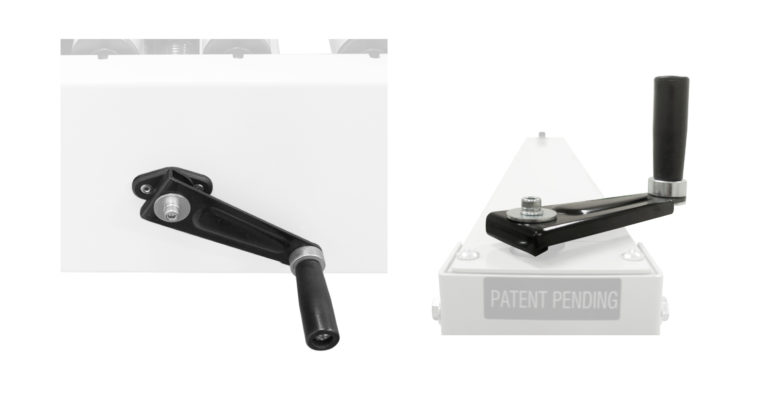

  • Width/Height Adjustment Handle
    Width/Height Adjustment Handle

    Can be Mounted on Either Side of the Carton Sealer

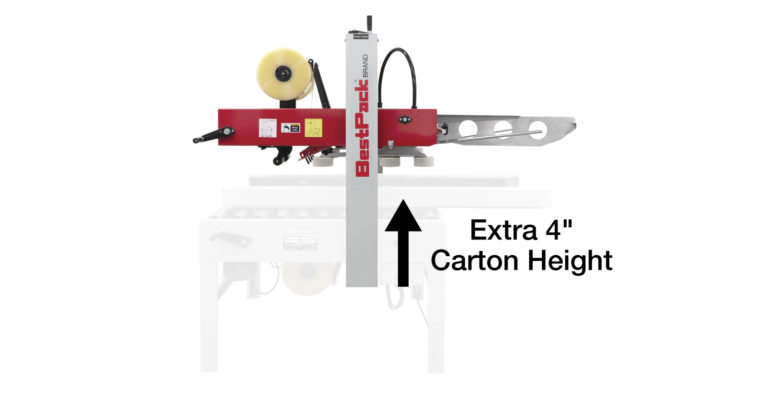

  • Extra 4
    Extra 4" Carton Height Adjustment

    Available on Upper Assembly

  • High Speed Motors
    High Speed Motors

  • Adjustable Bed Height
    Adjustable Bed Height

    from 20.5" to 30.0"

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of the Sealer

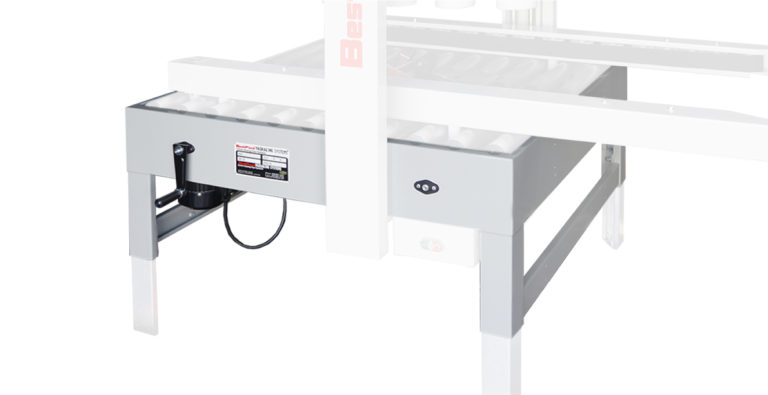

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

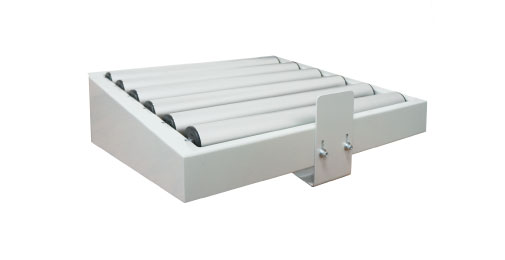

  • exit short conveyor accessory
    Short Exit Conveyor

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons exiting the machine.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
