Category: Carton Sealers Belt Drive: Side Belt Drive

MSD-6

Up to 40 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
425 lbs SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

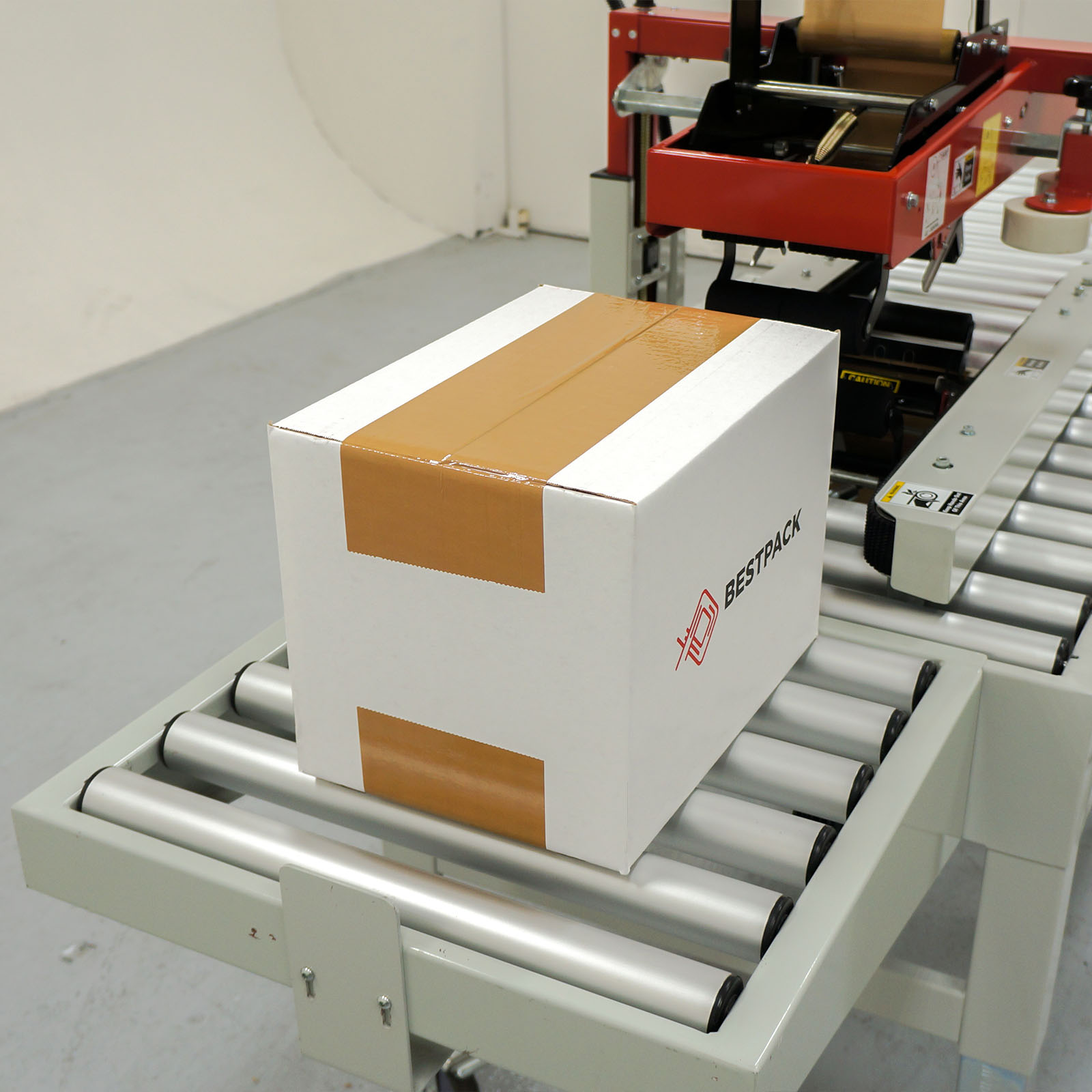

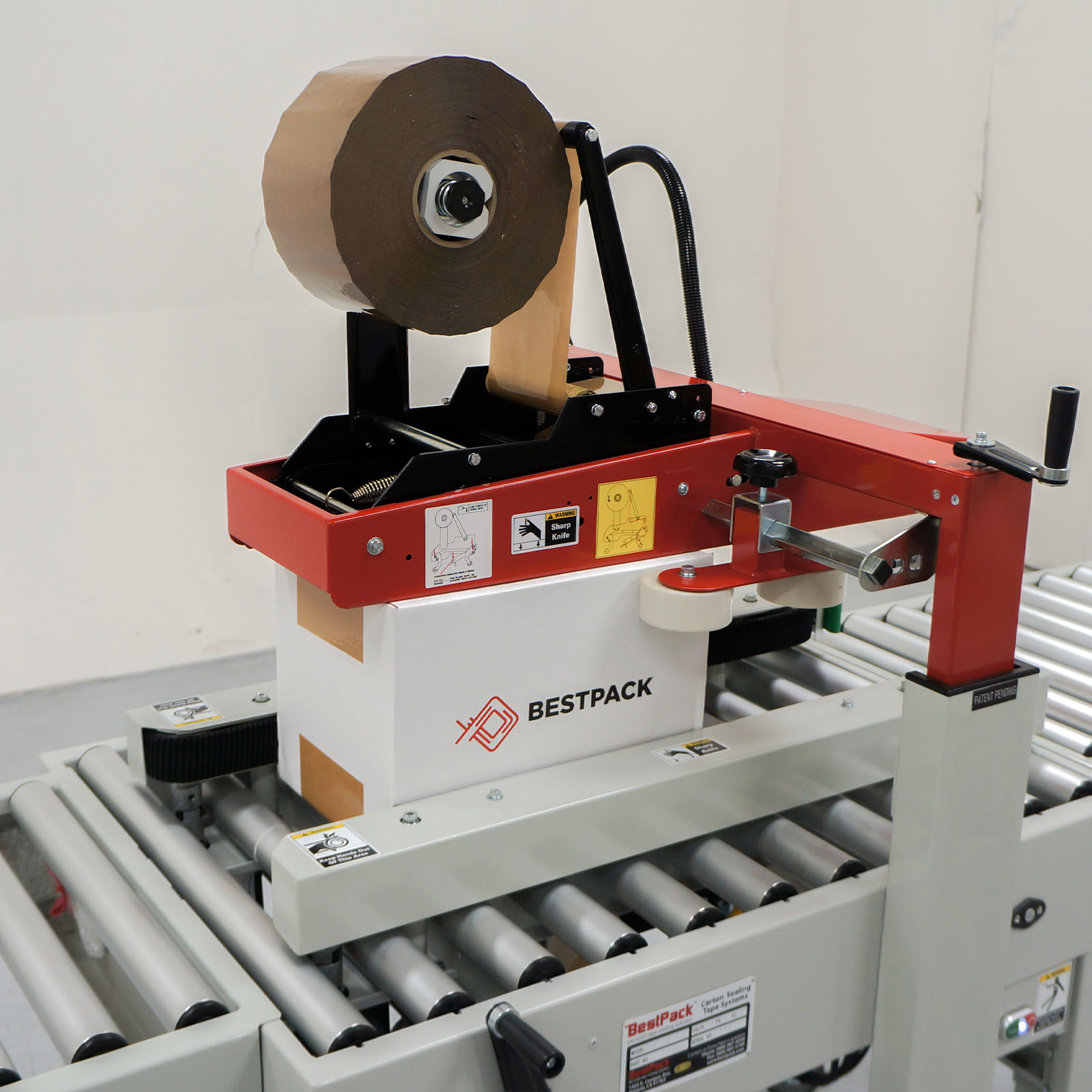

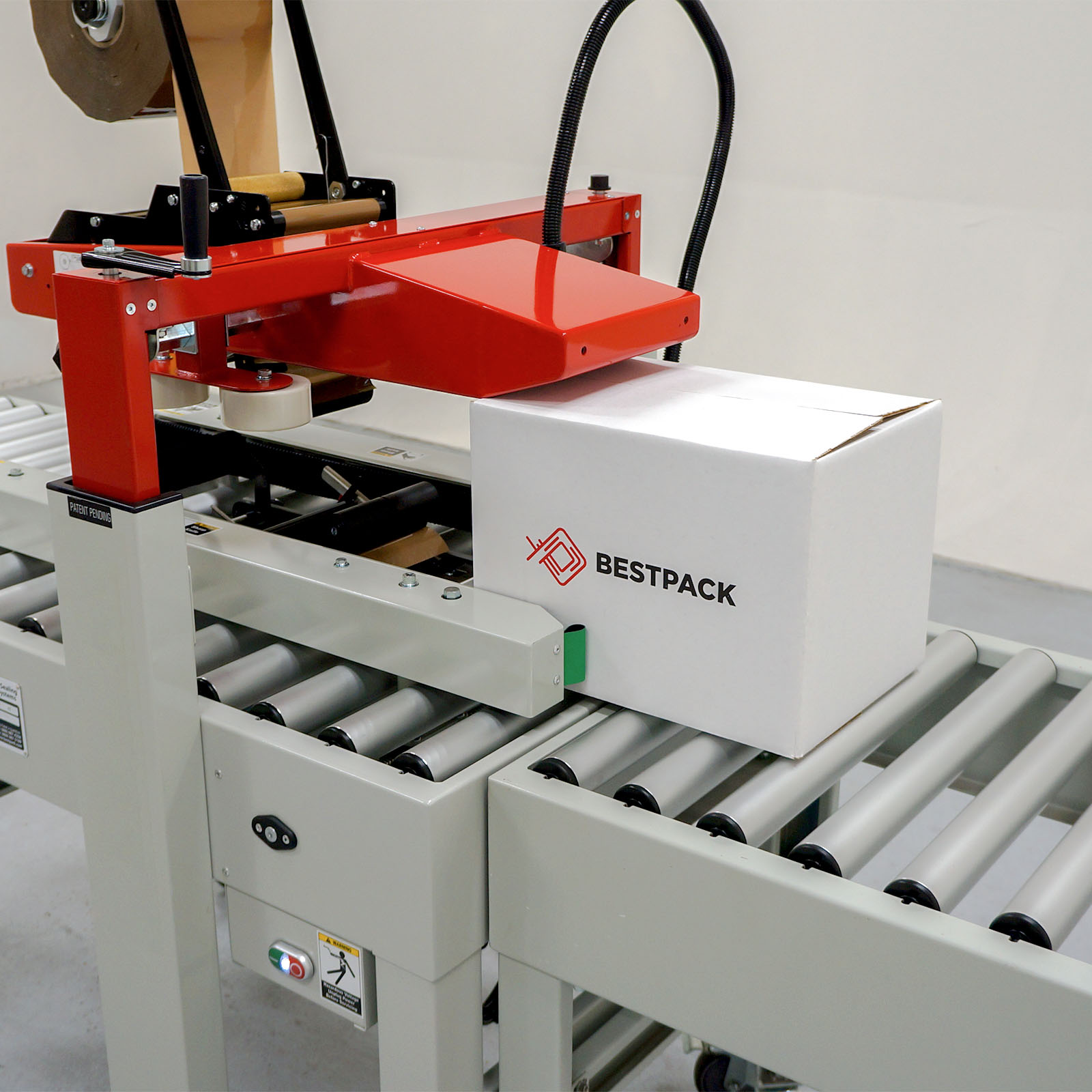

The BestPack™ 6″ Series Semi-Automatic Uniform Tape Carton Sealer is an operator fed adjustable carton sealer using 6″ wide tape to seal the top and bottom of a carton. 6″ wide tape helps with security, tamper protection, and pilferage prevention, and also effectively seals cartons that are overly heavy, over-filled, or otherwise difficult to keep sealed.
All systems incorporate our exclusive pop out pressure sensitive “High Speed” tape heads with patented tab adjustment, and the dual (telescopic) masts allow for an extra 4″ carton height extension on the upper assembly.
All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance. The MSD 6″ series sealer also accepts 4″, 3″ and 2″ tape heads with optional skid plate adapters.

  • SPEED Up to 40 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS N/A
  • SHIPPING WEIGHT 425 lbs
  • MACHINE DIMENSIONS (39.5") x (32.8") x (70.3")
  • CARTON RANGE (6.0" - U) x (8.25" - 20.0") x (3.5" - 20.5")
  • CONVEYOR HEIGHT ADJUSTMENT (23.5" - 30.0")

Specifications based on MSD22-6

  • Exclusive Pop-out Pressure Sensitive
    Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

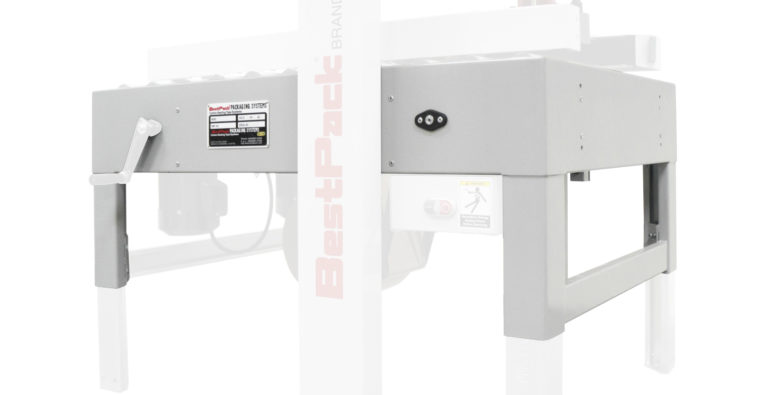

  • Heavy Duty Frame
    Heavy Duty Frame

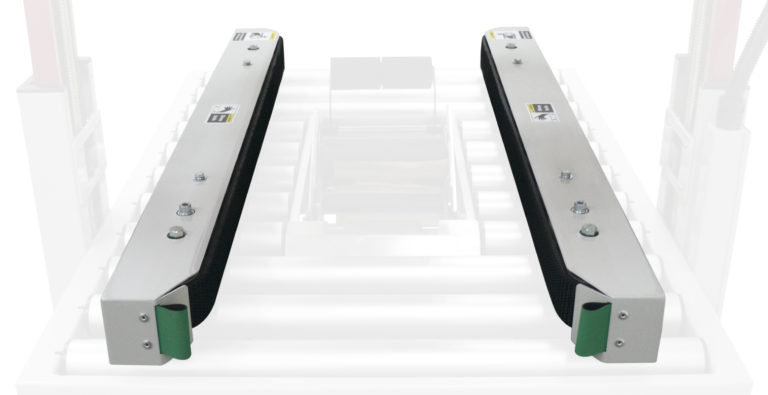

  • Side Belt Drive System
    Side Belt Drive System

  • Capable of Interchanging 2
    Capable of Interchanging 2", 3", 4", or 6" Tape Heads

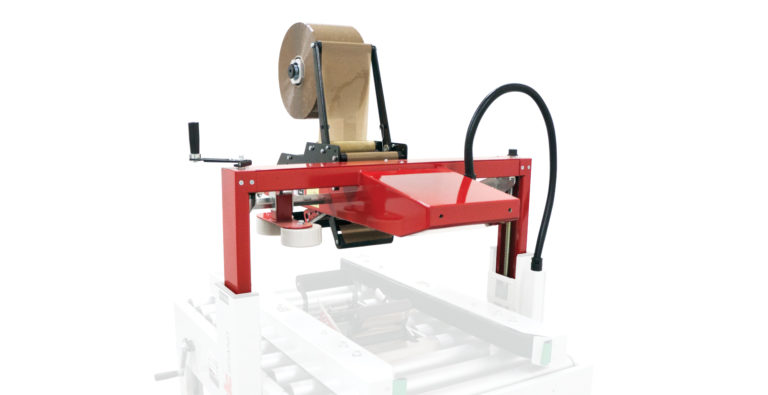

  • Telescopic Mast
    Telescopic Mast

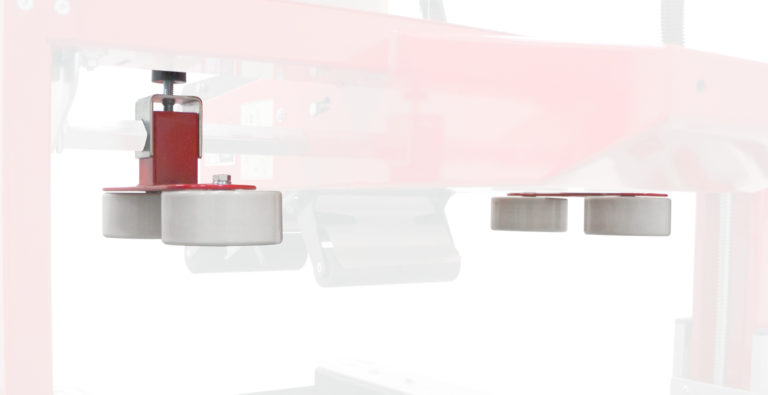

  • Upper Side Compression Unit
    Upper Side Compression Unit

  • Width/Height Adjustment Knobs
    Width/Height Adjustment Knobs

    Can be Mounted on Either Side of Carton Sealer

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of Carton Sealer

  • Adjustable Bed Height
    Adjustable Bed Height

    From 23.5" to 30.0"

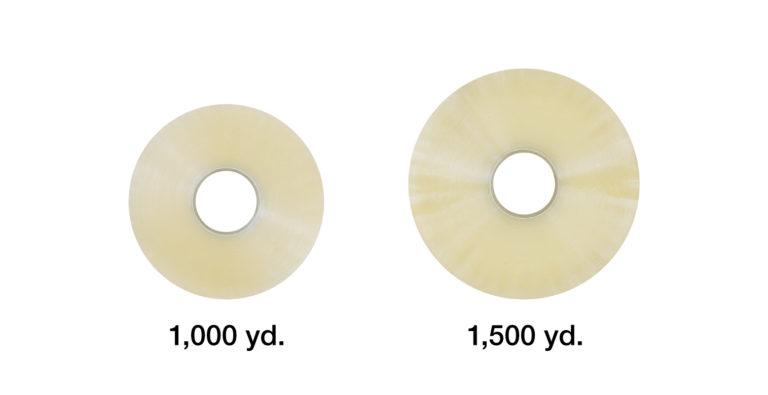

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd. & 1,500yd.

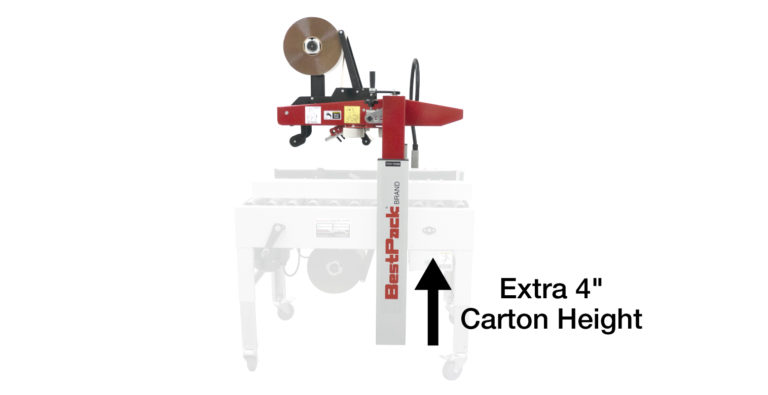

  • Extra 4
    Extra 4" Height Adjustment

    Available on Upper Assembly

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory

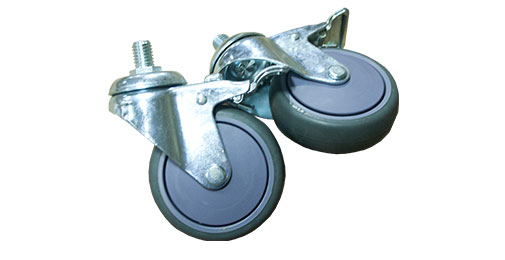

    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory

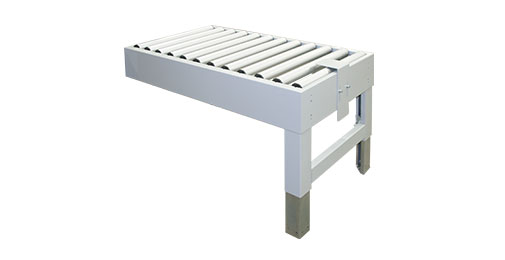

    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • 3 flap folder accessory

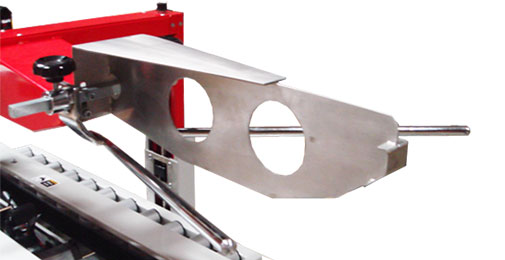

    3 Flap Folder

    This accessory adds automation to your adjustable manual carton sealer. The operator only need to close the rear minor flap and push the carton into the unit, the carton sealer does the rest.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • short conveyor accessory

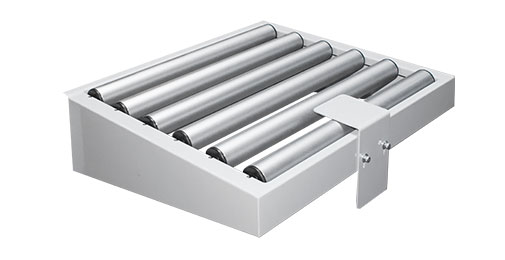

    Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
