MSD-EB

Description / Specifications/ Features/ Accessories/

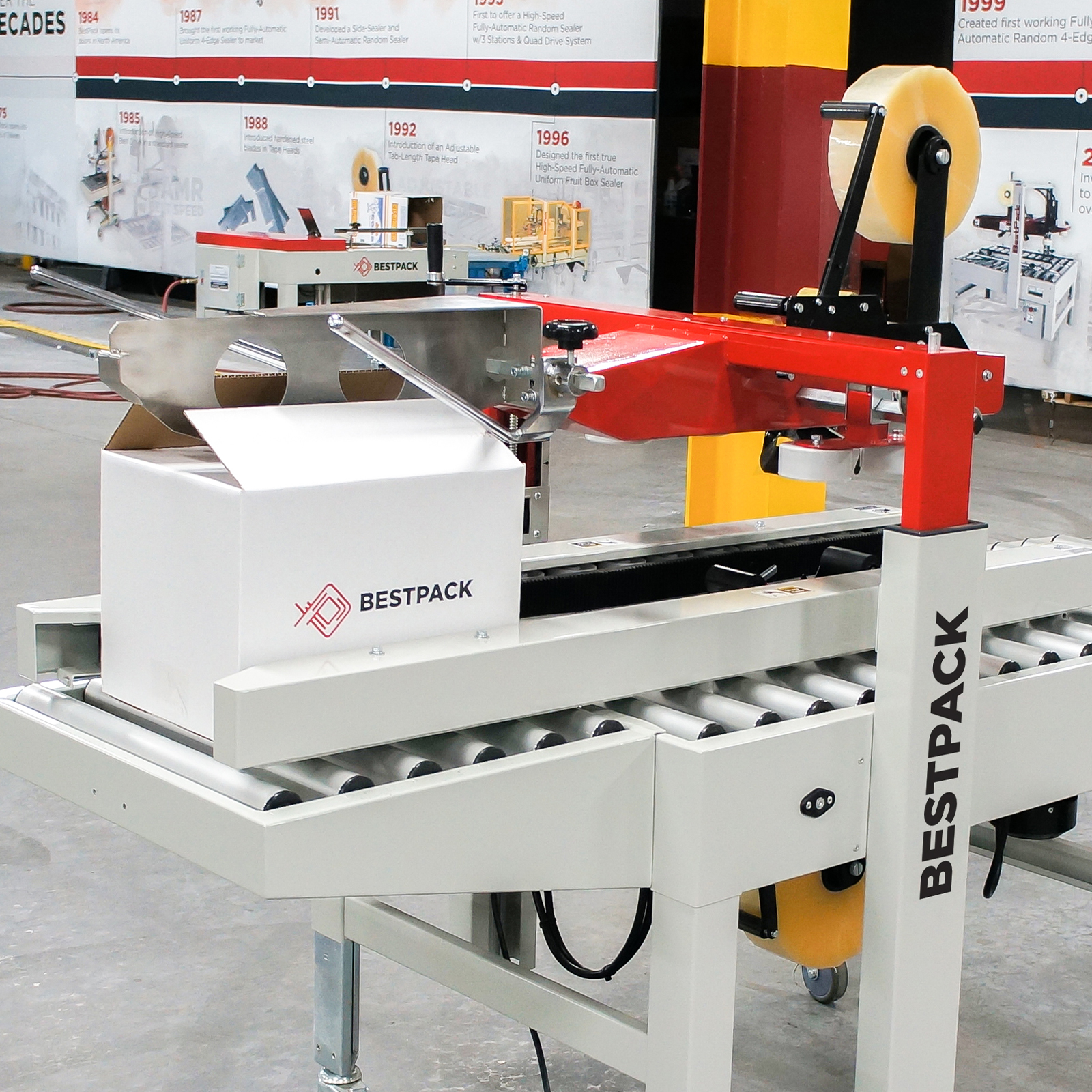

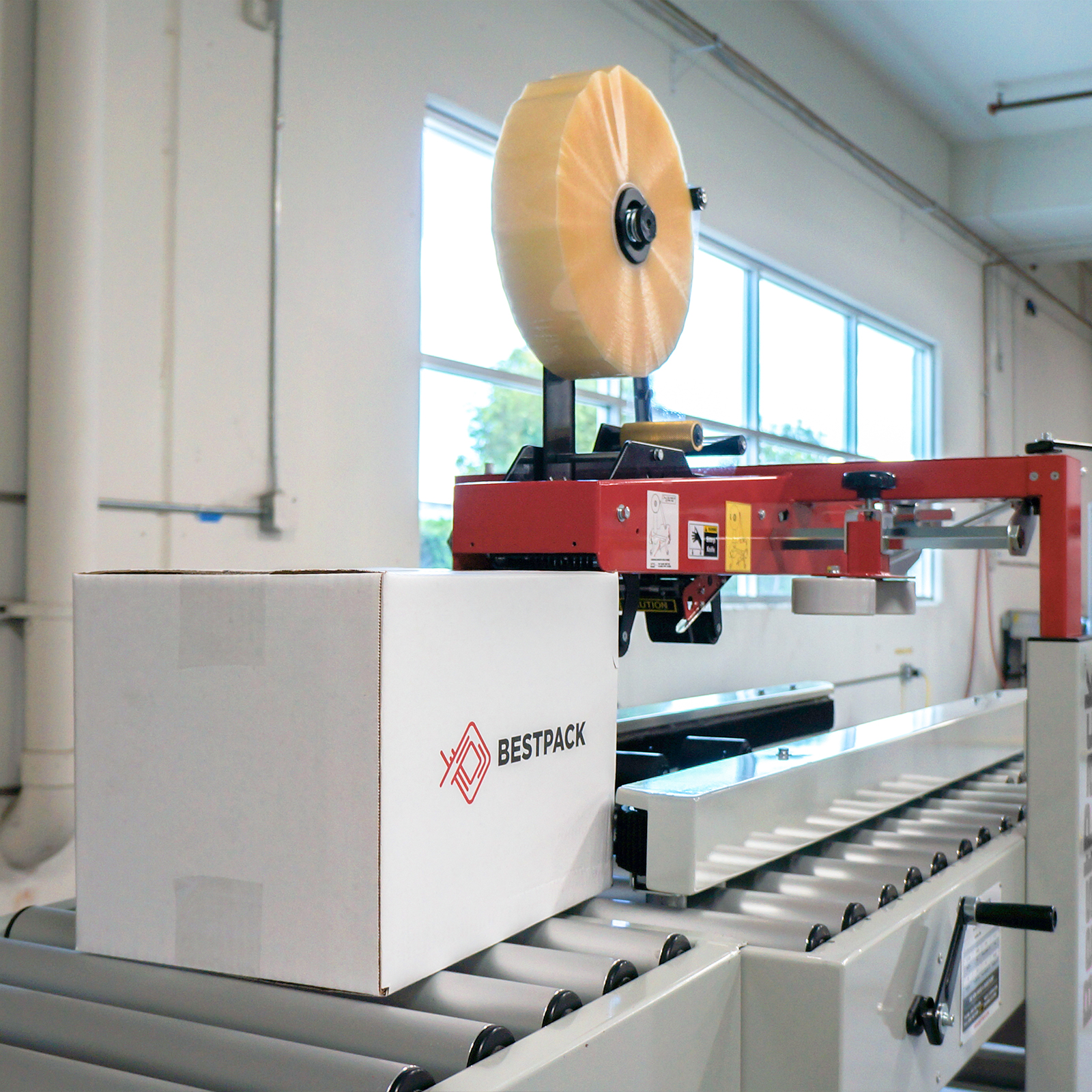

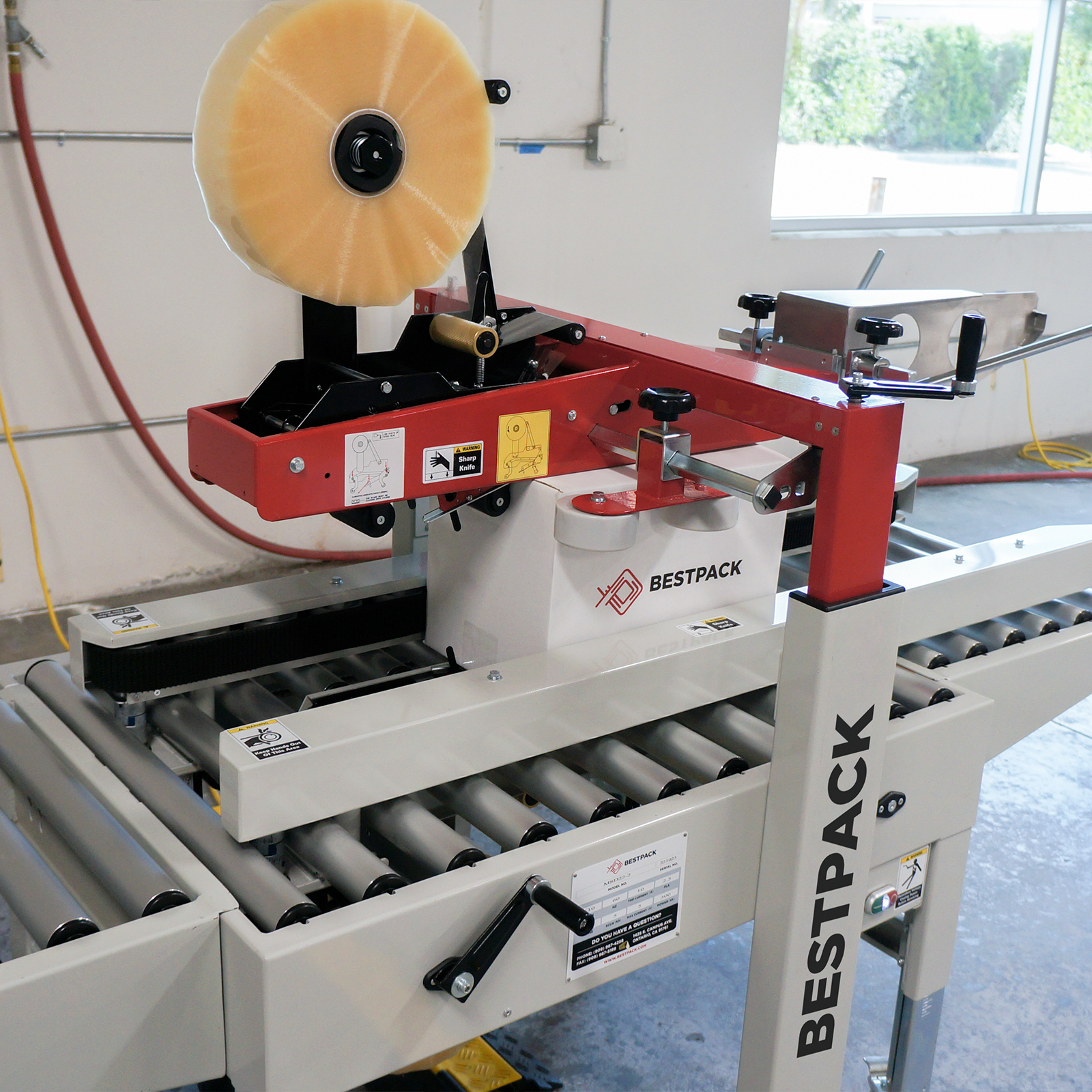

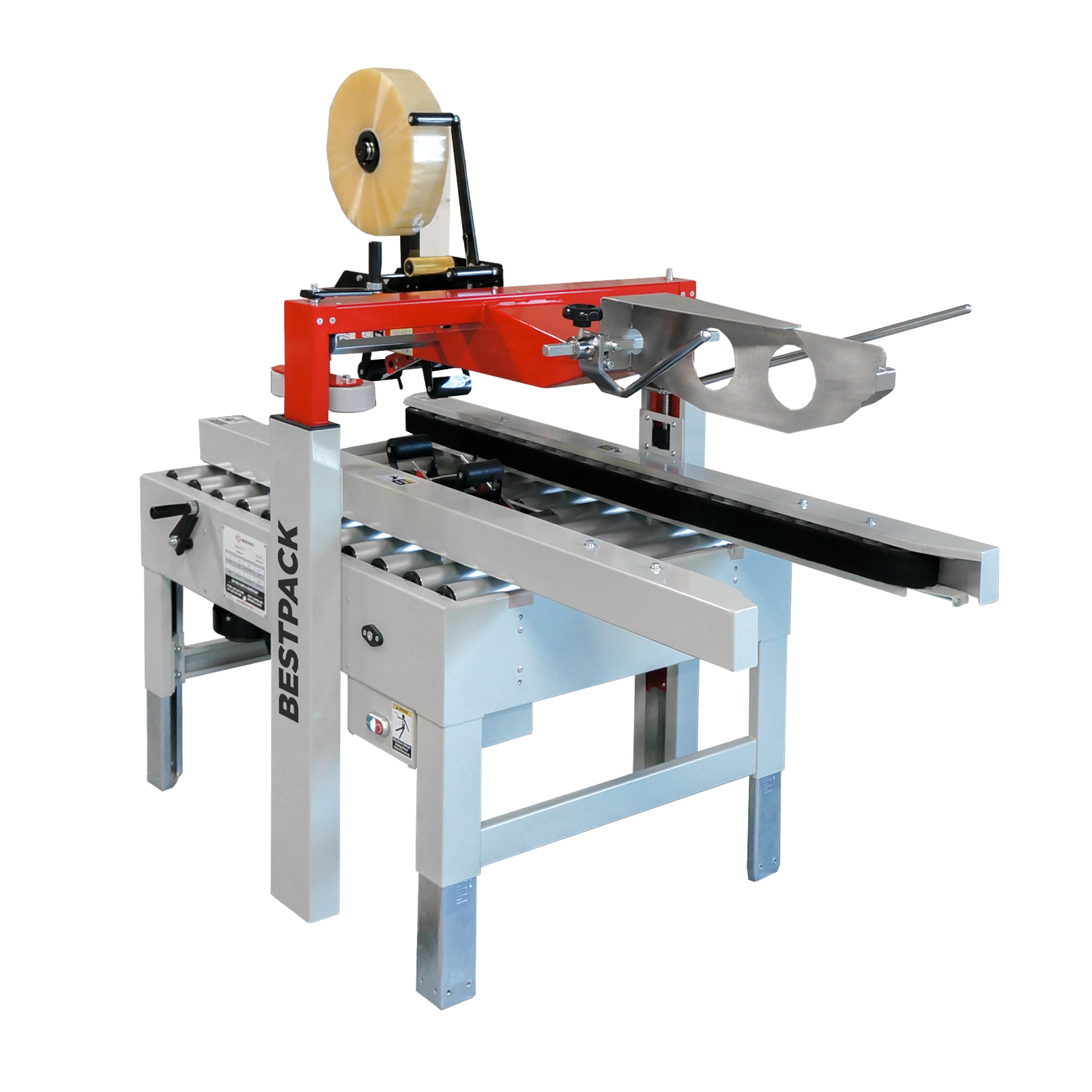

The BestPack™ MSD-EB sealer is a unique multi-purpose solution. Featuring a convenient top 3-flap folder and extended side-drive system, the MSD-EB enables a person to efficiently grab, flap fold, and seal a carton in one station. Dual telescopic masts allow for an extra 4″ carton height extension on the upper assembly and two 110V UL-approved electric motors power the extended side belt drive.

All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

Speed Up to 40 Cartons/Min.
Power Requirements 110 Volts 60 Hz
Air Requirements None
Shipping Weight 492 lbs
Machine Dimensions (59.0") x (28.3") x (59.6")
Carton Range (6.0" - U) x (4.25" - 20.25") x (3.38" - 20.5")
Conveyor Height adjustment (23.5" - 30")
Specifications based on Line Specifications based on MSD22-2EB

Specifications based on MSD22-2EB

Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

With Patented Tab Adjustment and Noise Reduction Arm

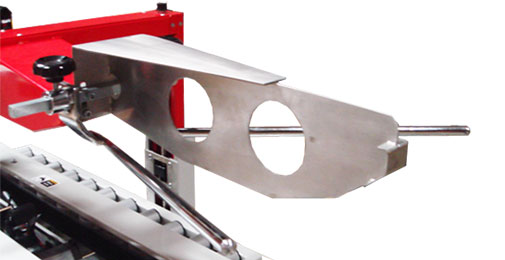

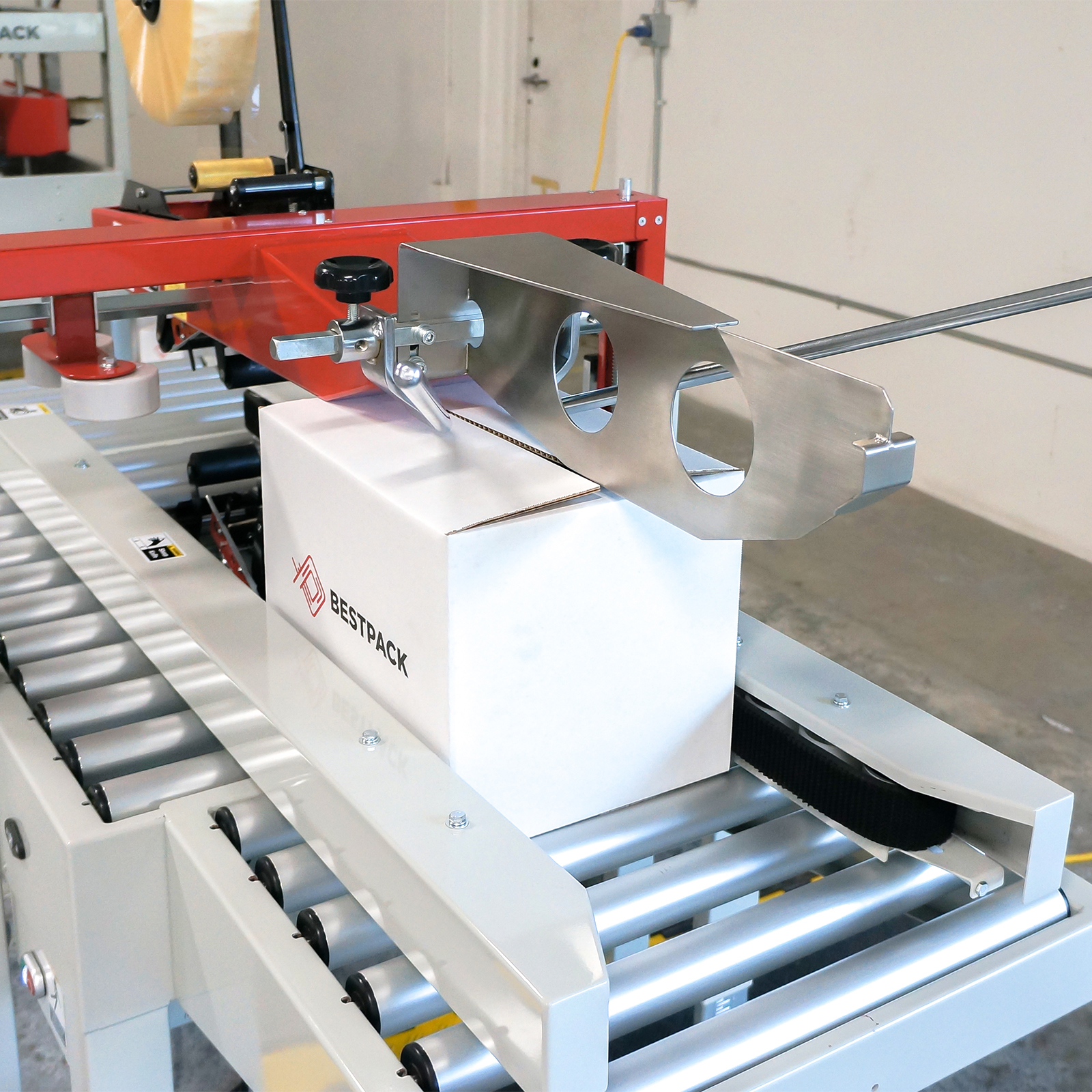

3 Flap Folder

Automatically Folds the Top Flaps of Cartons

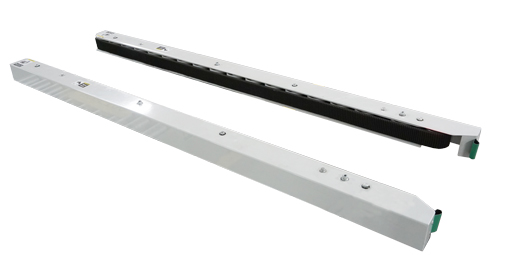

Extended Belt Drives

Grabs Carton Without Operator Having to Push the Box into the Sealer
Side Belt Drive System
Telescopic Mast
Extra 4" Height Adjustment

Available on Upper Assembly
Adjustable Bed Height

MSD22-2EB & MSD22-3EB: From 23.5" to 30.0"
Width/Height Adjustment Knobs

Can be Mounted on Either Side of Carton Sealer
Upper Side Compression Unit
Tape Roll Lengths

1,000 yd., 1,500 yd., & 2,000 yd.
Heavy Duty Frame
UL Approved Electrical Parts
Capable of Interchanging 2" or 3" Tape Heads
Electrical On/Off Box

Can be Mounted on Either Side of Carton Sealer

Spare Parts Kit

Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
*Spare Parts Kits may vary based on machine*
Locking Casters

The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.
Long Infeed/Exit Conveyor w/ L-Bracket

This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.
Spare Tape Heads

Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!
High Speed Motor

High Speed Motor Upgrade (up to 125 ft.)
Food Grade 304 Stainless Steel

This machine is available in 304 stainless steel which is food grade safe for food applications.
Short Infeed/Exit Conveyor w/ L-Bracket

This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.
BestPack Carton Sealing Tape

Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
