Category: Carton Sealers Belt Drive: Side Belt Drive

MSD

Up to 40 Cartons/Min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 VOLTS
60 HZ
POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
342-490 LBS SHIPPING
WEIGHT
Description / Specifications/ Features/ Accessories/

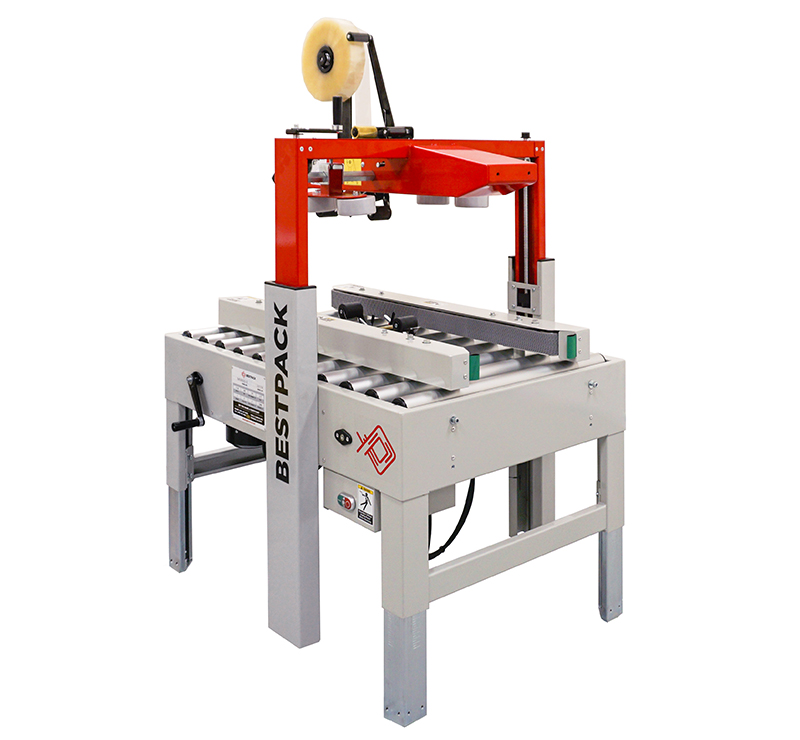

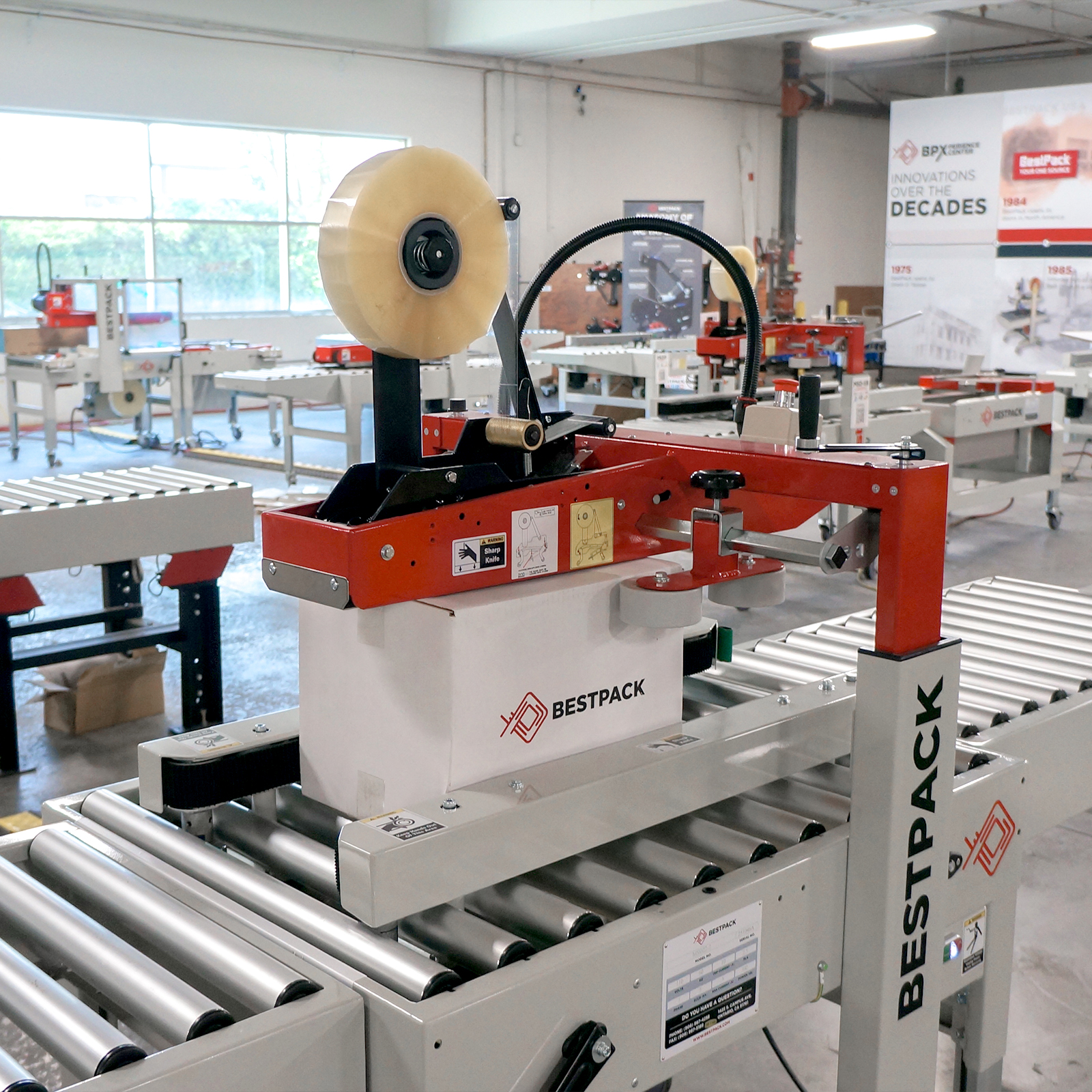

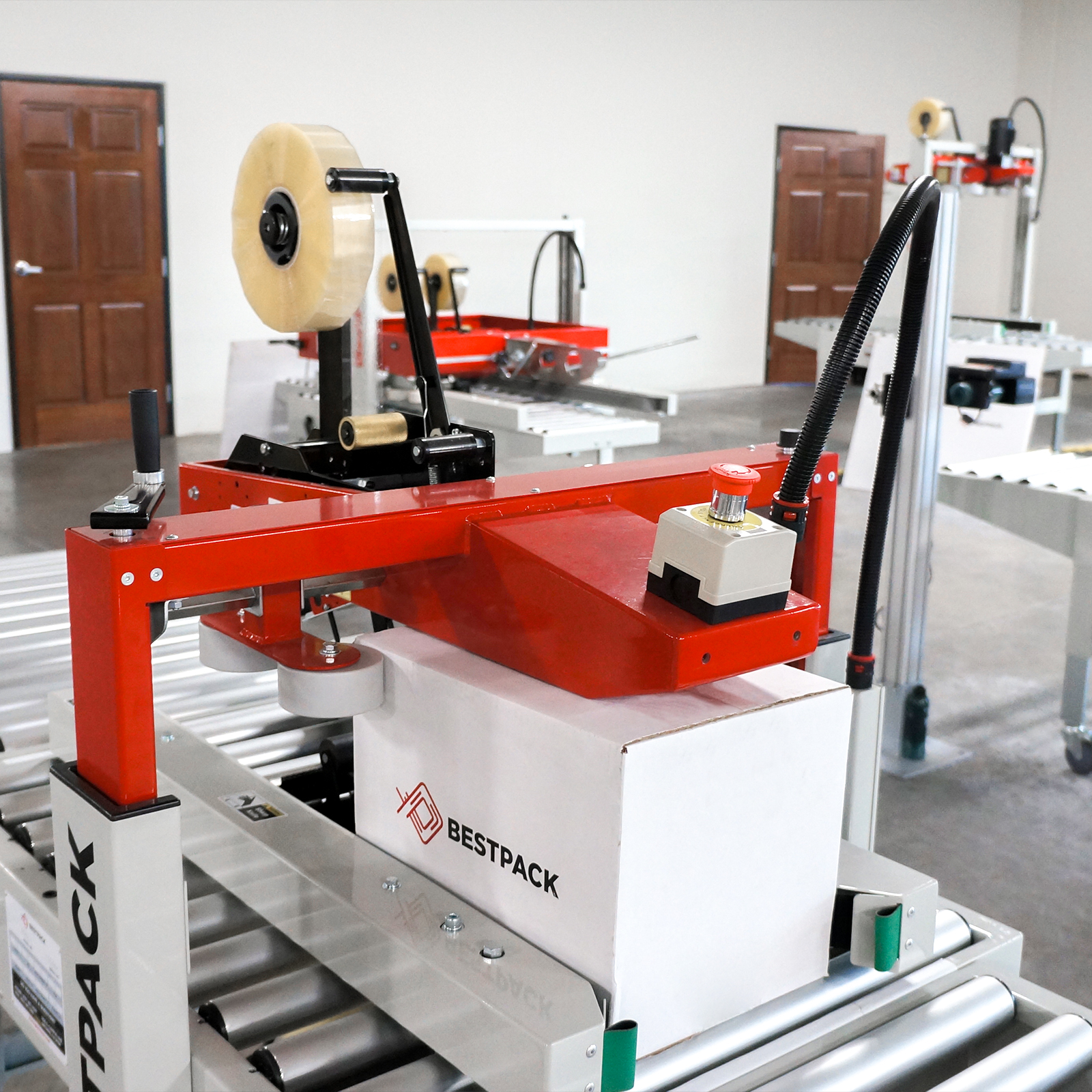

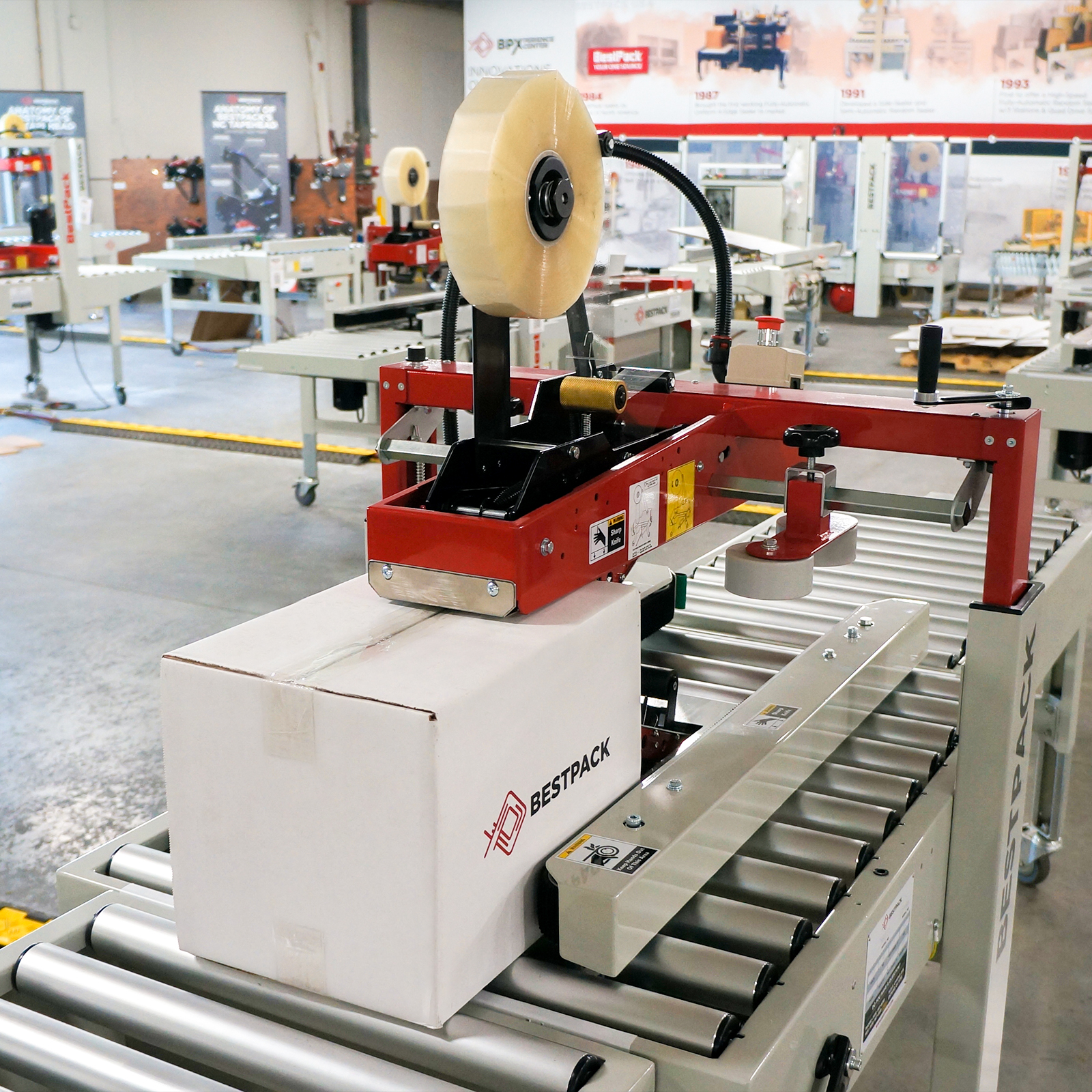

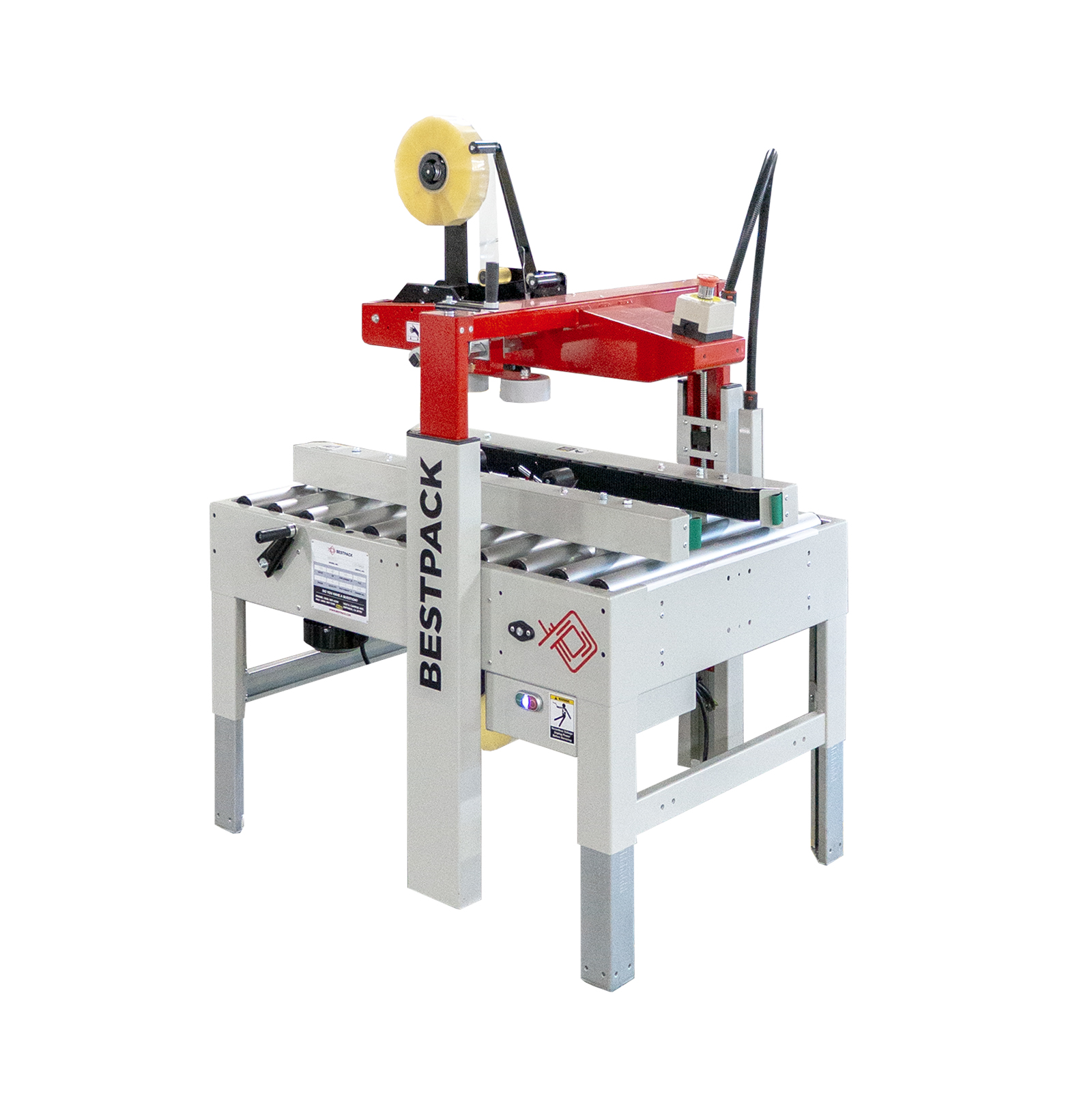

The BestPack™ MSD Series is a Semi-Automatic Uniform Tape Carton Sealer and is our most popular operator-fed adjustable carton sealer. The MSD is a top of the line machine, designed to suit a variety of light-to-heavy duty uniform carton closure applications. Using side belt technology, the MSD will seal very narrow to wide cartons. Dual telescopic masts allow for an extra 4″ carton height extension on the upper assembly.

Our MSD line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 40 Cartons/Min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements None
  • Shipping Weight 342-490 lbs
  • Machine Dimensions (39.5") x (32.8") x (70.3")
  • Carton Range (6.0" - U) x (4.25" - 20.0") x (3.5" - 20.5") - See Comparison Chart for Other Recommendations
  • Trip Current (A) 10
  • FLA 2.5
  • Conveyor Height adjustment (23.5" - 30")
  • Phase 1
  • SCCR (KA) 5
  • Max Current (A) 5
  • Power (W) 275
  • Specifications based on Line Specifications based on MSD22-2

Specifications based on MSD22-2

  • Exclusive Pop-out Pressure Sensitive
    Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

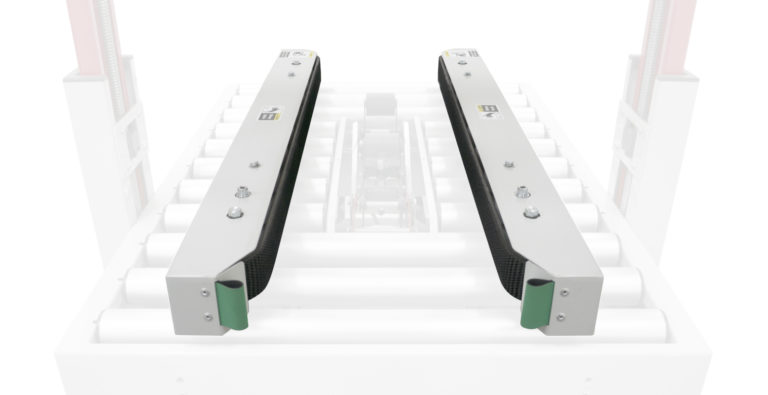

  • Side Belt Drive System
    Side Belt Drive System

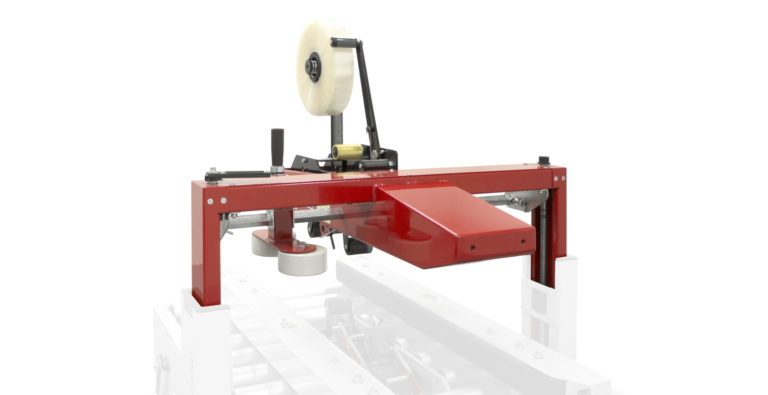

  • Telescopic Mast
    Telescopic Mast

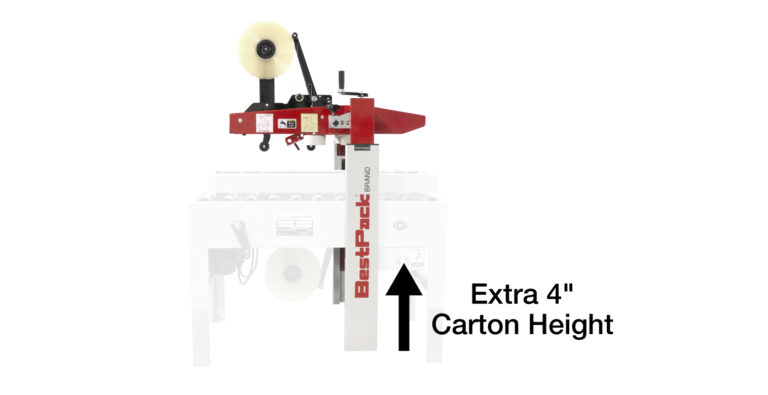

  • Extra 4
    Extra 4" Height Adjustment

    Available on Upper Assembly

  • Adjustable Bed Height
    Adjustable Bed Height

    MSD22 & MSD32: From 23.5" to 30.0". MSD23 & MSD33: From 25.75" to 30.0"

  • Width/Height Adjustment Knobs
    Width/Height Adjustment Knobs

    Can be Mounted on Either Side of Carton Sealer

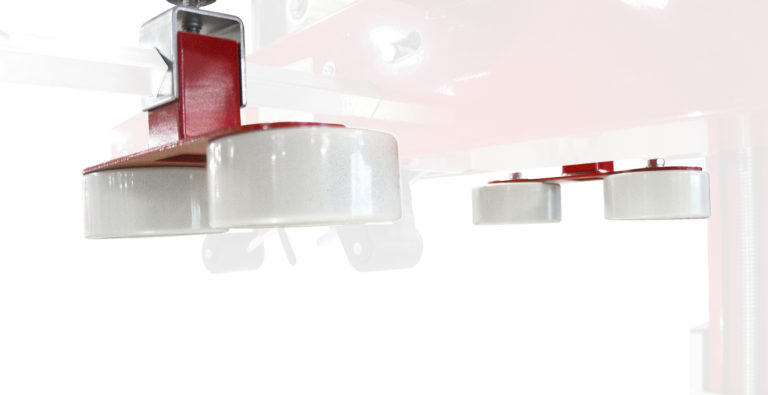

  • Upper Side Compression Unit
    Upper Side Compression Unit

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., & 2,000 yd.

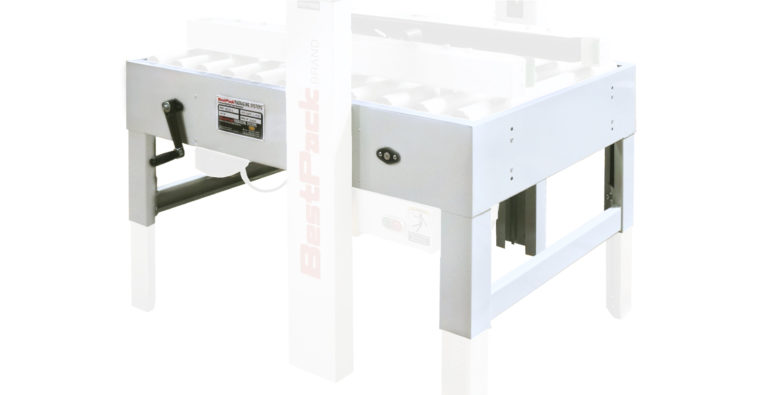

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

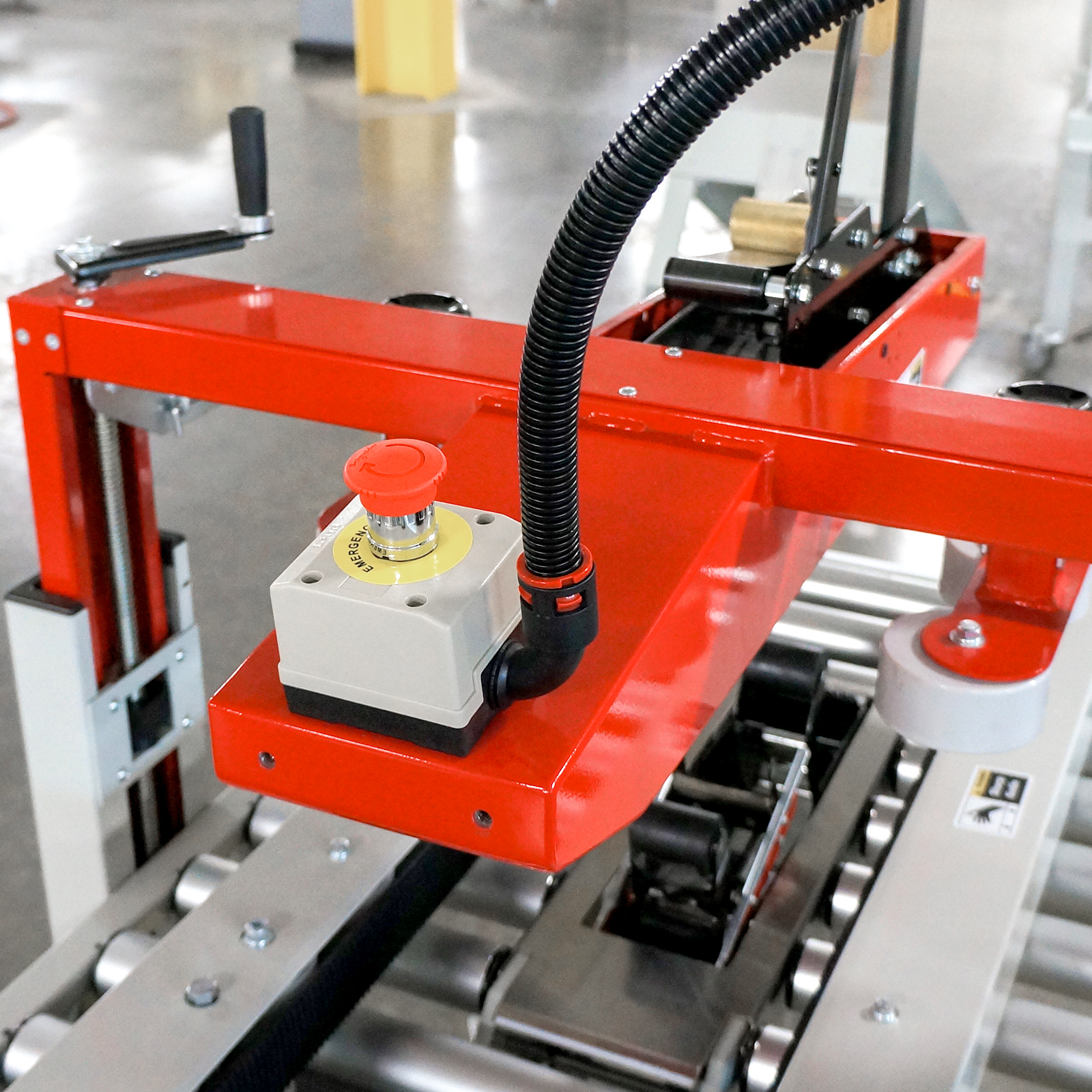

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of Carton Sealer

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • 3 flap folder accessory
    3 Flap Folder

    This accessory adds automation to your adjustable manual carton sealer. The operator only need to close the rear minor flap and push the carton into the unit, the carton sealer does the rest.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • short conveyor accessory
    Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
