Category: Carton Sealers Belt Drive: Side Belt Drive


Up to 15 cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
Description / Specifications/ Features/ Accessories/

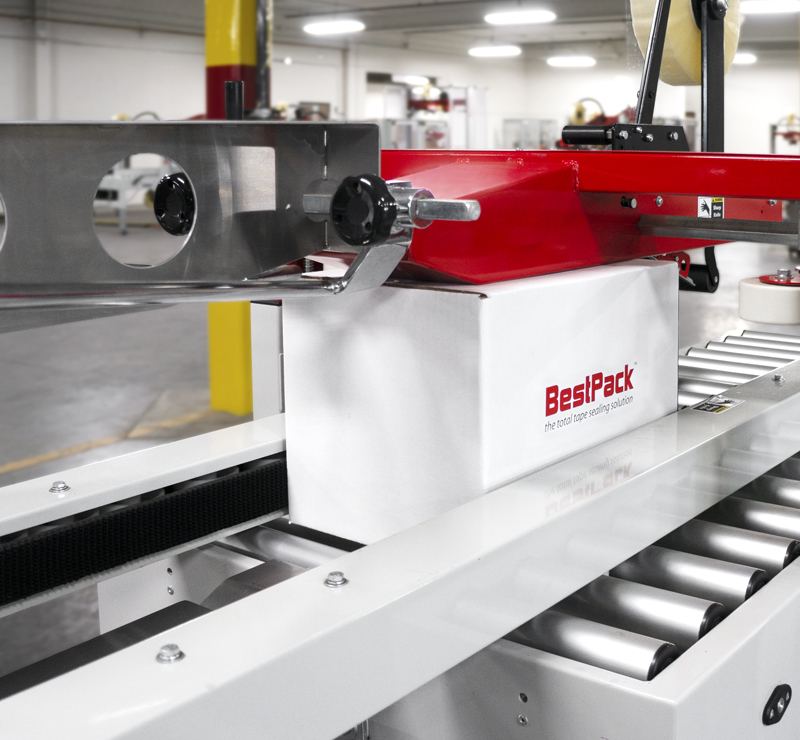

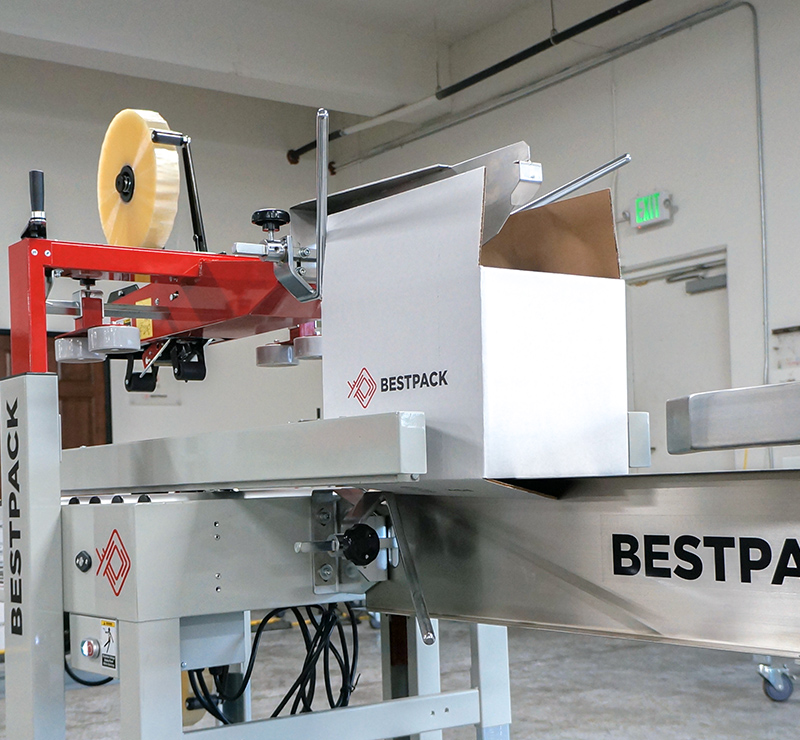

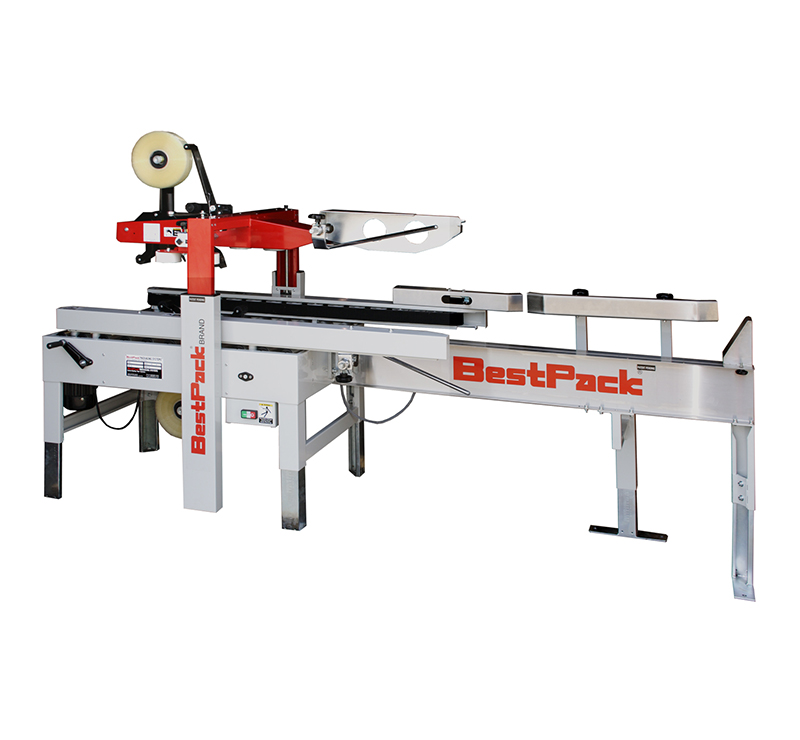

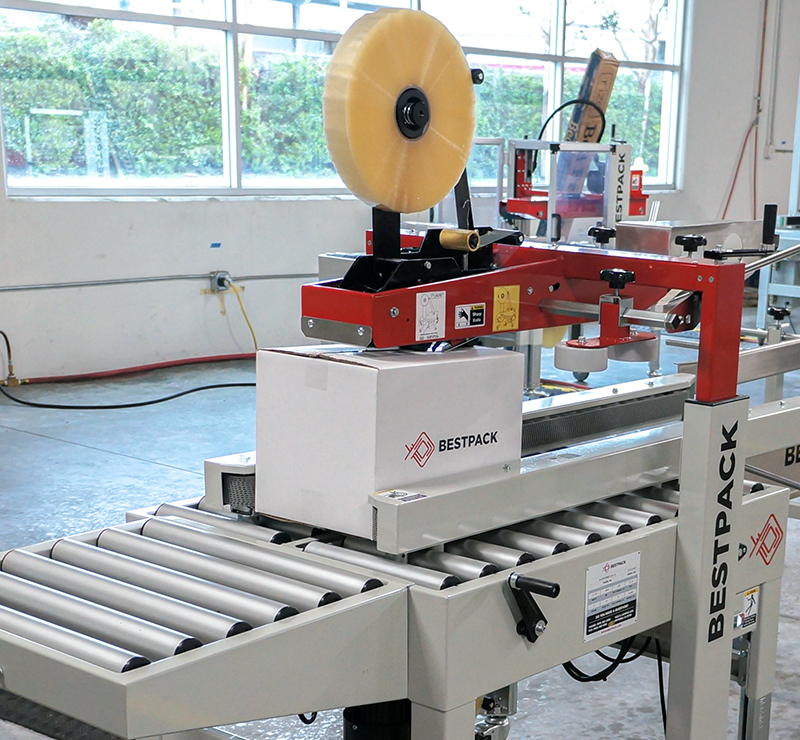

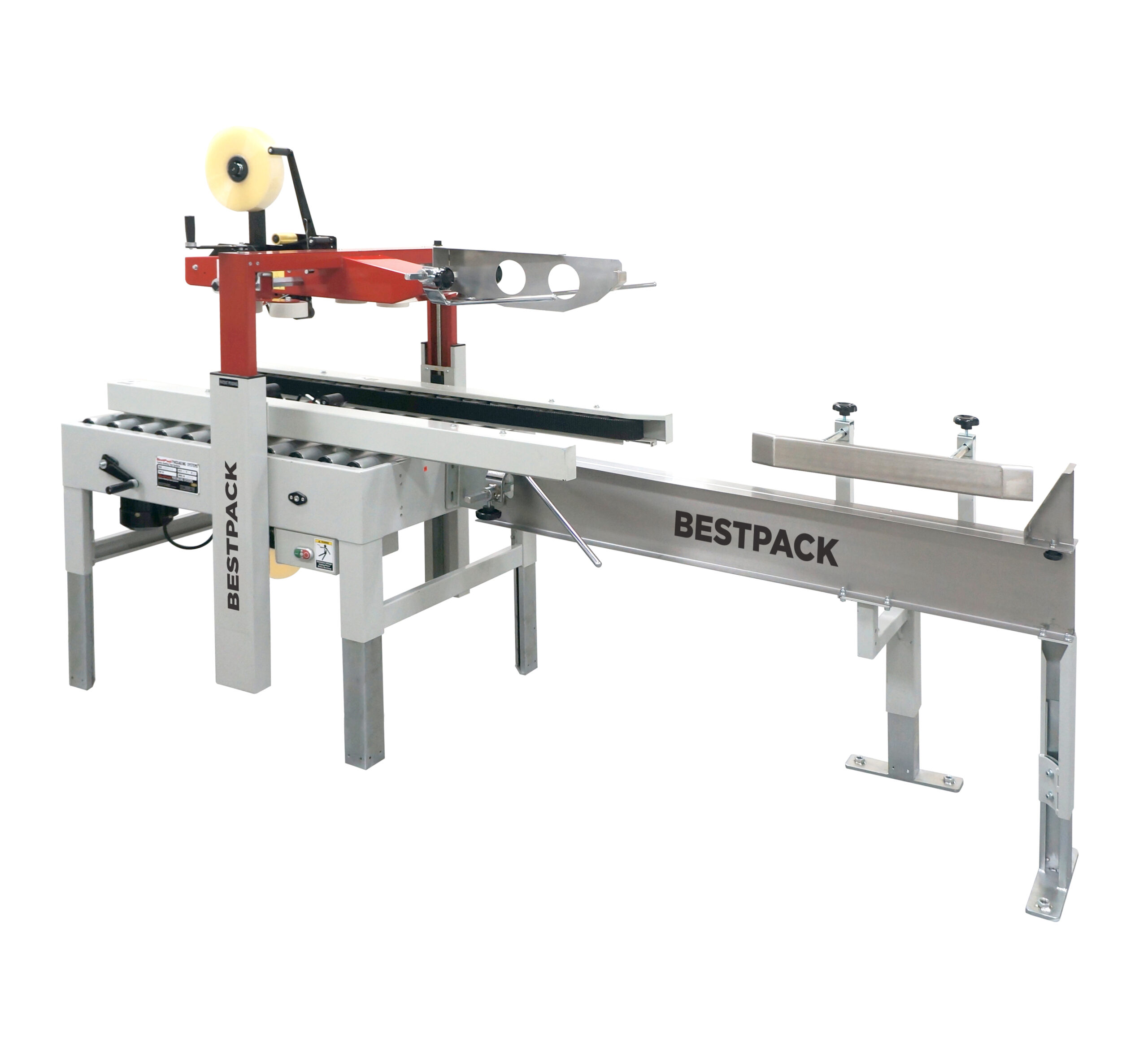

The BestPack™ MSDBF sealer is a unique multi-purpose machine. Featuring a convenient top 3-flap folder and bottom T-rail leading to an extended side-drive system, the MSDBF enables a person to efficiently erect, pack, flap fold, and seal a carton in one station. Dual telescopic masts allow for an extra 4″ carton height extension on the upper assembly and two 110V UL-approved electric motors power the extended side belt drive.

Our MSDBF line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 15 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements N/A
  • Shipping Weight 420-648 LBS
  • Machine Dimensions (99.6") x (32.8") x (70.3")
  • Carton Range (7.8" - 23.6") x (7.8" - 19.6") x (4.0" - 19.6")
  • Trip Current (A) 10
  • FLA 2.5
  • Conveyor Height adjustment (23.5" - 30.0")
  • Phase 1
  • SCCR (KA) 5
  • Max Current (A) 5
  • Power (W) 275
  • Specifications based on Line Specifications based on MSDBF22-2

Specifications based on MSDBF22-2

  • Exclusive Pop-out Pressure Sensitive
    Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

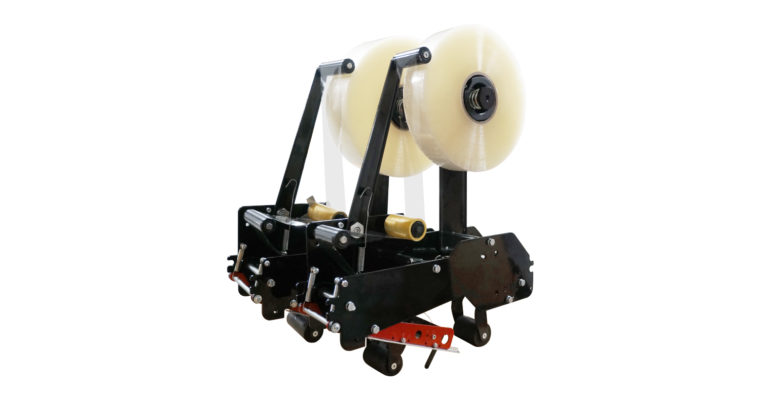

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

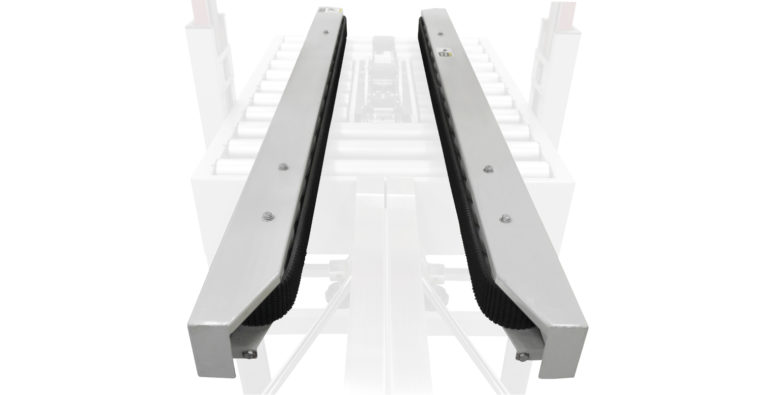

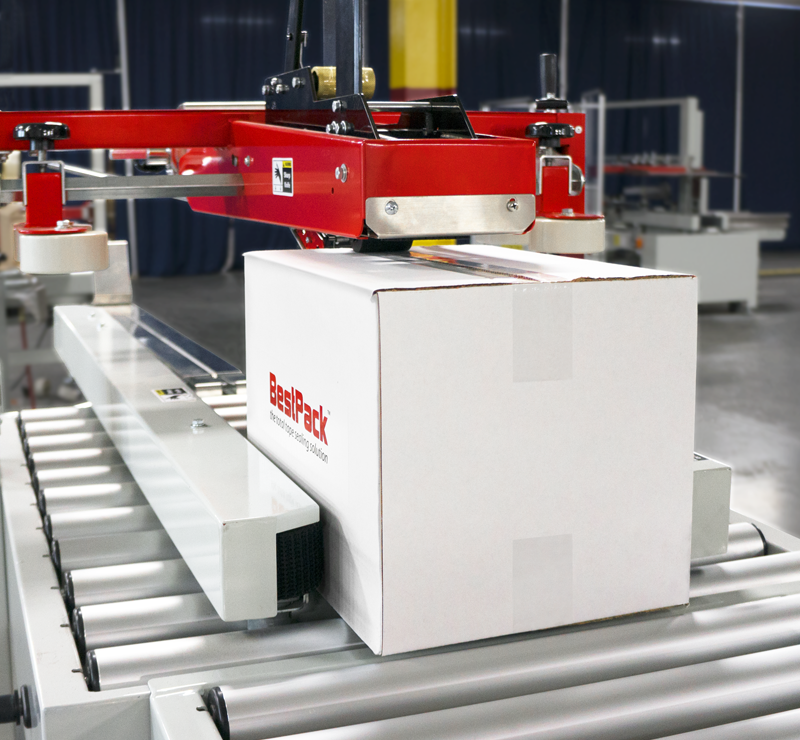

  • Extended Two Side Belts
    Extended Two Side Belts

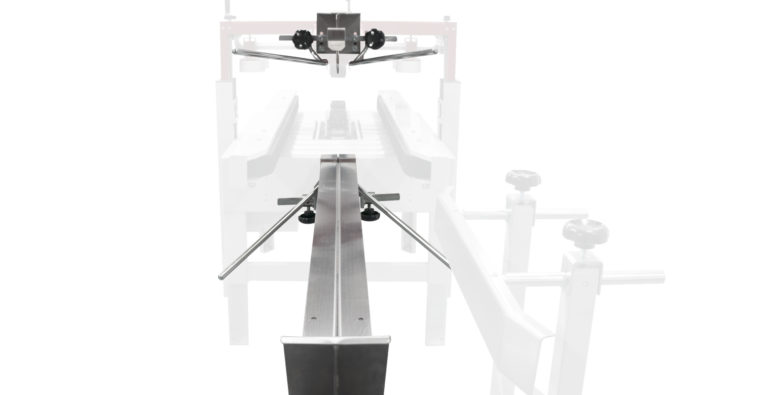

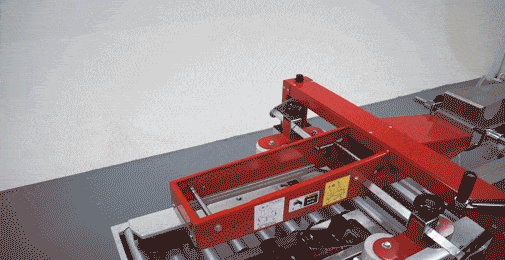

  • Uniform Top & Bottom Flap Folder
    Uniform Top & Bottom Flap Folder

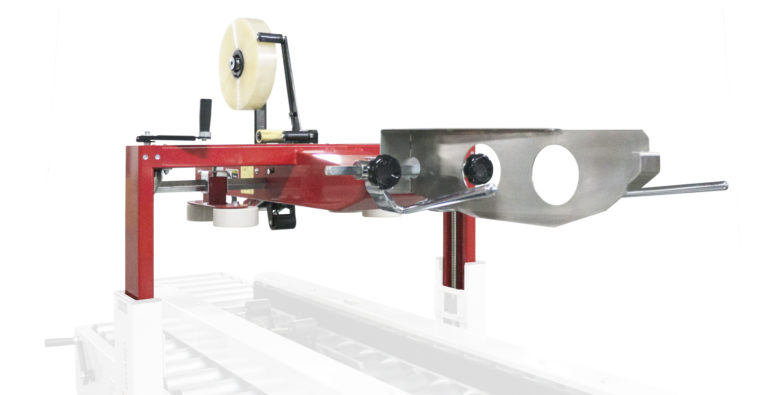

  • Telescopic Mast Design
    Telescopic Mast Design

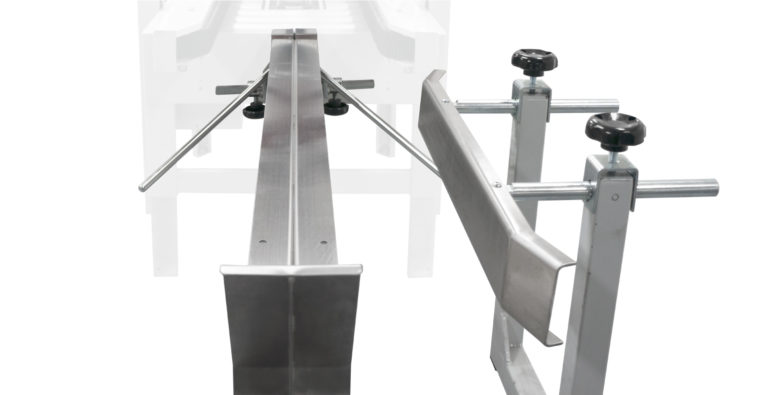

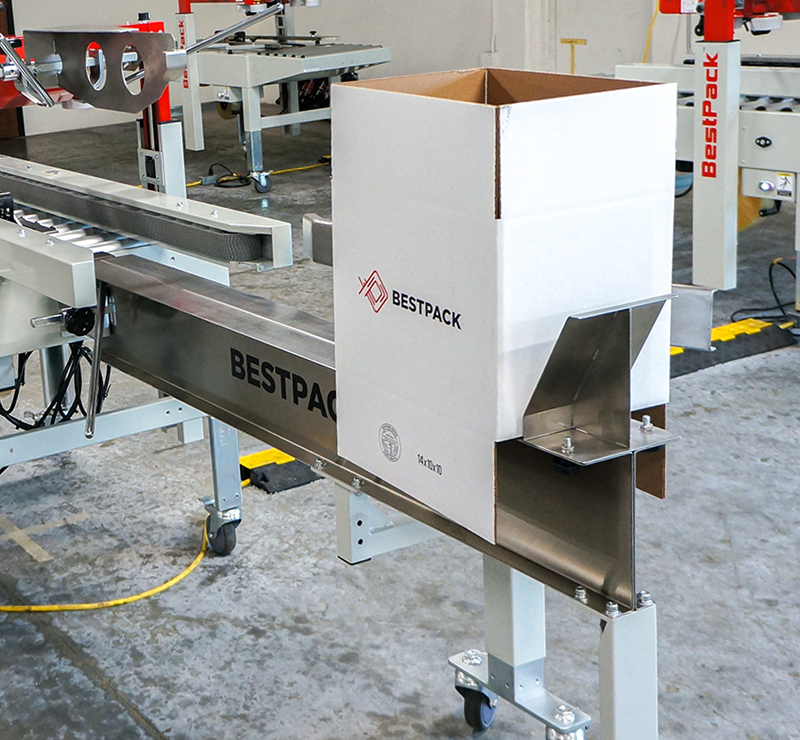

  • Attached T-Rail Packing Station
    Attached T-Rail Packing Station

    Additional T-Rail Adaptors may be needed depending on box sizes.

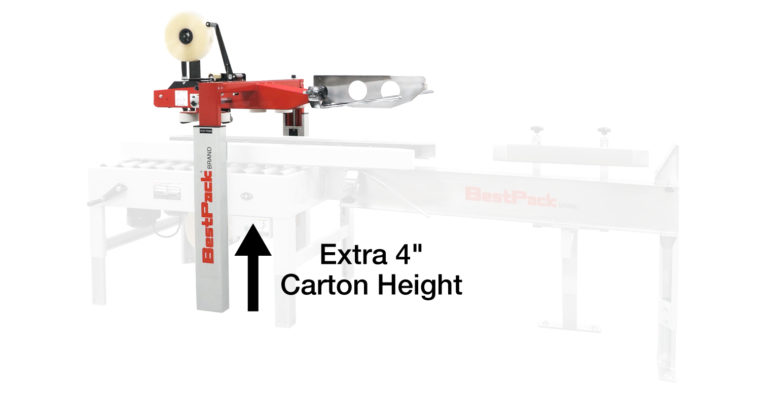

  • Extra 4
    Extra 4" Carton Height Adjustment

    Available on Upper Assembly

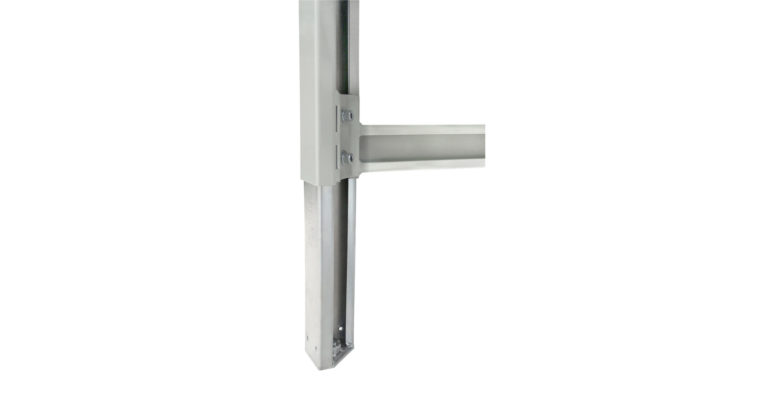

  • Adjustable Bed Height
    Adjustable Bed Height

    From 23.5" to 30.0"

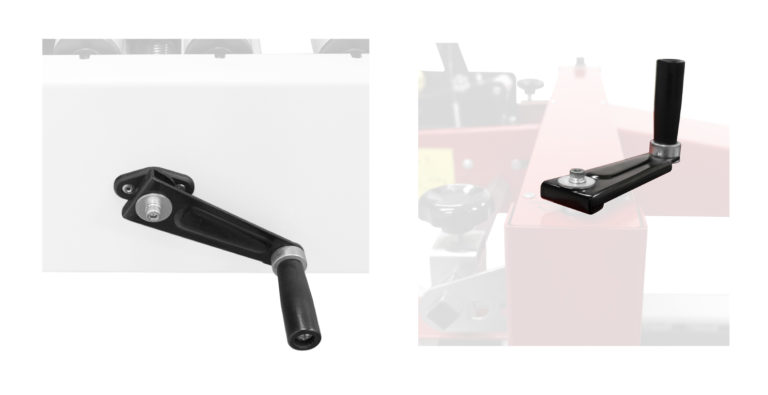

  • Width/Height Adjustment Knobs
    Width/Height Adjustment Knobs

    Can be Mounted on Either Side of Machine

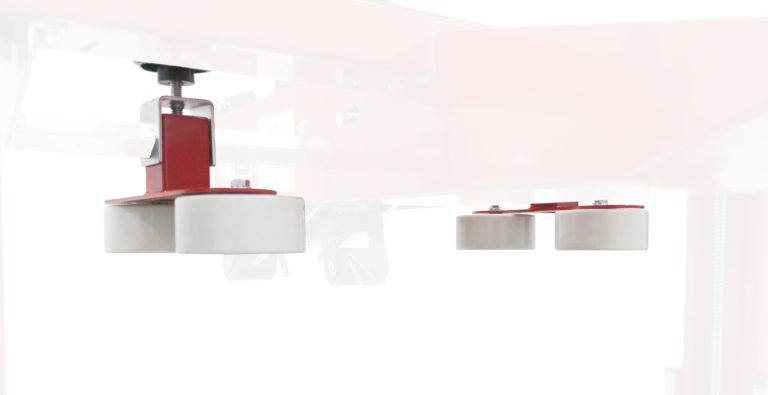

  • Upper Side Compression Unit
    Upper Side Compression Unit

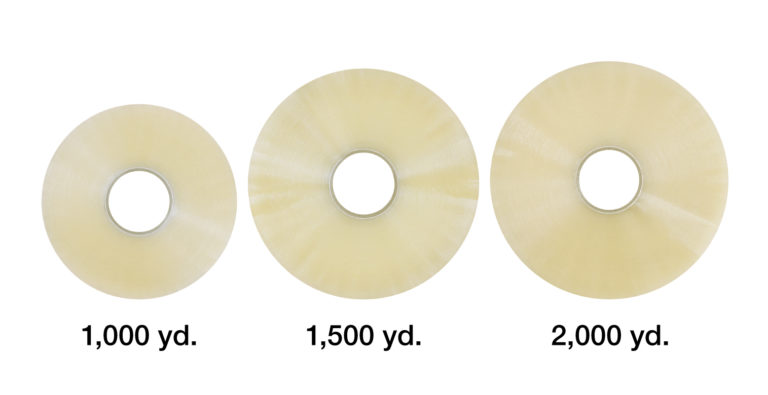

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

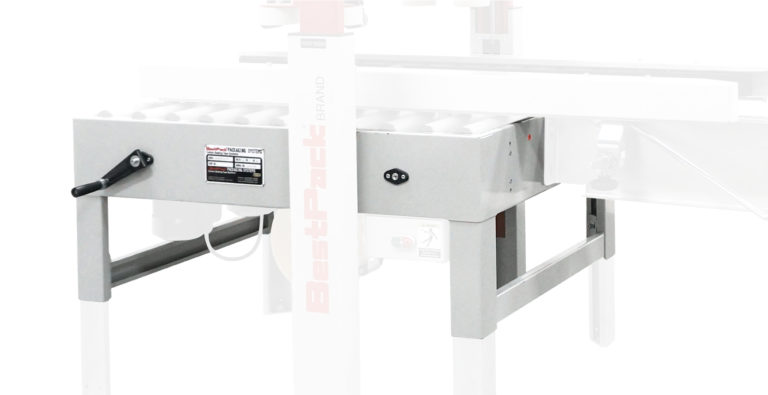

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

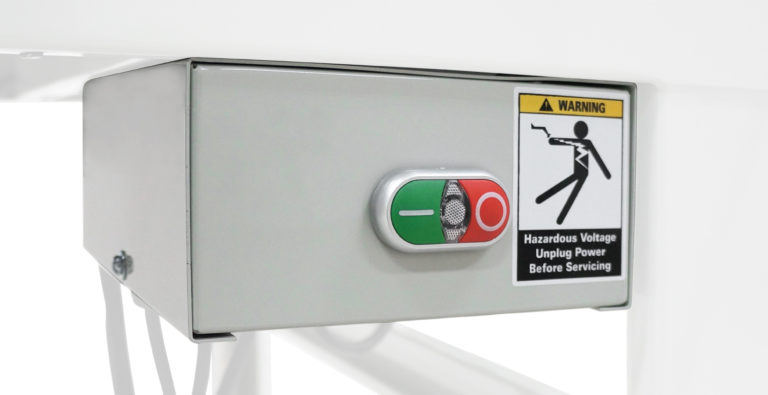

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of Machine

  • spare parts kit accessory

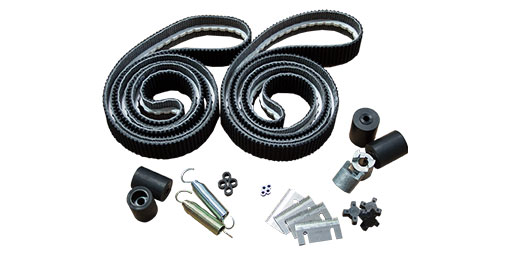

    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • caster bracket kit accessory

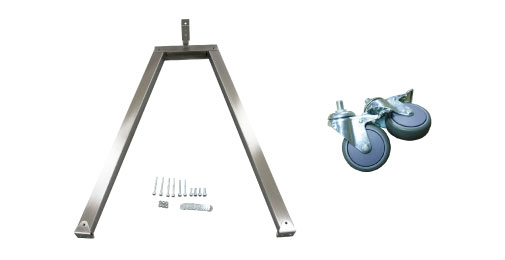

    Casters with Bracket Kit

    For customers that want mobility with their carton sealer. This kit comes with Casters and a reinforcing bracket kit for the T-Rail.

  • exit long conveyor accessory

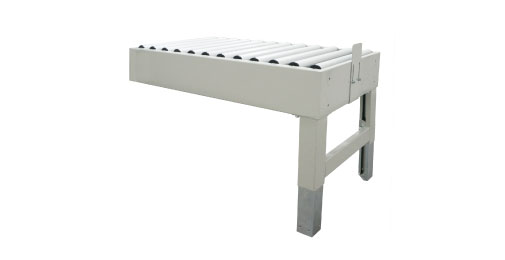

    Long Exit Conveyor

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons exiting the machine.

  • spare tape head accessory

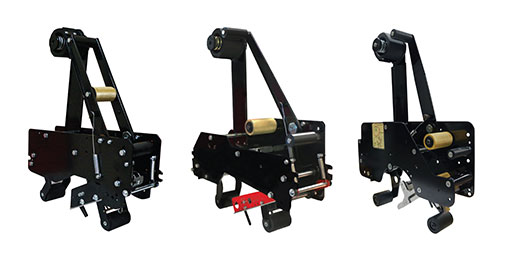

    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory

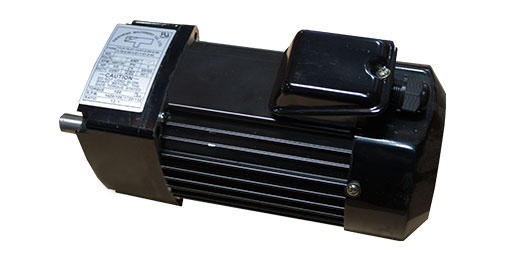

    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • stainless steel picture

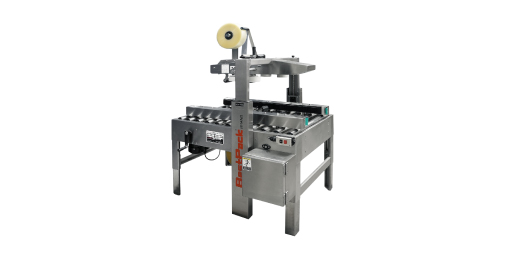

    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • carton sealing tape accessory

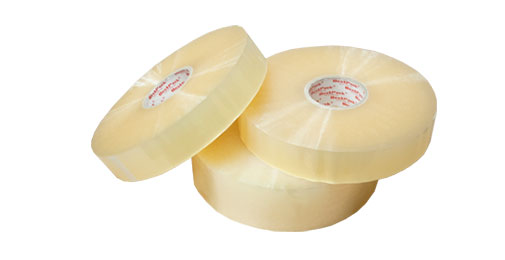

    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
