Category: Carton Sealers Belt Drive: 2 Top/2 Bot Belt Drive

MTLW

Up to 40 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz POWER
REQUIREMENTS
60-75 PSI, 2-3 SCFM AIR
REQUIREMENTS
388-416 LBS SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

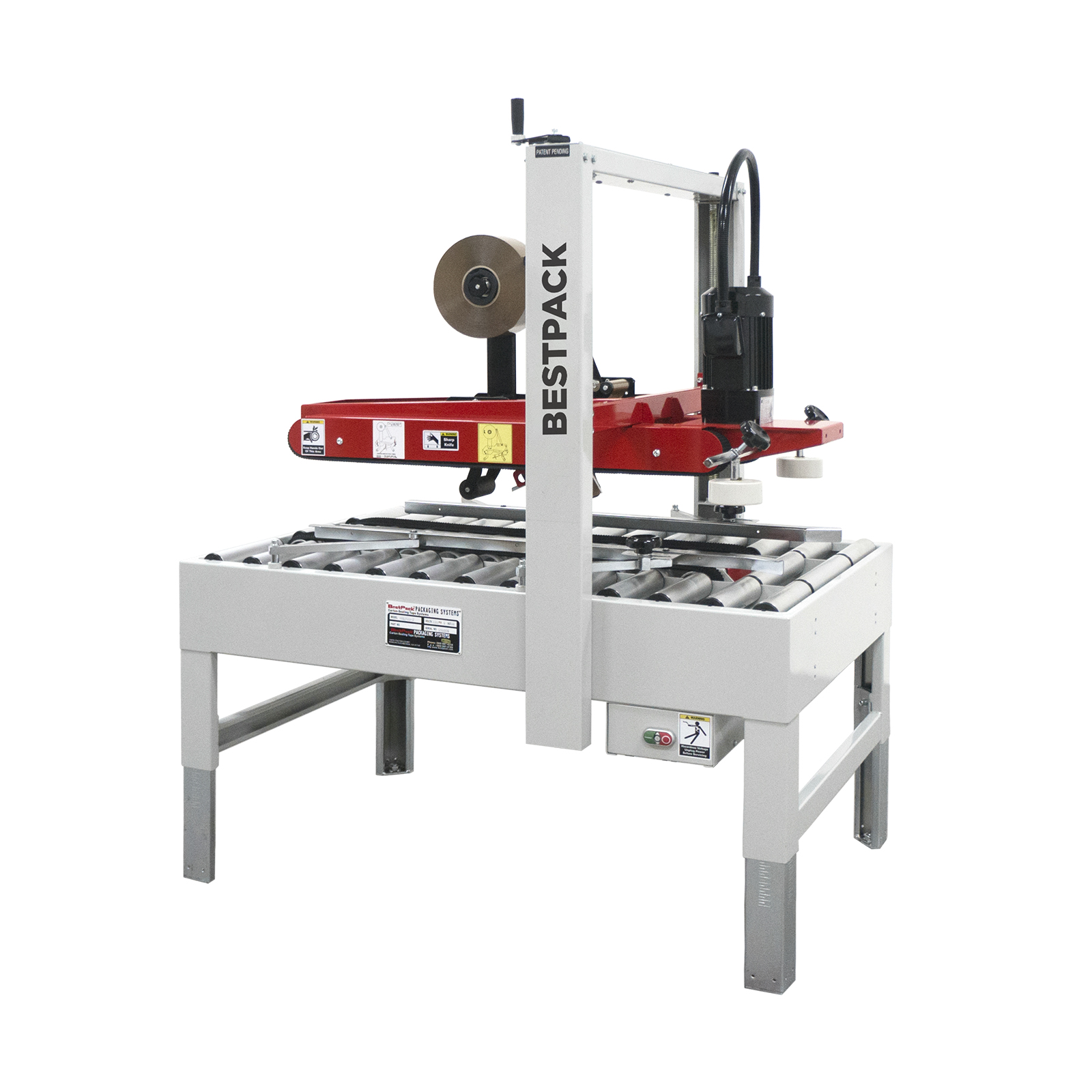

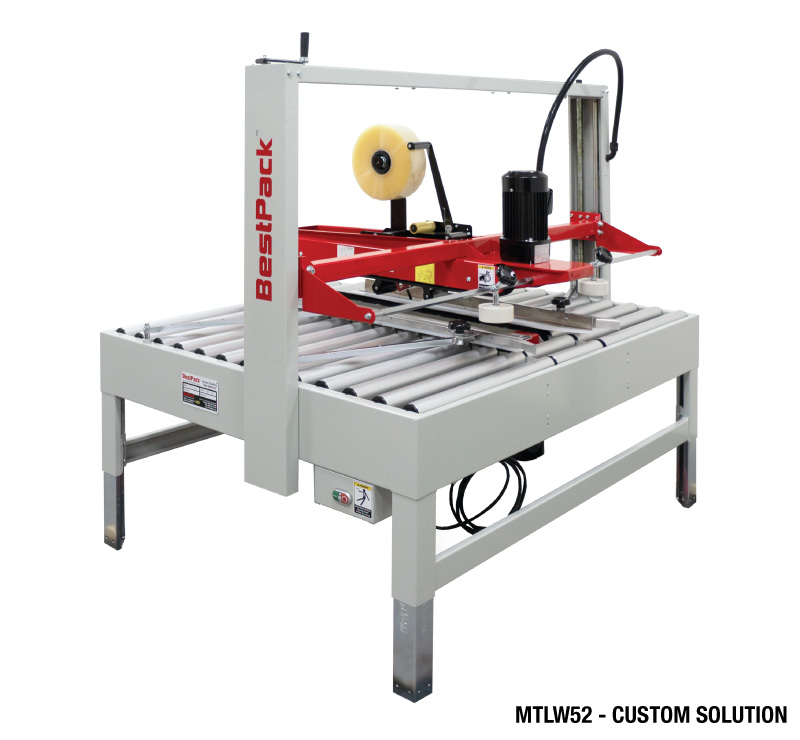

The BestPack™ MTLW Series are Semi-Automatic Adjustable Tape Carton Sealers engineered for economical, effective operator-fed closure applications. The MTLW’s air-driven brush tucks the leading and trailing tabs that hang over the bottom of the carton. This brush facilitates top sealing of cartons from a min. height of 1/2″ high, three inches lower than the MTD’s min. height of 3.5″.

All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance and come with high speed tape heads with tab adjustment. Available with 2″ or 3″ tape heads.

  • SPEED Up to 40 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS 60-75 PSI, 2-3 SCFM
  • SHIPPING WEIGHT 388-416 lbs.
  • MACHINE DIMENSIONS (46.1") x (33.5") x (55.5")
  • CARTON RANGE (6.0" - U) x (8.2" - 19.7") x (0.5" - 20.3")
  • CONVEYOR HEIGHT ADJUSTMENT (20.5" - 30")

Specifications based on MTLW22-2

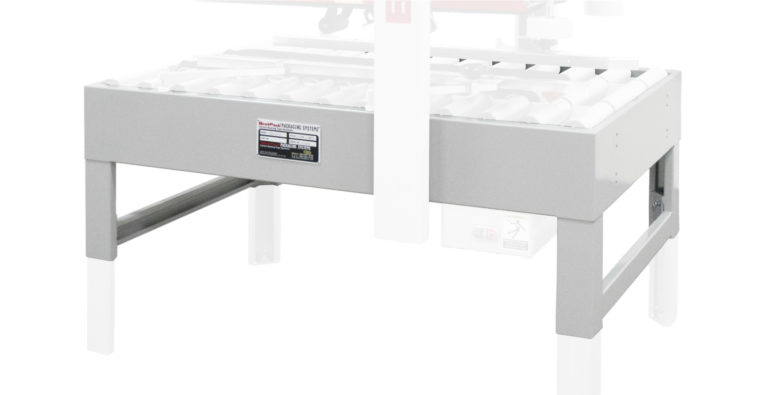

  • Heavy Duty Frame
    Heavy Duty Frame

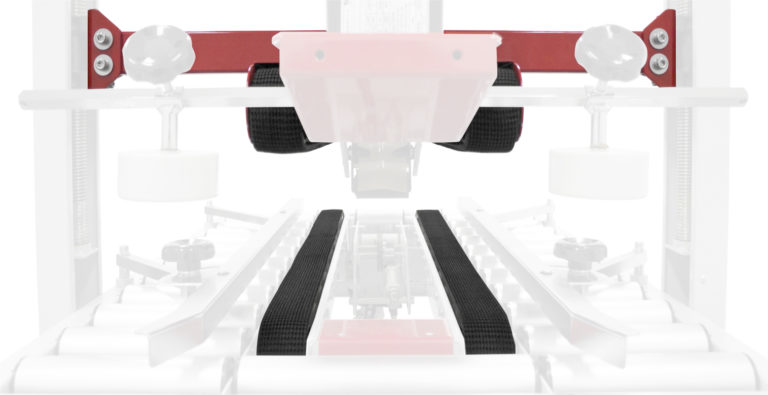

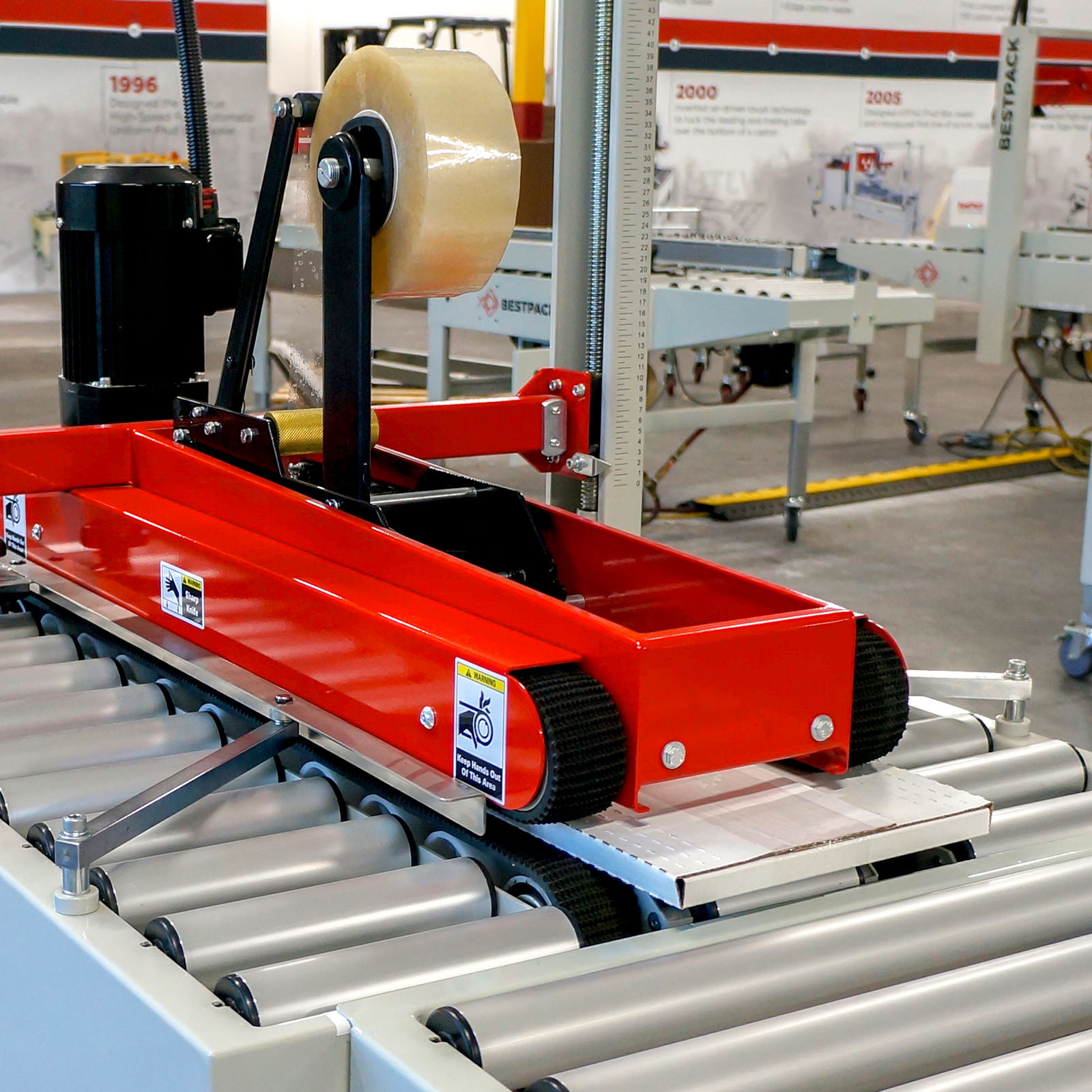

  • Four Belt Drive System
    Four Belt Drive System

    2 Top and 2 Bottom with Idle Rollers Behind the 1-piece Die Molded Belts that also Includes V-belt Guide

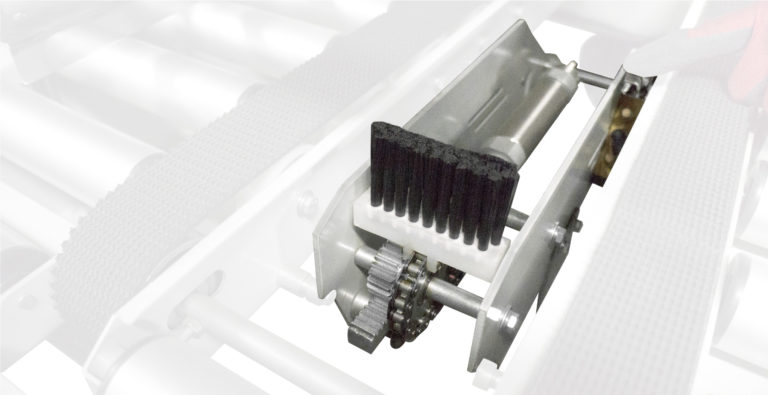

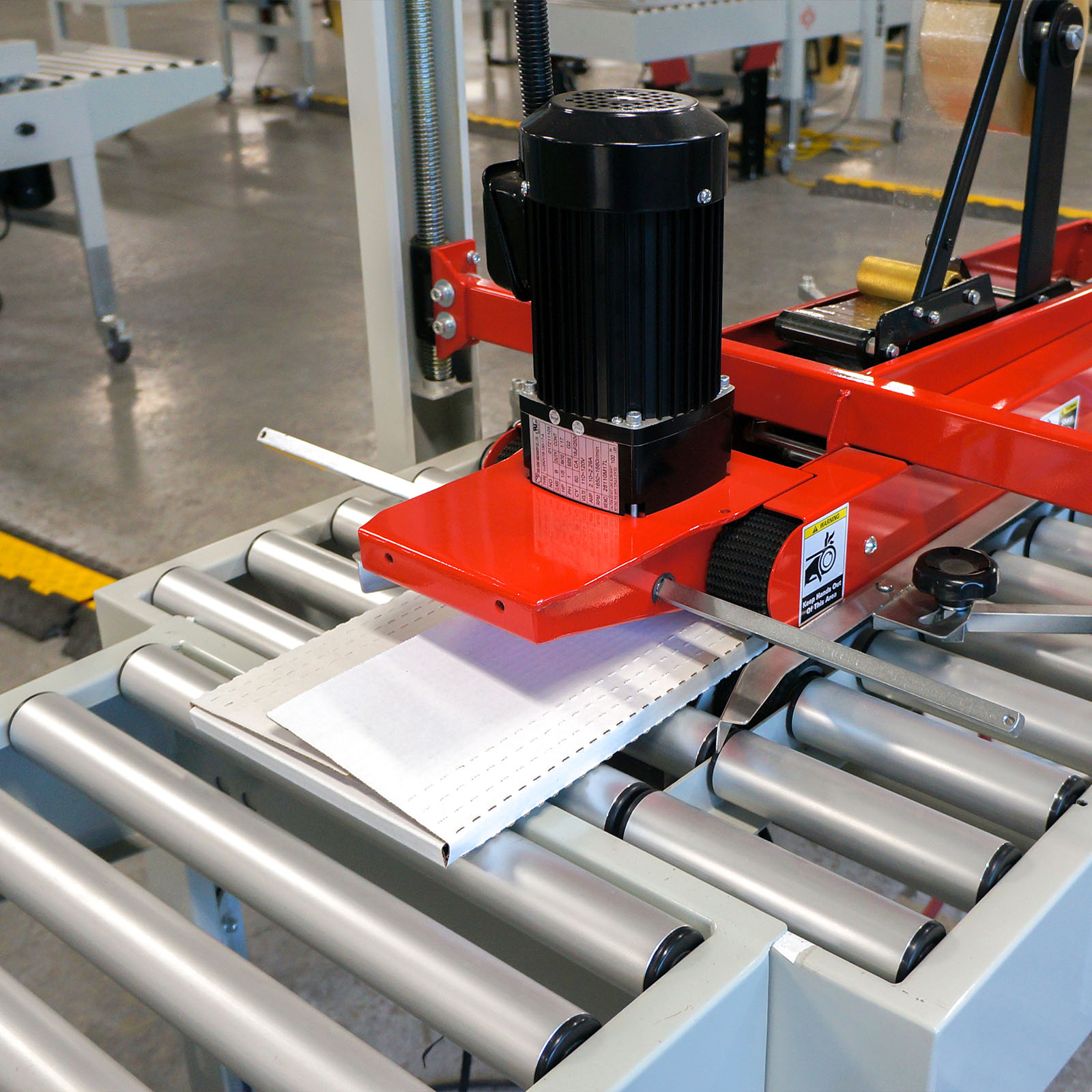

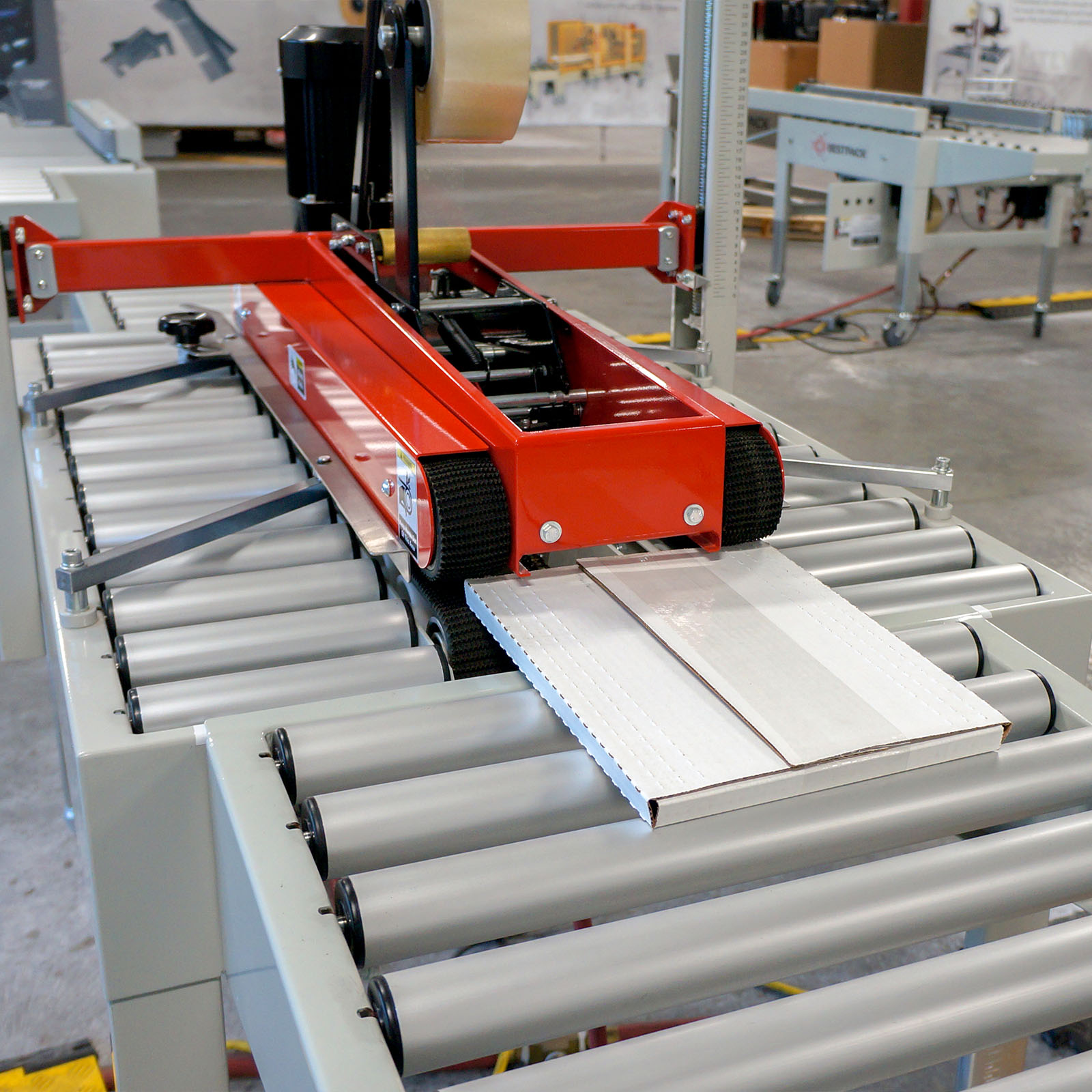

  • Air-Driven Bottom Brush
    Air-Driven Bottom Brush

    Allows for Low Top Seal Down to 0.5" in Height

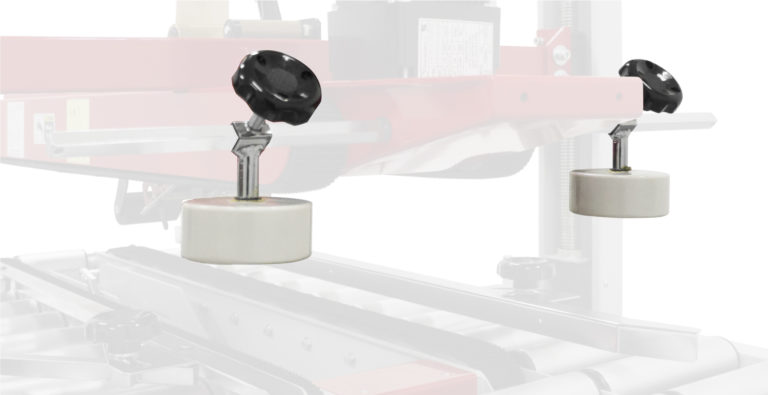

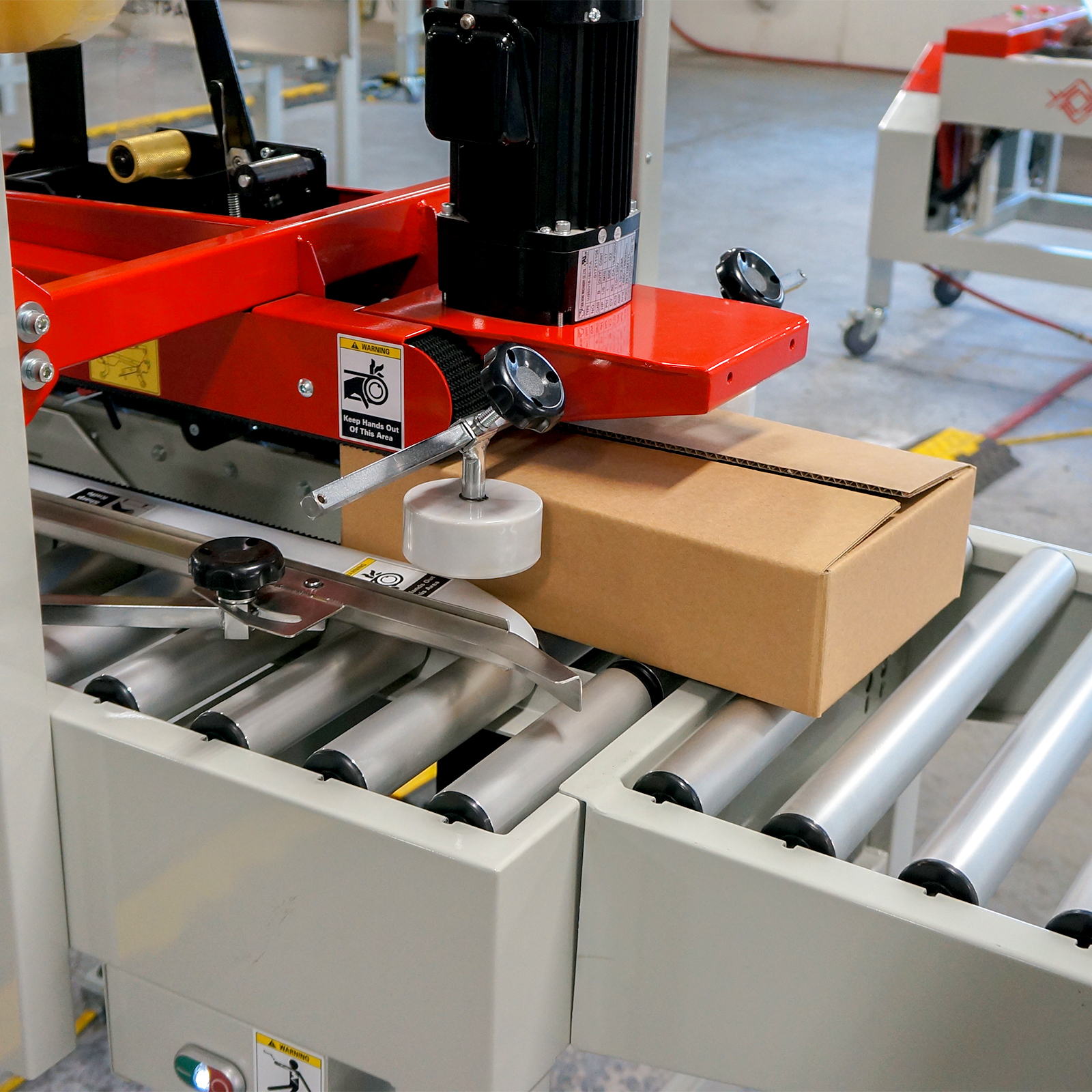

  • Upper Side Compression Unit
    Upper Side Compression Unit

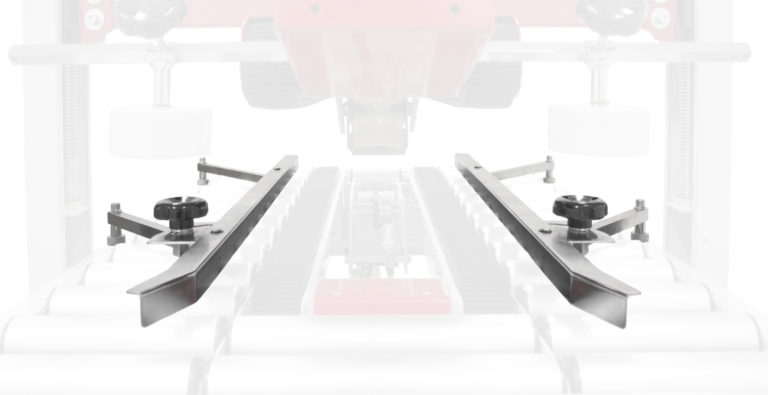

  • Individually Adjustable Side Width Guide Rails
    Individually Adjustable Side Width Guide Rails

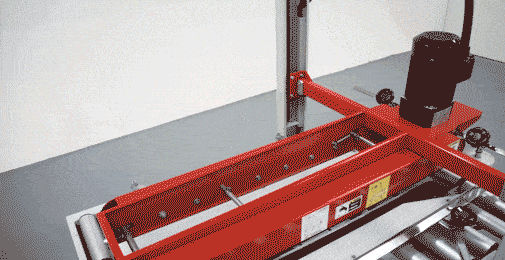

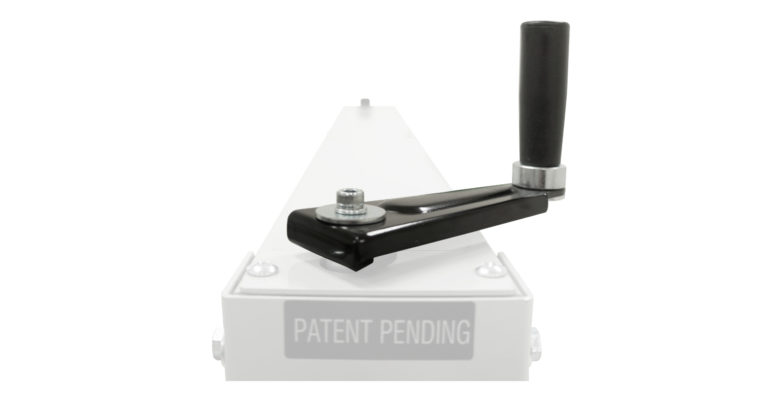

  • Height Adjustment Knob
    Height Adjustment Knob

    Can be Mounted on Either Side of the Sealer

  • Adjustable Bed Height
    Adjustable Bed Height

    From 20.5" to 30.0"

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd. and 1,500 yd.

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • Low Tape No Tape Sensor Feature
    Low Tape No Tape Sensor

    The Low Tape light allows operator to prepare a new roll of tape. The No Tape alarm will inform operator of error so that the carton may be resealed.

  • safety gates accessory
    Interlock Safety Gates

    Aluminum frame interlock safety gates can be added to the carton sealer for an extra layer of protection. These interlock safety gates protect the operator from all of the moving parts of the carton sealer.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
