Category: Carton Sealers Belt Drive: Quad Belt Drive

RQ

Up to 15 Cartons/min.

Operator Required Operator Required
Random Cartons Random Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz Power
Requirements
90-100 PSI
6-8 SCFM
Air
Requirements
535-735 lbs Shipping
Weight
Description / Specifications/ Features/ Accessories/

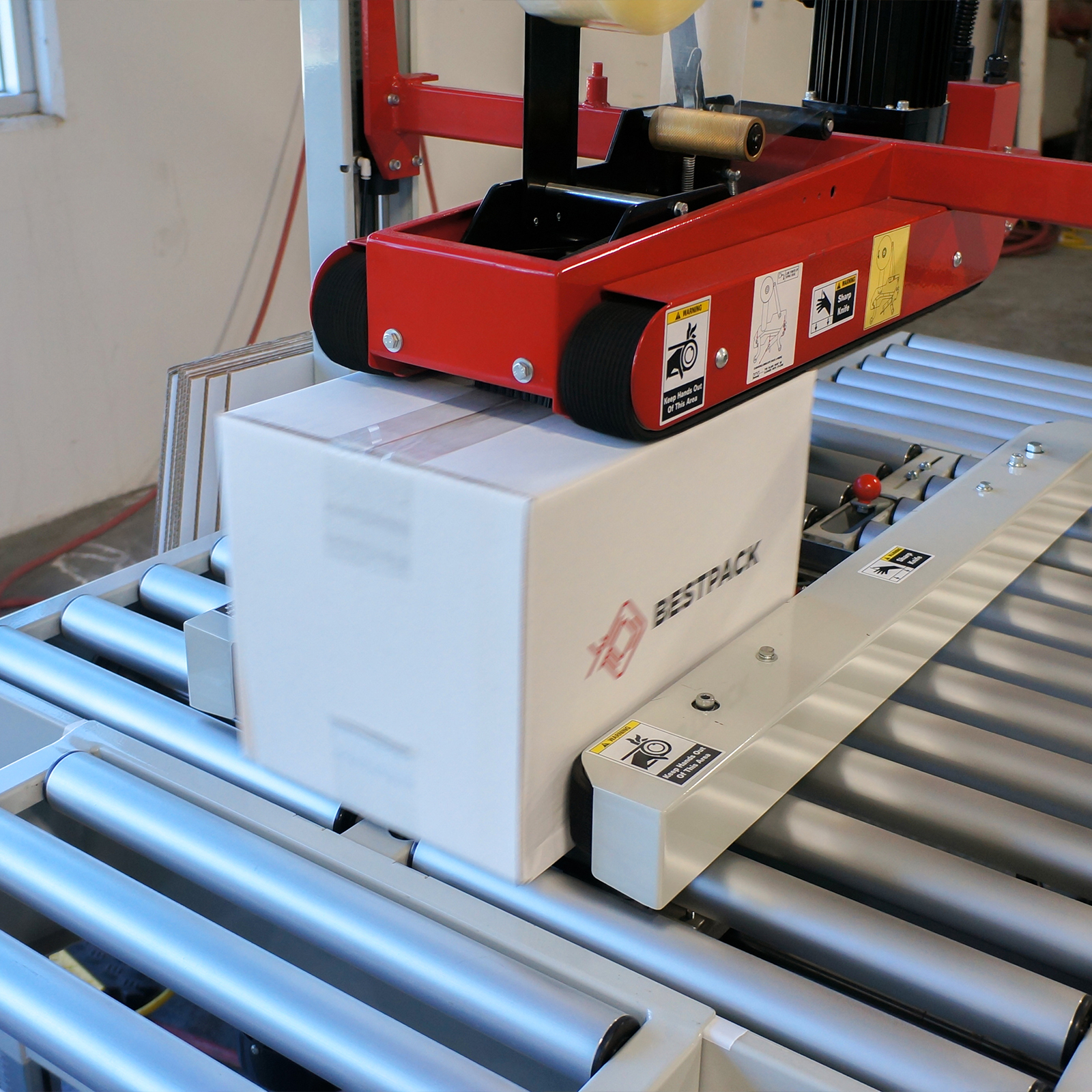

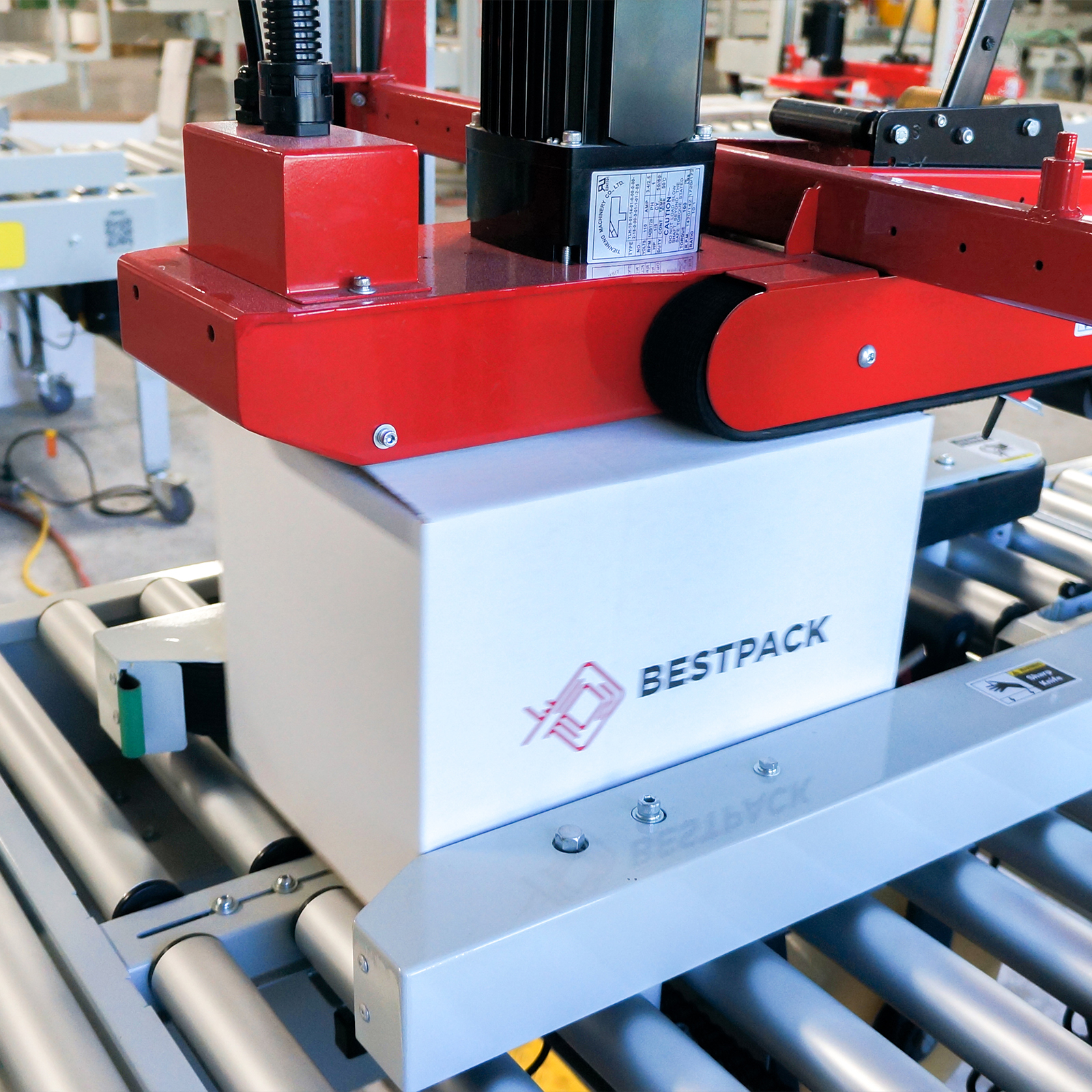

The BestPack RQ Series is a Semi-Automatic Random Tape Carton Sealer built for speed and rugged dependability. With a quad-belt drive, the RQ is a heavy-duty work horse that effectively seals unstable cartons, including cartons that are taller than they are long, overfilled, very heavy, or otherwise difficult to seal.

Our RQ line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 15 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 90-100 PSI, 6-8 SCFM
  • Shipping Weight 535 lbs
  • Machine Dimensions (42.8") x (34.6") x (57.5")
  • Carton Range (7.0" - U) x (7.5" - 21.0") x (4.5" - 20.0")
  • Conveyor Height adjustment (20.5" - 30.0")
  • Specifications based on Line Specifications based on RQ22-2

Specifications based on RQ22-2

  • Adjustable Bed Height
    Adjustable Bed Height

    RQ22, RQ23, & RQ33: 20.5" - 30"
    RQ44: From 24.5" - 30"

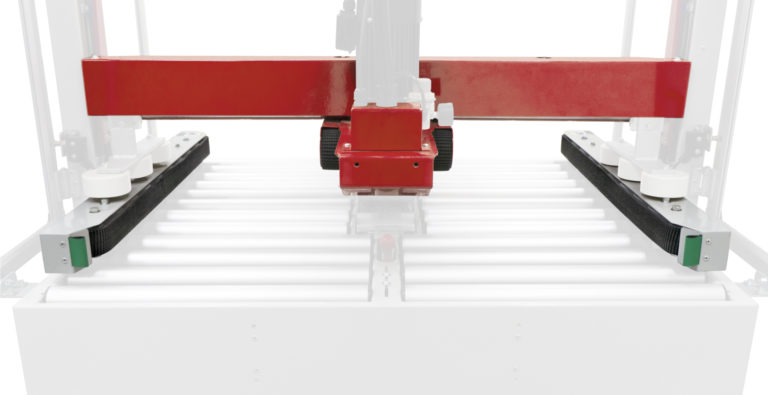

  • 4 Belt Drive
    4 Belt Drive

    2 Top and 2 Side Belts

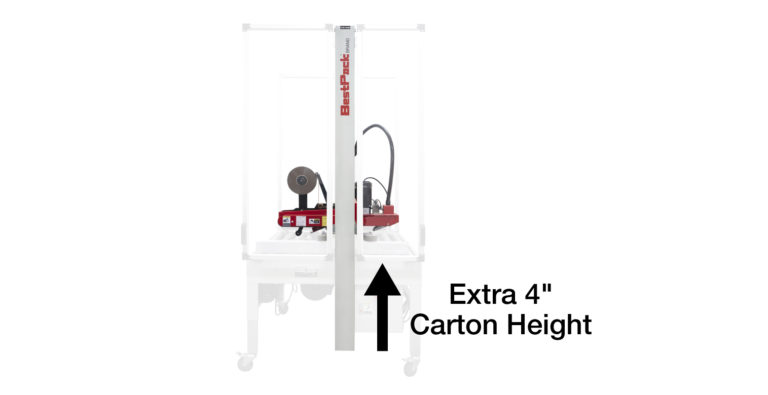

  • Extra 4
    Extra 4" Carton Height Adjustment

    Available on Upper Assembly

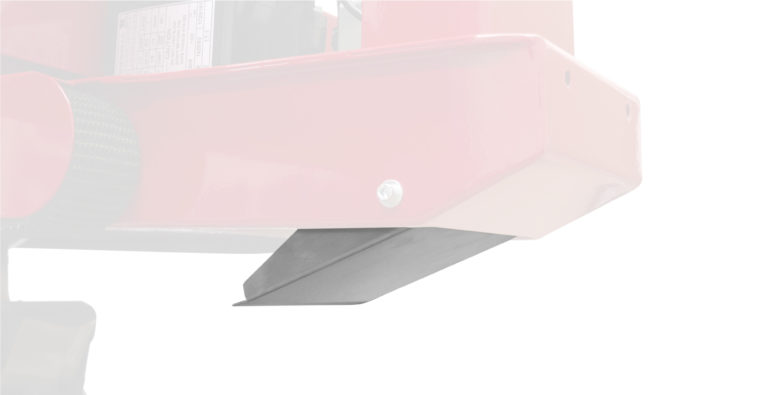

  • Height Sensor
    Height Sensor

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

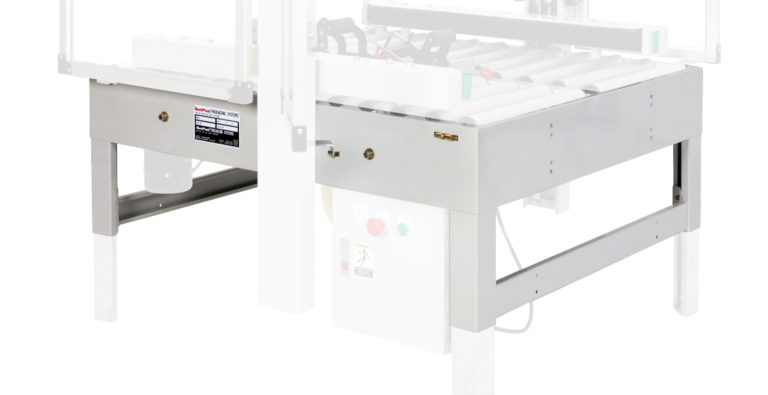

  • Heavy Duty Frame
    Heavy Duty Frame

    2mm CNC Cut and Welded Frame Including Upper Welded Legs

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

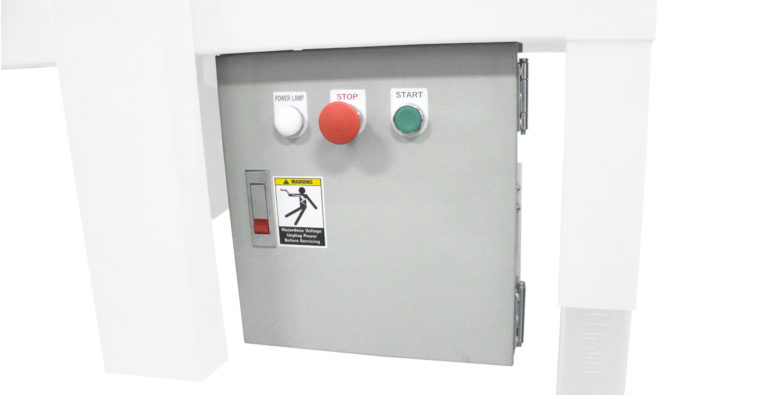

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of the Sealer

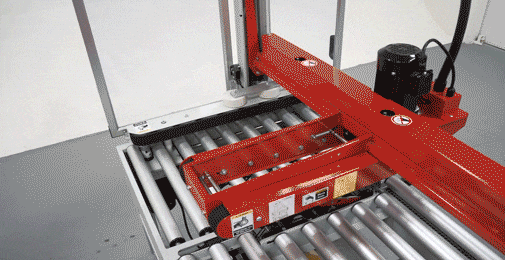

  • Exclusive Pop-out Pressure Sensitive
    Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

    with Patented Tab Adjustment and Noise Reduction Arm

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

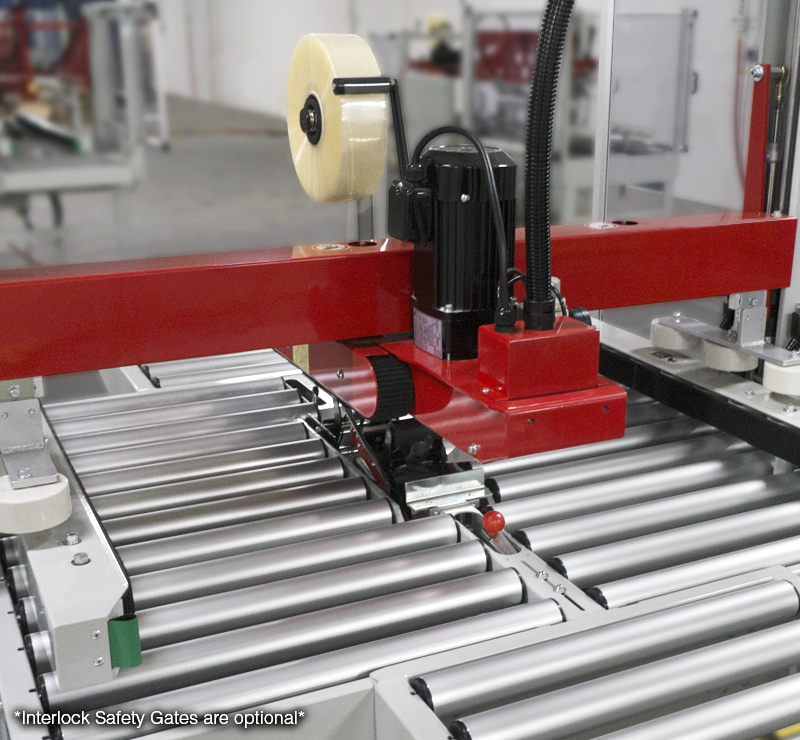

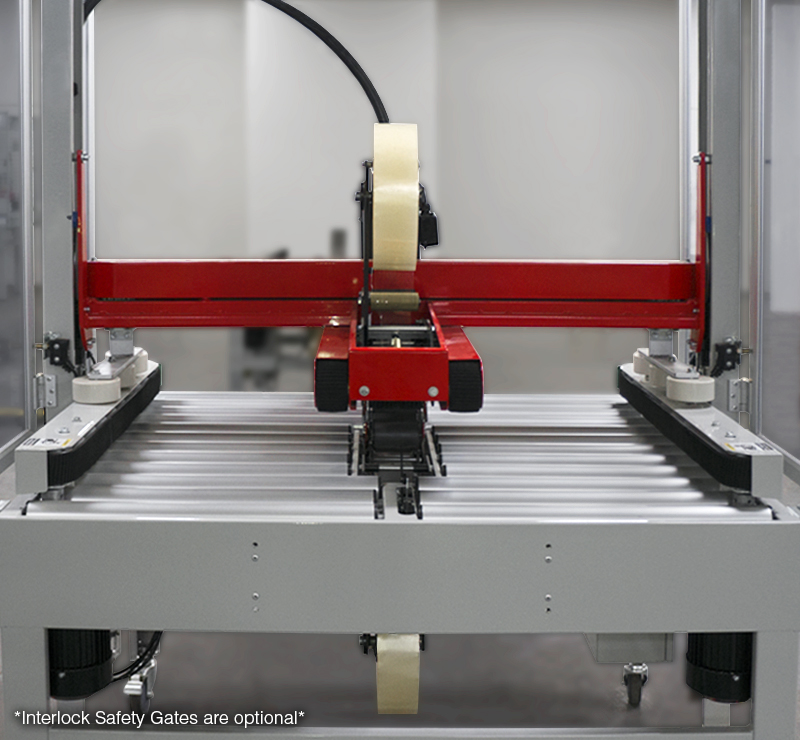

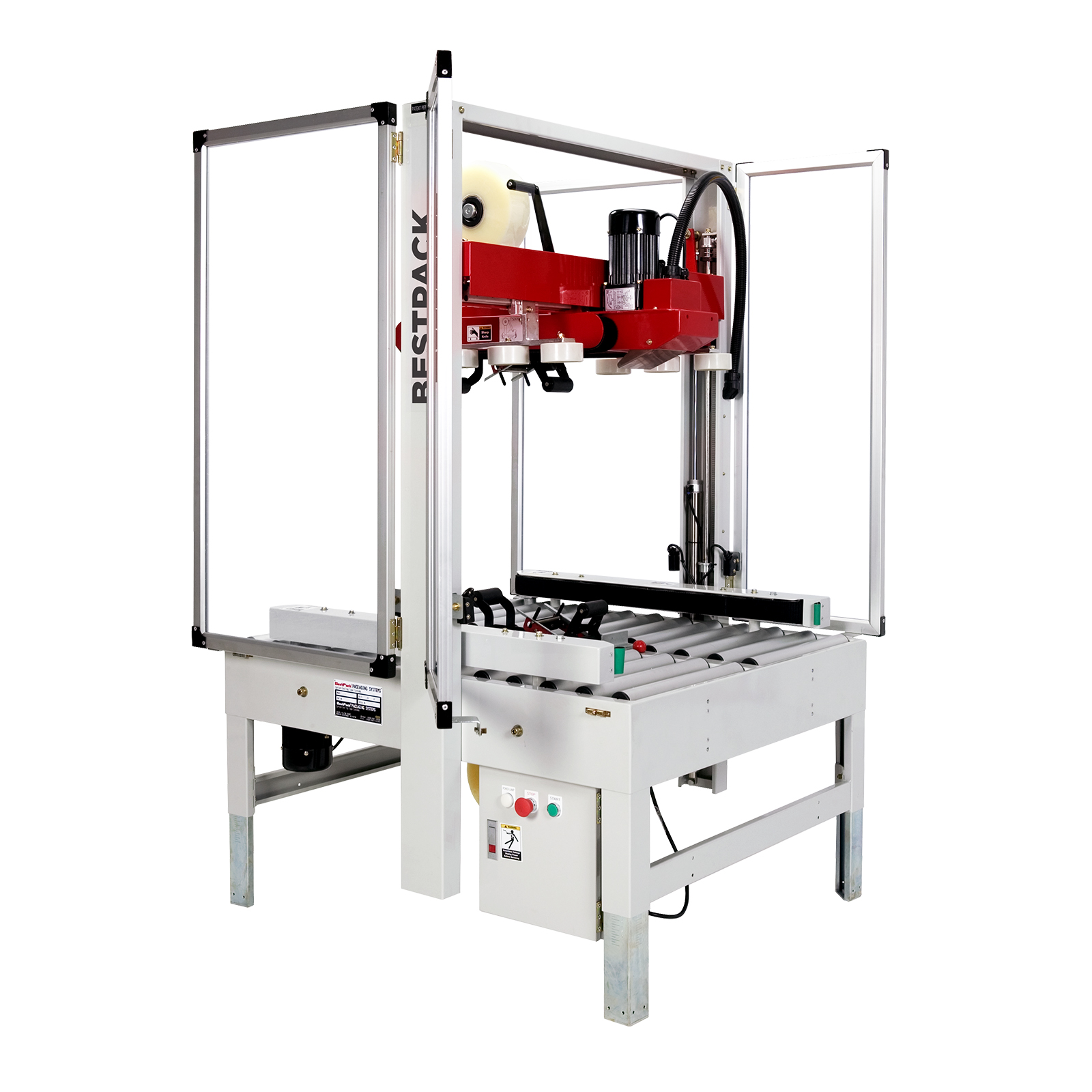

  • safety gates accessory
    Interlock Safety Gates

    Aluminum frame interlock safety gates can be added to the carton sealer for an extra layer of protection. These interlock safety gates protect the operator from all of the moving parts of the carton sealer.
