Category: Carton Sealers Belt Drive: Side Belt Drive

RS Bottom Only

Up to 15 Cartons/min.

Operator Required Operator Required
Random Cartons Random Cartons
Bottom Seal Only Bottom Seal Only
110 Volts 60 Hz Power
Requirements
80 PSI, 5 SCFM Air
Requirements
330-380 lbs Shipping
Weight
Description / Specifications/ Features/ Accessories/

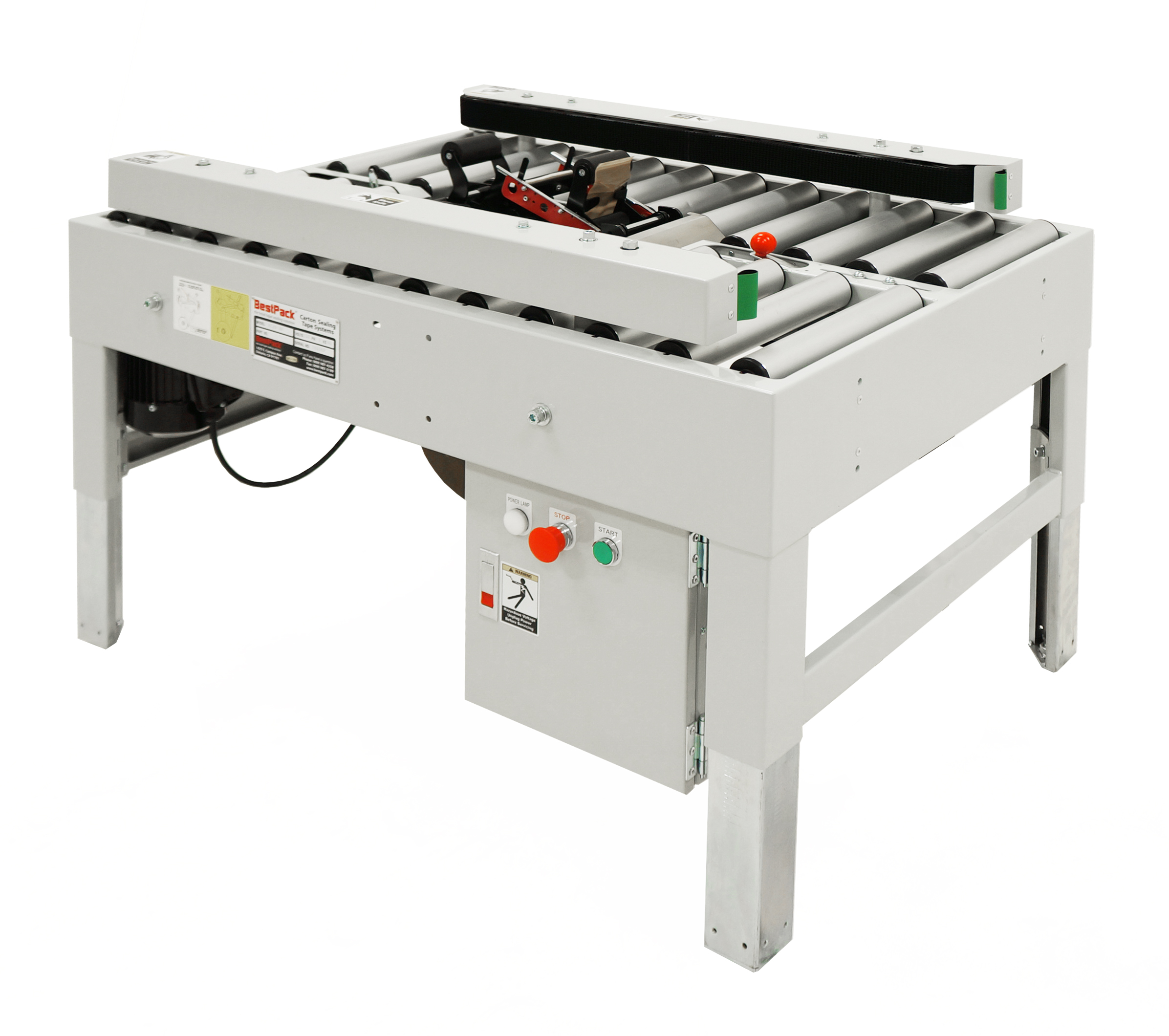

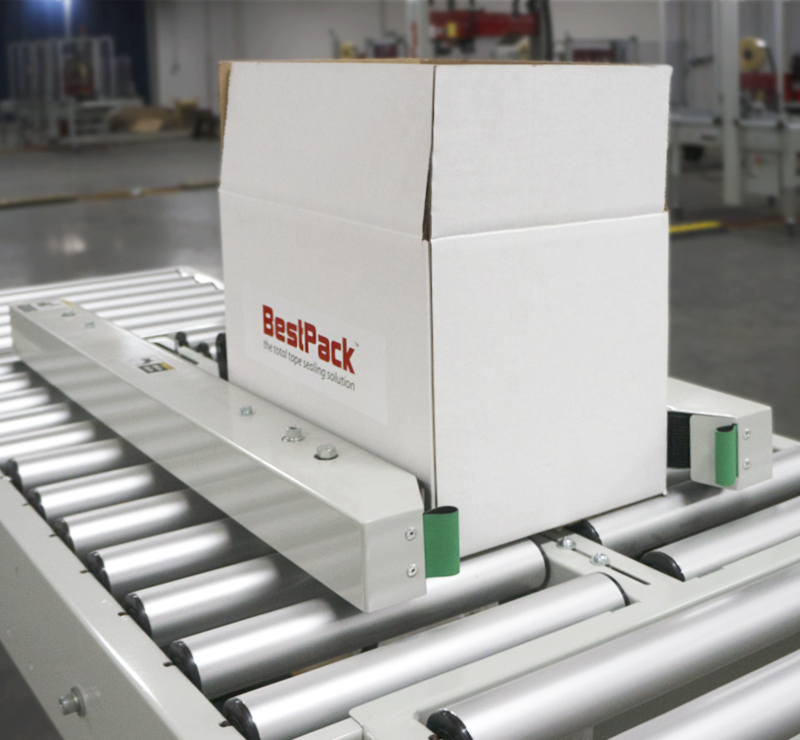

The BestPack™ RS20 Series is a Semi-Automatic Random Bottom Carton Sealer designed to fulfill light to heavy duty random bottom sealing needs. This unit is incredibly effective when random bottom carton sealing volume has become too large for hand sealing.

Our RS20 line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 15 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 80 PSI, 5 SCFM
  • Shipping Weight 330 lbs
  • Machine Dimensions (42.9") x (30.0") x (28.8")
  • Carton Range (6.0" - U") x (4.25" - 20.0") x (4.0+")
  • Conveyor Height adjustment (20.5" - 30.0")
  • Specifications based on Line Specifications based on RS20-2

Specifications based on RS20-2

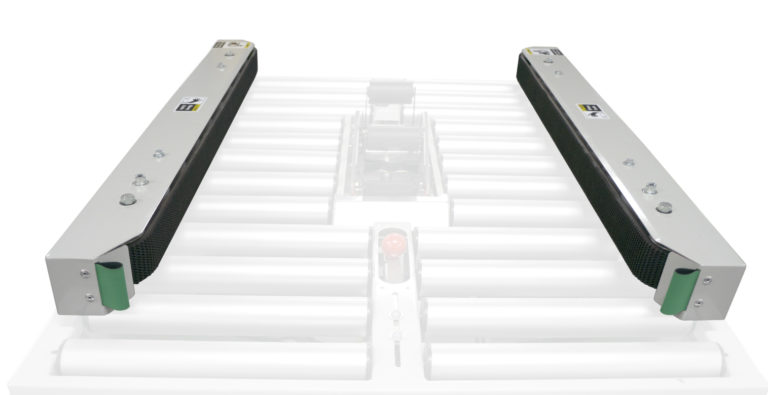

  • Side Belt Drive
    Side Belt Drive

  • Adjustable Bed Height
    Adjustable Bed Height

    From 20.5" - 30"

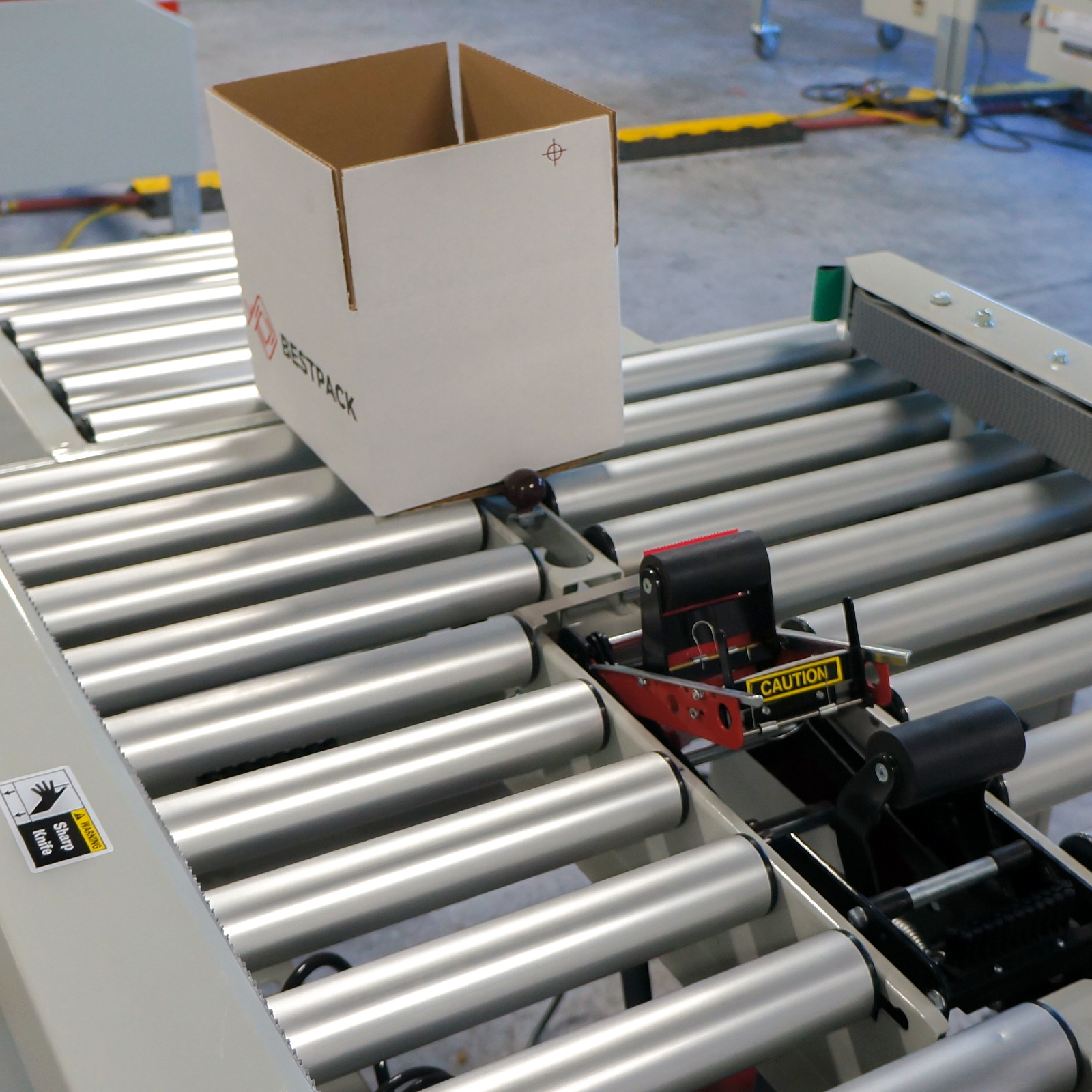

  • Exclusive Pop-out Pressure Sensitive
    Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

  • Maintenance Free Oil-less Cylinders
    Maintenance Free Oil-less Cylinders

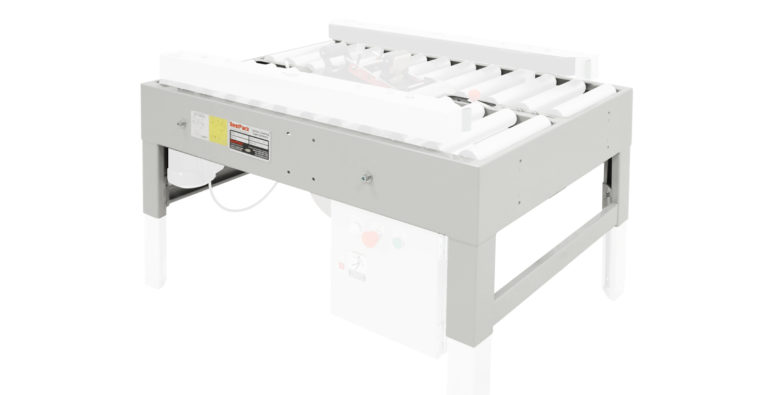

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

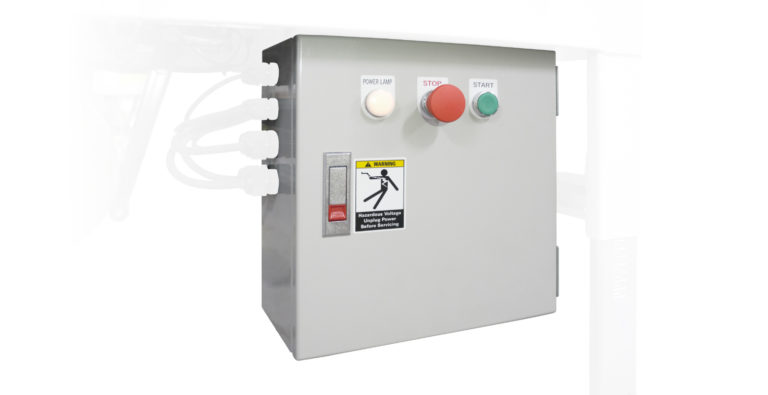

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of the Carton Sealer

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!
