Category: Carton Sealers Belt Drive: Side Belt Drive

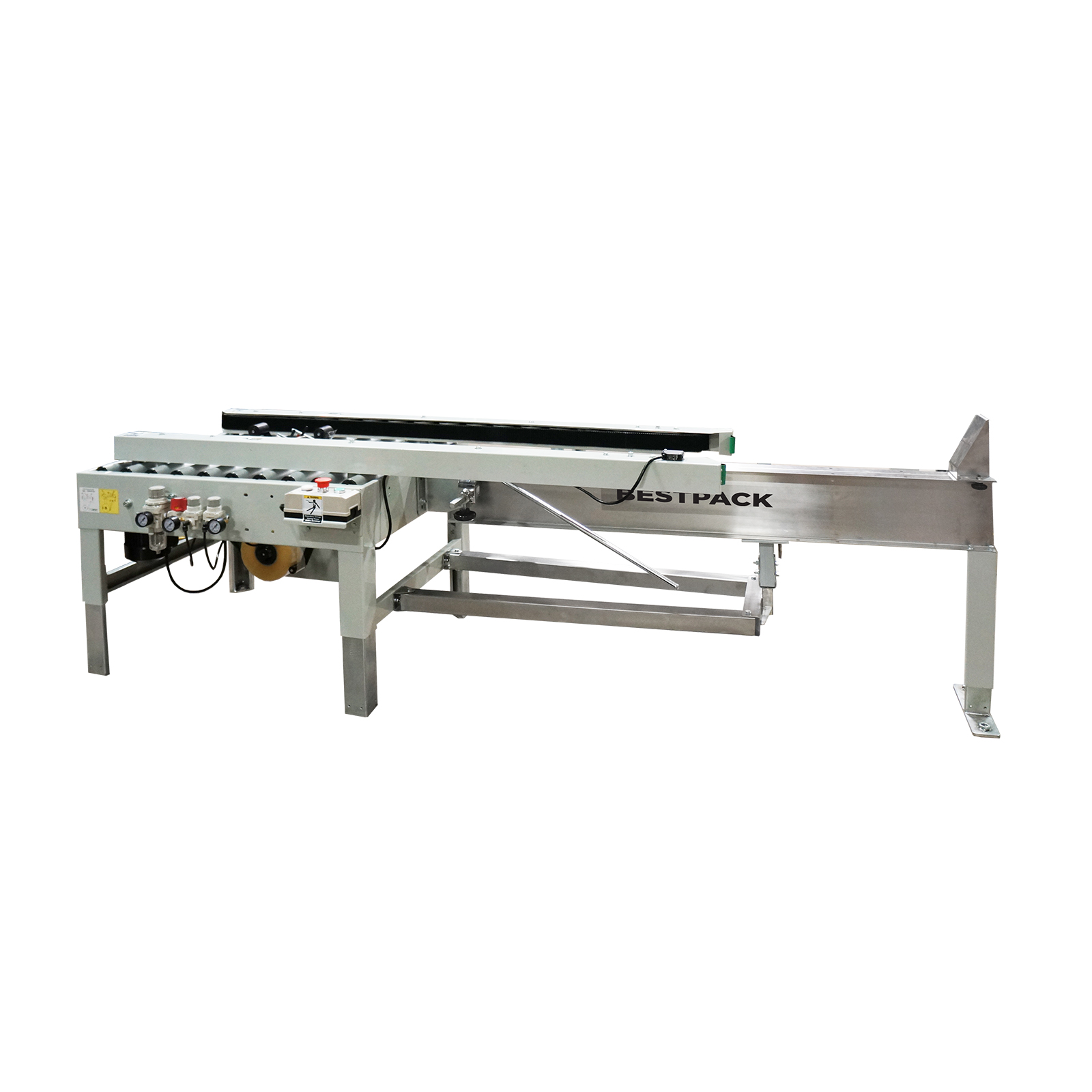

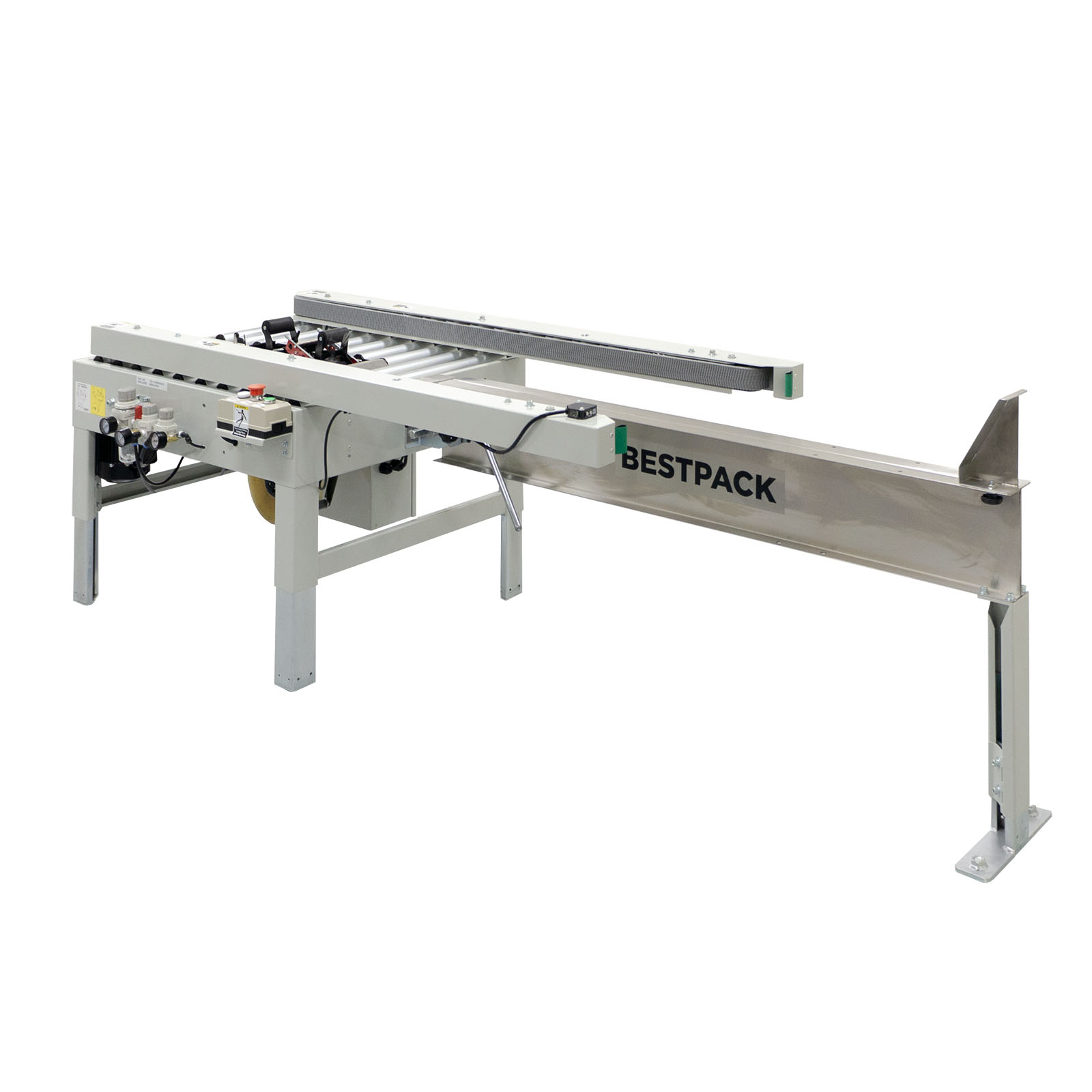

RSBFT

Up to 10 Cartons/min.

Operator Required Operator Required
Random Cartons Random Cartons
Bottom Seal Only Bottom Seal Only
110 Volts 60 Hz Power
Requirements
60-80 PSI, 5 SCFM (dry air) Air
Requirements
350 lbs Shipping
Weight
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

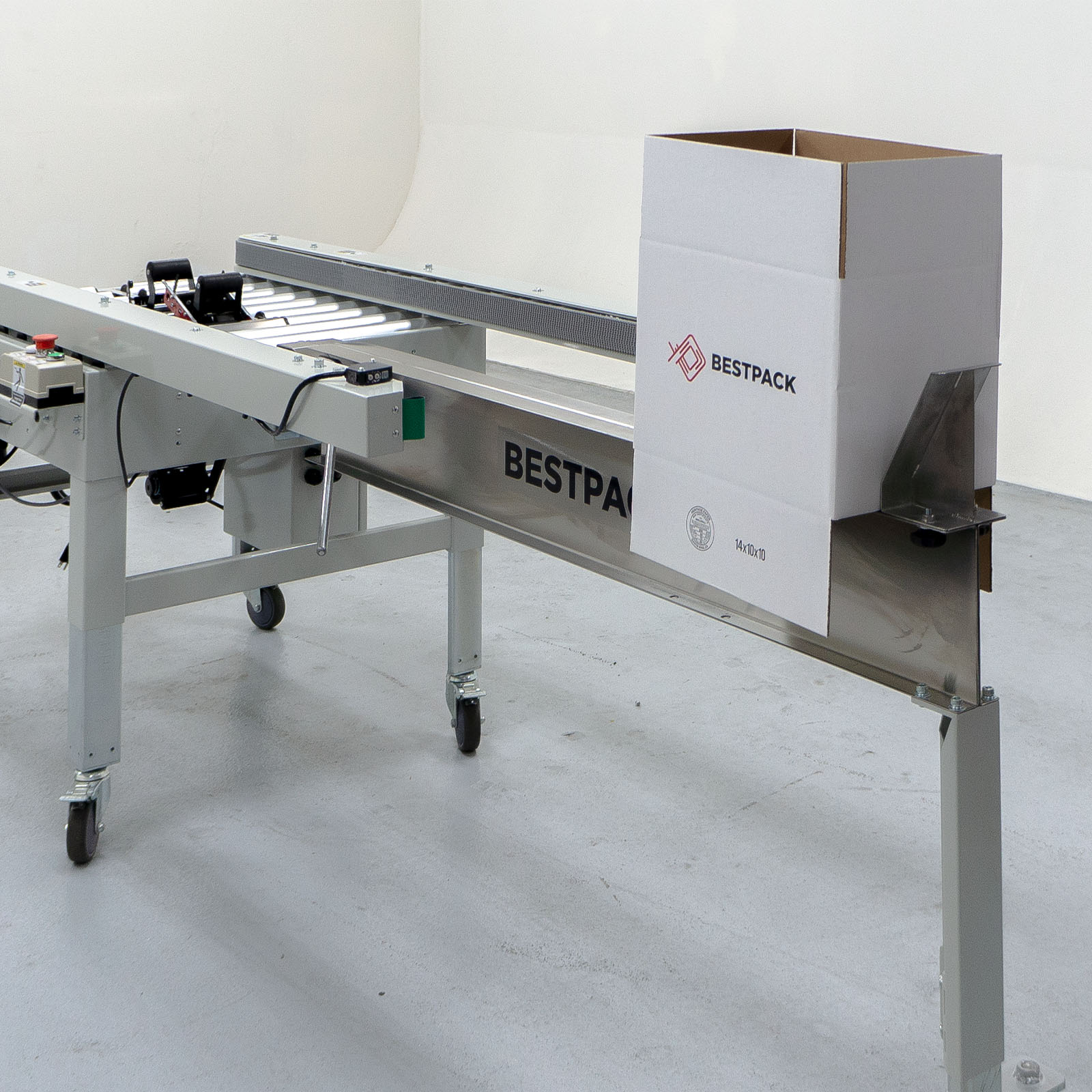

The BestPack RSBFT Series is a random operator-fed, bottom carton sealer designed to reduce the time required to fold & seal the bottom flaps of a carton. This unit can be used when random size carton forming volume has become too large to manually form and tape the cartons, but the volume is too small to justify a fully automatic carton erector/sealer.

Our RSBFT line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 10 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS 60-80 PSI, 5 SCFM (Dry Air)
  • SHIPPING WEIGHT 350 lbs
  • MACHINE DIMENSIONS (95.9") x (35.5") x (29.4")
  • CARTON RANGE (7.8" - 23.6") x (7.8" - 19.6") x (4.0+")
  • CONVEYOR HEIGHT ADJUSTMENT (23.5" - 30.0")

Specifications based on RSBFT20-2H

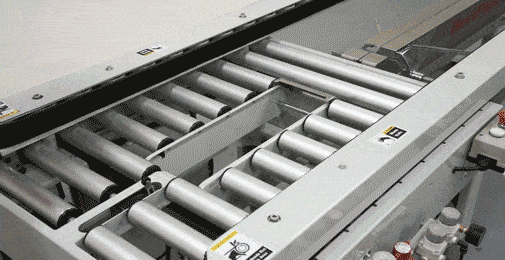

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

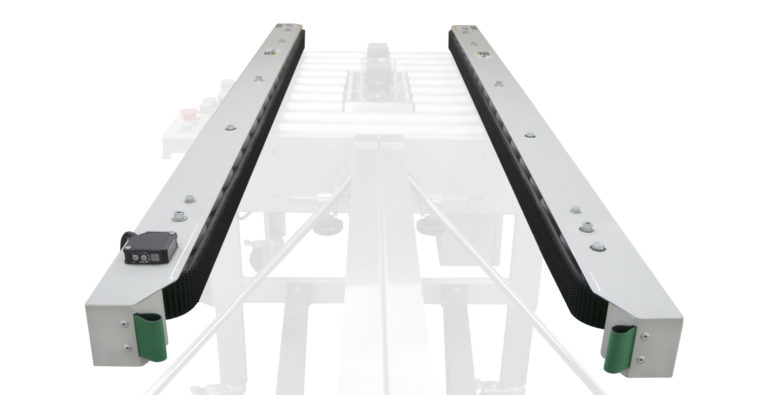

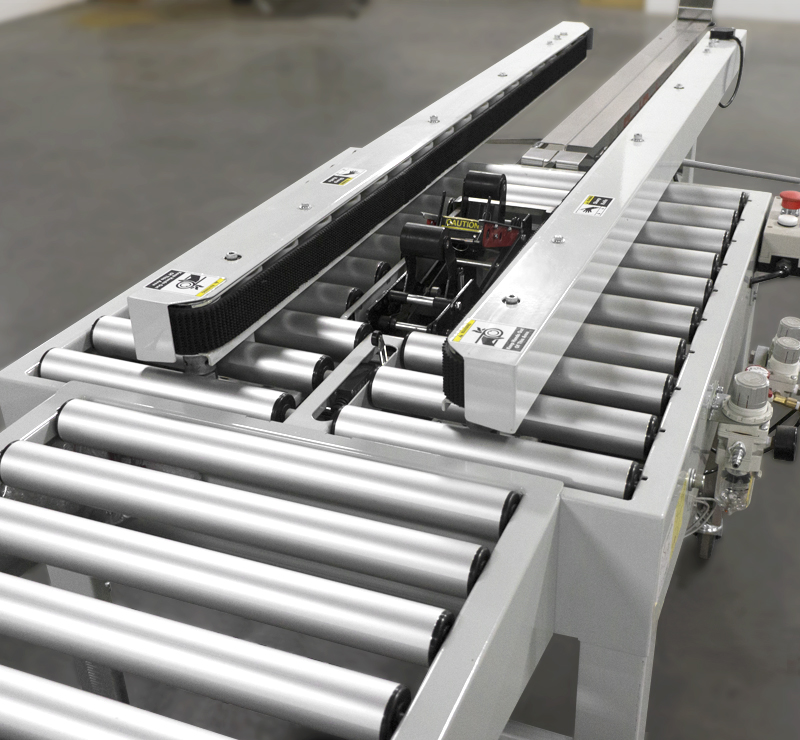

  • Two Side Belt Drive
    Two Side Belt Drive

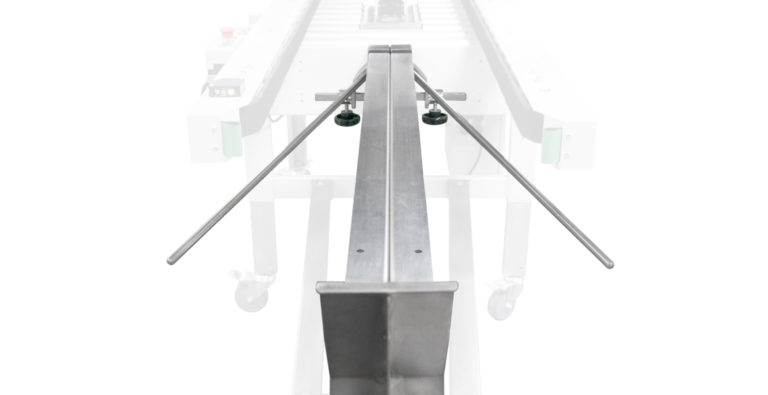

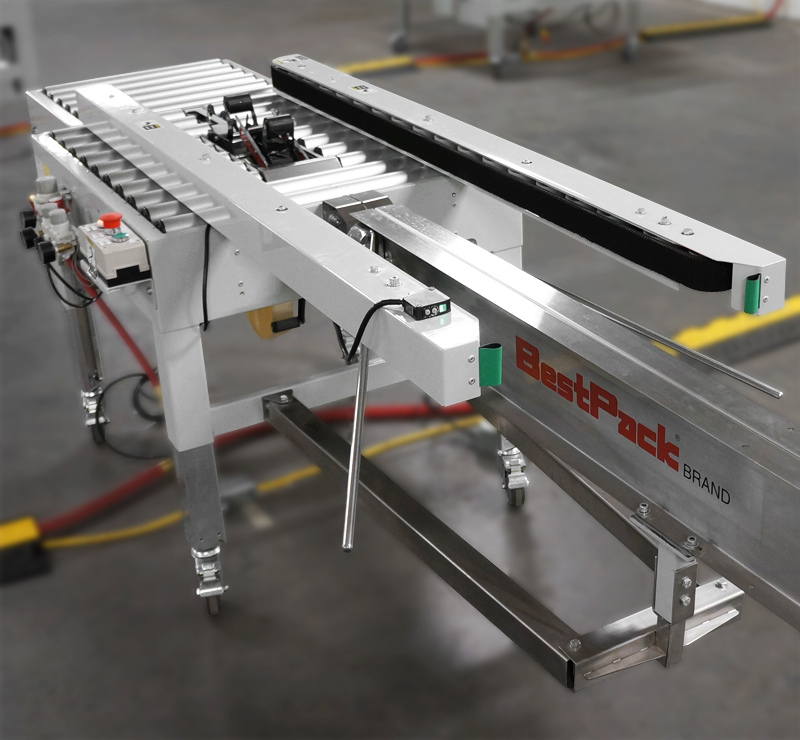

  • T-Rail
    T-Rail

    With Bottom Major Flap Folding Horns

  • Adjustable Bed Height
    Adjustable Bed Height

    From 23.5" to 30.0"

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

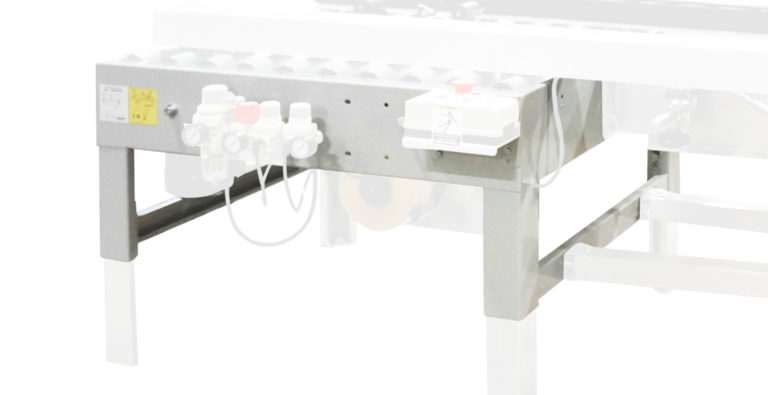

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • Maintenance Free Oil-less Air Cylinders
    Maintenance Free Oil-less Air Cylinders

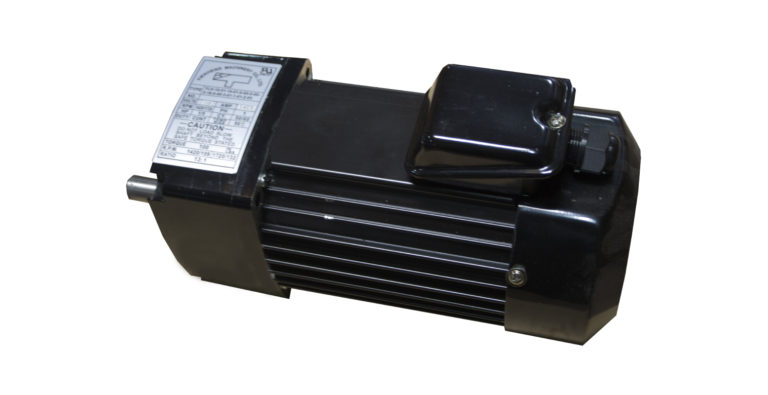

  • High Speed Motors
    High Speed Motors

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • caster bracket kit accessory
    Casters with Bracket Kit

    For customers that want mobility with their carton sealer. This kit comes with Casters and a reinforcing bracket kit for the T-Rail.

  • exit long conveyor accessory
    Long Exit Conveyor

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons exiting the machine.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
