Category: Carton Sealers Belt Drive: Side Belt Drive

RSL

Up to 12 Cartons/min.

Operator Required Operator Required
Random Cartons Random Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz Power
Requirements
55-80 PSI
5 SCFM
Air
Requirements
410-600 lbs Shipping
Weight
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

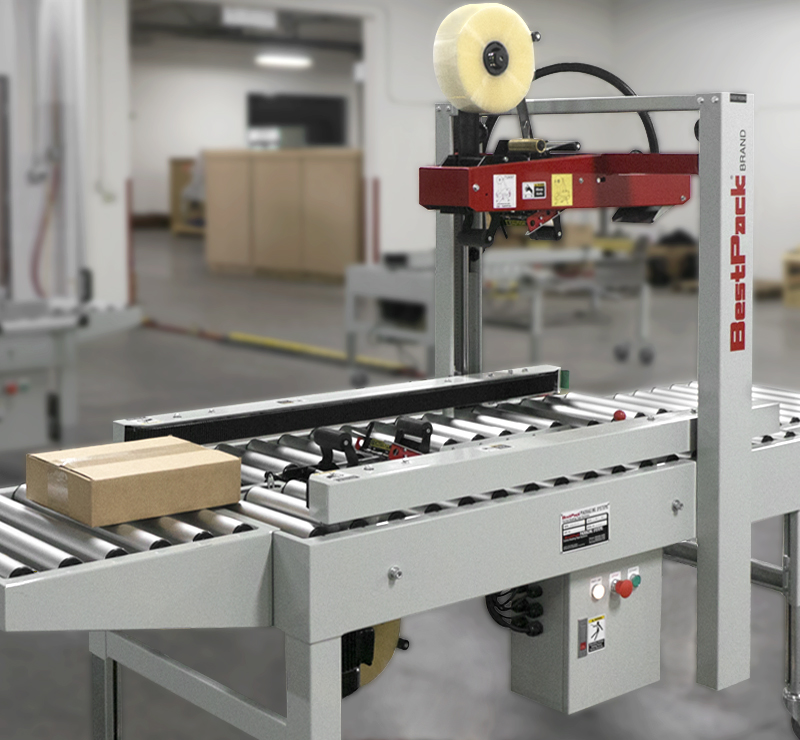

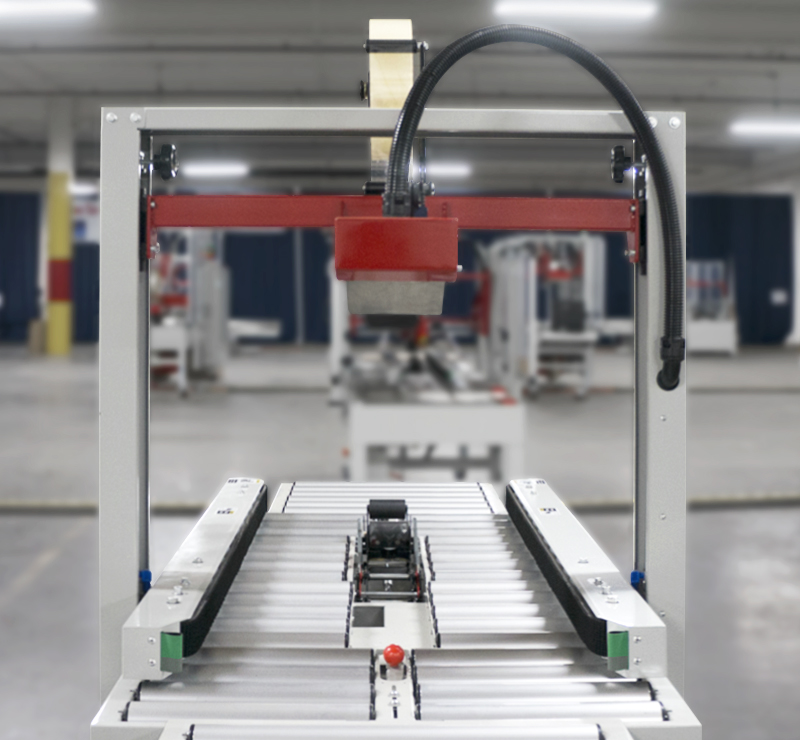

The BestPack™ RSL Series is a Semi-Automatic Random Tape Carton Sealers designed to seal very low profile cartons in addition to the wide range expected of a random carton sealer. Build for speed and durability, the RSL’s low profile feature allows for the effective sealing of cartons at a minimum height of 2.5″. The RSL is capable of sealing cartons up to 20.5″ tall as well.

Our RSL line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 12 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS 80 PSI, 5 SCFM
  • SHIPPING WEIGHT 450 lbs
  • MACHINE DIMENSIONS (57.3") x (34.6") x (57.5")
  • CARTON RANGE (6.0" min) x (9.7" - 21.6") x (2.5" - 20.5")
  • CONVEYOR HEIGHT ADJUSTMENT (20.5" - 30.0")

Specifications based on RSL22-2

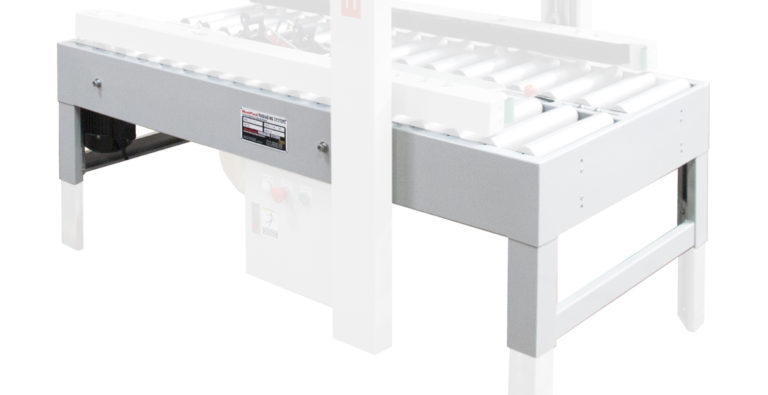

  • Heavy Duty 2mm
    Heavy Duty 2mm

    CNC Cut and Welded Frame Including Upper Welded Legs

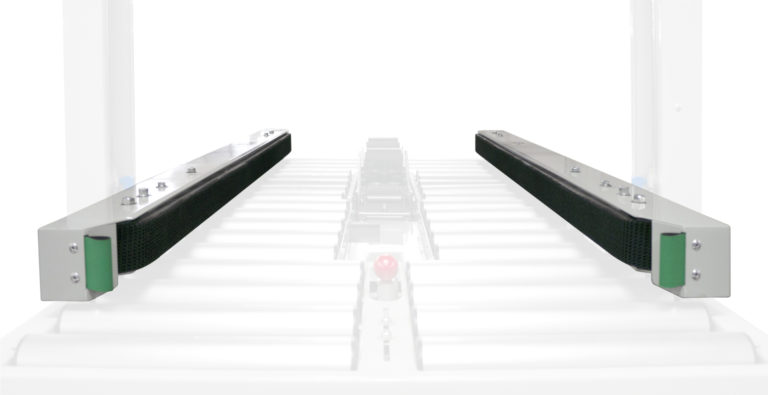

  • Random Side Belt Drive
    Random Side Belt Drive

    with 1-piece Molded Belts and V-belt Guide

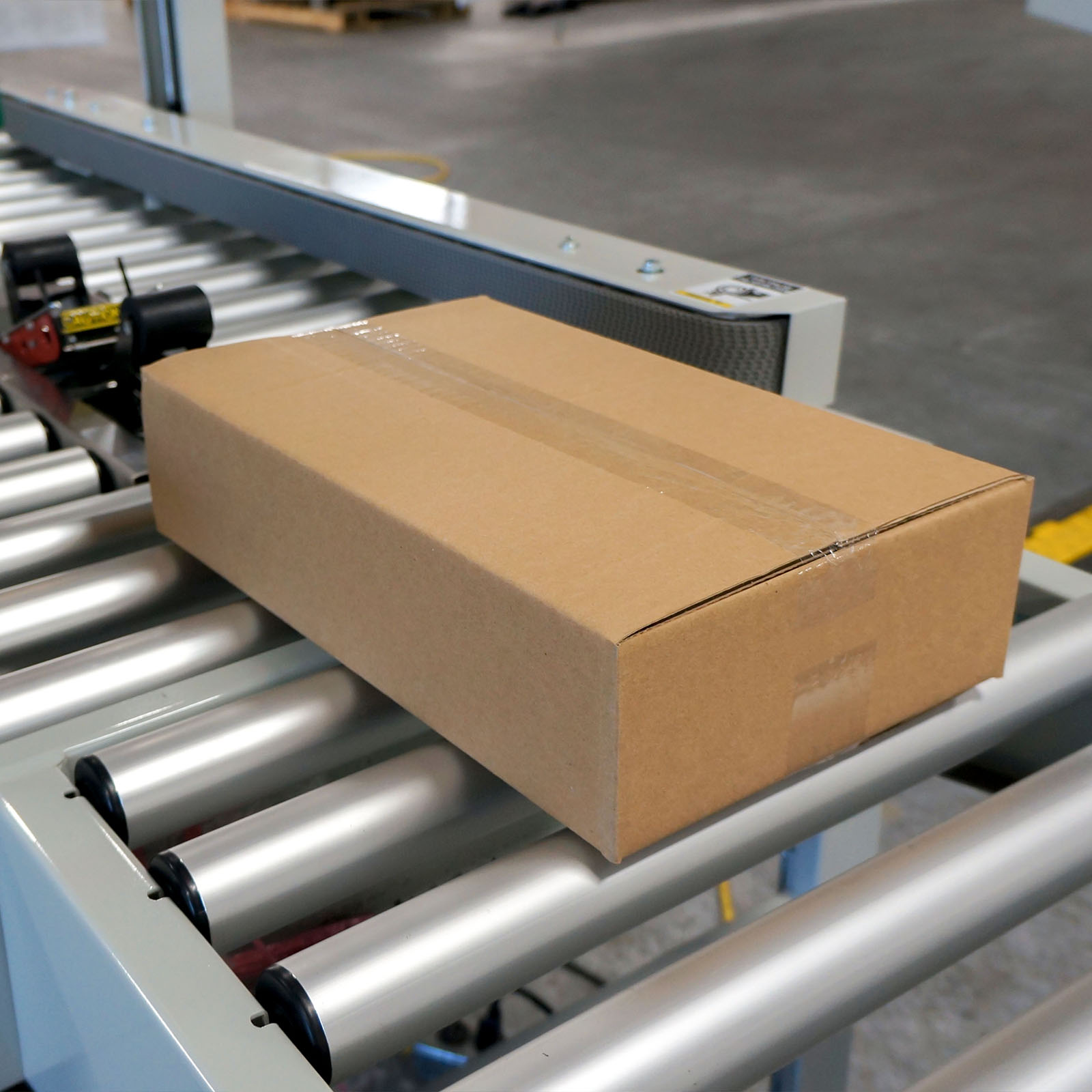

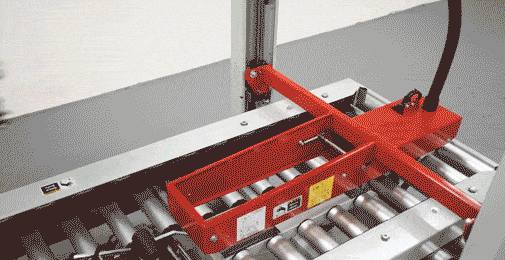

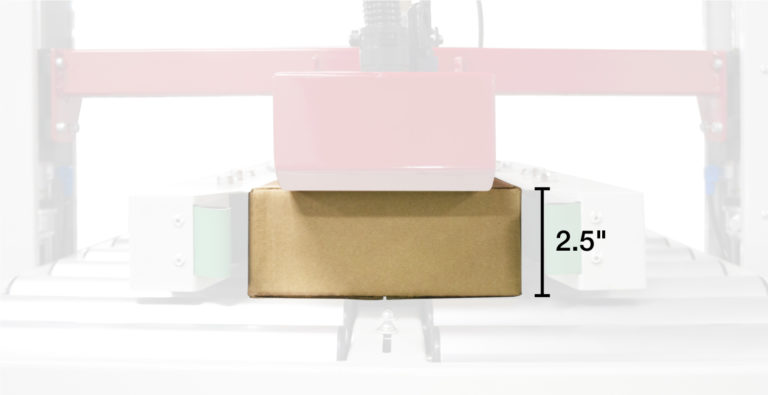

  • Seals Cartons as Low as 2.5
    Seals Cartons as Low as 2.5" in Height

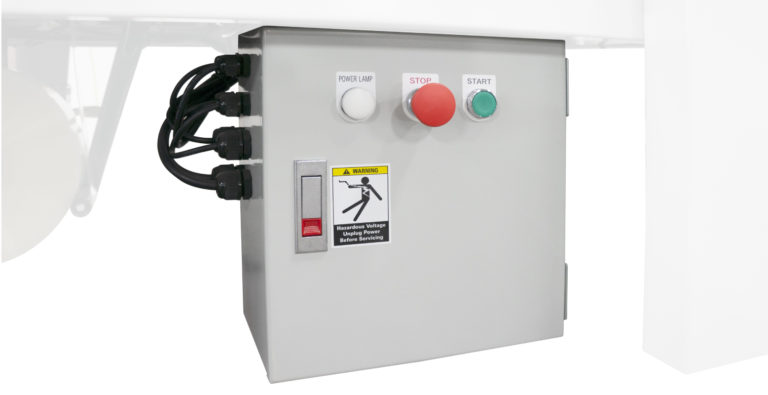

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of the Sealer

  • Heavy Duty Maintenance Free Oil-less Air Cylinder
    Heavy Duty Maintenance Free Oil-less Air Cylinder

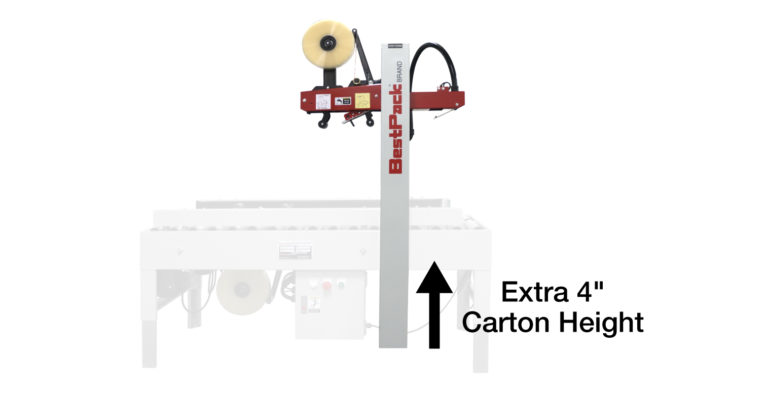

  • Extra 4
    Extra 4" Carton Height Adjustment

    Available on Upper Assembly

  • Quality UL Approved Electrical Parts
    Quality UL Approved Electrical Parts

  • Adjustable Bed Height
    Adjustable Bed Height

    From 20.5" to 30.0"

  • Tape Roll Lengths:
    Tape Roll Lengths:

    1,000 yd., 1,500 yd., 2,000 yd.

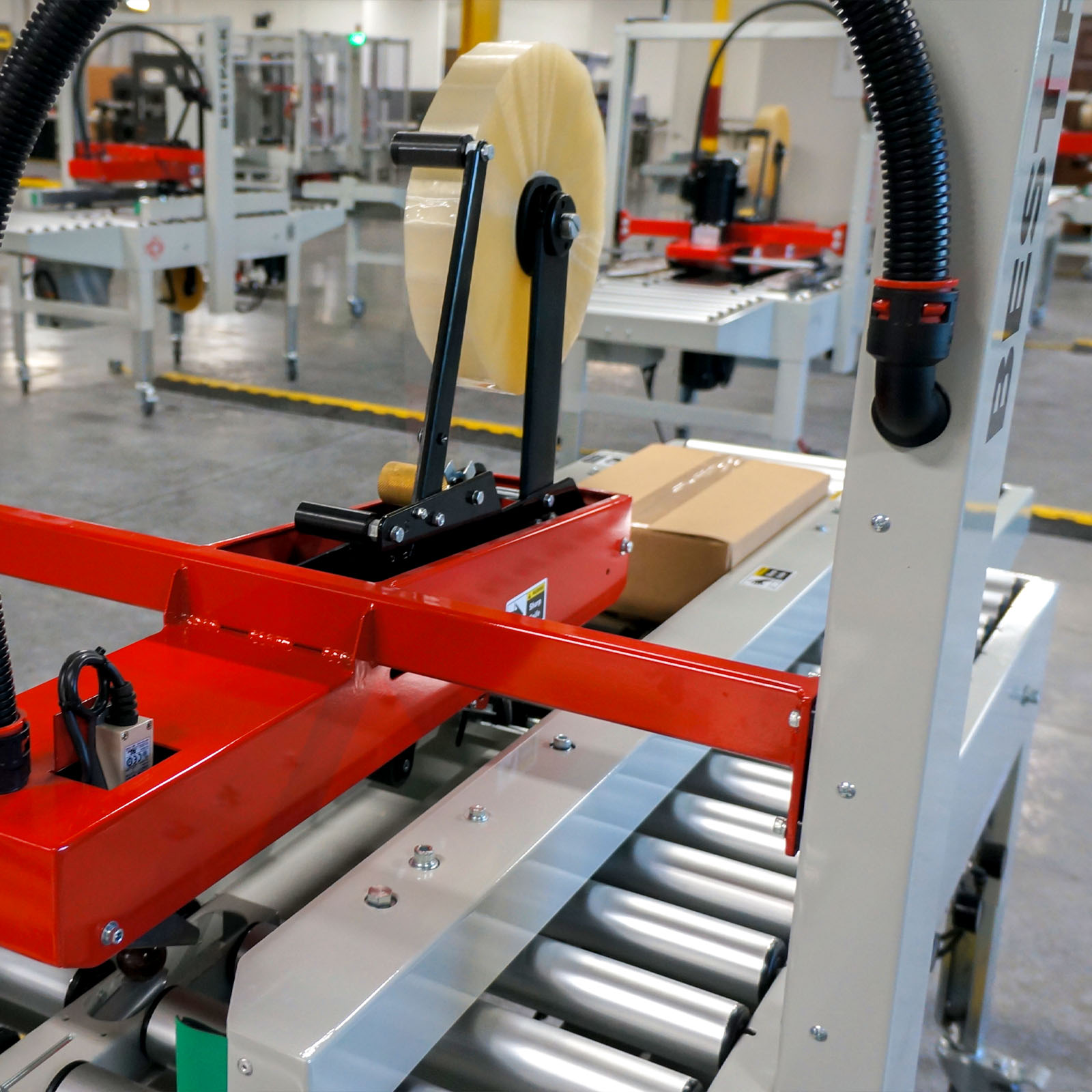

  • Exclusive Pop-out Pressure Sensitive
    Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

    with Patented Tab Adjustment and Noise Reduction Arm

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*
