Category: Carton Sealers Belt Drive: Quad Belt Drive


Up to 57 Cartons/min.

Fully Automatic Fully Automatic
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz POWER
45-60 PSI
4-5 SCFM
Description / Specifications/ Features/ Accessories/

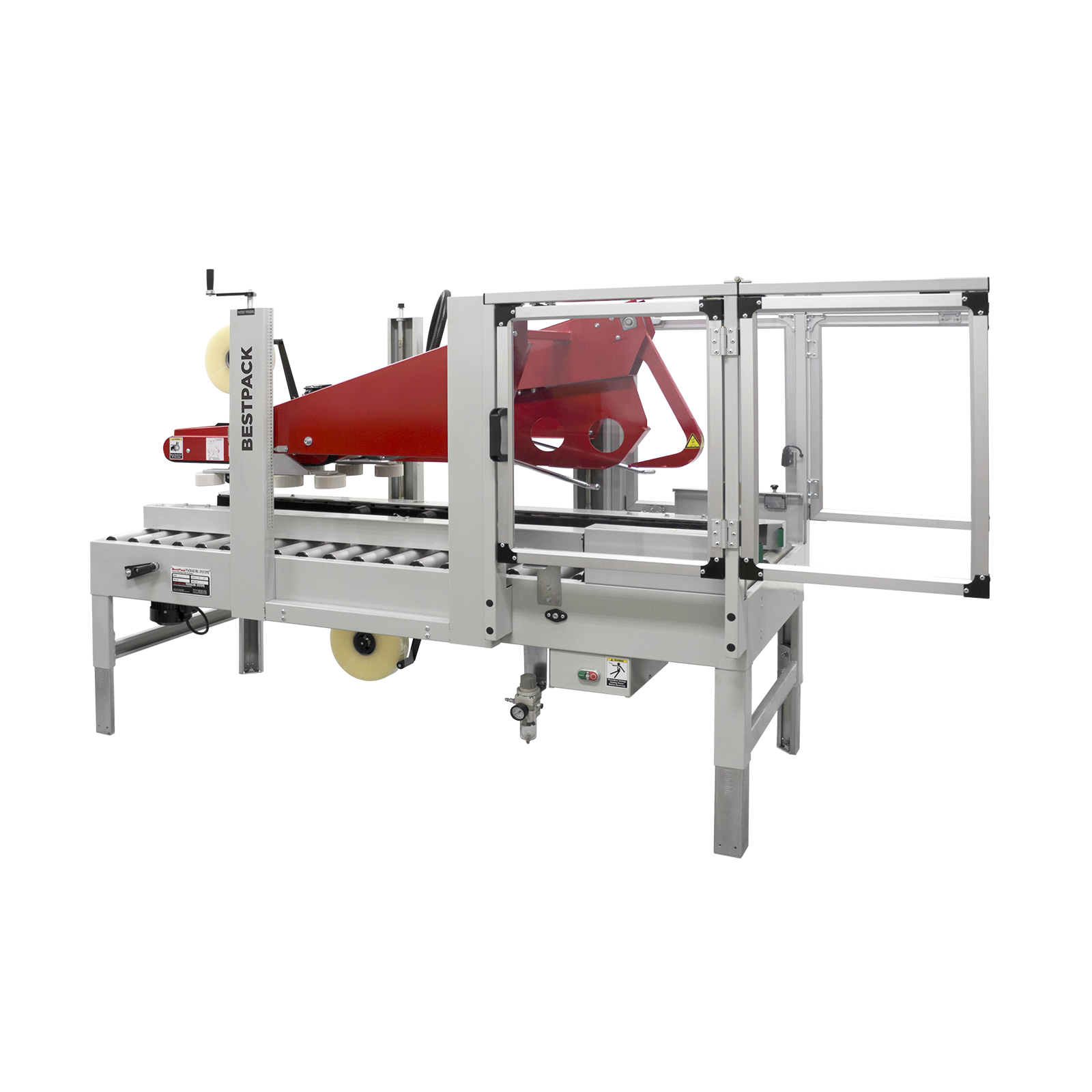

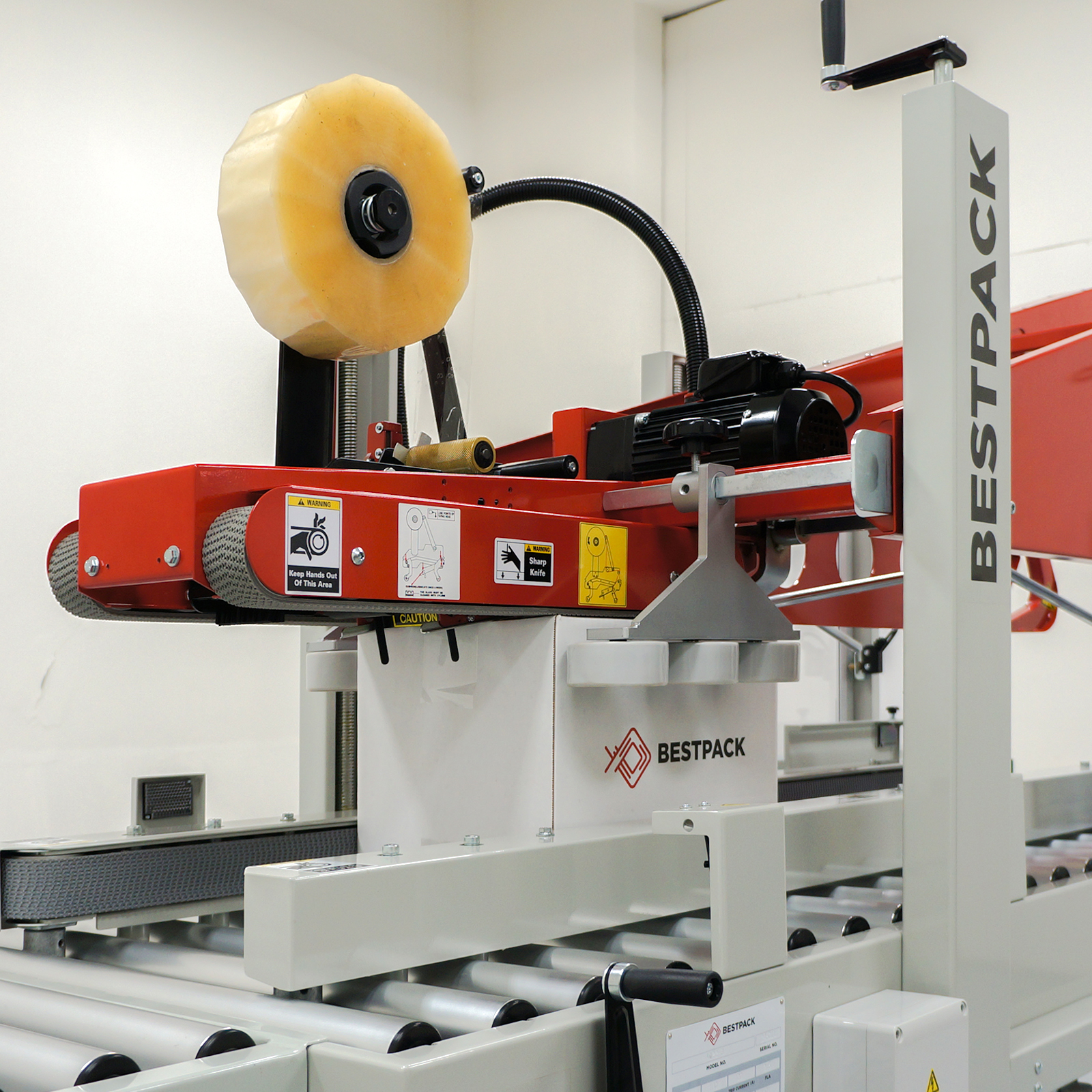

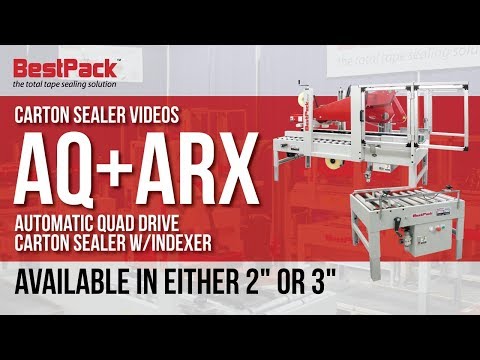

The BestPack™ AQ Series is a fully automatic, carton sealer designed to meet the needs of uniform in-line carton closure applications. The four-belt drives are powered by three electric 110V UL-approved motors. The quad-belt technology allows for more carton stability and effective sealing in rugged applications. The AQ model, which closes all top flaps and seals the top & bottom of the carton, is designed with a stable four-column support structure.


Our AQ line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 57 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 45-60 PSI, 4-5 SCFM
  • Shipping Weight 632-657 lbs
  • Machine Dimensions (77.5") x (33.8") x (73.0")
  • Carton Range (8.0" - 27.5") x (7.5" - 20.0") x (5.5" - 20.0")
  • Trip Current (A) 20
  • FLA 5
  • Conveyor Height adjustment (23.5" - 30.0")
  • Phase 1
  • SCCR (KA) 10
  • Max Current (A) 7.5
  • Power (W) 550
  • Specifications based on Line Specifications based on AQ22-2

Specifications based on AQ22-2

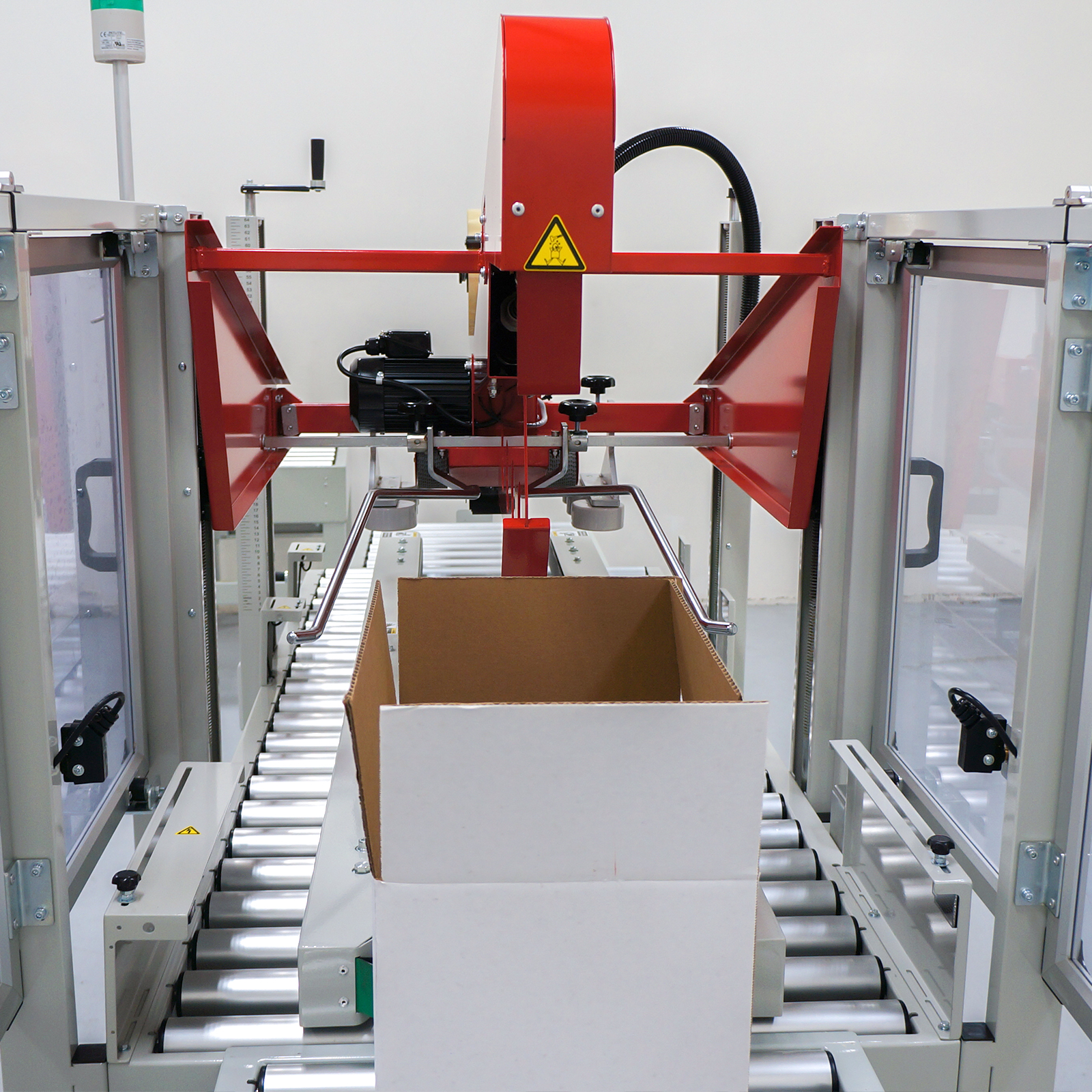

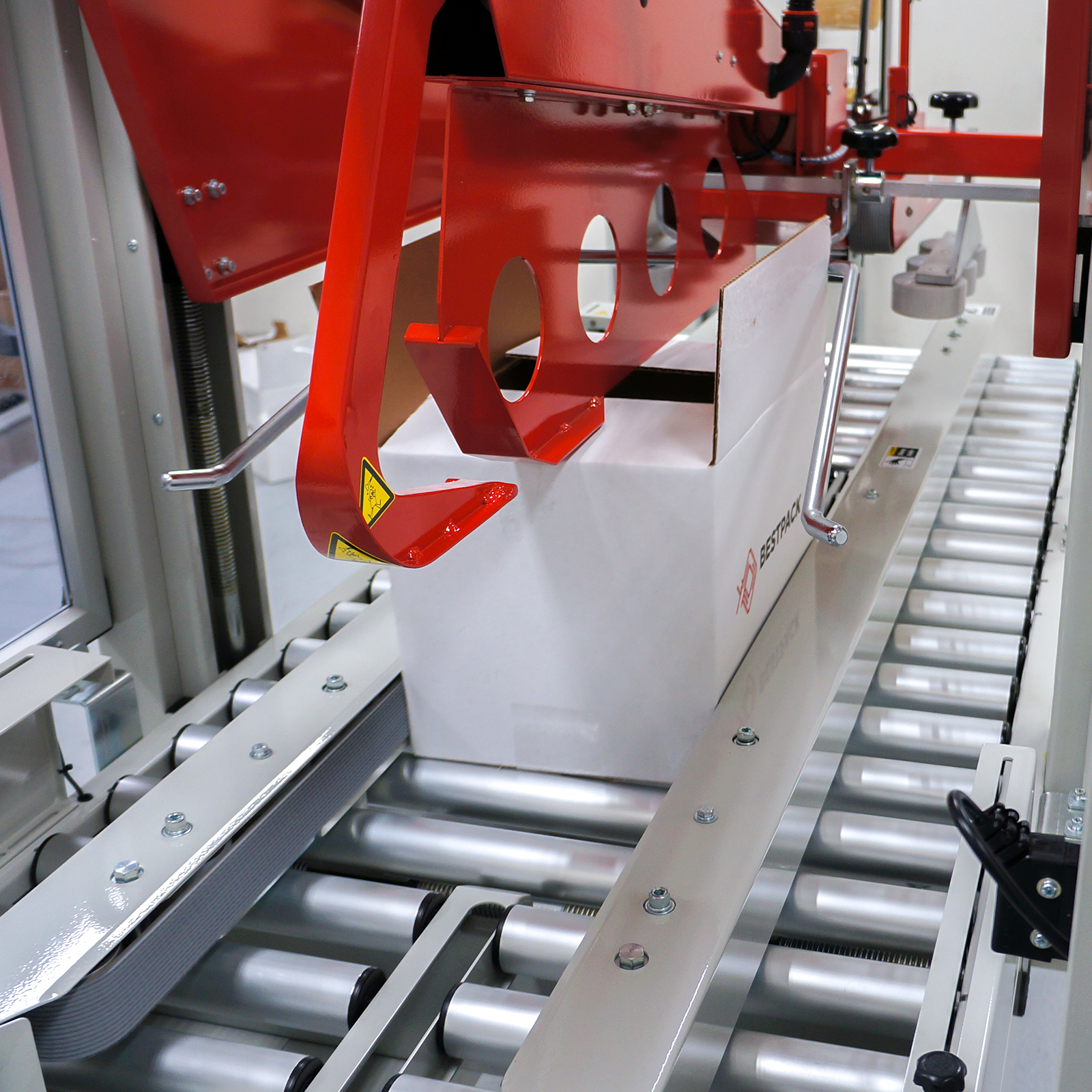

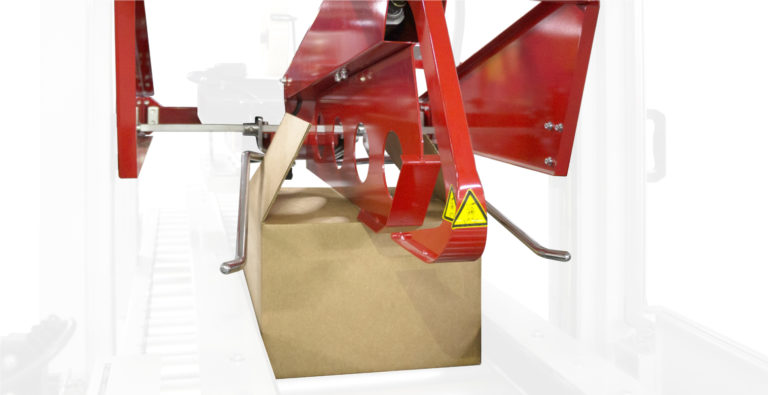

  • In-line Automatic Top Flap Folding Carton Closure
    In-line Automatic Top Flap Folding Carton Closure

  • Adjustable Bed Height
    Adjustable Bed Height

    From 22.5" to 30.0"

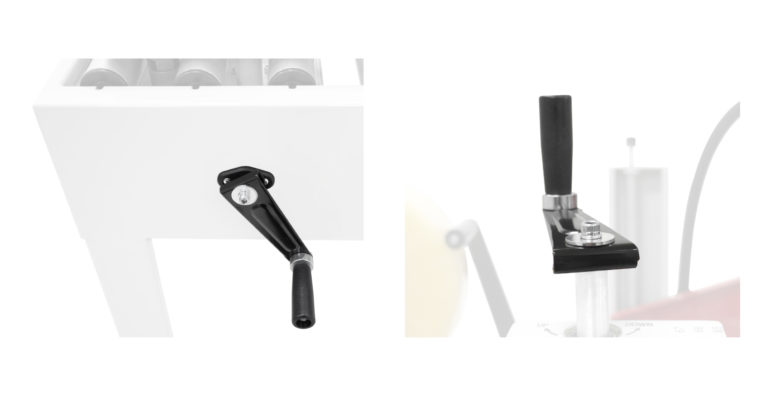

  • Height/Width Adjustments
    Height/Width Adjustments

    Can Be Mounted on Either Side of Carton Sealer

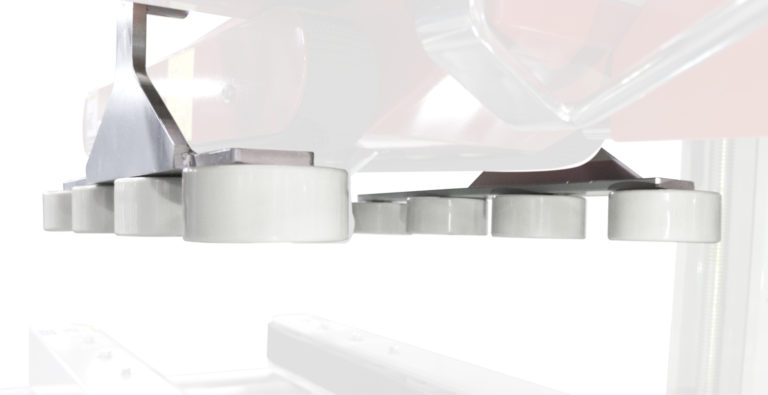

  • Upper Side Compression Unit
    Upper Side Compression Unit

  • Interlock Safety Gates in the Kicker Station
    Interlock Safety Gates in the Kicker Station

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

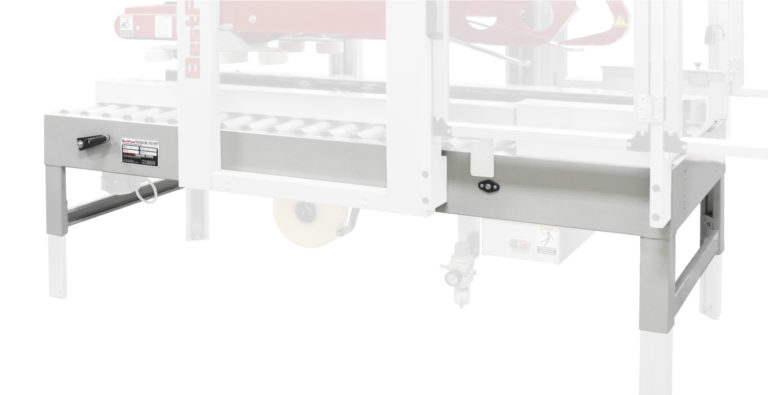

  • Heavy Duty Frame
    Heavy Duty Frame

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

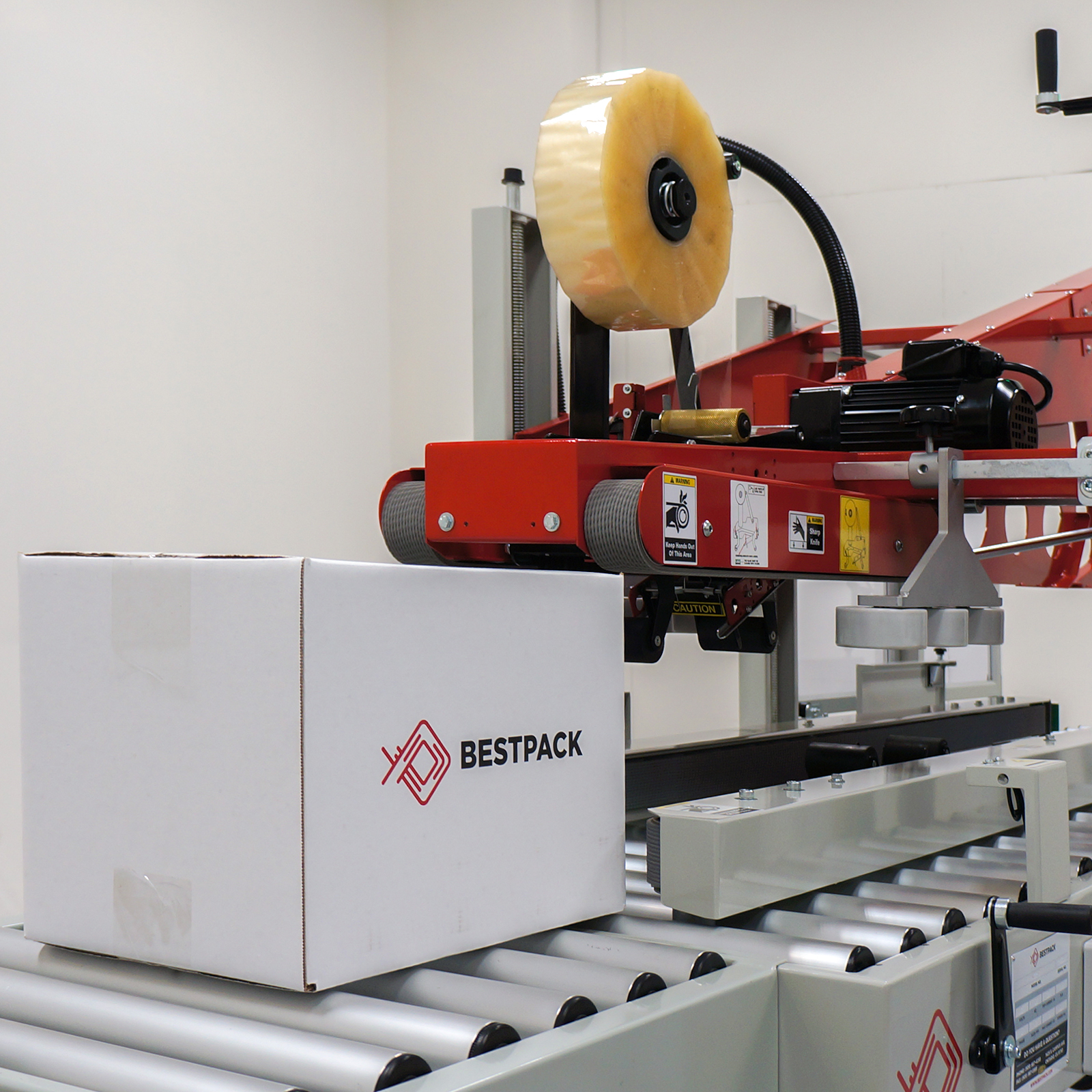

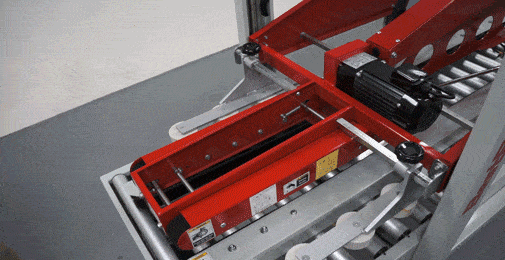

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

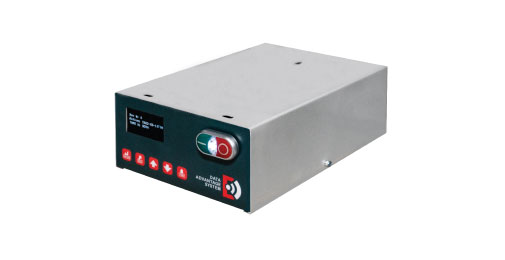

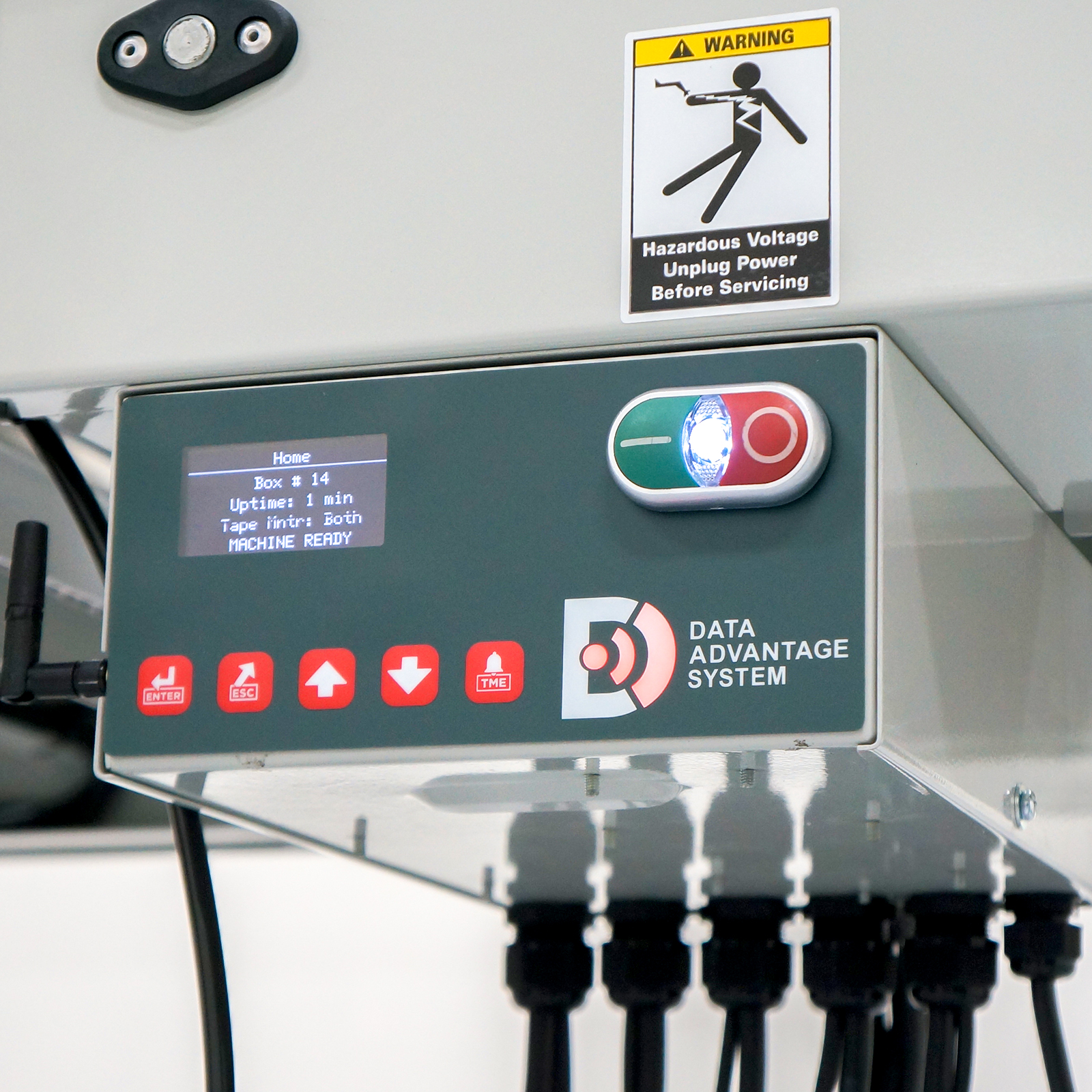

  • DAS - Data Advantage System

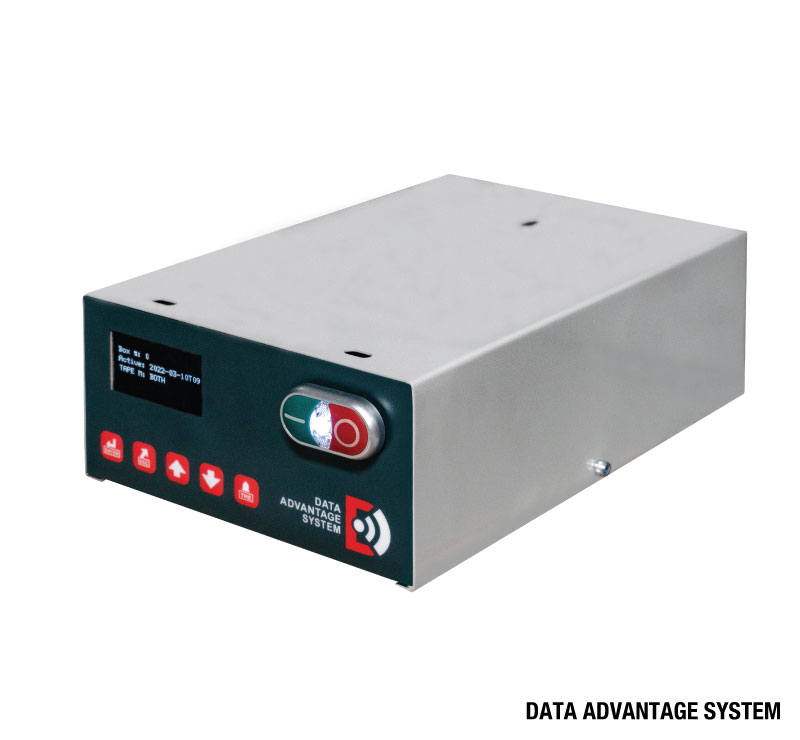

    DAS - Data Advantage System

    A powerful tool that helps diagnose issues and improve efficiency for production output.

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

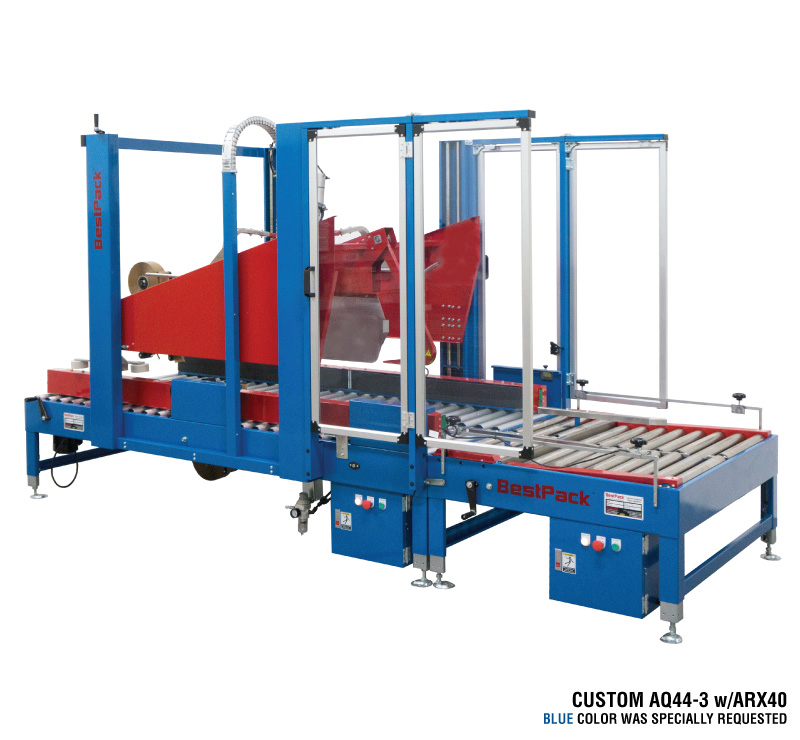

  • indexer picture

    The indexers function is to separate and time cartons into the carton sealer.
    ARX(uniform) or CRX (random)

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • Low Tape No Tape Sensor Feature

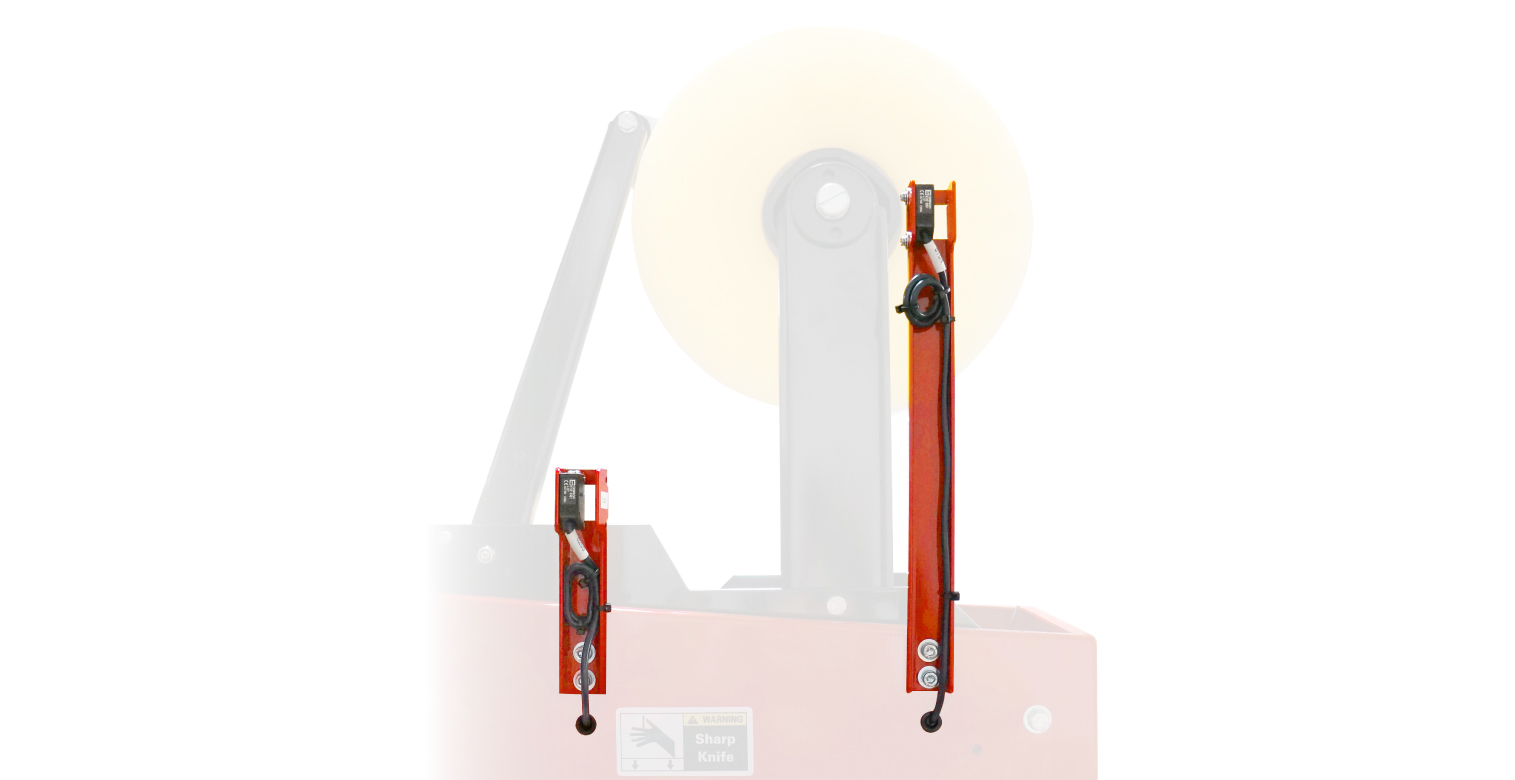

    Low Tape No Tape Sensor

    The Low Tape light allows operator to prepare a new roll of tape. The No Tape alarm will inform operator of error so that the carton may be resealed.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

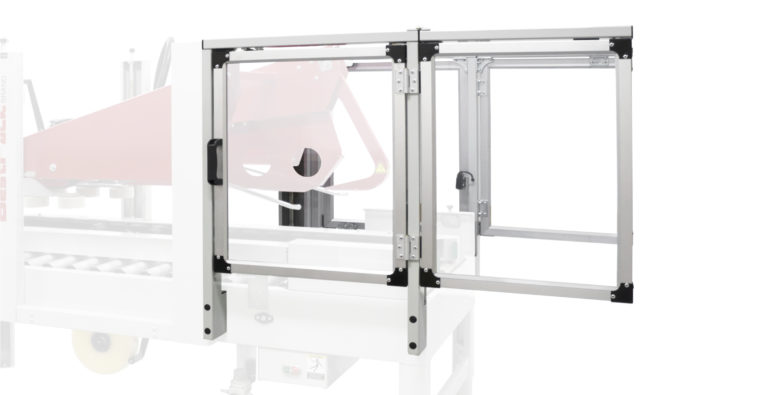

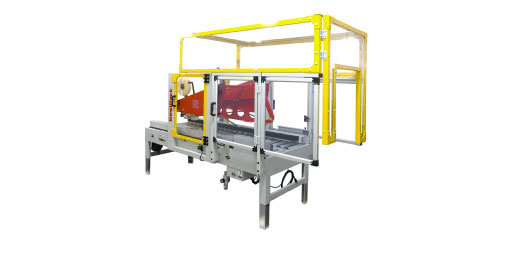

  • Additional Safety Guarding

    Add additional protective measures that prevent workplace injuries with additional safety gates around your equipment.
