Category: Carton Sealers Belt Drive: Side Belt Drive


Up to 20 Cartons/min.

Fully Automatic Fully Automatic
Random Cartons Random Cartons
Top & Bottom Seal Top & Bottom Seal
208 Volts 60 Hz Power Requirements
80 PSI
Air Requirements
2,605 lbs Shipping
Description / Specifications/ Features/ Accessories/

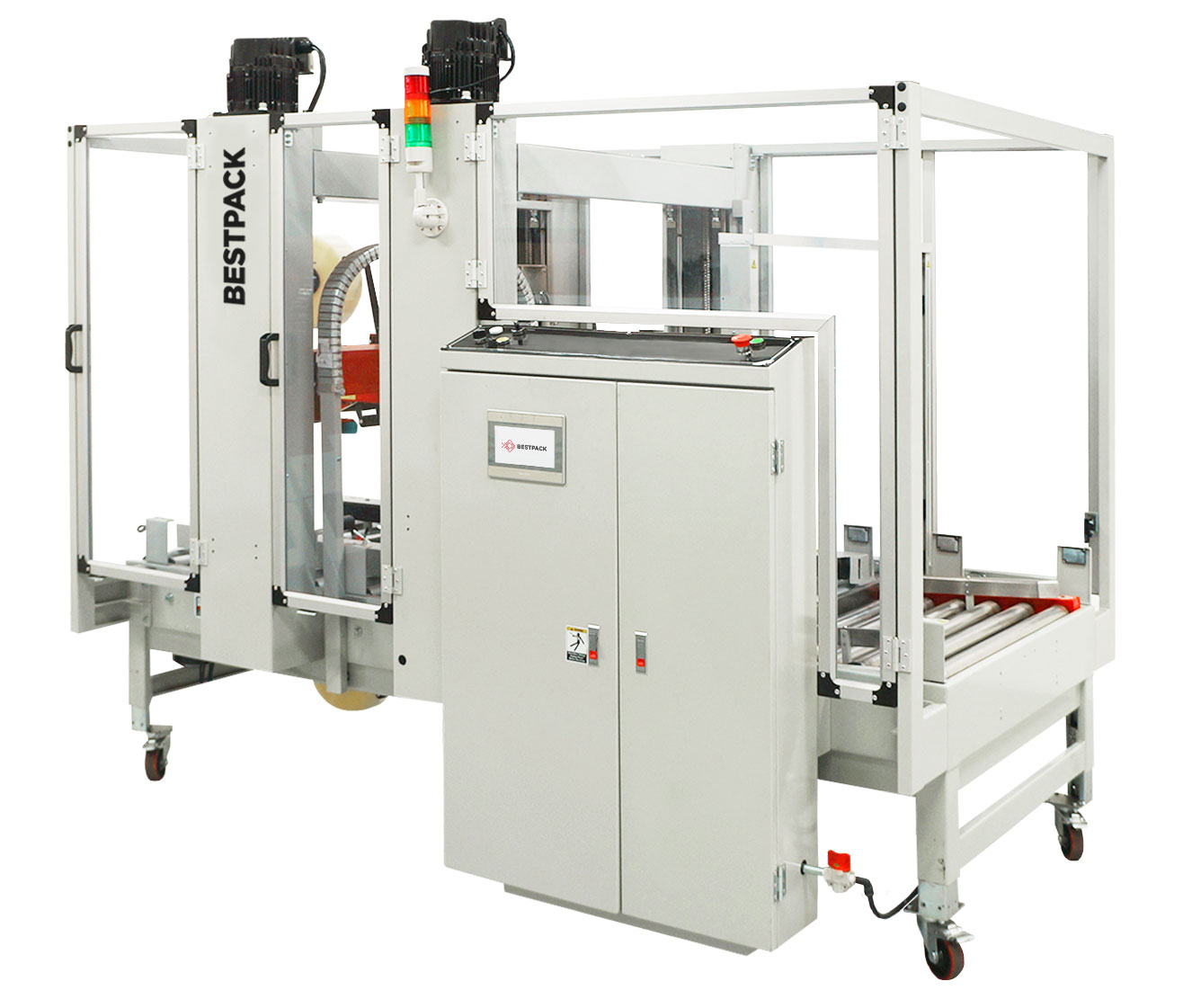

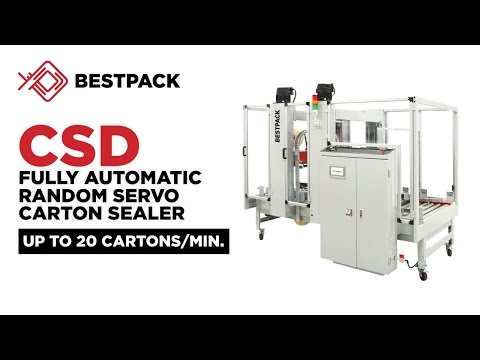

The BestPack™ CSD is a Fully Automatic Random Servo Driven Carton Sealer that uses 2 servo motors providing the precision & speed for carton sealing repeatability. The CSD provides speed and the best fully automatic technology at an affordable price.

Our CSD incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish or food-grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 20 Cartons/min.
  • Power Requirements 208 Volts 60 Hz - 3 Phase 20 Amp
  • Air Requirements 80 PSI, 5 SCFM
  • Shipping Weight 2,605 lbs
  • Machine Dimensions (95.7") x (59.4") x (82.2")
  • Carton Range (8.0" - 25.5") x (4.0" - 20.0") x (4.0" - 20.0")
  • Trip Current (A) 16
  • FLA 6.5
  • Conveyor Height adjustment (25.5" - 30.0")
  • Phase 3
  • SCCR (KA) 10
  • Max Current (A) 13
  • Power (W) 1352
  • Specifications based on Line Specifications based on CSD222

Specifications based on CSD222

  • Allen Bradley MicroLogix PLC
    Allen Bradley MicroLogix PLC

  • HMI

    7-Inch Color Human Machine Interface

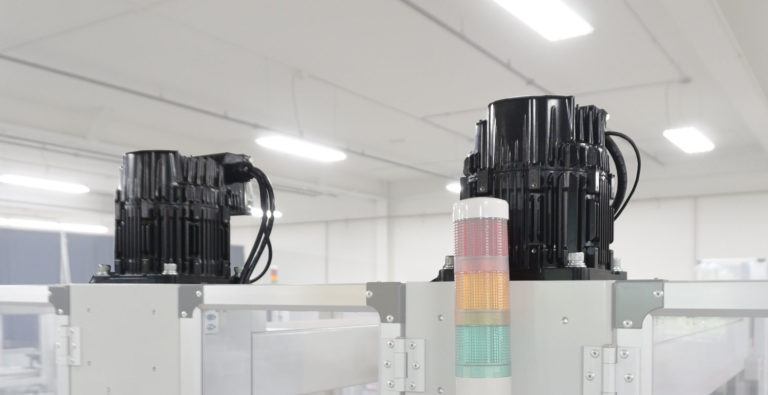

  • Servo Motors
    Servo Motors

    2 Servo Motors for the Flap Folding & Sealing Area

  • Independent 3-stage Operation:
    Independent 3-stage Operation:

    Centering, Flap Folding, & Sealing

  • Side Belt Drive
    Side Belt Drive

    Random Side Belt Drive with High Speed Motors

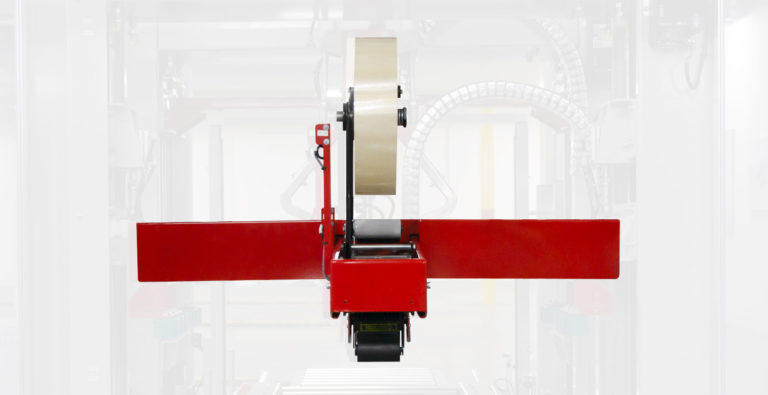

  • Floating Sealing Section
    Floating Sealing Section

  • Random Upper Side Compression Rollers
    Random Upper Side Compression Rollers

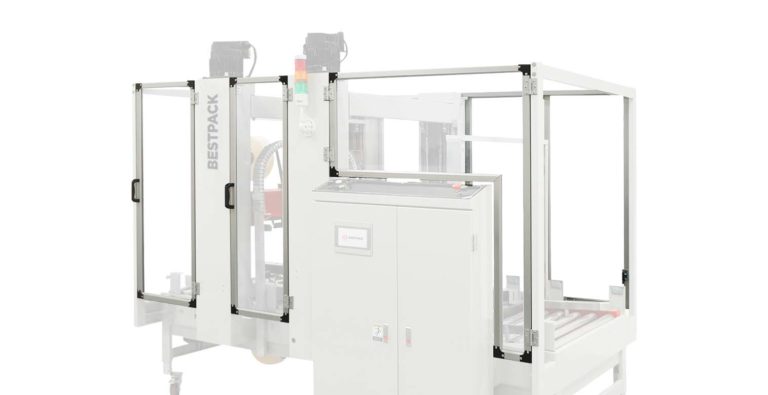

  • Interlock Safety Gates
    Interlock Safety Gates

  • Interchangeable Tape Heads
    Interchangeable Tape Heads

    2" and 3" BestPack

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • Heavy Duty Casters
    Heavy Duty Casters

  • Upstream and Downstream Interlock
    Upstream and Downstream Interlock

    Easily Integrate conveyor systems to the upstream or downstream of the machine.

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Low Tape/No Tape on Carton/No Cut Sensors & Alarm
    Low Tape/No Tape on Carton/No Cut Sensors & Alarm

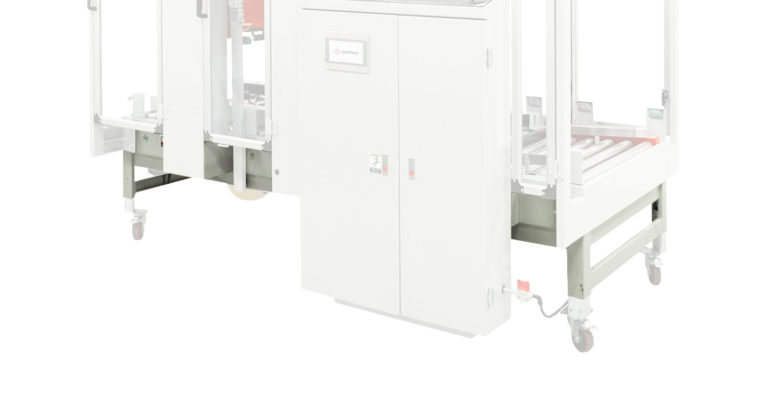

  • Heavy Duty Frame
    Heavy Duty Frame

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • Remote VPN

    A router designed for easy remote access offsite via the internet. Available with a LAN or wireless network.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
