Category: Carton Sealers Belt Drive: Side Belt Drive

MS1E

Up to 45 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
1-Edge Seal 1-Edge Seal
115V 60 Hz
122 WATTS
POWER
REQUIREMENTS
50 PSI
5 SCFM
AIR
REQUIREMENTS
350 LBS SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ ACCESSORIES/

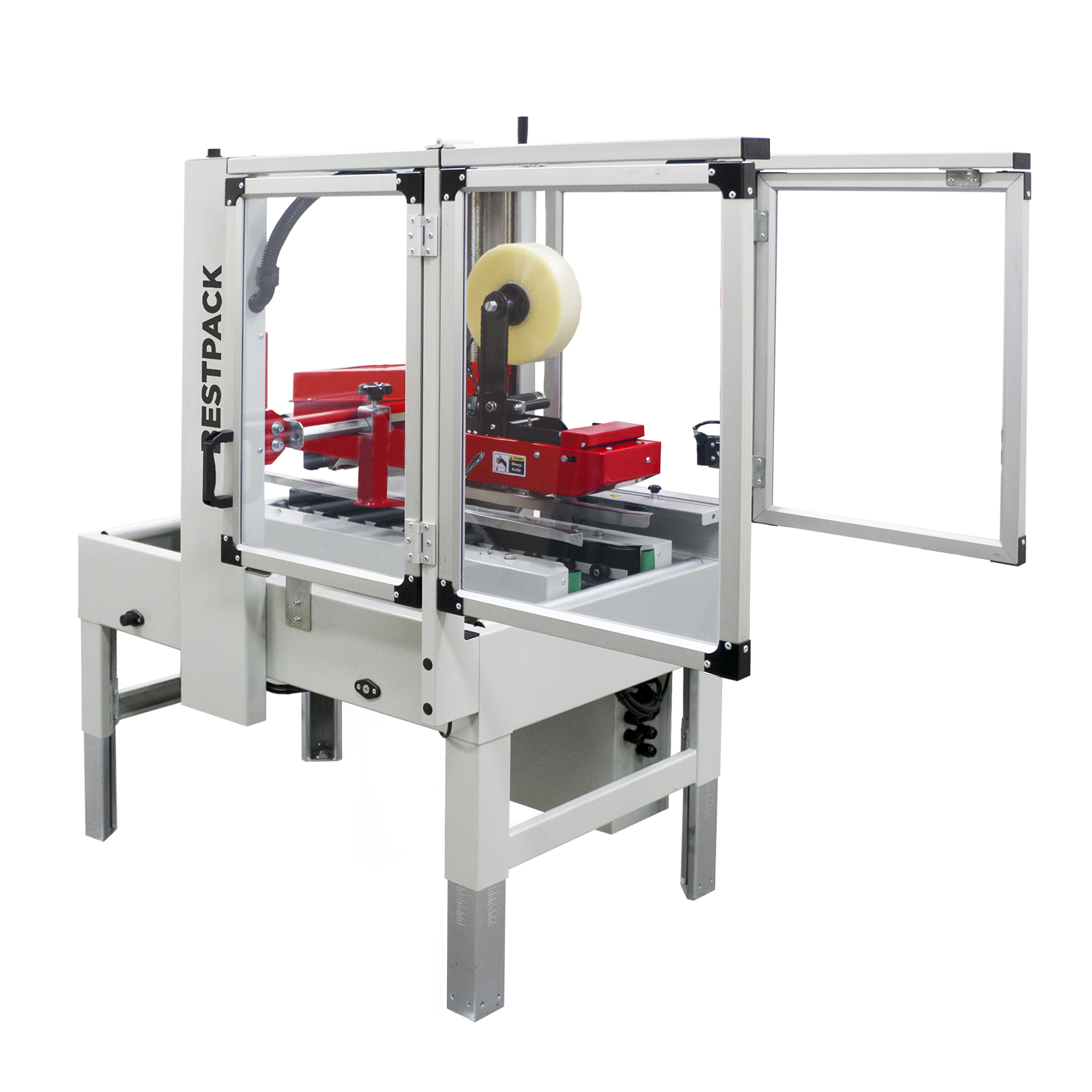

The BestPack™ MS1E Series is a 1-edge high-speed semi-automatic uniform carton sealer using pressure sensitive tape. The MS1E is available in either 1-edge top left or 1-edge top right. This 1-edge sealer is an operator fed adjustable sealer that can also be converted to an operator free adjustable 1-edge sealer with the addition of a matching adjustable indexer. Depending on the motor drive speed used the MS1E can reach cartons speeds of over 85 cartons per minute. This sealer excels at one edge sealing clamshell, flap tuck and flap edge lock type cartons both in corrugated and chipboard.

The MS1E is available with a 2″ Pneumatic High Speed BestPack Tape Head. All units are available in standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • SPEED Up to 45 Cartons/min.
  • POWER REQUIREMENTS 115 Volts 60 Hz - 1.9A, 122 watts/motor
  • AIR REQUIREMENTS 50 PSI, 5 SCFM
  • SHIPPING WEIGHT 350 lbs.
  • MACHINE DIMENSIONS (41.5") x (26.0") x (62.25" - 68.75")
  • CARTON RANGE (7.0" - U) x (1.72" - 5.5") x (4.0" - 21.75")
  • CONVEYOR HEIGHT ADJUSTMENT (23.5" - 30")

Specifications based on MS1ETL22-2

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • safety gates accessory
    Interlock Safety Gates

    Aluminum frame interlock safety gates can be added to the carton sealer for an extra layer of protection. These interlock safety gates protect the operator from all of the moving parts of the carton sealer.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • indexer picture
    Indexer

    The indexers function is to separate and time cartons into the carton sealer.
    ARX(uniform) or CRX (random)

  • Low Tape No Tape Sensor Feature
    Low Tape No Tape Sensor

    The Low Tape light allows operator to prepare a new roll of tape. The No Tape alarm will inform operator of error so that the carton may be resealed.
