Category: Carton Sealers Belt Drive: Side Belt Drive

MSD-S

Up to 40 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
360-432 lbs SHIPPING
WEIGHT
Description/ SPECIFICATIONS/ FEATURES/ ACCESSORIES/

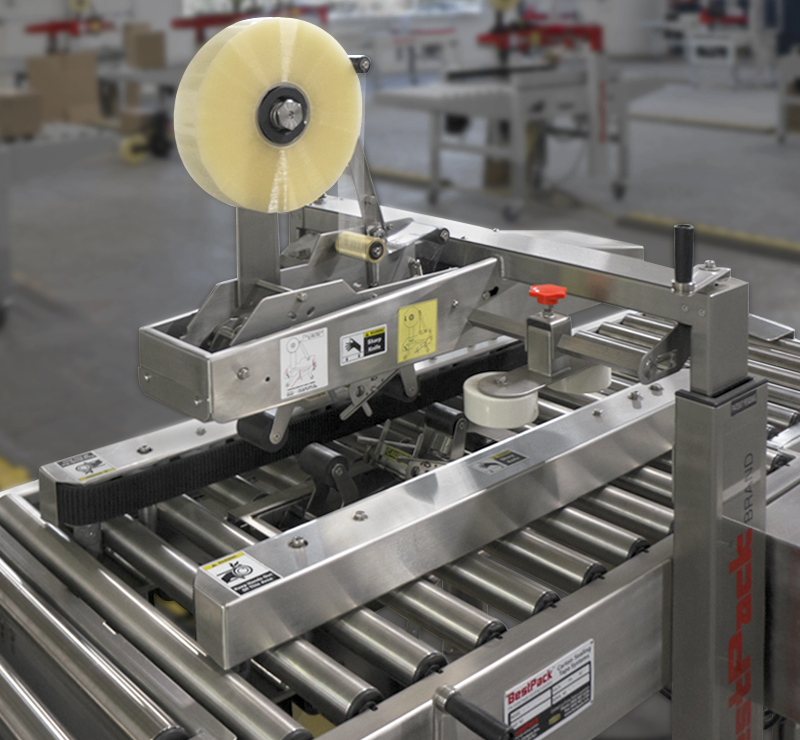

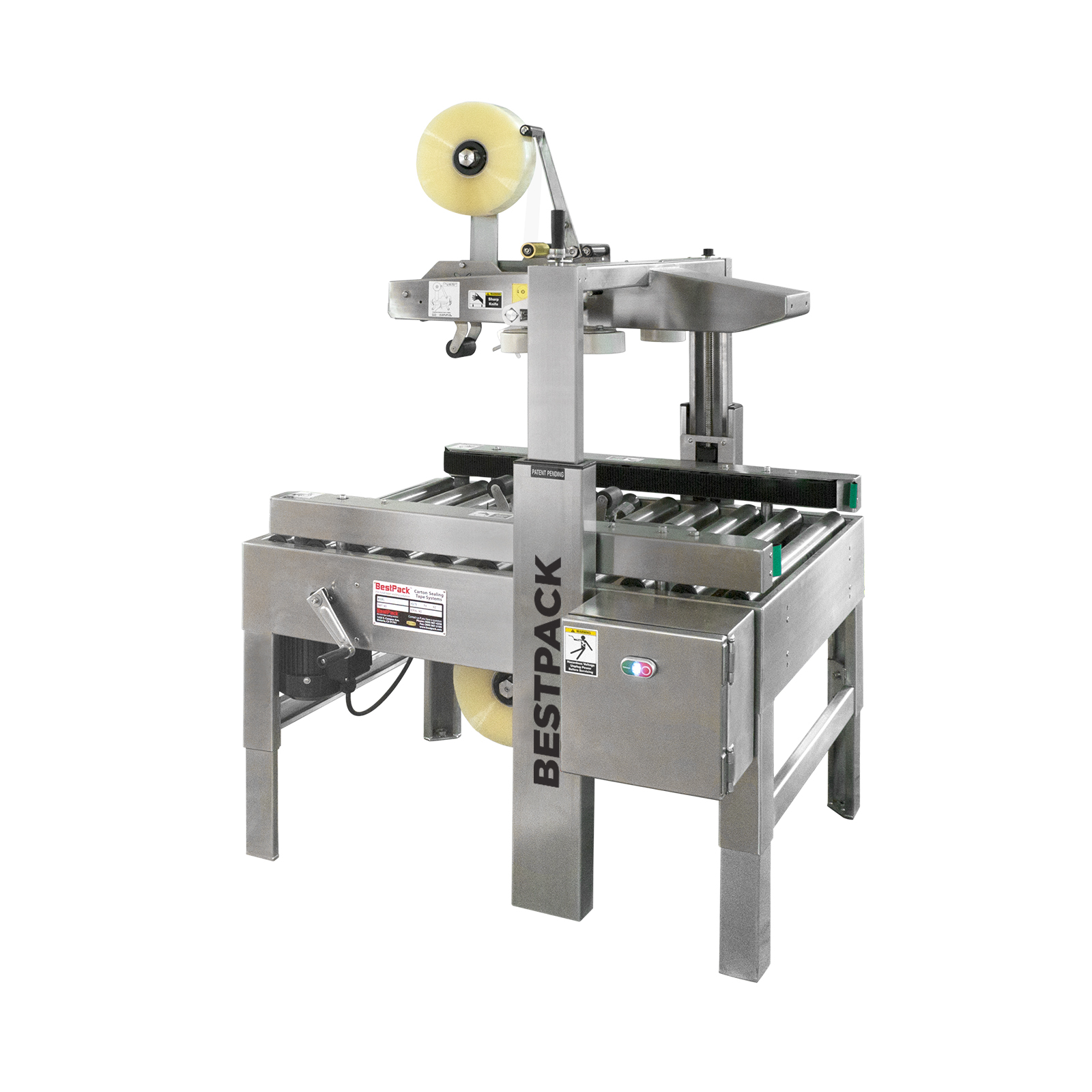

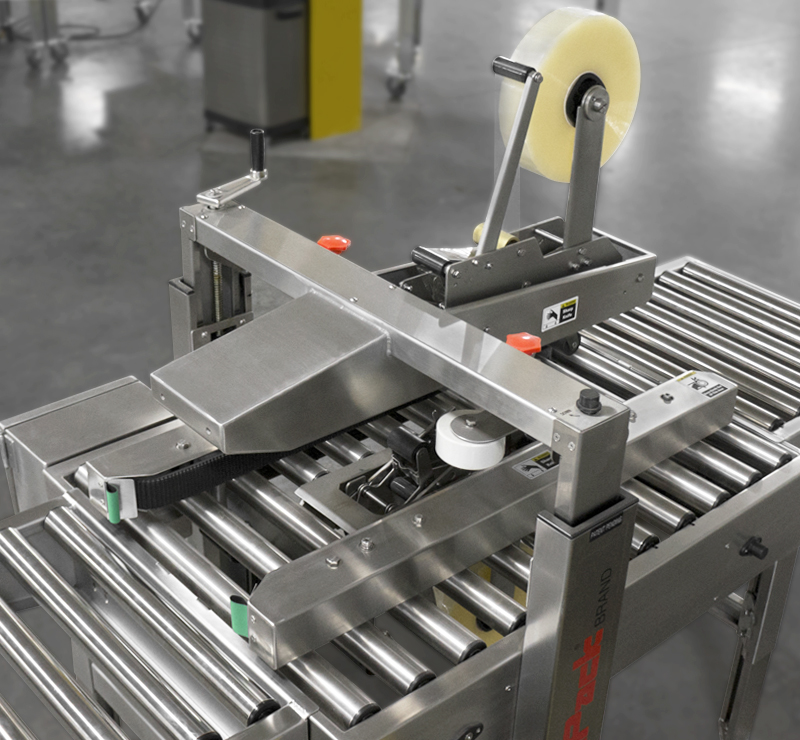

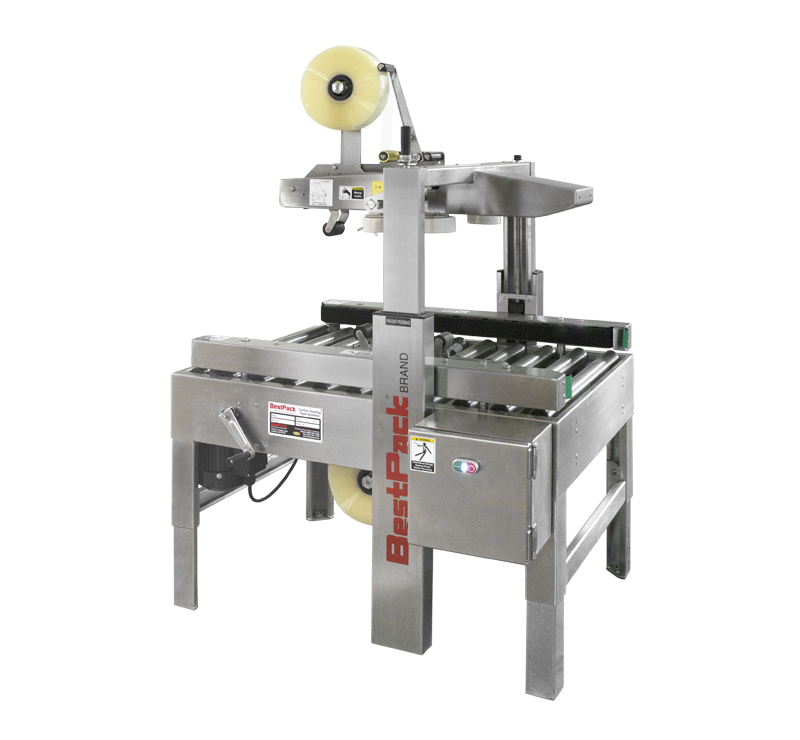

The BestPack™ MSD 304 Stainless Steel Series Semi-Automatic Uniform Tape Carton Sealer is our operator-fed and adjustable carton sealer designed to cater to the needs of light-to-heavy duty uniform carton closure applications where there are wet environments. Units are available for either splash resistant or wash-down applications.
All systems incorporate our exclusive pop out pressure sensitive “High Speed” tape heads with patented tab adjustment, and the dual (telescopic) masts allow for an extra 4″ carton height extension on the upper assembly.
All BestPack stainless steel sealers are made with food grade 304 stainless steel for 21 CFR 110 compliance and include food grade 304 stainless steel High Speed tapeheads. Available in 2″ or 3″ tape heads.

  • SPEED Up to 40 Cartons/min.
  • POWER REQUIREMENTS 110 Volts 60 Hz
  • AIR REQUIREMENTS N/A
  • SHIPPING WEIGHT 360-432 lbs
  • MACHINE DIMENSIONS (39.5") x (32.8") x (70.3")
  • CARTON RANGE (6.0" - U) x (4.25" - 20.0") x (3.5" - 20.5")
  • CONVEYOR HEIGHT ADJUSTMENT (23.5" - 30.0")

Specifications based on MSD22-2S

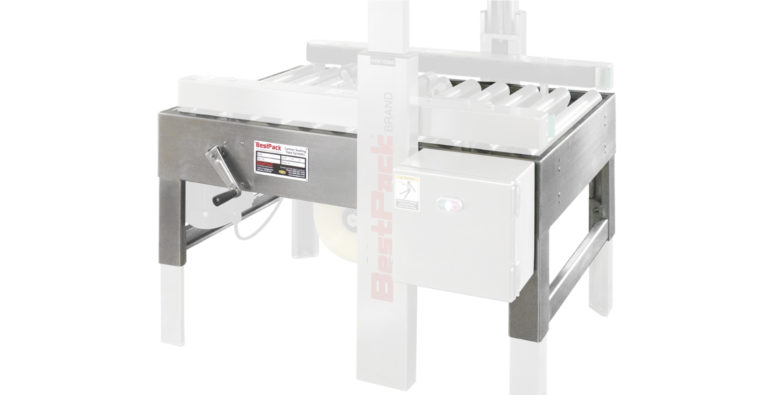

  • Heavy Duty 2mm Food Grade 304 Stainless Welded Frame
    Heavy Duty 2mm Food Grade 304 Stainless Welded Frame

    Including Upper Welded Legs

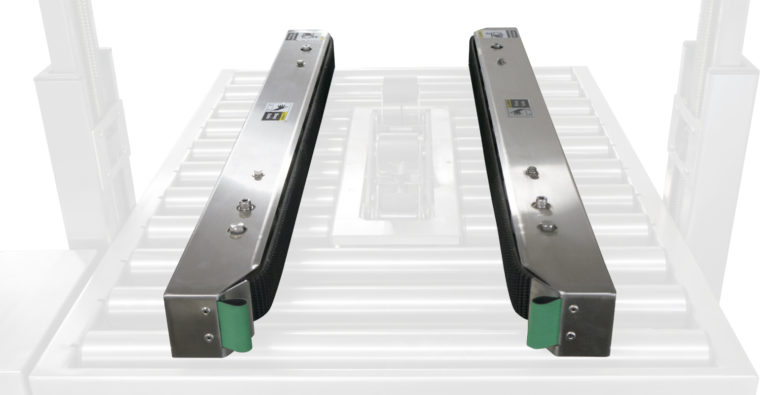

  • Side Belt Drive System
    Side Belt Drive System

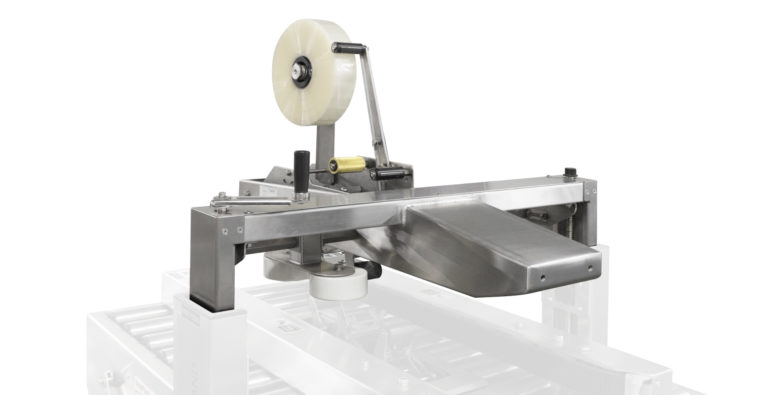

  • Telescopic Mast Design
    Telescopic Mast Design

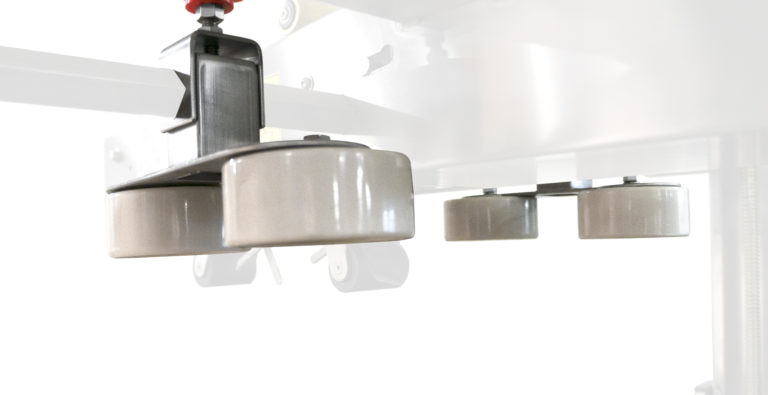

  •  4 Roller Upper Side Compression Unit
    4 Roller Upper Side Compression Unit

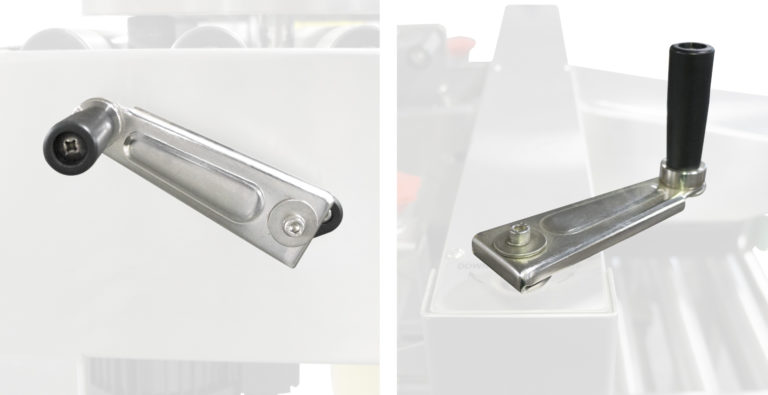

  • Width/Height Adjustment
    Width/Height Adjustment

    Can be Mounted on Either Side of Carton Sealer

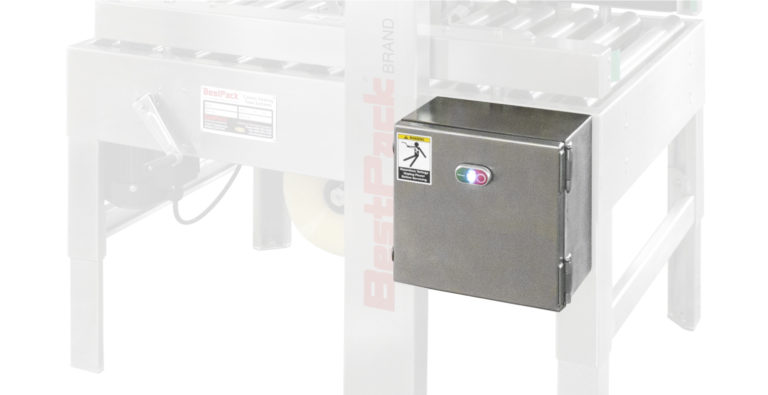

  • Electrical Box
    Electrical Box

    Is Mounted on the Left Side of the Sealer

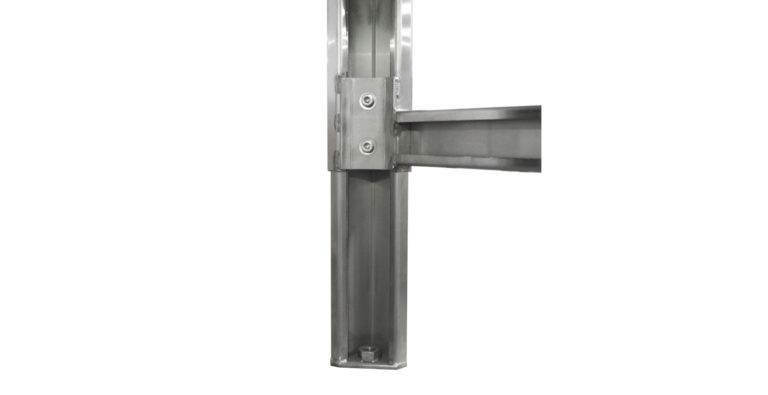

  • Adjustable Bed Height
    Adjustable Bed Height

    MSD22 & MSD3: From 23.5" to 30.0"; MSD23 & MSD33: From 25.8" to 30.0"

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., and 2,000 yd.

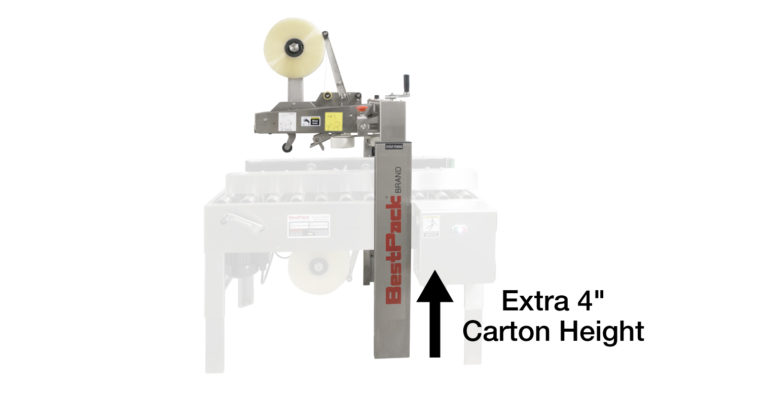

  • Upper Telescopic Mast
    Upper Telescopic Mast

    Tapped and Drilled that can be Raised (Un-bolted, Raised and Re-bolted) for an Extra 4" Carton Height if Needed

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • stainless locking casters accessory
    Stainless Locking Casters

    The heavy duty stainless locking casters allow you to move a carton sealer around.

  • stainless long conveyor accessory
    Stainless Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ stainless long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • ac-s tape head picture
    Stainless Steel Tape Head

    Standard AC Tape Head in Food Grade 304 Stainless Steel.

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • 3 flap folder accessory
    3 Flap Folder

    This accessory adds automation to your adjustable manual carton sealer. The operator only need to close the rear minor flap and push the carton into the unit, the carton sealer does the rest.

  • stainless short conveyor accessory
    Stainless Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ stainless short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit. The stainless steel construction can be washed down.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • Stainless Steel Short Conveyor Roller
    Stainless Short Infeed/Exit Roller Conveyor w/ L-Bracket

    This 19.75″ stainless short roller conveyor is a great work platform and allows for staging of cartons on the infeed and the exit. The stainless steel construction can be washed down.
