Category: Carton Sealers Belt Drive: Side Belt Drive

RS-6

Up to 15 Cartons/min.

Operator Required Operator Required
Random Cartons Random Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz Power
Requirements
60-75 PSI
5 SCFM
Air
Requirements
475 lbs Shipping
Weight
Description / Specifications/ Features/ Accessories/

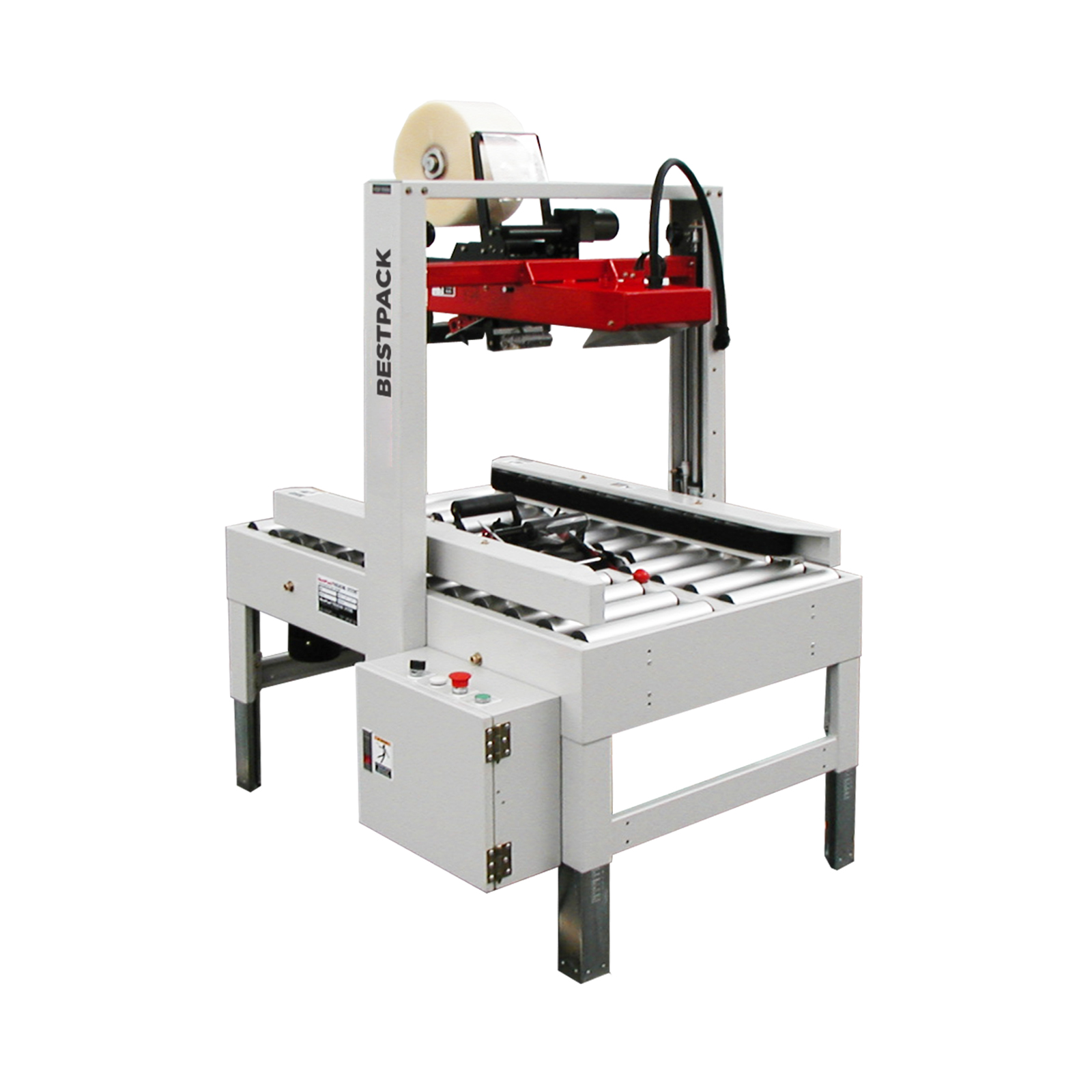

The BestPack™ RS 6″ Series is a Semi-Automatic Random Tape Carton Sealer in our incredibly flexible RS line, built for speed and rugged dependability using 6″ wide tape. With side belt drives, the RS-6 easily seals a wide range of random carton weights and sizes. Able to effectively seal very light to very heavy cartons, BestPack’s RS Series sealers are workhorses and the most flexible units in our random carton sealer product line .The RS-6 is perfect for random applications needing extra security, tamper protection, and pilferage prevention, and also effectively seals cartons that are overly heavy, over-filled, or otherwise difficult to keep sealed.

All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 15 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 60-75 PSI, 5 SCFM
  • Shipping Weight 475 lbs
  • Machine Dimensions (42.9") x (34.8") x (71.8")
  • Carton Range (6.0" - U") x (8.5" - 21.0") x (4.0" - 20.5")
  • Conveyor Height and Adjustment (20.5" - 30.0")

Specifications based on RS22-6

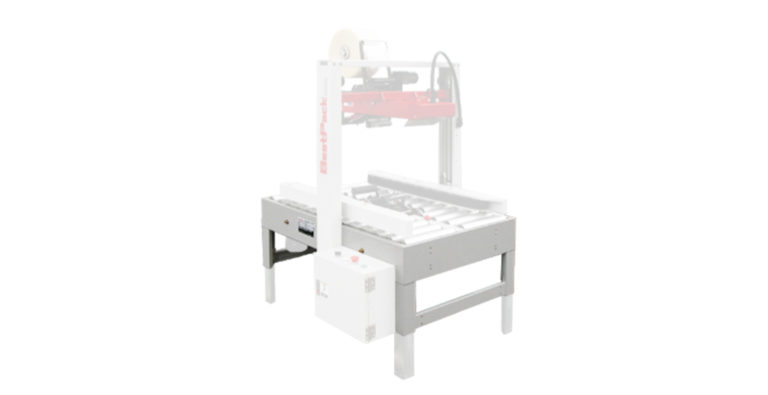

  • Heavy Duty 2mm CNC Cut and Welded Frame Including Upper Welded Legs
    Heavy Duty 2mm CNC Cut and Welded Frame Including Upper Welded Legs

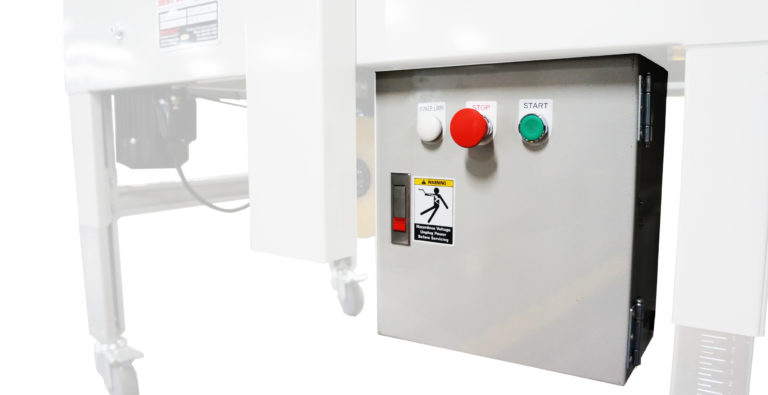

  • Electrical On/Off Box can also be Easily Mounted on Either Side of the Sealer (Left Side is Standard)
    Electrical On/Off Box can also be Easily Mounted on Either Side of the Sealer (Left Side is Standard)

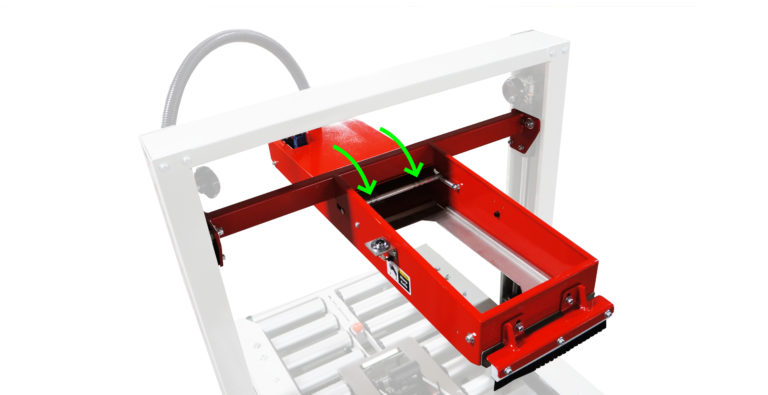

  • Accepts 6
    Accepts 6", 4", 3" and 2" Pop-out BestPack High Speed Tape Heads

  • Tape Roll Lengths: 1,000 yd., 1500 yd., 2,000 yd.
    Tape Roll Lengths: 1,000 yd., 1500 yd., 2,000 yd.

  • Quality UL Approved Electrical Parts
    Quality UL Approved Electrical Parts

  • Uses Heavy Duty SMC Oil-less Cushioned Air-cylinders
    Uses Heavy Duty SMC Oil-less Cushioned Air-cylinders

  • Upper Random Mast is Tapped and Drilled that can be Raised (Unbolted, Raised and Re-bolted) for an Extra 4
    Upper Random Mast is Tapped and Drilled that can be Raised (Unbolted, Raised and Re-bolted) for an Extra 4" Carton Height if Needed

  • Random Side Belt Drive System with 1-piece Molded Belts and V-belt Guide
    Random Side Belt Drive System with 1-piece Molded Belts and V-belt Guide

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5″ long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.
